CWWK-NAS-B-M6 10GbE NAS Motherboard ,6 SATA, 3 M.2 NVMe, DDR5 Mini-ITX
- Dual 10GbE for high-speed NAS and server networking
- 6 SATA + 3 M.2 NVMe for flexible storage expansion
- DDR5 memory support for smooth everyday performance
- Compact Mini-ITX design for efficient space-saving builds
- HDMI, eDP, WiFi slot, TF, and eMMC for broader connectivity
CWWK-NAS-B-M6 10GbE NAS Motherboard ,6 SATA, 3 M.2 NVMe, DDR5 Mini-ITX
Sale price$375.22

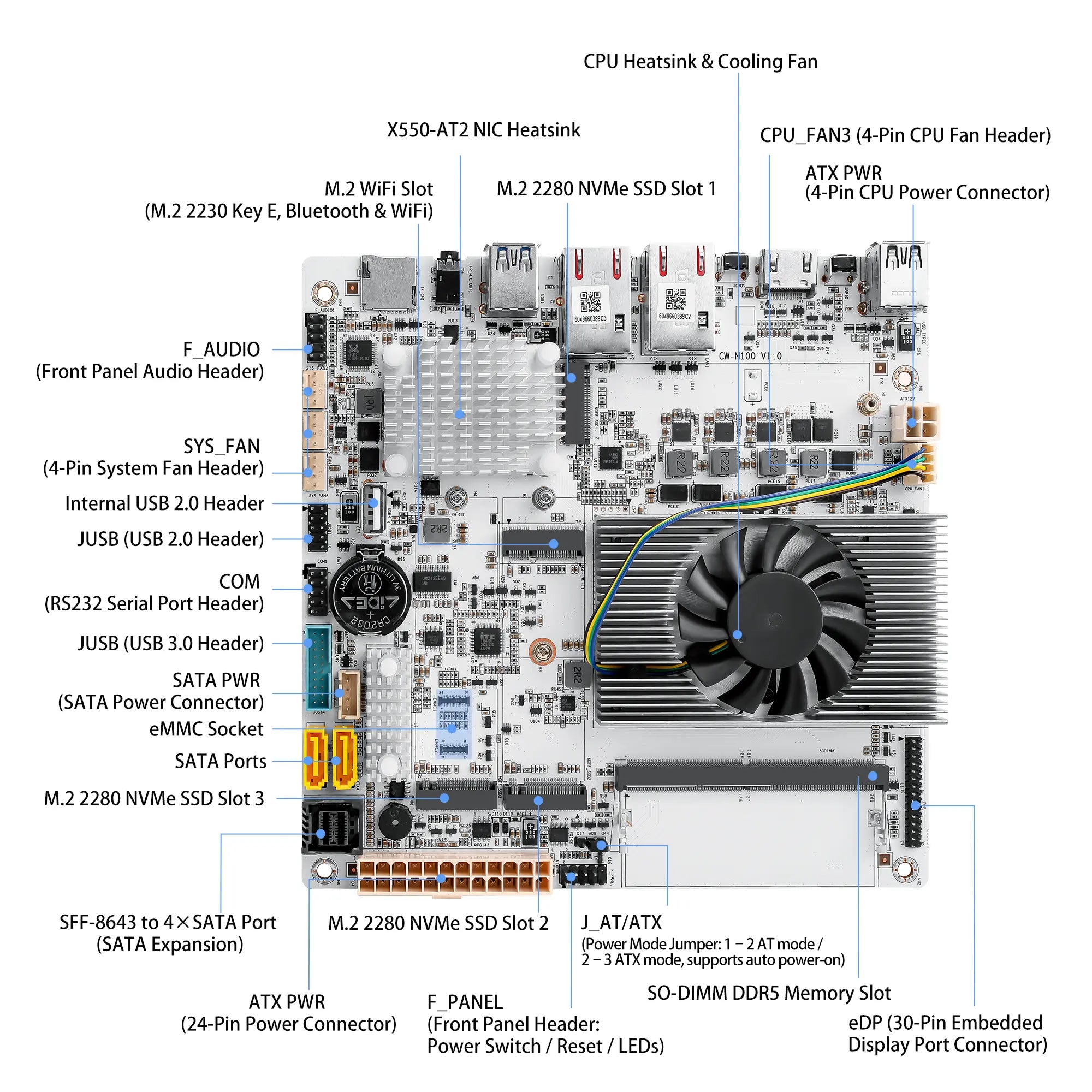

Technical Specifications
Detailed technical information and specifications for this product
Processor
Intel N100/N150/Core i3-N305
Memory
1 × SO-DIMM DDR5, up to 48GB, 4800MHz, single channel
Storage
6 × SATA 3.0, 3 × M.2 2280 NVMe, 1 × eMMC, 1 × TF Card Slot
Networking
2 × Intel X550-AT2 10GbE RJ45 LAN
Expansion
1 × M.2 2230 WiFi Slot, 1 × COM (RS232)
I/O Ports
1 × Type-C, 2 × USB 3.0, 1 × USB 2.0, 1 × HDMI 2.0, 1 × Audio Port
Form Factor
Mini-ITX, 170 × 170 mm
Operating System
Windows 10 / 11, Windows Server, Linux, UEFI Boot
Processor
| CPU Model | Intel N100 / Intel N150 / Intel Core i3-N305 |
| Cores / Threads | N100: 4C/4T; N150: 4C/4T; i3-N305: 8C/8T. |
| Turbo Frequency | N100: Up to 3.40GHz; N150: Up to 3.60GHz; i3-N305: Up to 3.80GHz. |
| Cache | N100: 6MB; N150: 6MB; i3-N305: 6MB. |
| TDP | N100: 6W; N150: 6W; i3-N305: 15W. |
Memory
| Memory Type | DDR5 SO-DIMM |
| Memory Slots | 1 × SO-DIMM |
| Maximum Capacity | Up to 48GB |
| Memory Speed | 4800MHz |
| Dual Channel | No, single channel |
Storage
| M.2 Slots | 3 × M.2 2280 NVMe |
| SATA Support | 6 × SATA 3.0 6Gbps |
Networking
| Ethernet | 2 × Intel X550-AT2 10GbE RJ45 |
| Wi-Fi | 1 × M.2 2230 CNVio2 WiFi slot, optional module support |
| Bluetooth | Supported via compatible M.2 WiFi/Bluetooth module |
| TF Card Slot | 1 × TF Card Slot |
| COM/GPIO | 1 × RS232/Supported |

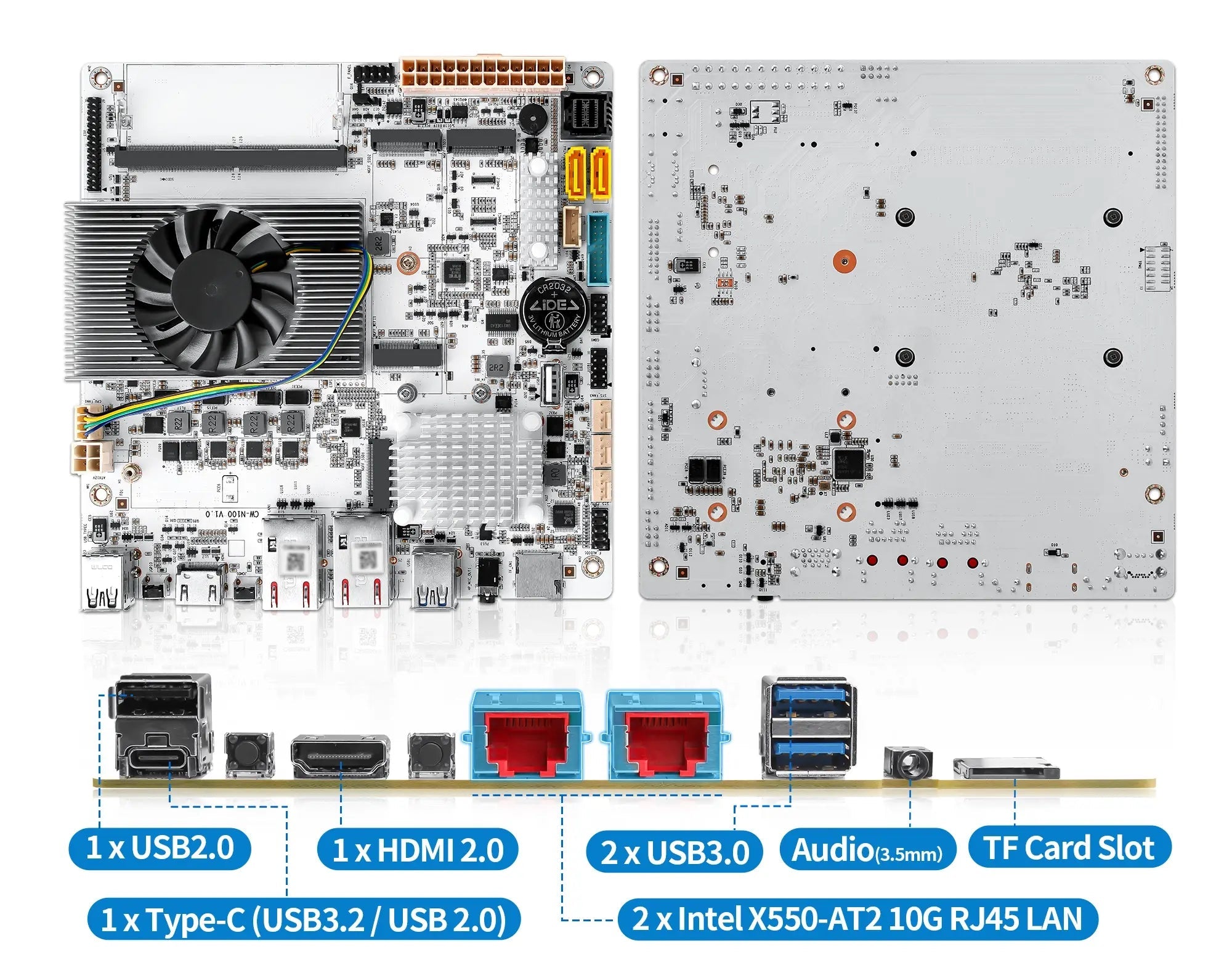

Expansion & I/O
| USB Ports | 1 × Type-C, 2 × USB 3.0, 1 × USB 2.0 |
| Display Outputs | 1 × HDMI 2.0, 1 × eDP |
| Audio | 1 × Audio Port |
| Power Input | ATX 24Pin + ATX 4Pin |
| eMMC | 1 × eMMC Connector |

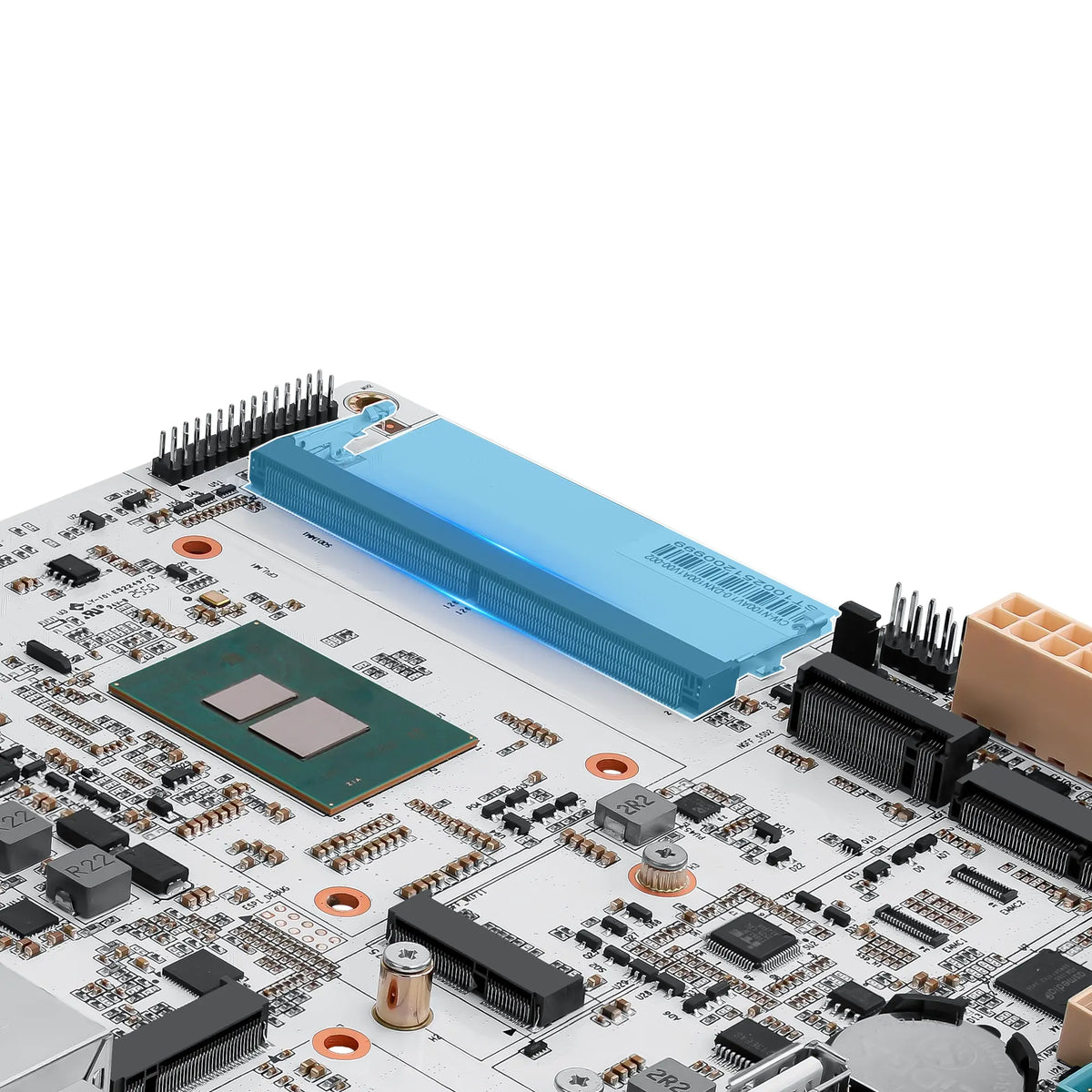

Memory card slot
1X SO-DIMM DDR5 Memory Slot
Supports up to 48GB(Max 4800MHz)

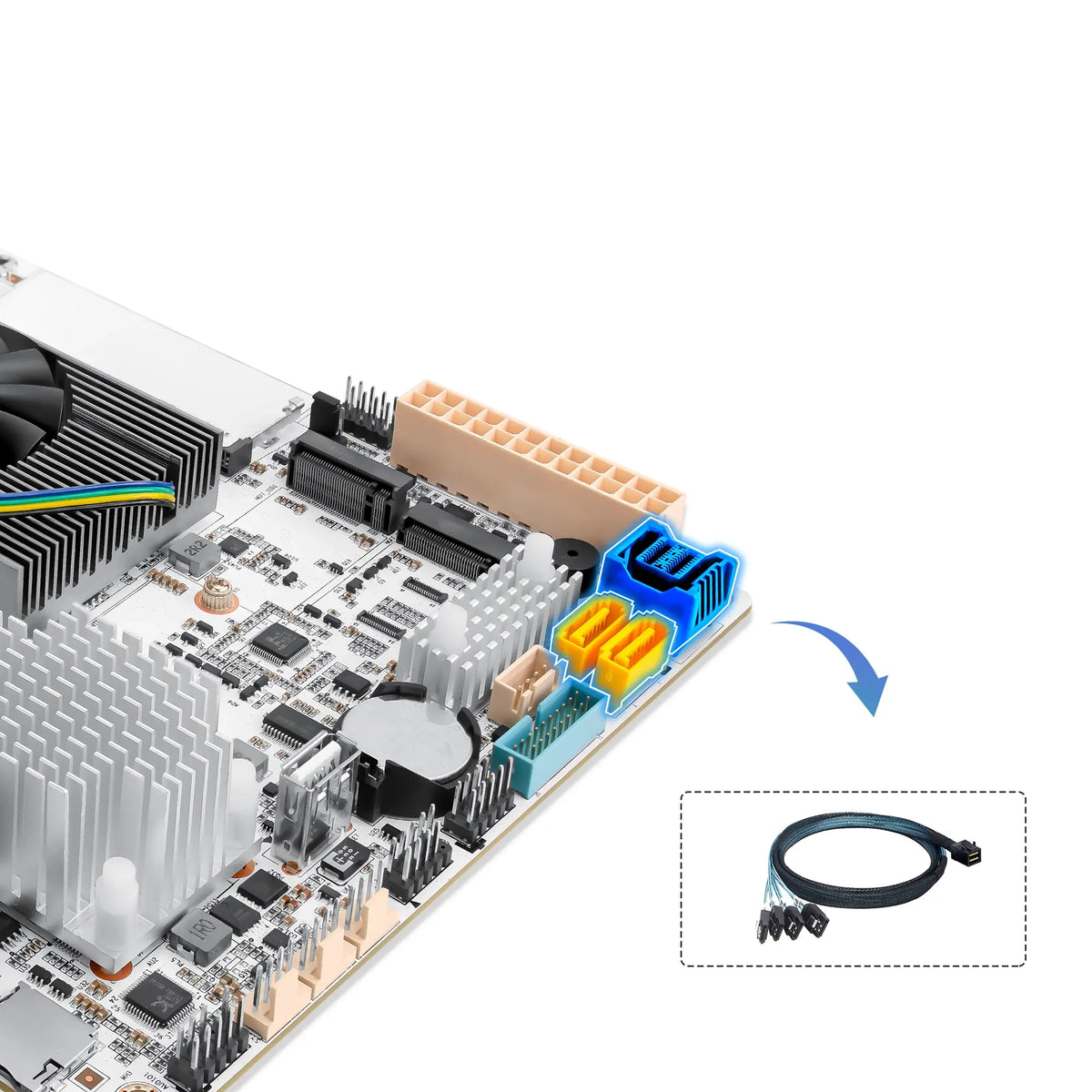

SATA expansion
6 x Sata3.0
Built with the ASM1166 controller using Pcle 3.0 x2 resources,this motherboard provides up to 6 x SATA 3.0 ports,including 2 native ports and expansion for 4 more via an SFF-8643 to
4-SATA cable,ideal for flexible NAS DlY storage setups.
Storage

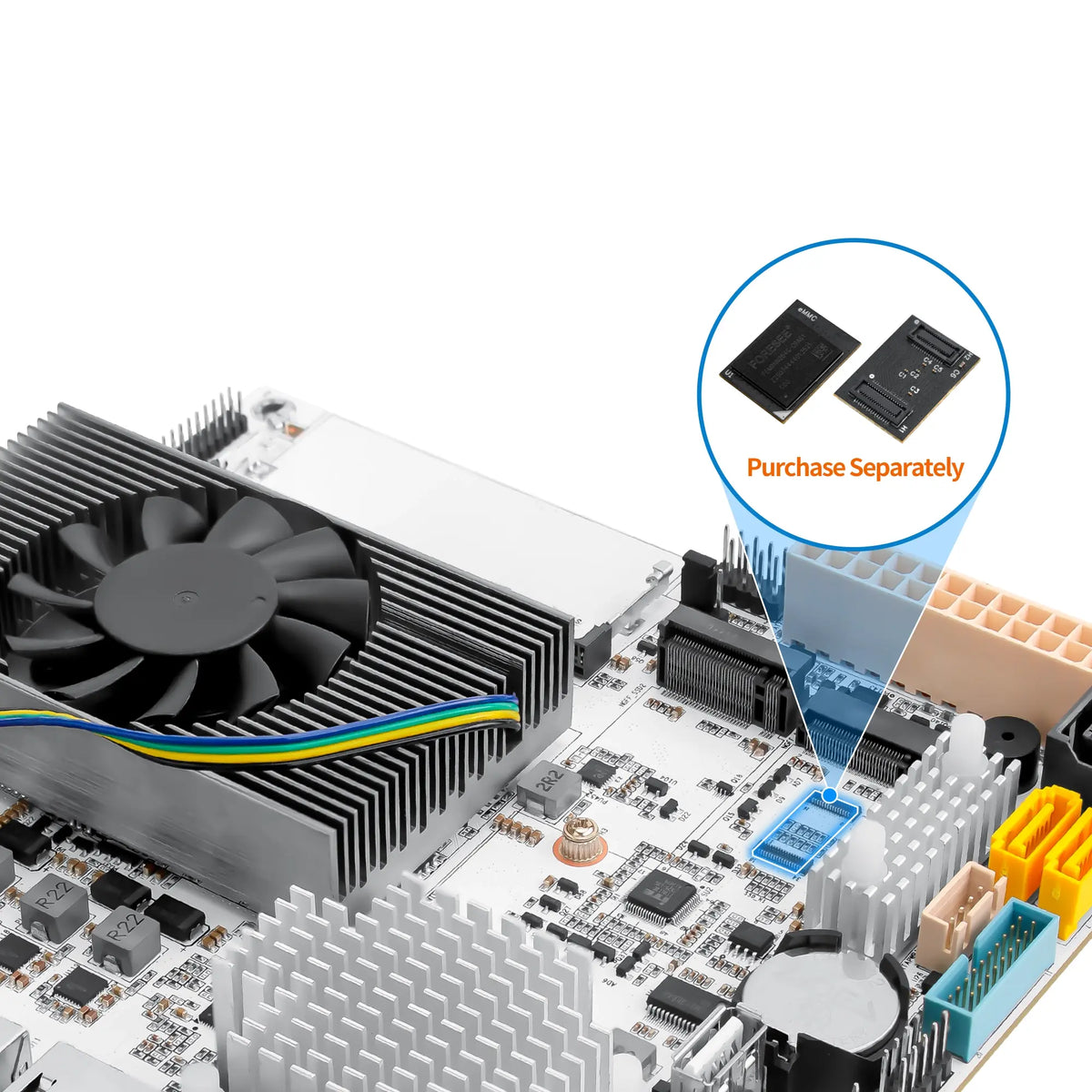

1xeMMC
Supports the addition of1 xeMMC storage.
meetingthe requirements for multi-system
setups and additional storage expansion.
hard disk

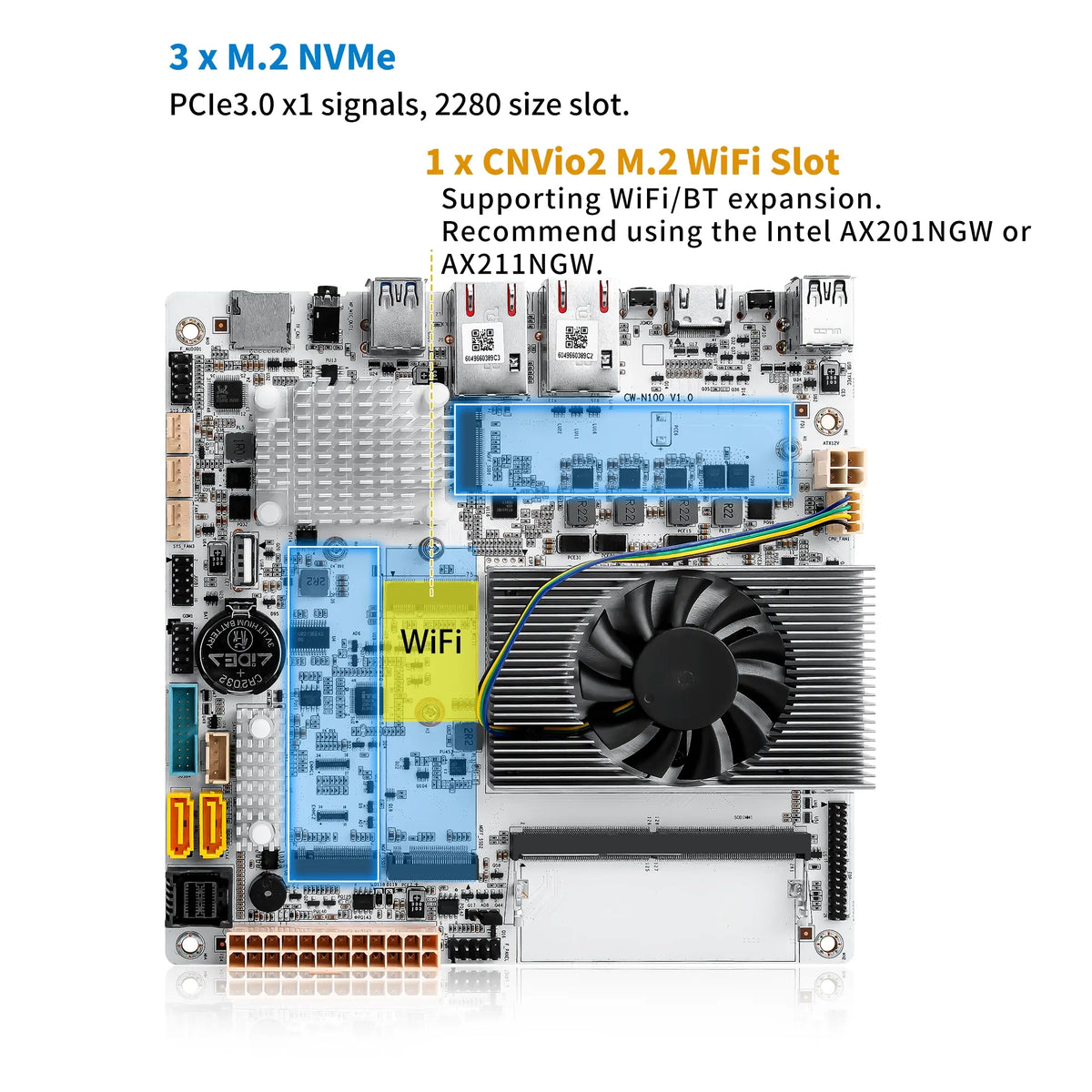

3xNVMe+1 x CNVio2 M.2 WiFi Slot
3 x M.2 NVMe
PCle3.0 xl signals, 2280 size slot.
1 x CNVio2 M.2 WiFi Slot
Supporting WiFi/BT expansion.
Recommend using the IntelAX201NGW OrAX211NGW.

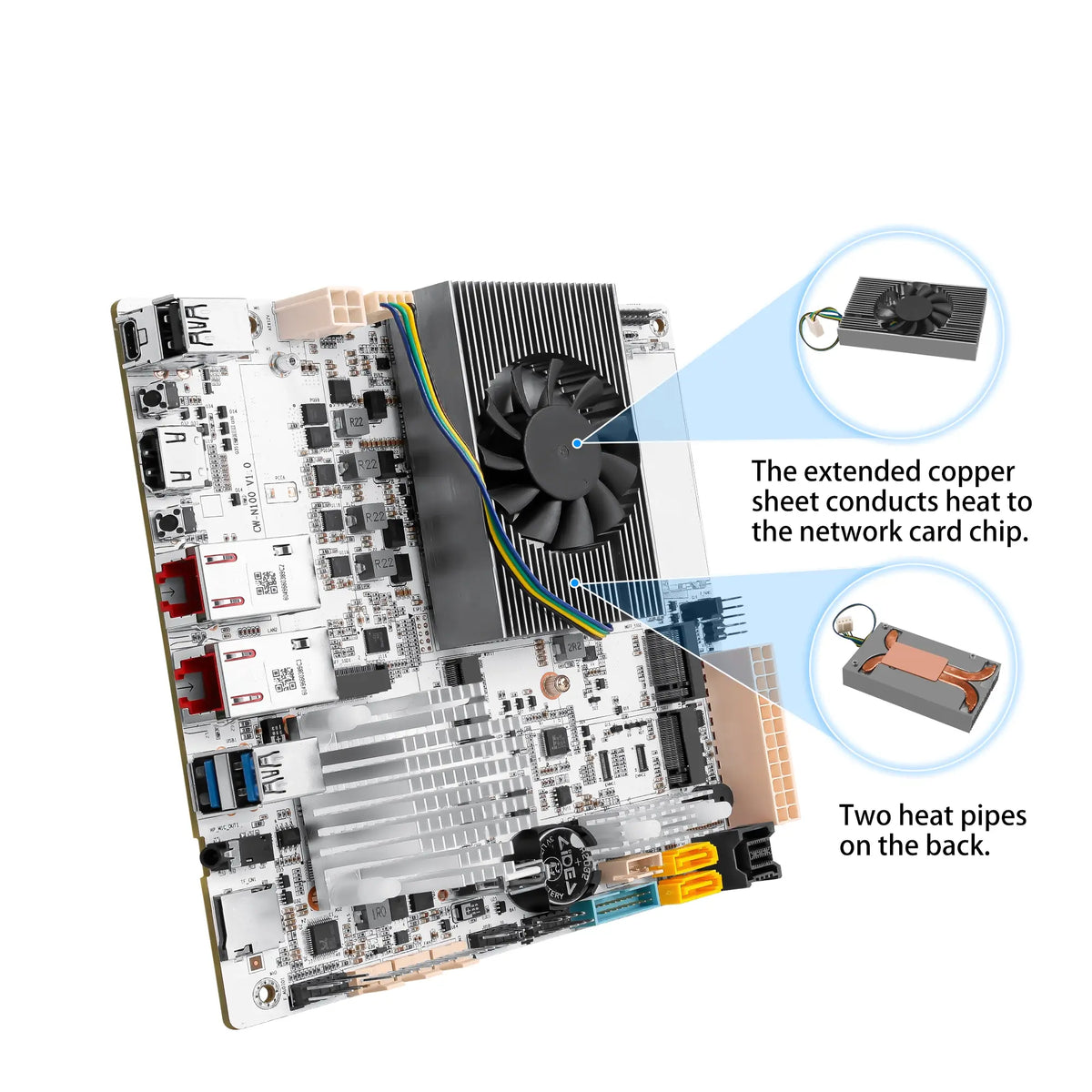

Fanless cooling
Dual ball bearing fan radiator
- The extended copper sheet conducts heat to the network card chip.
- Two heat pipes on the back.
