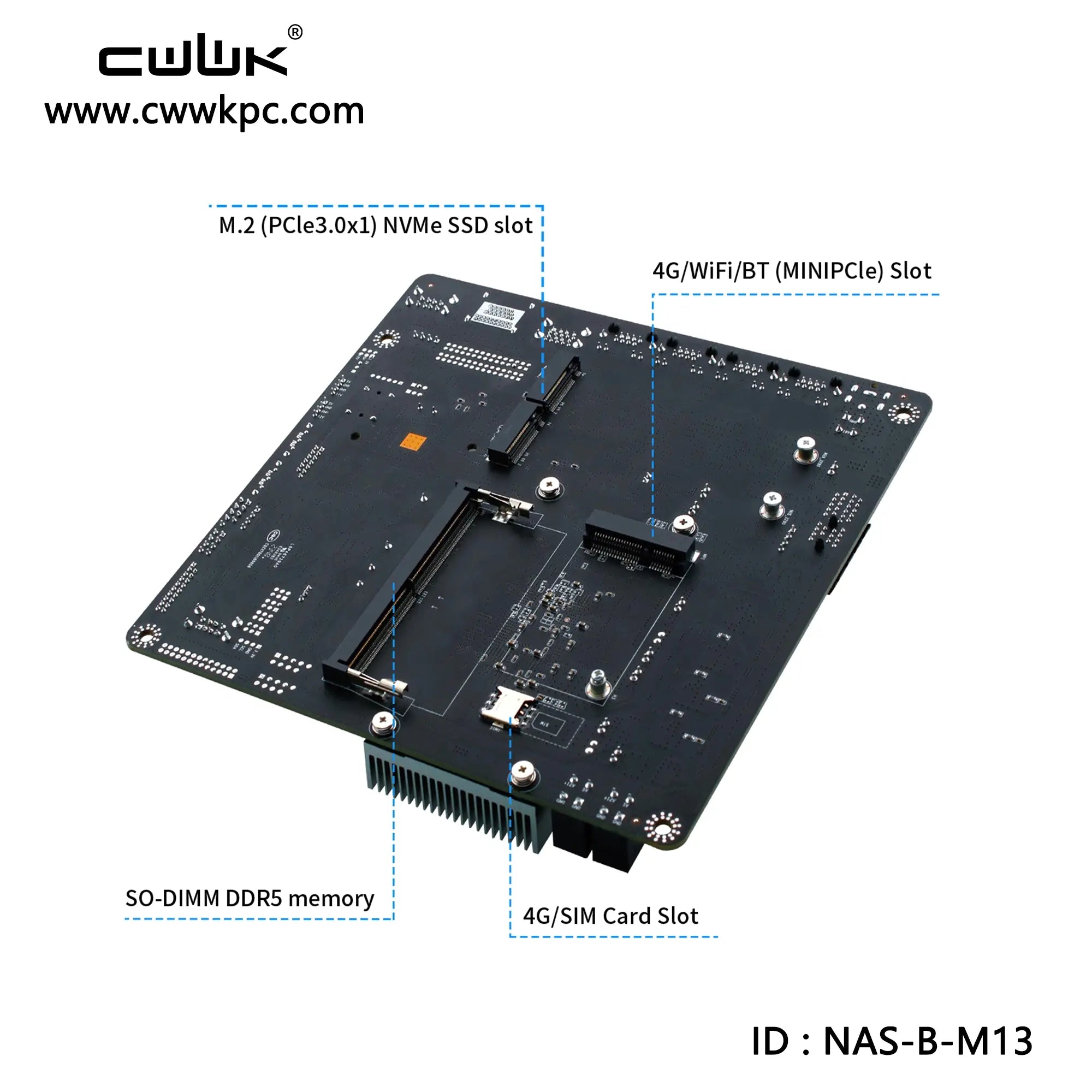

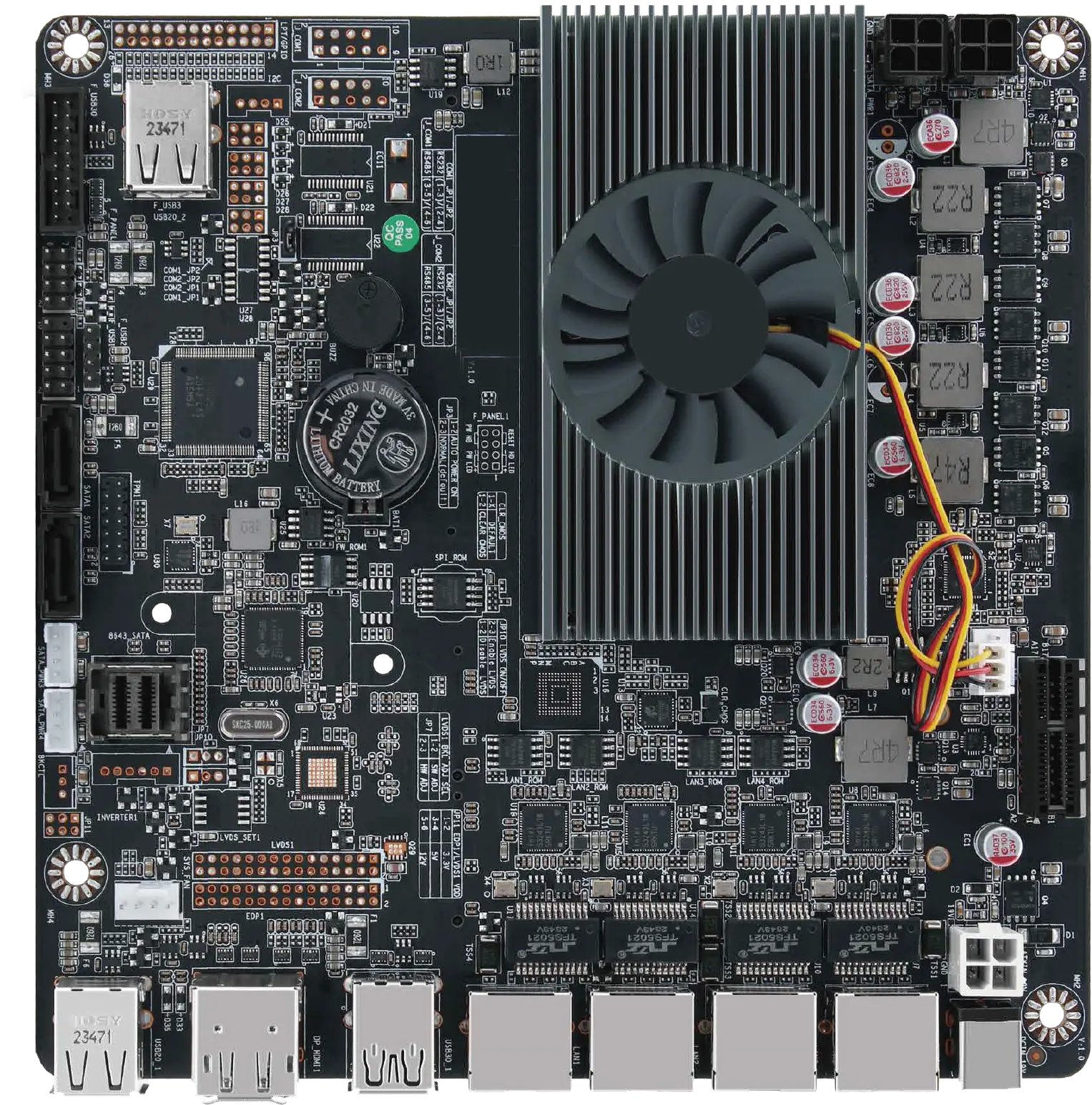

NAS-B-M13 DC 19V Embedded NAS Motherboard with 4x 2.5GbE, M.2 Expansion, HDMI and DP
- Compact DC-Powered Design for Embedded NAS Builds
- 4x Intel i226-V 2.5GbE for Faster Networking
- Flexible Expansion with M.2, SATA and PCIe
- HDMI and DP Output for Easy Setup and Maintenance
- Built for Always-On and Remote-Friendly Operation
Technical Specifications
Detailed technical information and specifications for this product
Processor
Intel Alder Lake-N CPU
Memory
1 × 262-pin DDR5 SO-DIMM, up to 16GB
Storage
1 × M.2 NVMe + 1 × M.2 SSD + 2 × SATA + 1 × 8643 SATA Pin
Networking
4 × Intel i226-V 2.5GbE LAN
Expansion
1 × M.2 WiFi + 1 × PCIe x1
I/O Ports

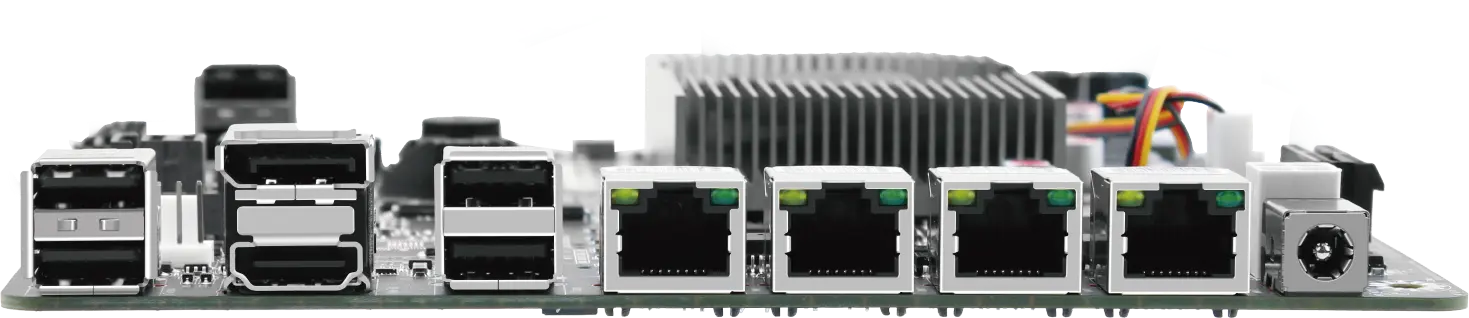

1 × DCIN, 4 × LAN, 1 × HDMI, 1 × DP, 4 × USB2.0
Form Factor
170 × 170mm
Operating System
Windows 10 / Windows 11
Processor
| CPU Model | Intel Core i7-13700H (13th Gen) |
| Cores / Threads | 14 Cores (6P+8E) / 20 Threads |
| Base / Turbo Frequency | 2.4 GHz / 5.0 GHz |
| Cache | 24MB Intel Smart Cache |
| TDP | 45W (configurable up to 115W) |
Memory
| Memory Type | DDR5 SO-DIMM |
| Memory Slots | 1 × 262-pin SO-DIMM slot |
| Maximum Capacity | Up to 16GB |
Storage
| M.2 Slots | 1 × M.2 NVMe 1 × M.2 SSD |
| SATA Support | 2 × SATA interface 1 × 8643 SATA Pin 2 × SATA_PWR Pin |
Networking
| Ethernet | 4 × Intel i226-V 2.5GbE LAN |
| Wi-Fi | 1 × M.2 WiFi slot |
Expansion & I/O
| PCIe Slot | 1 × PCIe x1 |
| USB Ports | Rear: 4 × USB2.0 Internal: 2 × F_USB1 Pin + 1 × F_USB3.0 Pin + 2 × USB2.0 Pin |
| Display Outputs | 2 × HDMI 2.1, 2 × DisplayPort 1.4 |
| Power Input | DC 19V / PWIN_19V |
