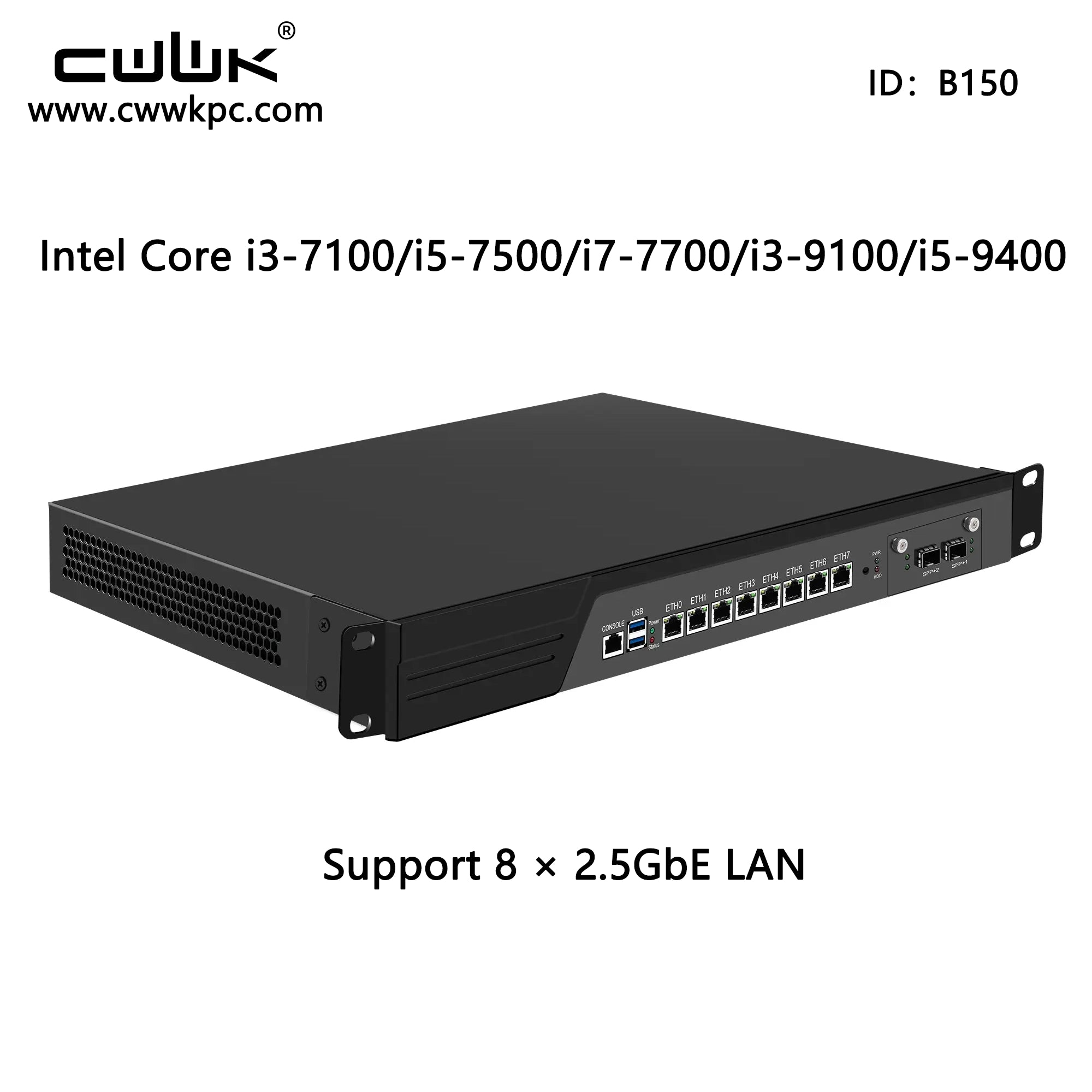

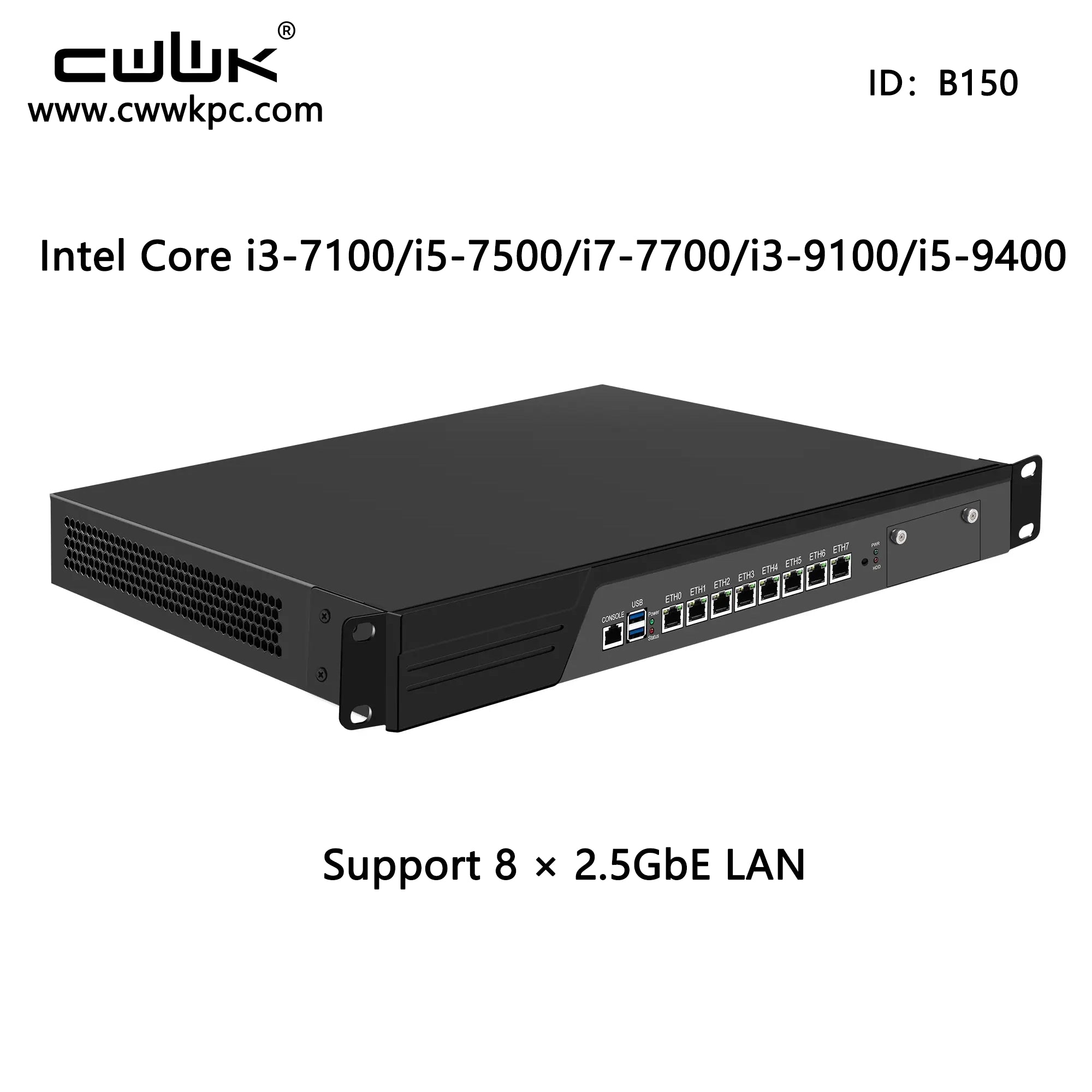

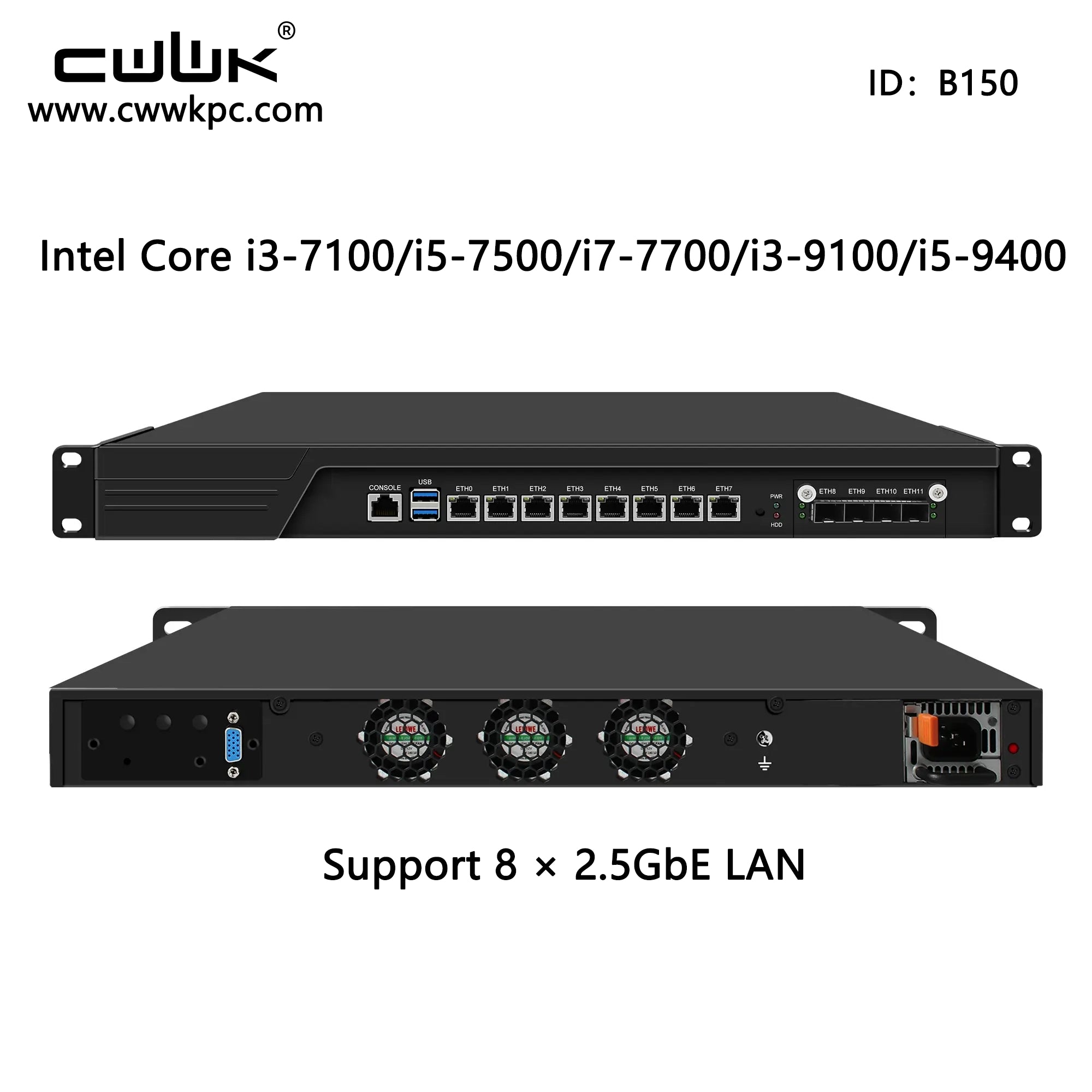

CWWK 1U-B150 19” Rack mount server B150 Core i3 7100/Core i5 7500/Core i7 7700, 8 x i226V 2.5GbE LAN + 10Gb SFP+ Firewall Hardware VPN Router PC, DDR4 RAM SSD OPNsense Hardware Rackmount for Homelab with VGA, SIM, Redundant power supply
Product Description
-
CPU:
Intel Core i3-7100, 2C/4T, Base 3.9GHz, 3MB Cache, TDP 51W -
CPU:
Intel Core i5-7500, 4C/4T, Base 3.4GHz, Turbo Boost up to 3.8GHz, 6MB Cache, TDP 65W -
CPU:
Intel Core i7-7700, 4C/8T, Base 3.6GHz, Turbo Boost up to 4.2GHz, 8MB Cache, TDP 65W -
CPU:
Intel Core i3-9100, 4C/4T, Base 3.6GHz, Turbo Boost up to 4.2GHz, 6MB Cache, TDP 65W -
CPU:
Intel Core i5-9400, 6C/6T, Base 2.9GHz, Turbo Boost up to 4.1GHz, 9MB Cache, TDP 65W -
Chassis:
19” 1U rack mount server chassis with dust filter -
GPU:
Intel HD Graphics 630 -
Memory:
2 x SODIMM DDR4 RAM slots, up to 64GB -
Storage:
1 x mSATA slot and 3 x SATA 3.0 ports -
Expansion:
1 x Mini PCIe (supports WiFi/BT)
1 x PCIe x8 slot -
Pin Header:
1 x 8-pin programmable GPIO
2 x USB 2.0 pin headers -
Network:
8 x Intel i226-V 2.5GbE LAN ports -
I/O Interface:
1 x RJ45 Console
2 x USB 3.0
8 x LAN
1 x VGA -
Power Supply:
AC 100–240V, 50–60Hz -
Operating Temperature:
0°C ~ 60°C -
Storage Temperature:
-10°C ~ 70°C -
Relative Humidity:
10% ~ 90% (non-condensing) -
Dimensions:
17.33 x 12.68 x 1.78 inches -
Weight:
14.33 lbs -
Package Includes:
1 x 1U Firewall Computer
2 x Rack Ears
1 x Power Cable
1 x SATA Cable
Screws -
Features:
Supports Auto Power On, Wake on LAN, PXE, AES-NI, system power management, temperature monitoring -
BIOS:
Supports UEFI and Legacy modes -
Compatibility:
Supports Windows 10/11, Windows Server, pfSense, OPNsense, OpenWrt, Linux distributions, Proxmox VE, ESXi -
Applicable Scenarios:
Soft router, security gateway, IDS/IPS, firewall, load balancing, network gateway, AC controller, bastion host -
Customization Options:
1. Chassis supports 1U or 2U rackmount options
2. Power supply supports single power or redundant power supply
3. Ethernet configuration can be customized:
8 x Intel i226-V 2.5GbE RJ45 + 2/4 x 10Gb SFP+
Bypass function optional
4. Wireless expansion supports WiFi / Bluetooth
