CWWK S1 N150 N355 Mini PC Firewall Appliance, 2 x 10GbE SFP+ Mini Computer with 2 x i226-V 2.5GbE LAN, OPNsense Micro PC, Dual 4K Display, USB-C, TF, AES-NI

CPU options: Twin Lake N150 / Core 3 N355

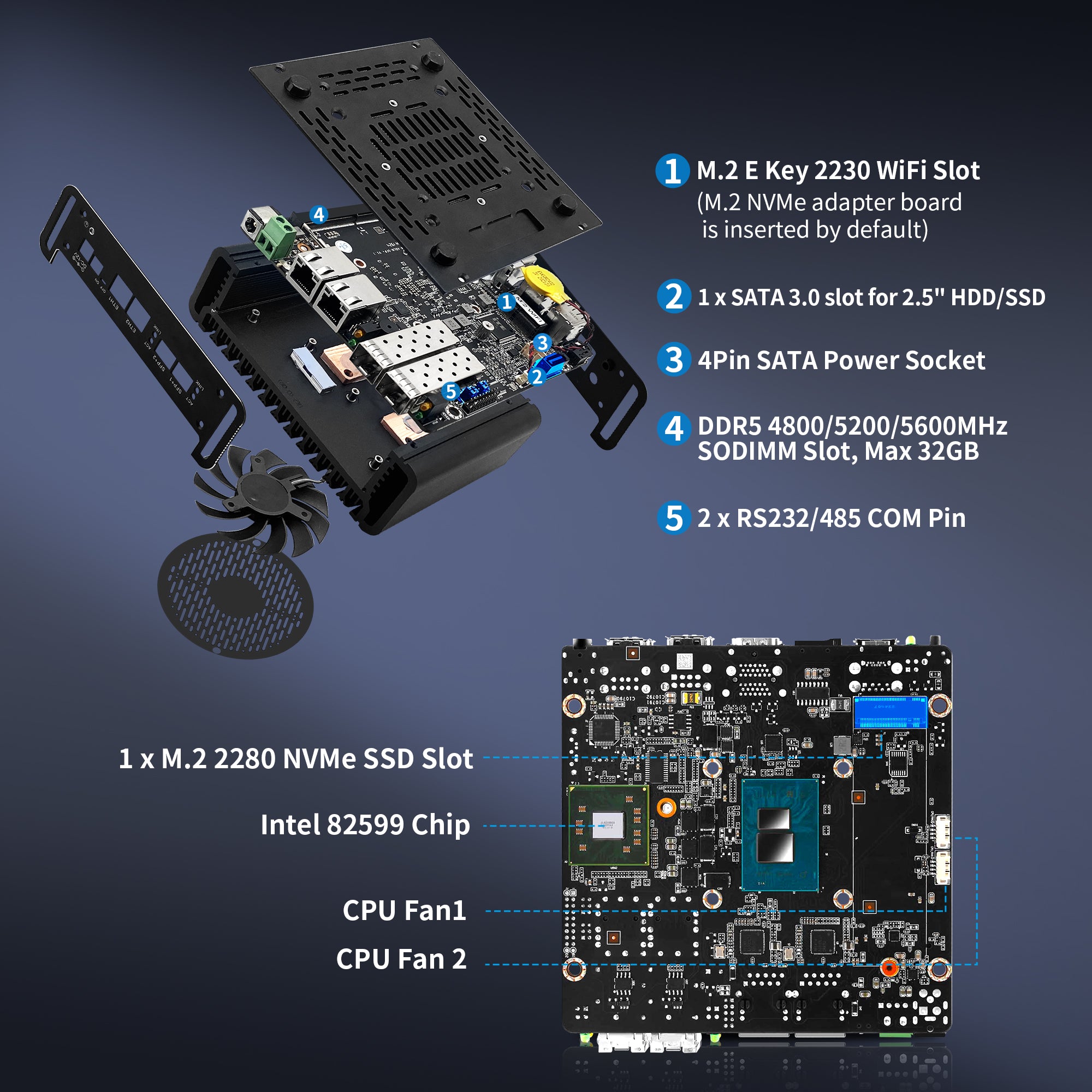

Memory: 1 x SO-DIMM DDR5 RAM slot, up to 48 GB (max. 4800 MHz).

Storage options: 2 x M.2 2280 NVMe SSD slots (PCIe3.0 x1), 1 x SATA3.0 port, and 1 x TF card slot

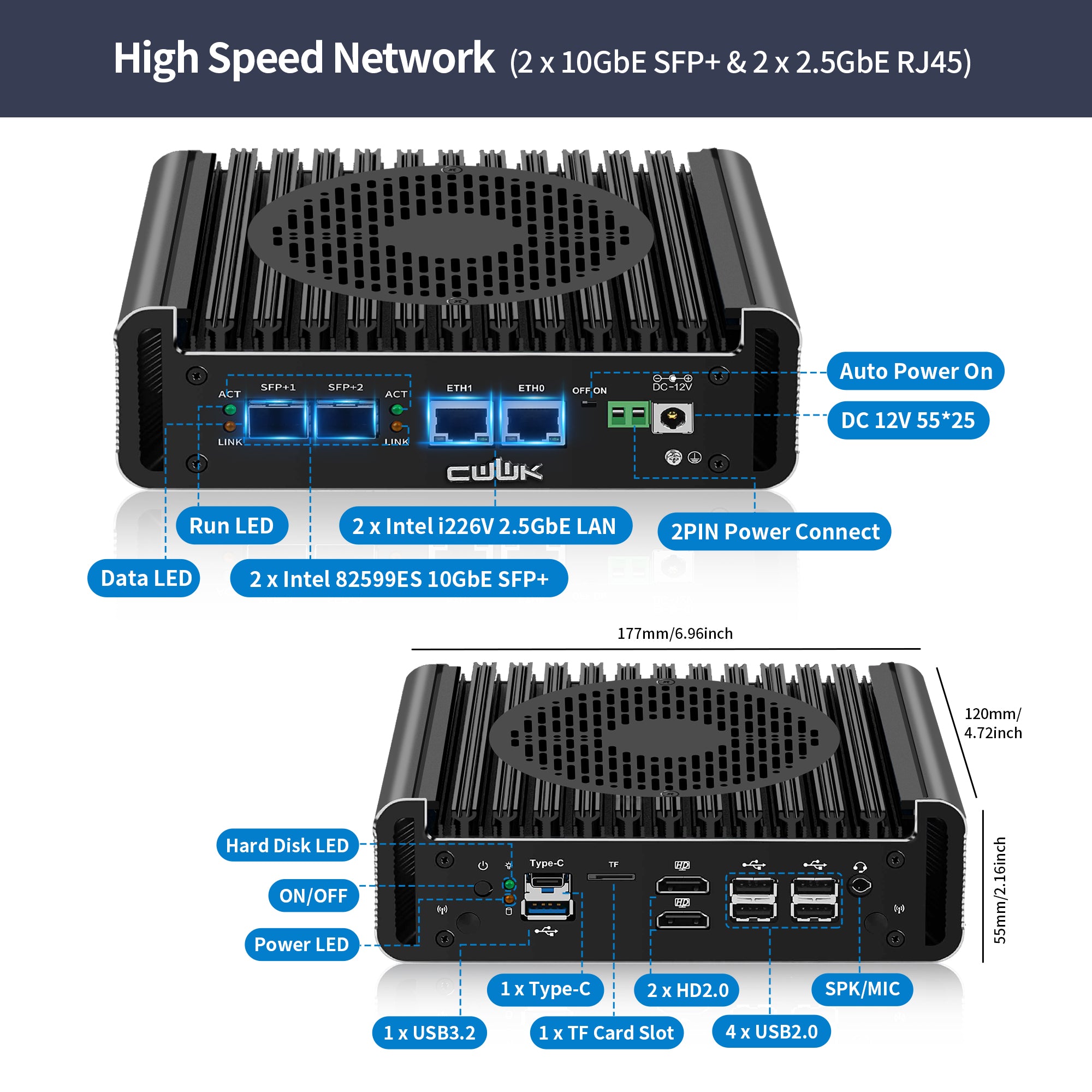

Network controller: 2 x 82599ES 10GbE SFP+ optical port, 2 x i226-V 2.5GbE RJ45 port

WiFi/BT support: 1 x M.2 E-Key WiFi slot, support WiFi6/BT5.2 expansion (after removing the e-key to M-key adapter)

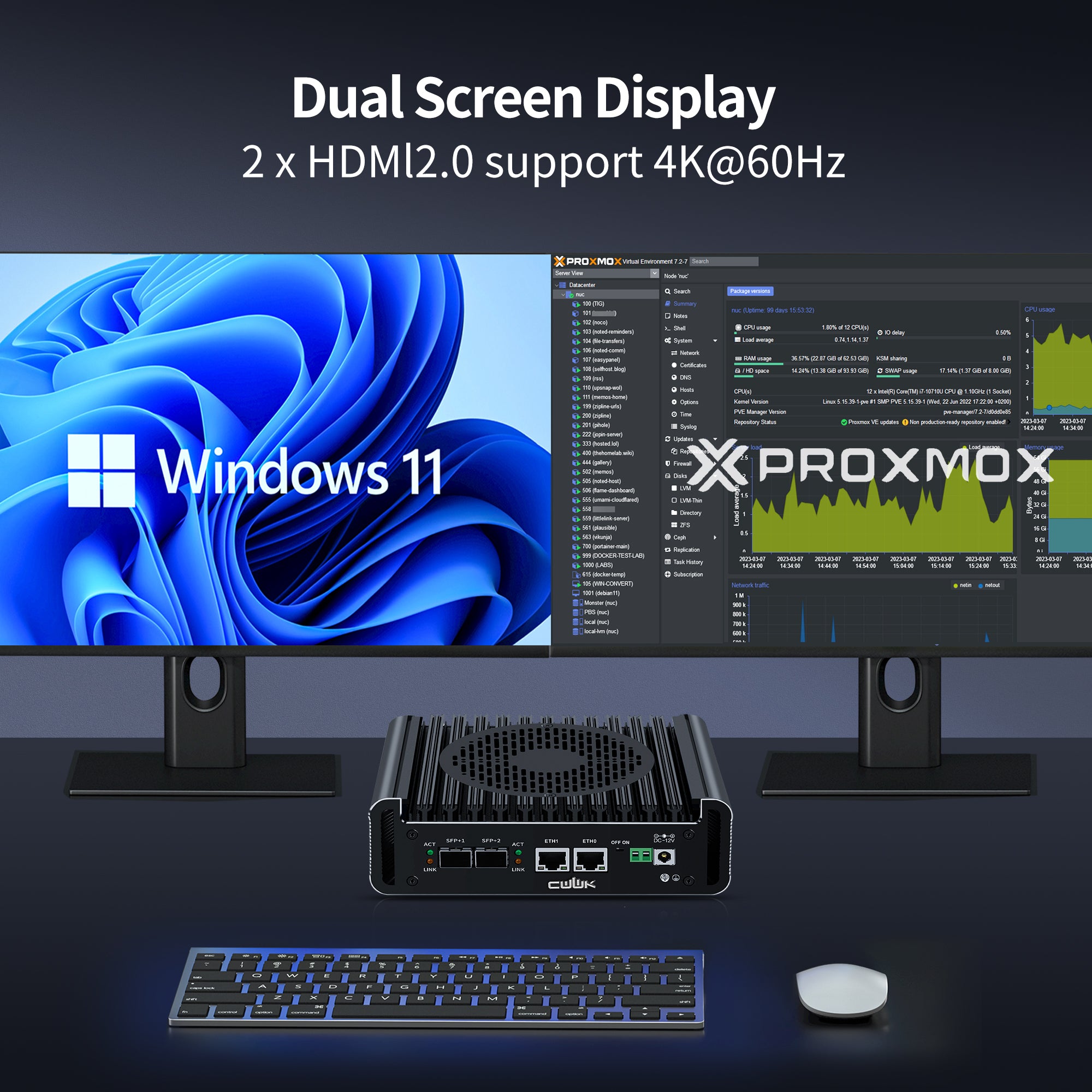

Display ports: 2 x HD2.0 port, supports up to 4K@60Hz

USB Ports: 1 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 4 x USB 2.0 Type-A

Internal Pins: RS232/485 COM Pin, GPIO Pin

Housing: full aluminium alloy housing.

Cooling type: active and passive cooling

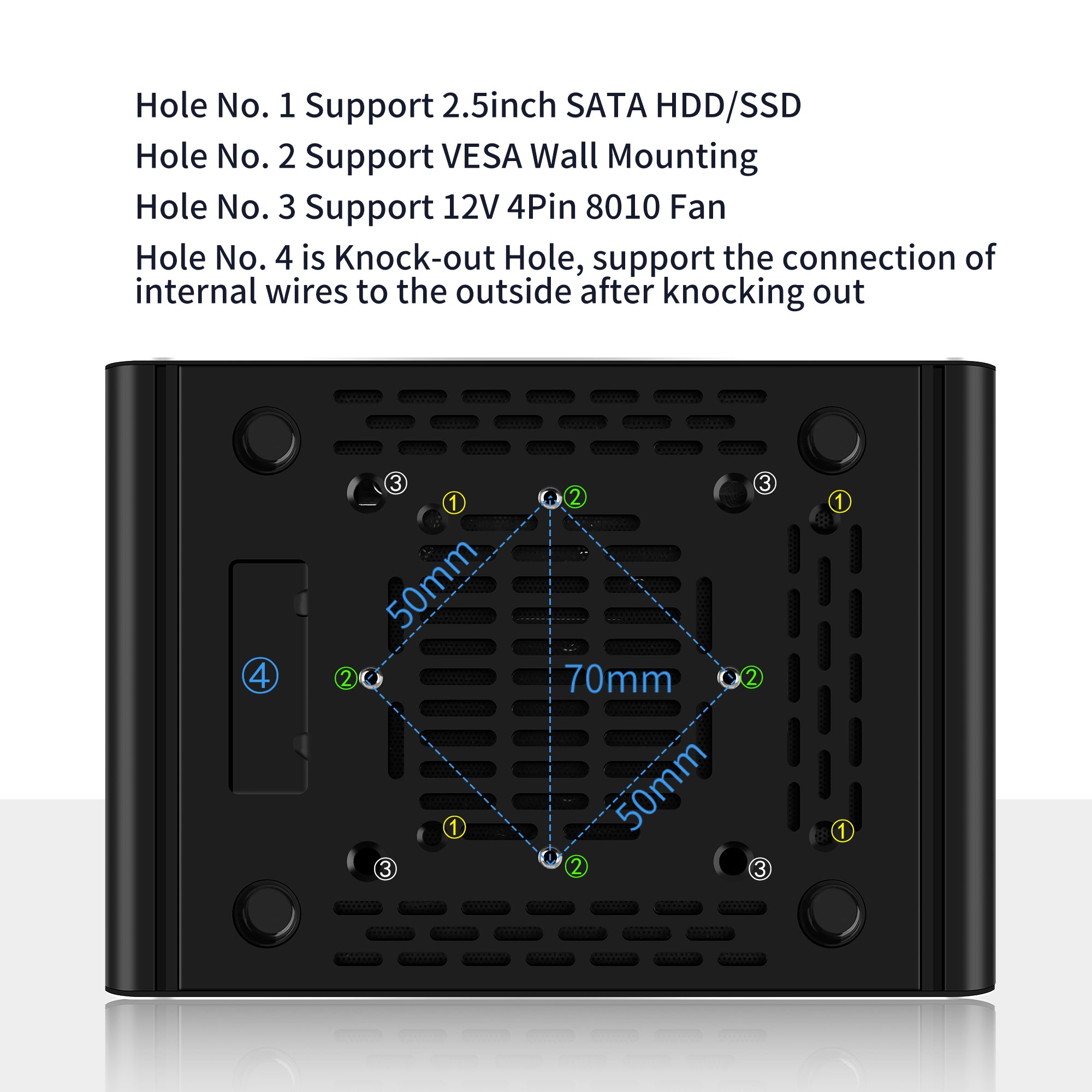

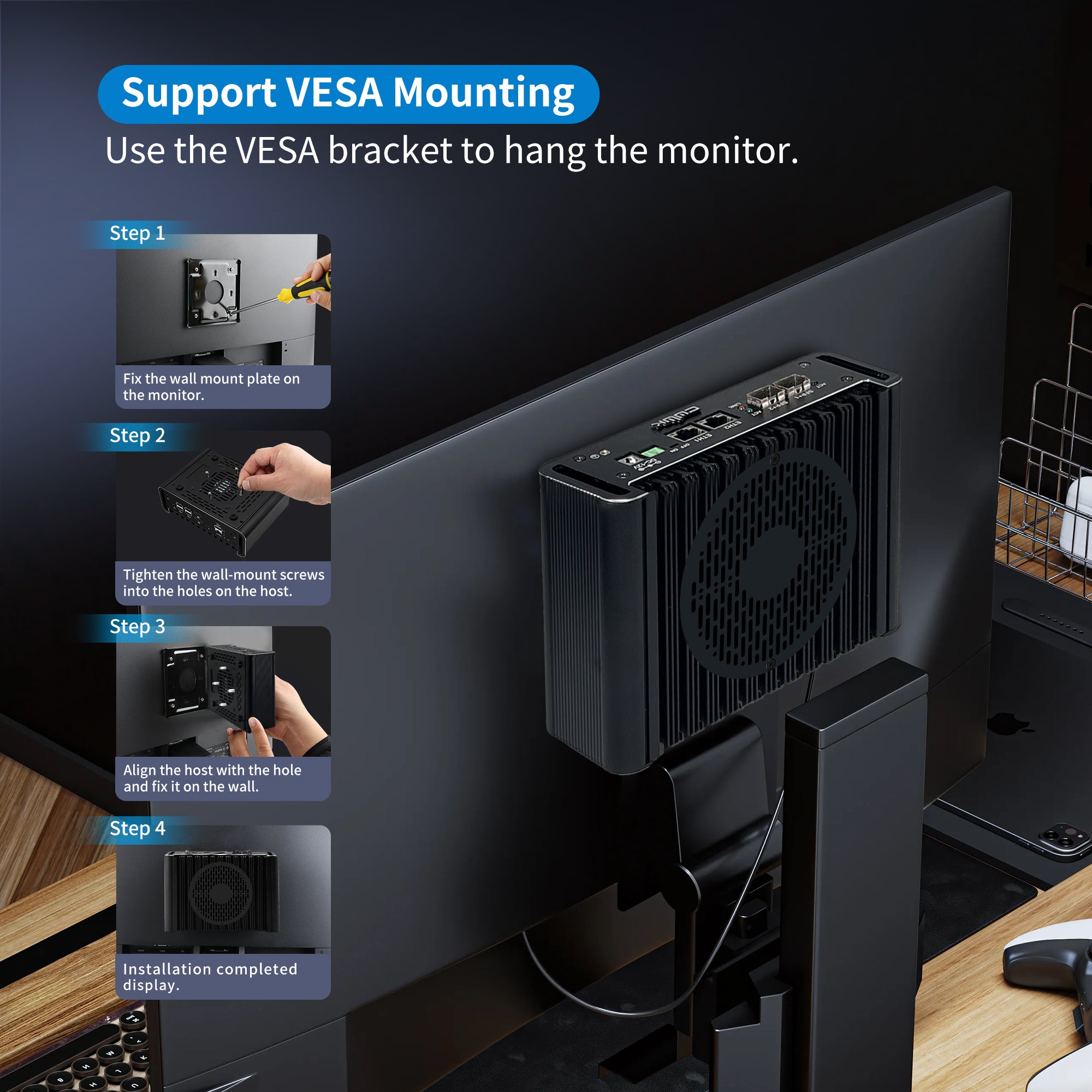

VESA Adapter: Support

Fan installation: also supports 1 x 12V 4-pin 8010 fan.

Power supply: DC 12 V.

Storage temperature: 0°C ~ 70°C.

Operating temperature: 0°C ~ 70°C.

Humidity: 5% ~ 85% relative humidity, non-condensing.

Size: 17.7 x 12 x 5.5 cm

Weight: 1.2 kg.

Package width: 100 mm, Package depth: 200 mm, Package height: 200 mm, Package height: 100 mm

Official Support ：The user manual, various driver files and other product-related documents are available on the official website

Features: Support AES-NI, Auto Power On, Wake-on-LAN, PXE Start

Operating System: Support Soft Router System, Win OS, Linux, PVE, ESXi

External cable connections: support external connections. Open design with removable front and back panels. The base can be removed to make cable connections, especially for external 3.5" SATA HDDs.
