1U-Z87 Rackmount Firewall Appliance with 8×2.5GbE and Optional 10GbE SFP+

Intel 4th Gen Core Rackmount Firewall Platform:

The CWWK 1U-Z87 is built on the Intel Z87 platform and supports Intel 4th Gen Core i3/i5/i7 FCPGA946 processors. It is designed for users who need a 1U rackmount firewall PC for routing, VPN, network security, home lab, and small office network deployment.

8-Port Intel 2.5GbE Networking:

Equipped with 8 × Intel i226-V 2.5GbE RJ45 LAN ports, the 1U-Z87 is suitable for multi-WAN routing, firewall rules, LAN segmentation, VLAN deployment, and high-density network management. It is a practical choice for pfSense, RouterOS, iKuai, Linux, and Windows-based network systems.

Optional 10GbE SFP+ Uplink Support:

For users who need higher-speed network expansion, the 1U-Z87 can be configured with optional 2 × Intel 82599 10GbE SFP+ ports. This makes it suitable for connecting to 10GbE switches, NAS storage, servers, or high-bandwidth network environments.

Flexible Storage and Expansion Design:

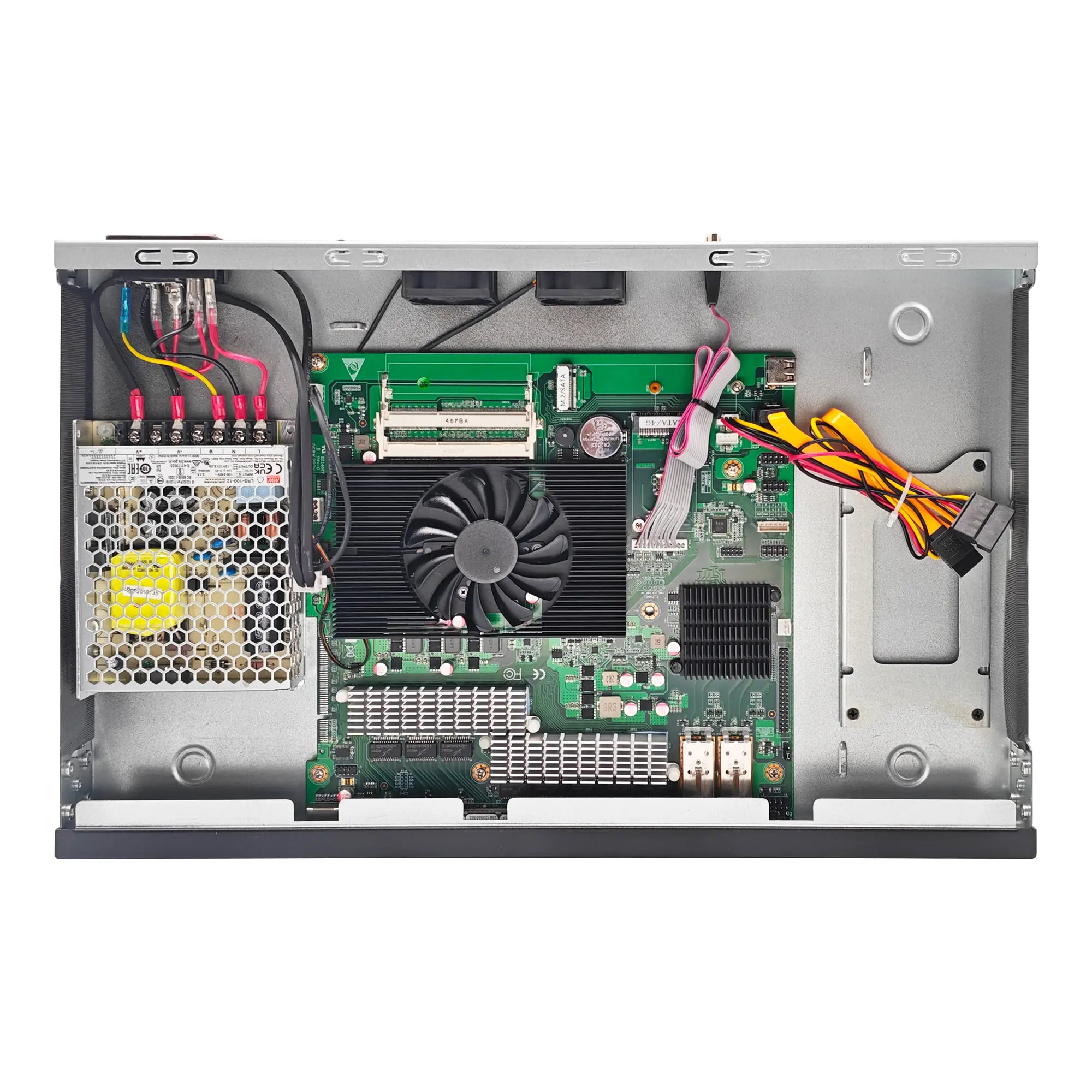

The motherboard supports 2 × SATA ports, 1 × M.2 SATA slot, 1 × mPCIe slot, 1 × SIM card slot, and 1 × PCIe x8 expansion slot. Users can expand storage, add network cards, or use 3G/4G modules depending on their firewall, router, or home lab setup.

1U Rackmount Design for 24/7 Network Use:

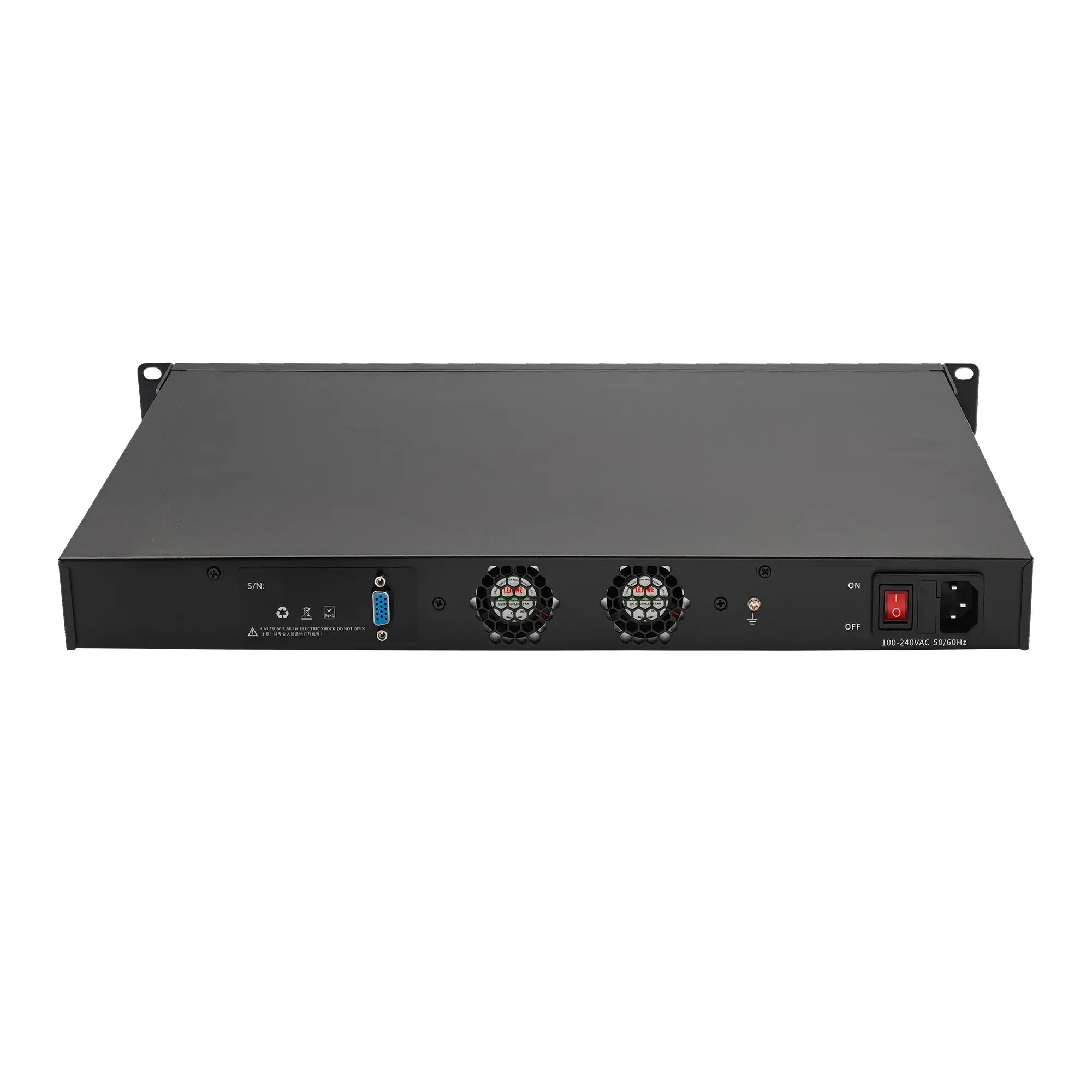

With DC 12V power input, VGA display output, USB ports, COM interface, Wake-on-LAN, network boot support, and support for Windows, Linux, CentOS, iKuai, RouterOS, and pfSense, the CWWK 1U-Z87 is built for clean rack installation and continuous network operation.
