CWWK Mini PC Firewall Appliance Pentium 8505, 6 x i226-V 2.5GbE LAN OPNsense Mini Computer, F17 Fanless Micro PC DDR4 8GB RAM 256GB NVMe SSD, PCIe3.0 x4, USB-C, 3-Display, MicroSD
Sale price$384.87
Description
12th Gen Pentium 8505 Processer: The CWWK F17 Mini PC equipped with Pentium Gold 8505 CPU, 5 cores 6 threads, 1 x Performance-core up to 4.40GHz, 4 x Efficient-cores up to 3.30GHz, 8MB cache, TDP15-55W, 20 PCIe lanes. This big.LITTLE architecture ensures excellent performance for multitasking, providing high efficiency for daily tasks and energy savings

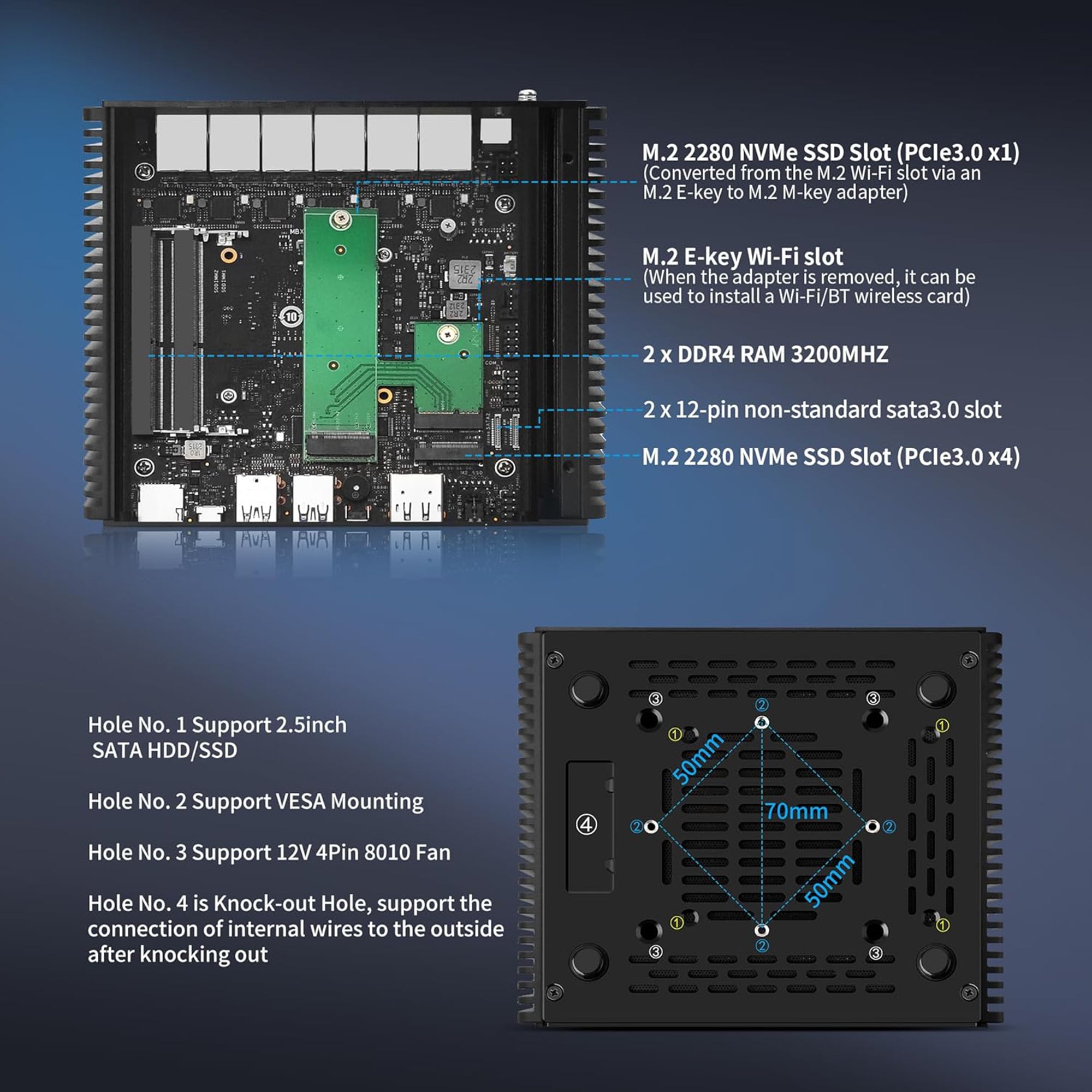

DDR4 and Dual NVMe Slot: Dual Channel DDR4 SO-DIMM 3200MHz RAM slot, up to 64GB. With 2 x M.2 2280 NVMe SSD slots, the NVME1 (PCIe Gen3 x4) can support up to theoretical maximum speed of 4 GB/s, and the NVME2 (PCIe Gen3 x1) converted from the M.2 Wi-Fi slot via an M.2 E-key to M.2 M-key adapter. 2 x 12-pin non-standard SATA3.0 connectors for SATA SSD/HDD

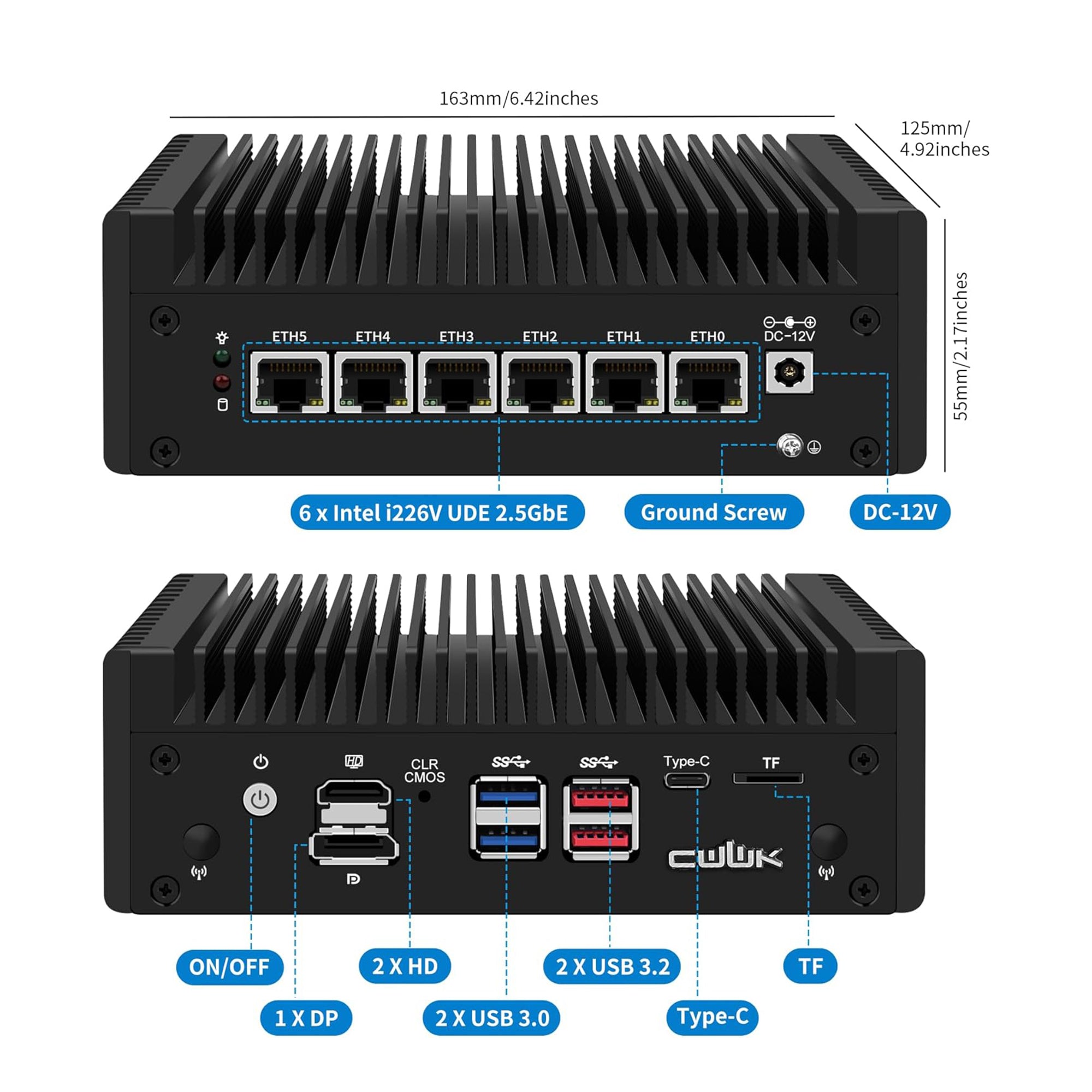

6 x 2.5Gbit LAN: Features 6 x i226-V 2.5Gbps Ethernet controllers, supporting 100Mb/1Gb/2.5Gb speeds. Compatible with open-source software router systems (e.g., OPNsense) and virtualization platforms (e.g., PVE), ideal for network firewalls or All-In-One setups
Multiple I/O Ports: Features UHD Graphics Xe G4 48EUs (1100 MHz), supporting HD1.4+DP1.4+USB-C triple display (DP1.4 up to 8K@60Hz, HD1.4 and USB-C up to 4K@60Hz). 2 x USB3.2 Gen2 (10Gb/s), 2 x USB3.0, 1 x MicroSD slot for storage or system boot, and a clear CMOS botton

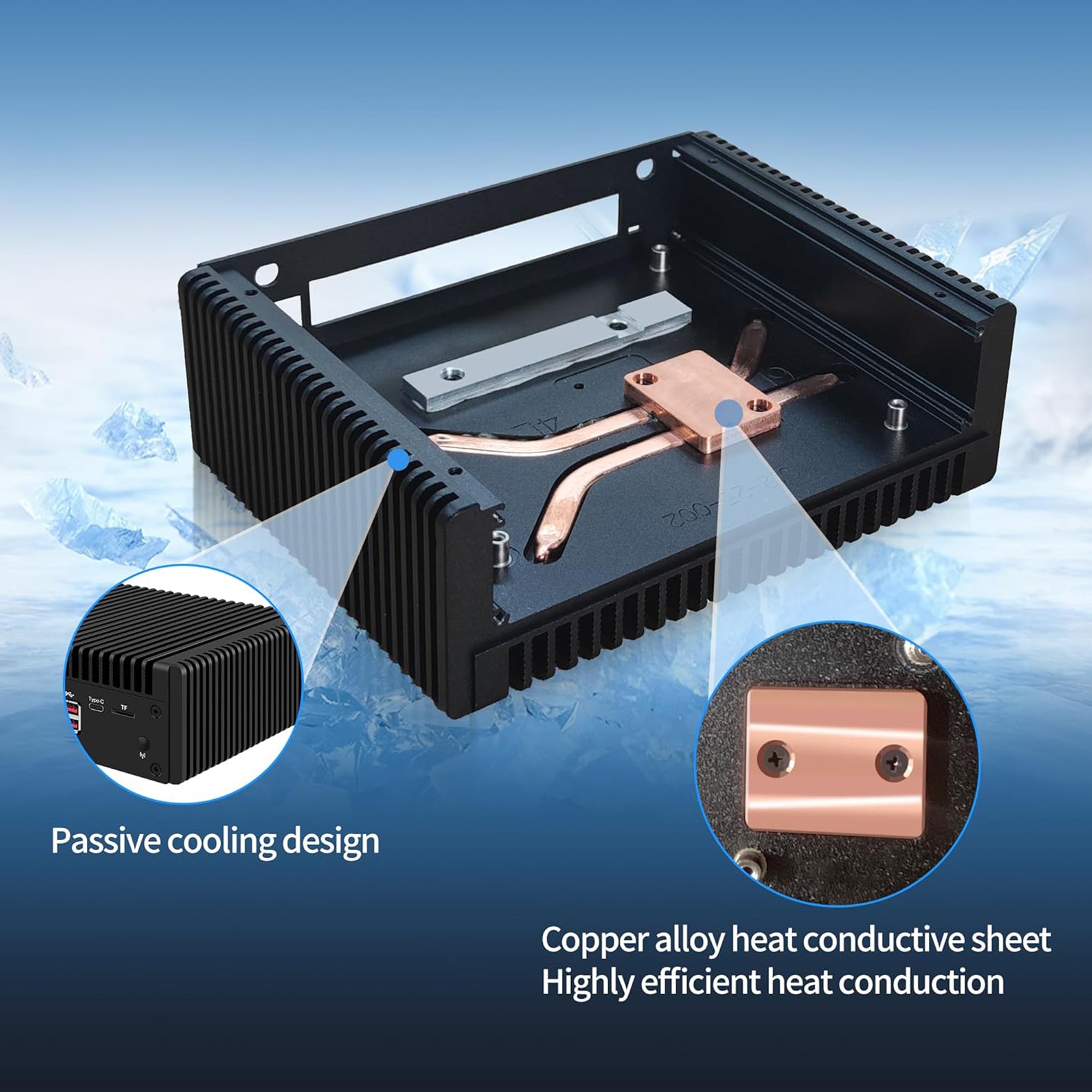

Fanless Passive Cooling: The aluminum alloy casing, with a scientifically designed cooling structure on the top and sides, ensures efficient heat dissipation for 24/7 energy-efficient operation. The product manual and FAQ guide will be provided before shipping
