CWWK Mini PC Fanless Ryzen 5 5500U Firewall Appliance, 4 x i226-V 2.5GbE LAN OPNsense Mini Computer, F16 Micro PC 8GB RAM 128GB SSD, 2-NVMe, USB-C, 3-Display, MicroSD, M.2 E-key
- Ryzen5 5500U Processer: The CWWK F16 Mini PC equipped with AMD Ryzen 5 5500U CPU, 6 cores 12 threads, has 8 MB of L3 cache and operates at 2.1 GHz by default, up to 4 GHz, TDP only 15W. Hardware virtualization is available on this CPU, which greatly improves virtual machine performance. Support Advanced Vector Extensions Programs (AVX and AVX2)

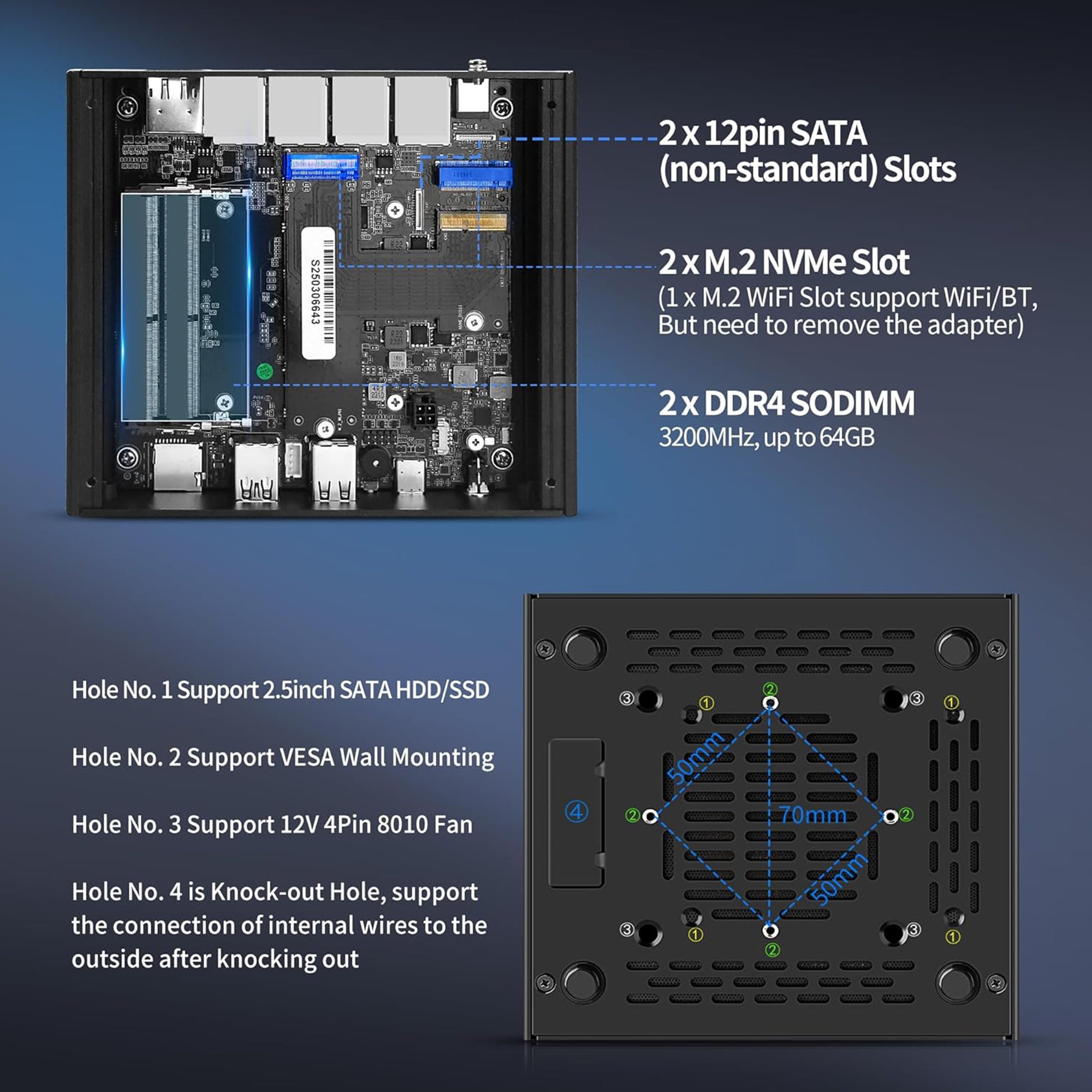

- DDR4 and Dual NVMe Slot: Dual Channel DDR4 SO-DIMM 3200MHz RAM slot, up to 64GB. With 2 x M.2 2280 NVMe SSD slots, the NVME1 (PCIe Gen3 x4) can support up to theoretical maximum speed of 4 GB/s, and the NVME2 (PCIe Gen3 x1) converted from the M.2 Wi-Fi slot via an M.2 E-key to M.2 M-key adapter. 2 x 12-pin non-standard SATA3.0 connectors for 2.5” SATA SSD/HDD
- 4 x 2.5Gbit LAN: Features 4 x i226-V 2.5Gbps Ethernet controllers, supporting 100Mb/1Gb/2.5Gb speeds. Compatible with open-source software router systems (e.g., OPNsense, OpenWRT) and virtualization platforms (e.g., PVE, EXSI), ideal for network Firewalls or All-In-One setups

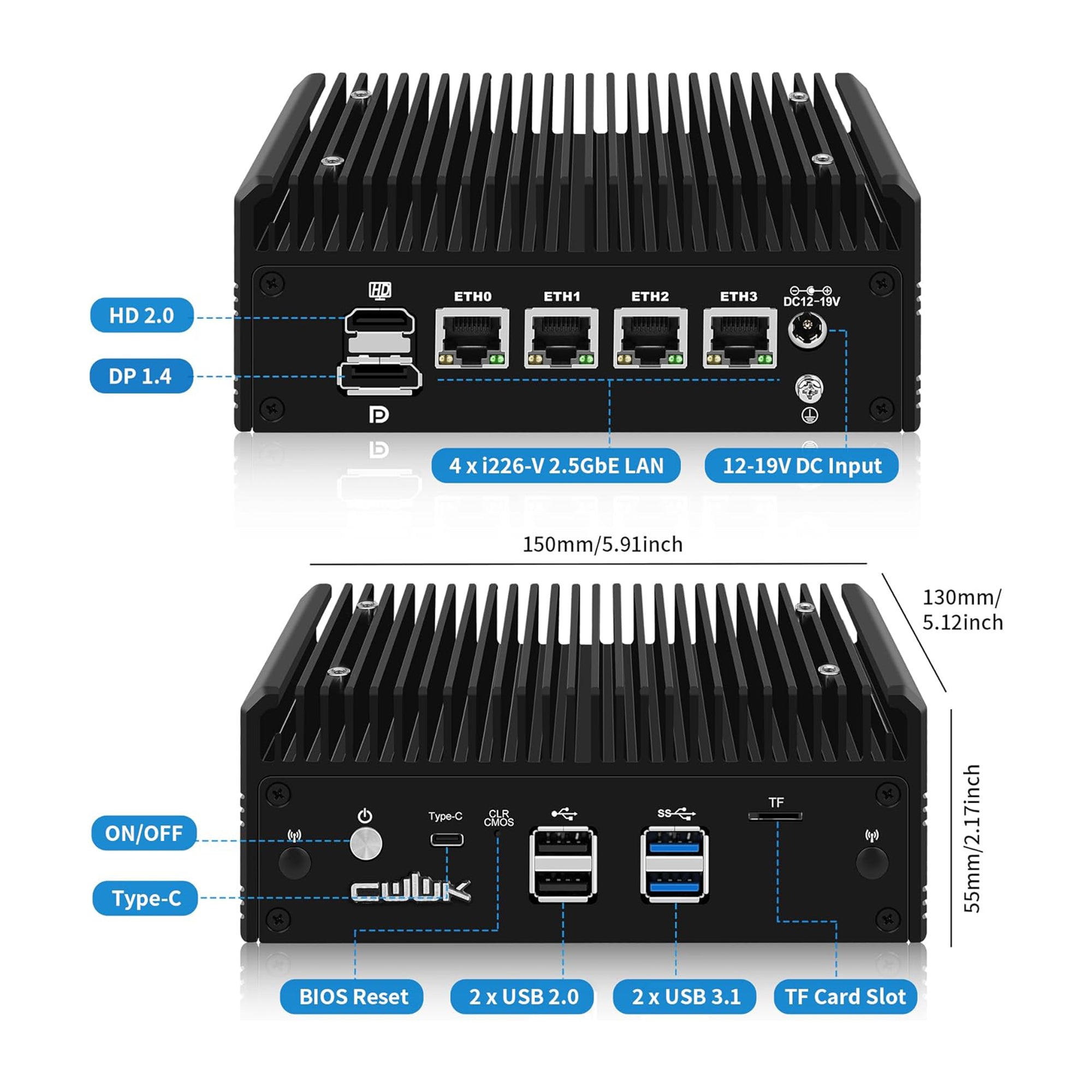

- Multiple I/O Ports: Features Radeon RX Vega 7 iGPU (1800 MHz), supporting HD2.0+DP1.4+USB-C triple display up to 4K@60Hz. 1 x USB Type-C supports data transmission, display, and 5V3A charging, 2 x USB3.1, 2 x USB2.0, 1 x MicroSD slot for storage or system boot, and a clear CMOS botton

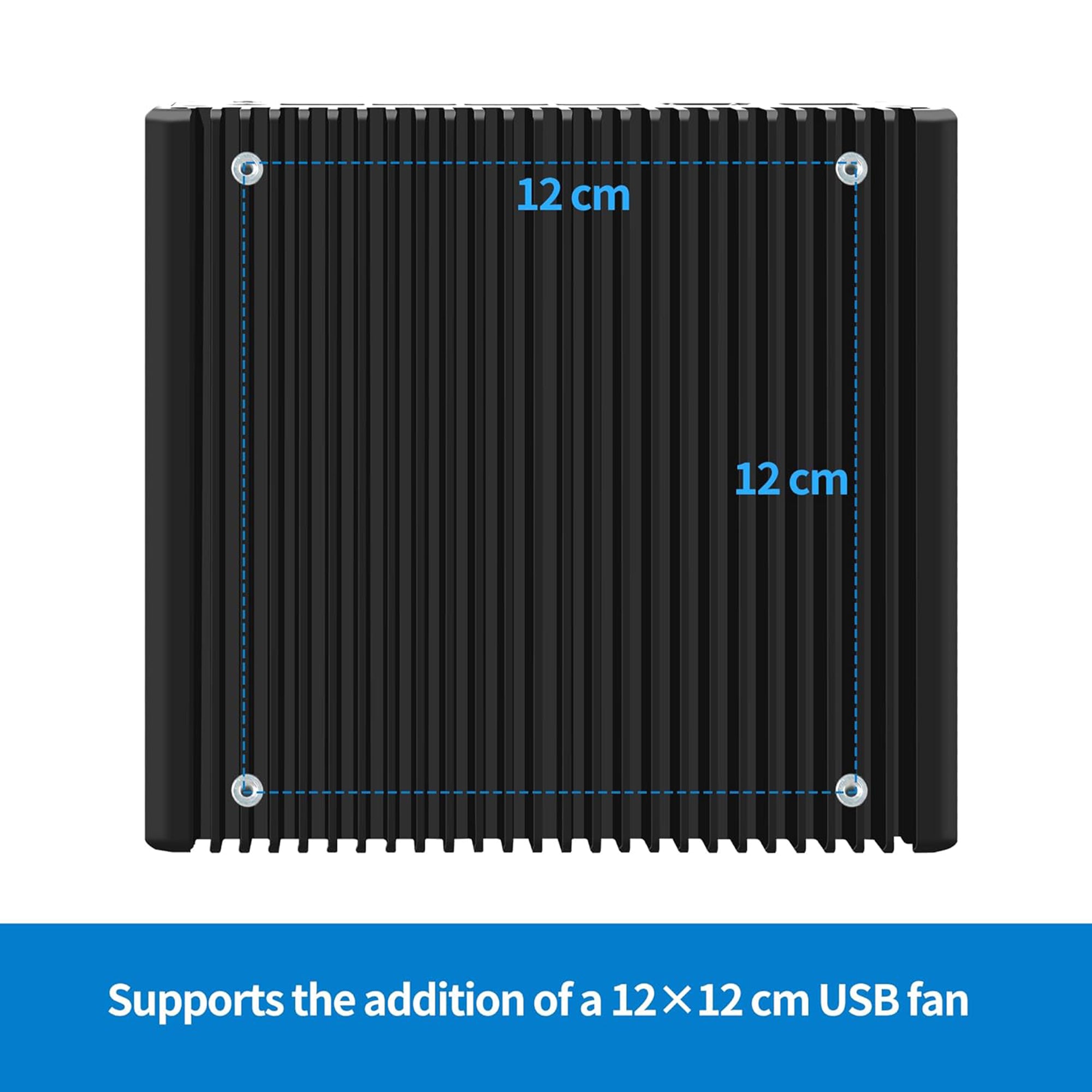

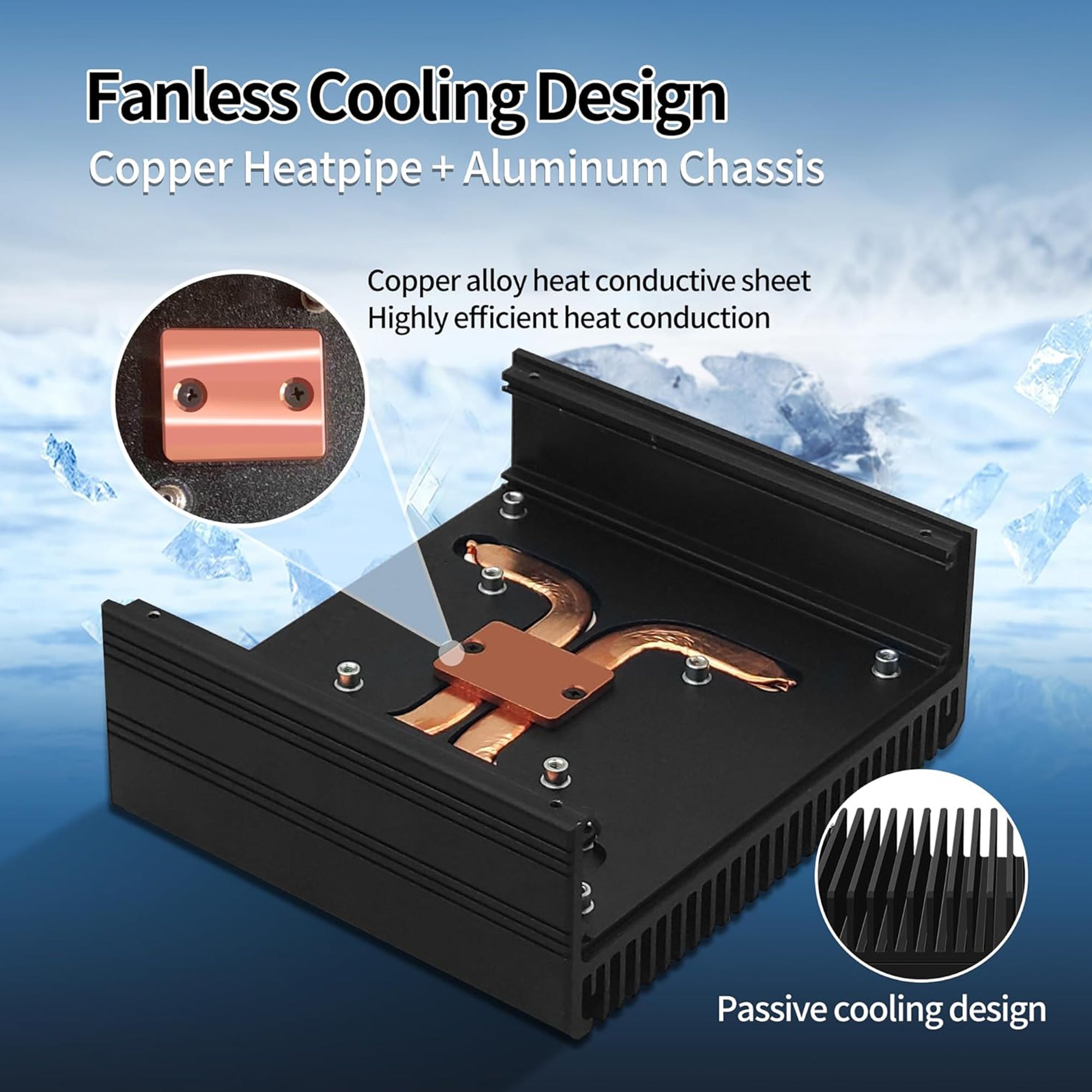

- Fanless Passive Cooling: The aluminum alloy casing, with a scientifically designed cooling structure on the top and sides, ensures efficient heat dissipation for 24/7 energy-efficient operation. Supports adding a 12 x 12 cm fan on the top to enhance heat dissipation performance. The product manual and FAQ guide will be provided before shipping
