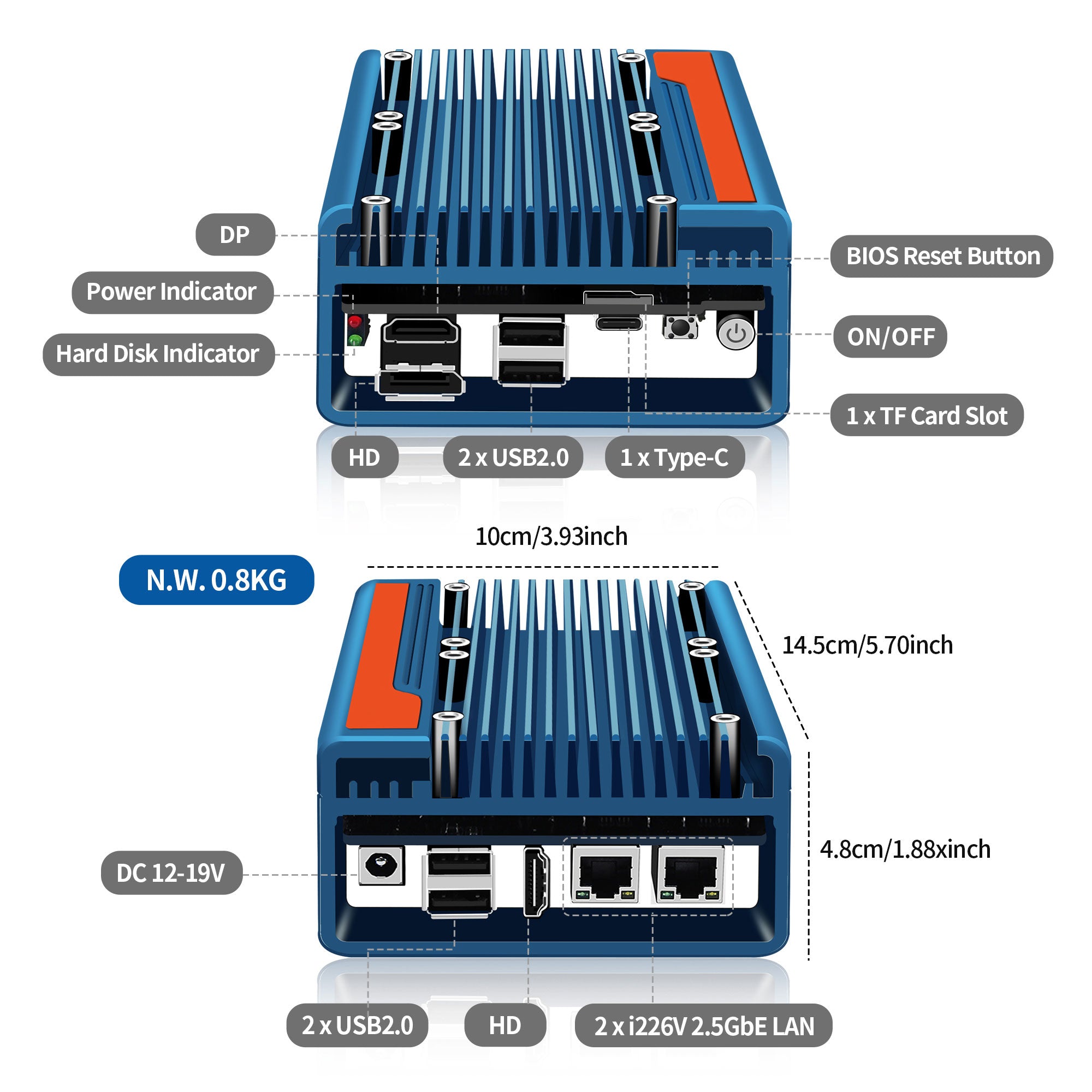

Technical diagram of a blue electronic device with labeled features and dimensions on a white background.
Technical diagram of DIY computer expansion options with various components on a blue background.

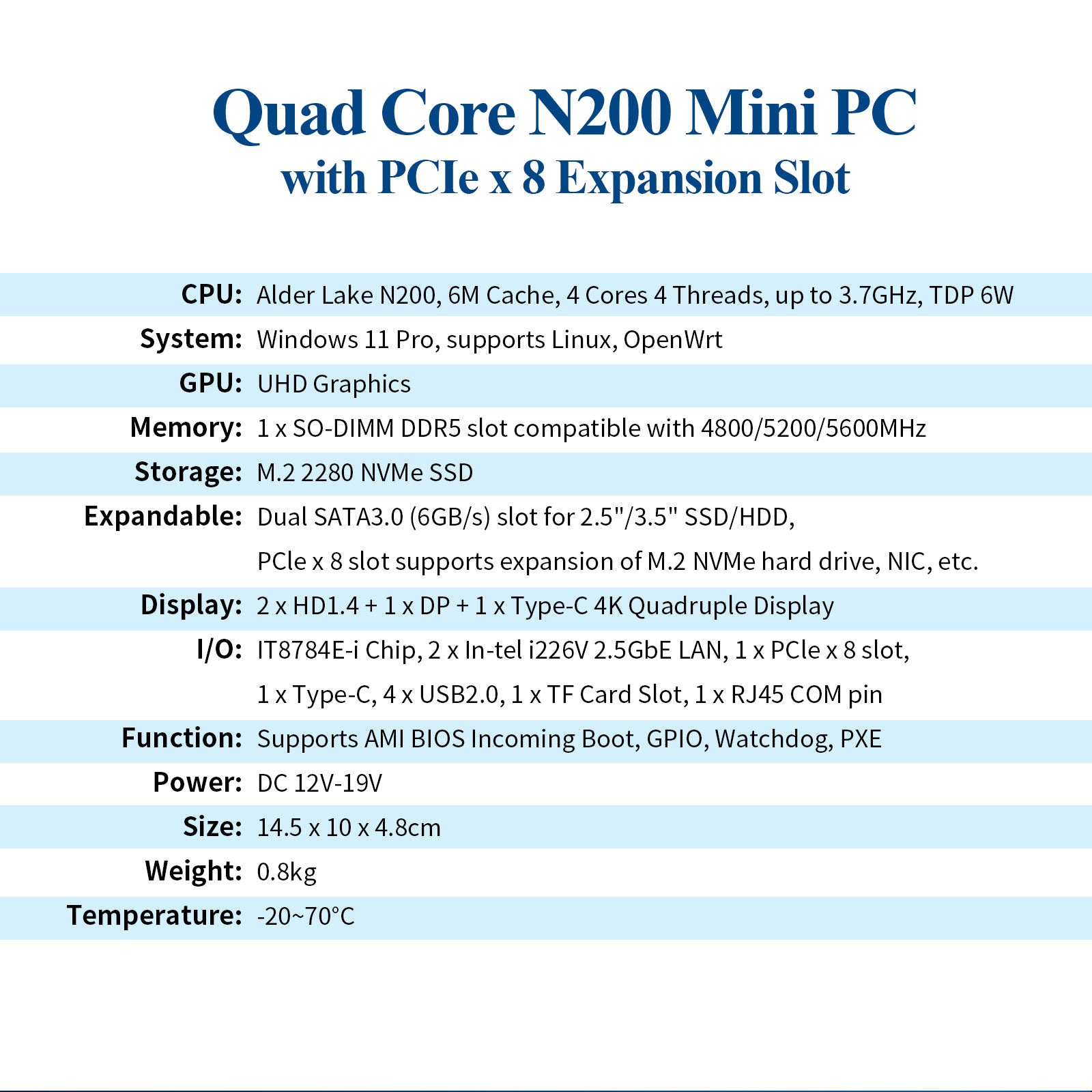

Technical specifications of a Quad Core N200 Mini PC on a white background

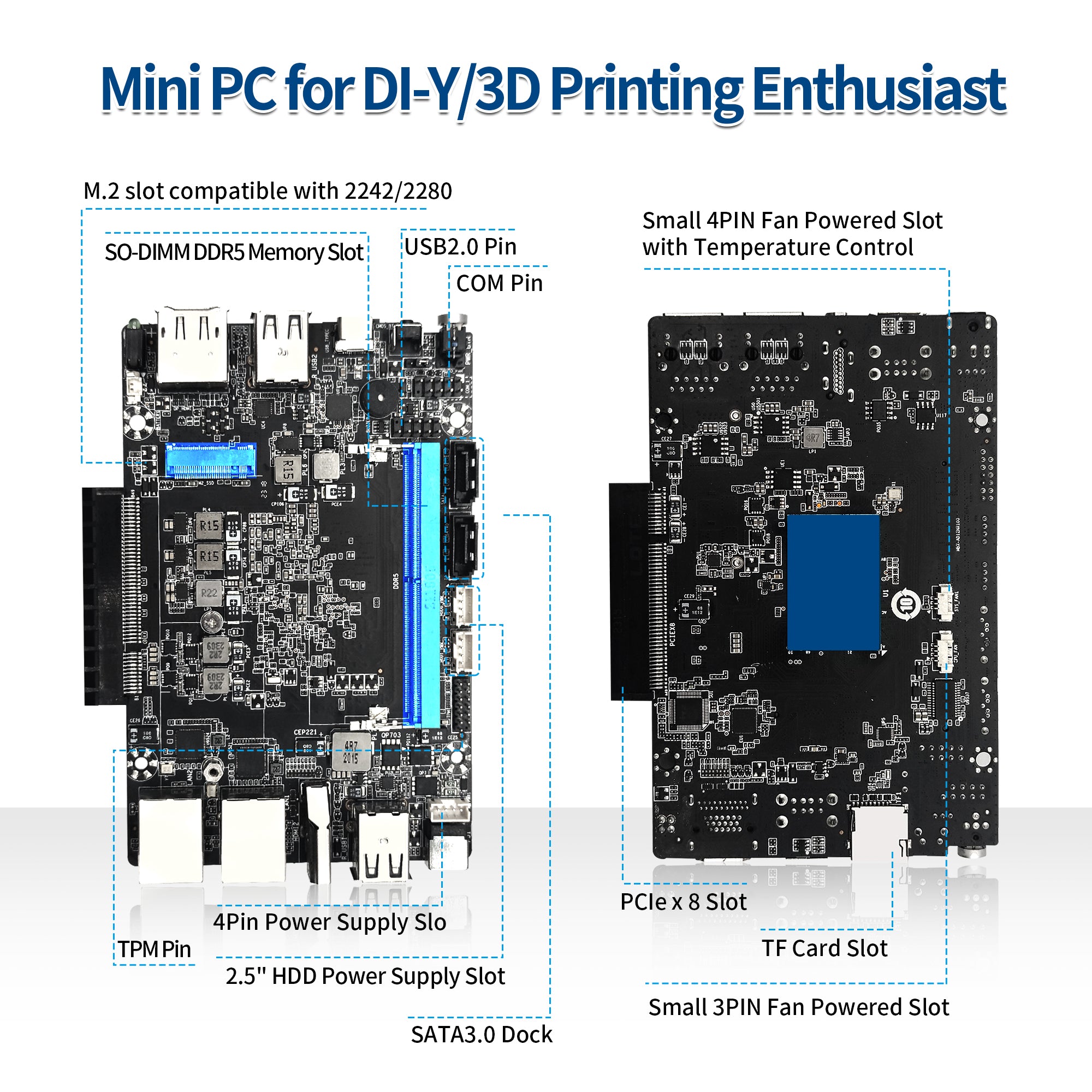

Mini PC motherboard with various slots and connectors on a white background

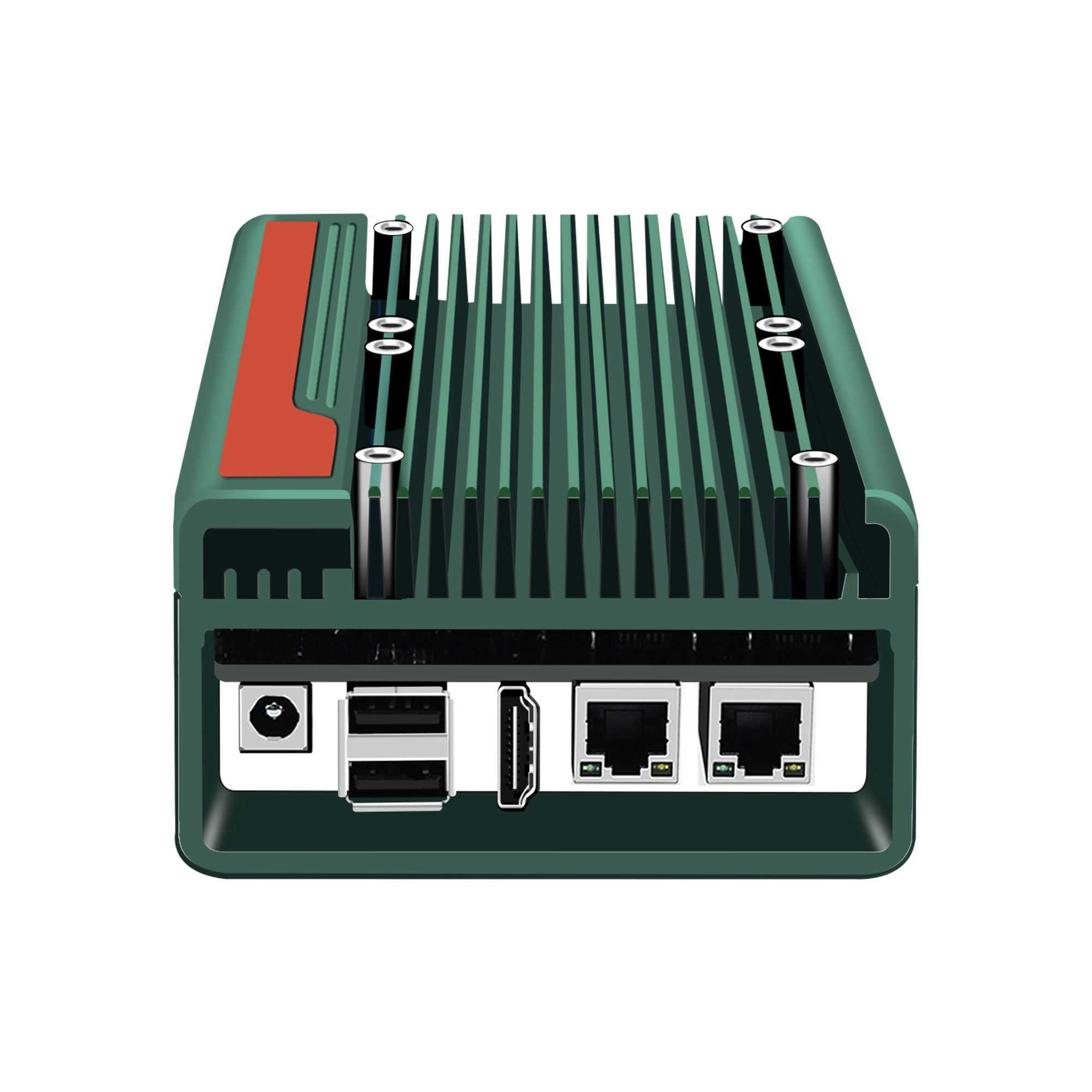

Green electronic device with cooling fins and ports on a white background

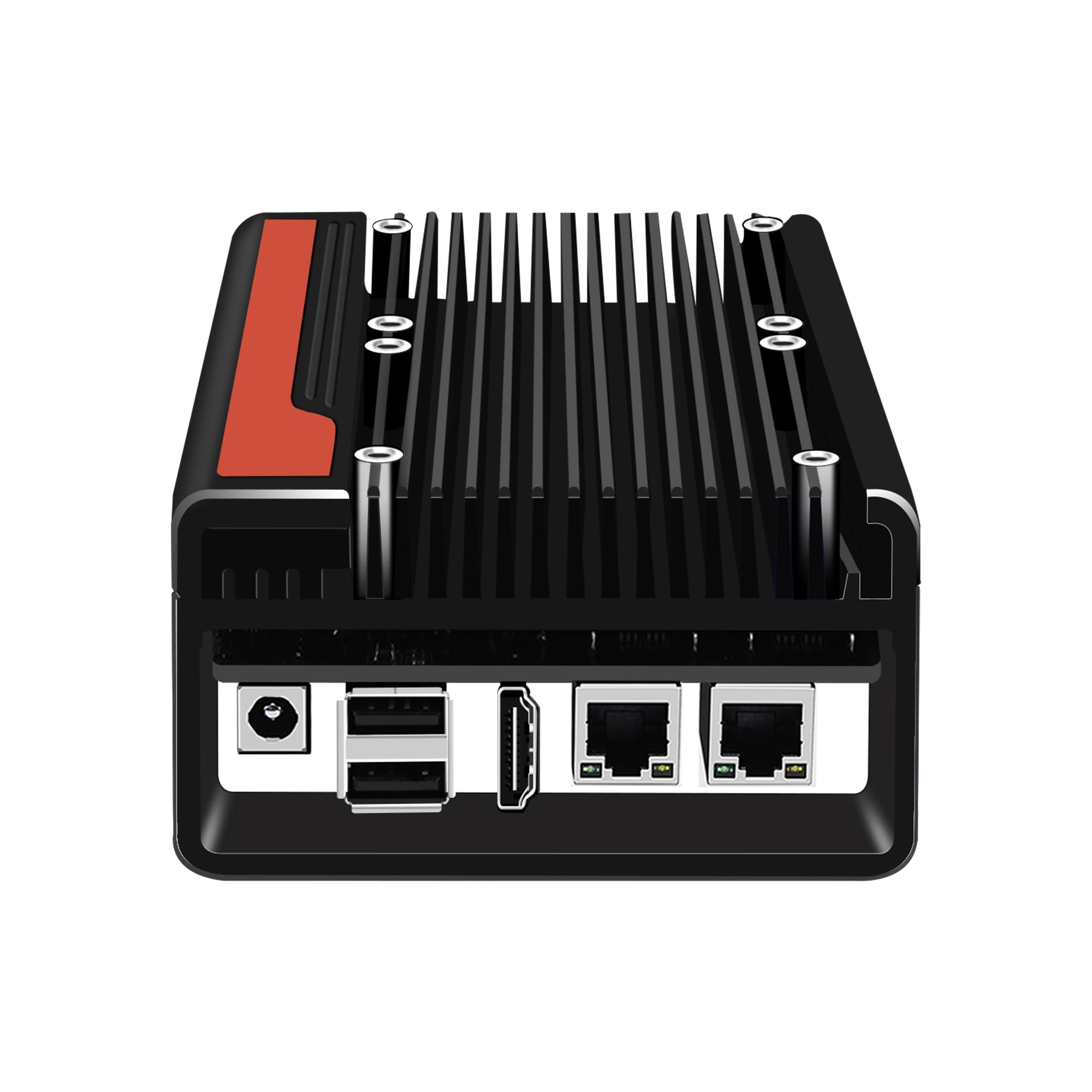

Black electronic device with ports on a white background

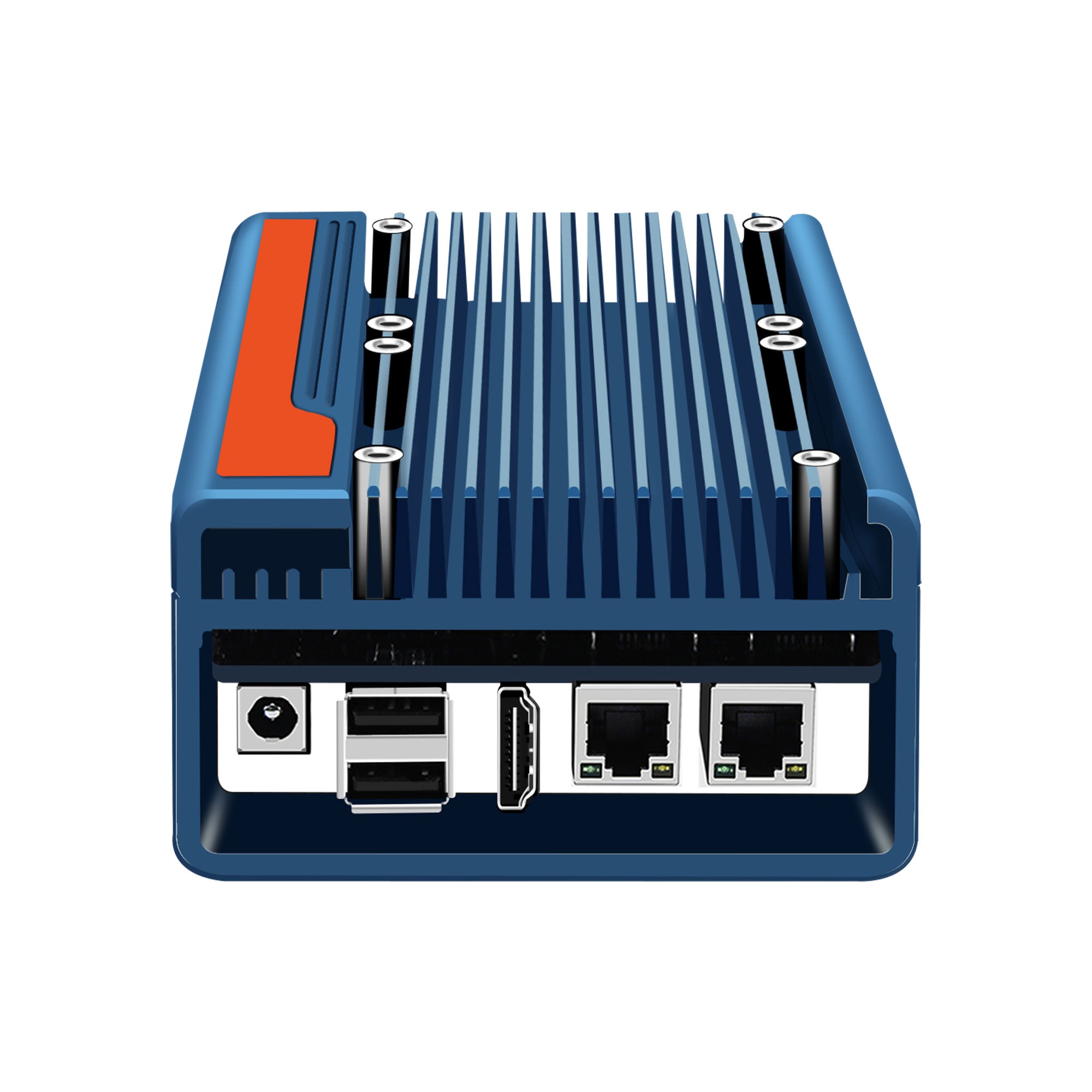

Blue electronic device with ports on a white background

CWWK Magic PC Firewall Mini PC N200 N305 Fanless Micro Firewall Appliance, Designed for DIY / 3D Printing Enthusiasts,Core i3 N305/N200/N100, 2 x I226V 2.5GbE LAN, PCIe×8, TF, DDR5 8GB RAM 128GB SSD

Sale price$238.00
CPU: 12th Gen N200
Color: Black
RAM/SSD: Barebone NO RAM NO SSD

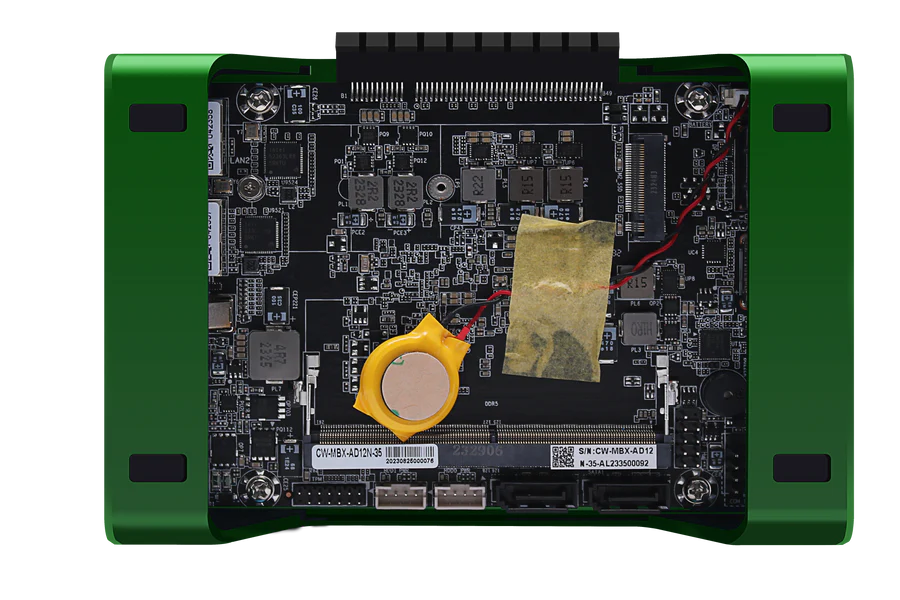

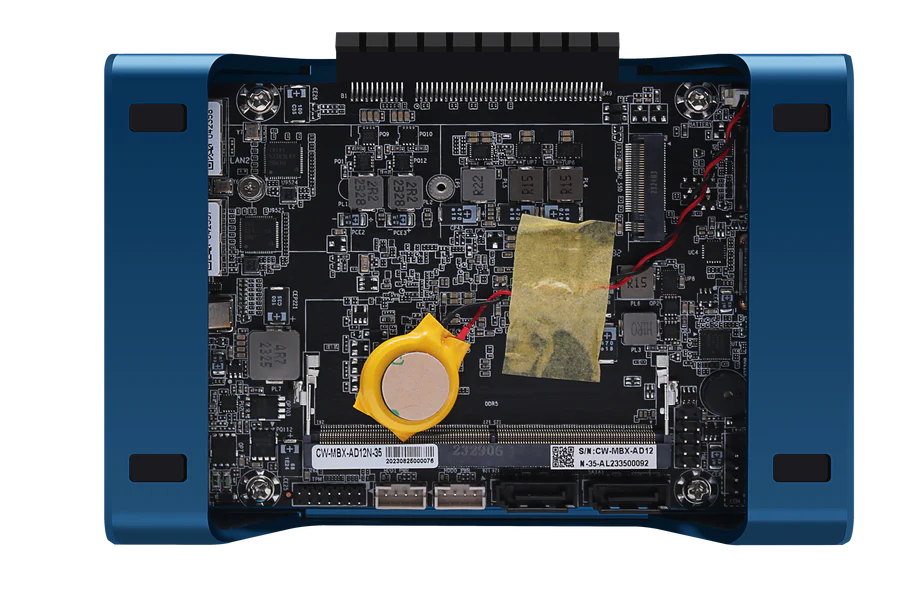

Motherboard core features:

  • Based on Intel 12th generation Alder Lake-N N100/octa-core 13-N305 low-power platform Passive cooling, open design, open source drawings, specially designed for DIY/3D printing enthusiasts

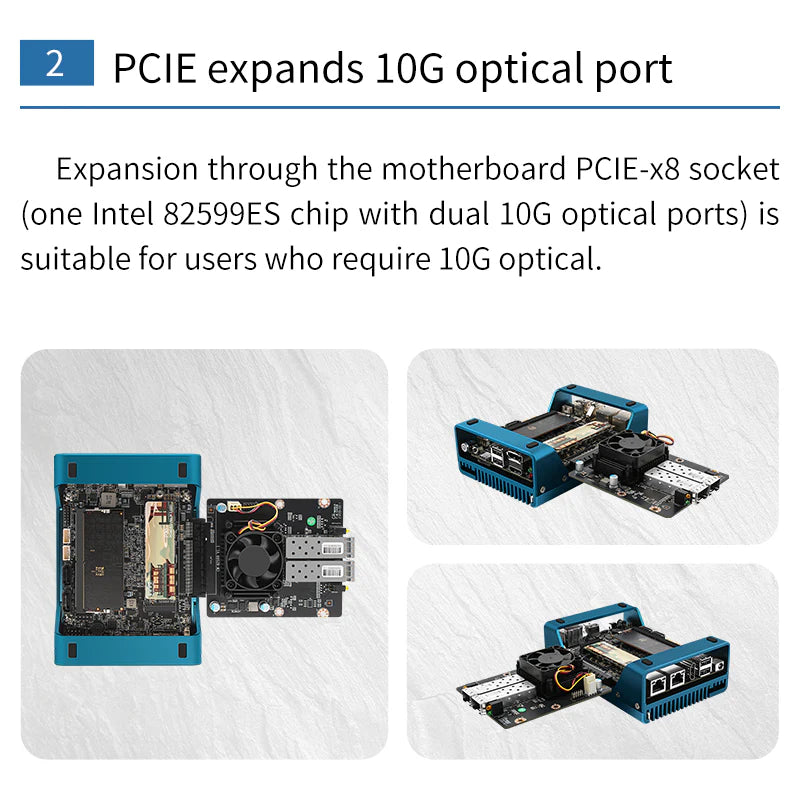

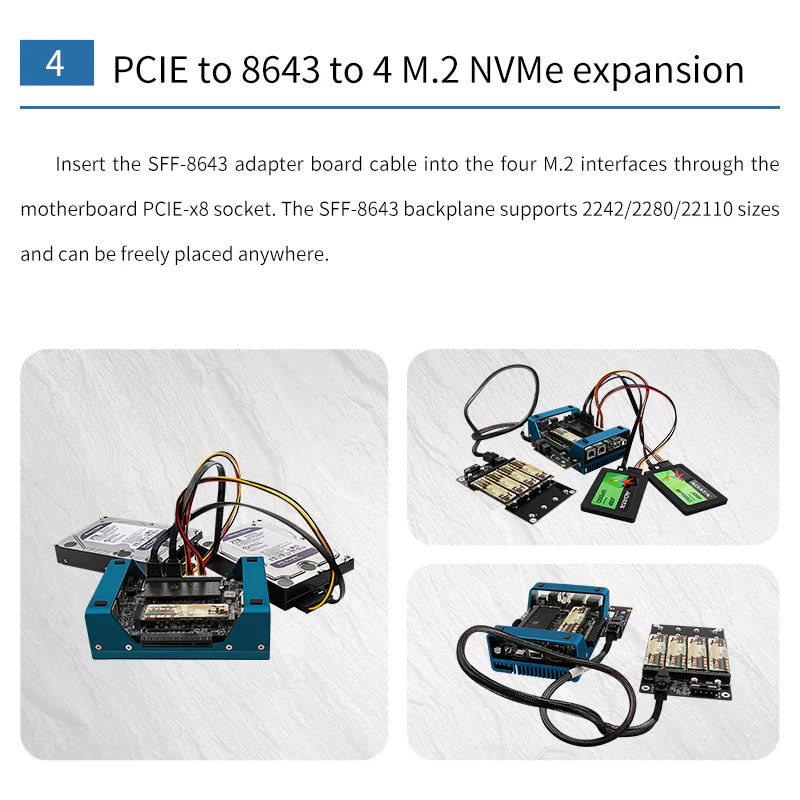

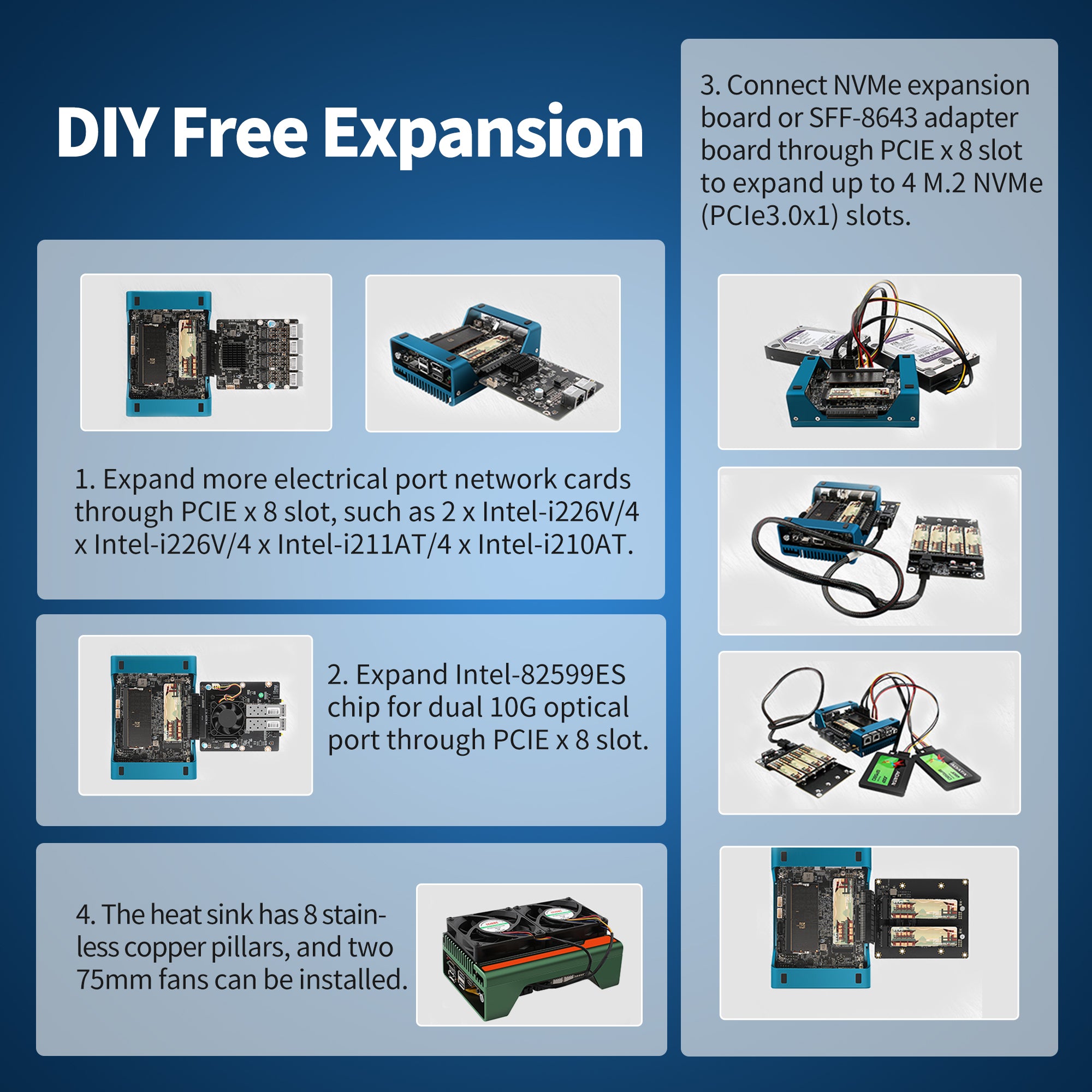

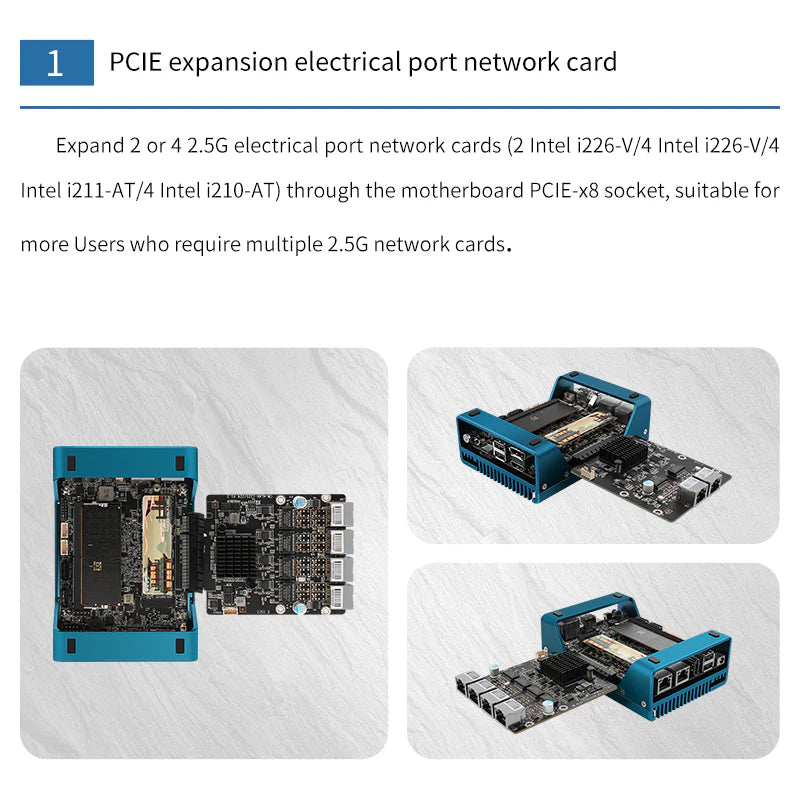

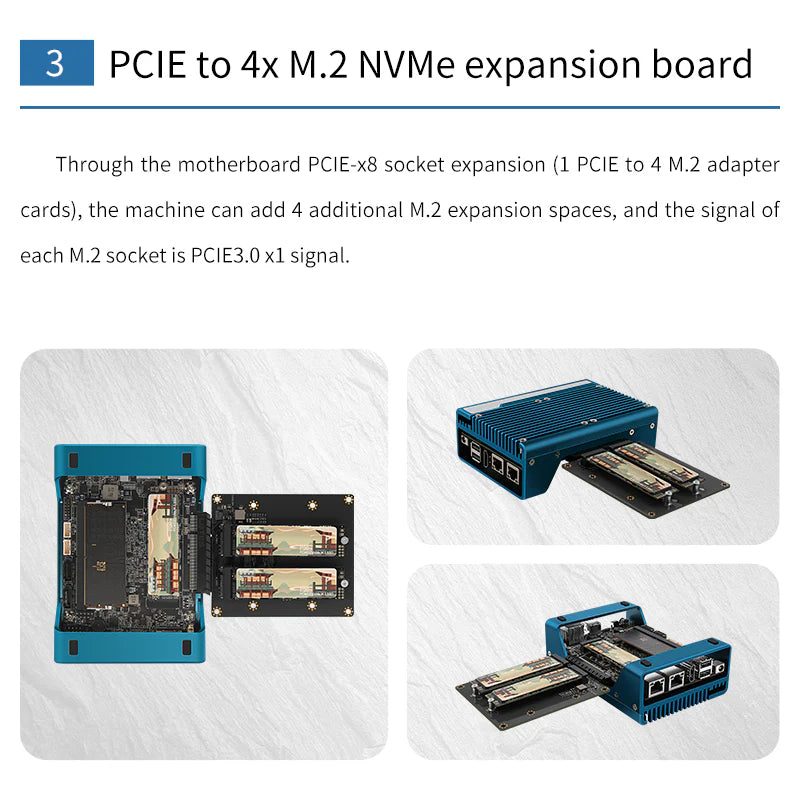

  • A PCl-e x8 socket (PCle3.0 x4 signal) supports various network cards, hard drives and other expansions
  • Dual HDMI+DP+Type-C four display interfaces, supporting three-screen synchronous/asynchronous display
  • Dual intel i226-V integrated filter 2.5G RJ45 network port
  • 1 SO-DIMM DDR5 slot compatible with 4800/5200/5600MHz
  • 1 M.2NVMe socket (PCle3.0 x1 signal) compatible with 2242/2280 size
  • Dual SATA3.0 (6GB/s interface) dual 4pin power supply supports 2.5/3.5-inch hard drive
  • A TF card slot supports data storage and some system startup and boot functions
  • A 4-pin fan power supply socket supports temperature-controlled fans and a small 3-pin fan power supply socket

Technical Specifications

Detailed technical information and specifications for this product

Processor
Intel Core i7-13700H
Memory
Up to 64GB DDR5
Storage
Dual M.2 NVMe SSD
Networking
2.5GbE + Wi-Fi 6E
Expansion
PCIe 4.0 x16 slot
I/O Ports
USB4, HDMI 2.1, DP 1.4
Form Factor
Mini-ITX Compatible
Operating System
Windows 11 Pro

Processor

CPU Model Intel Core i7-13700H (13th Gen)
Cores / Threads 14 Cores (6P+8E) / 20 Threads
Base / Turbo Frequency 2.4 GHz / 5.0 GHz
Cache 24MB Intel Smart Cache
TDP 45W (configurable up to 115W)

Memory

Memory Type DDR5 SO-DIMM
Memory Slots 2 × SO-DIMM slots
Maximum Capacity Up to 64GB (2 × 32GB)
Memory Speed DDR5-5200 / 4800 MHz
Dual Channel Yes

Storage

M.2 Slots 2 × M.2 2280 NVMe PCIe 4.0 x4
SATA Support 1 × 2.5-inch SATA III (6Gb/s)
RAID Support RAID 0, 1 (Intel RST)

Networking

Ethernet 2 × Intel 2.5GbE LAN (i226-V)
Wi-Fi Wi-Fi 6E (802.11ax), Tri-band
Bluetooth Bluetooth 5.3

Expansion & I/O

PCIe Slot 1 × PCIe 4.0 x16 (supports full-height GPU)
USB Ports 2 × USB4 (40Gbps), 4 × USB 3.2 Gen2 (10Gbps), 2 × USB 2.0
Display Outputs 2 × HDMI 2.1, 2 × DisplayPort 1.4
Audio 3.5mm combo jack, S/PDIF optical out
Power Input 19V DC-in (120W adapter included)
