CWWK S3 Mini PC Firewall Hardware for Opnsense Pfsense,Softer Router Intel N150 N100 N305 N355 Dual Nic 2 10Gbe SFP+,2 Port i226V 2.5Gbe Lan
Description
CPU: 12th Gen Core i3 N305 Processor, 8C/8T, 6M Cache, up to 3.80 GHz, TDP 6W, UHD Graphics(32EU)
CPU: 12th Gen N100 Processor, 4C/4T, 6M Cache, up to 3.40 GHz, TDP 6W, UHD Graphics(24EU)

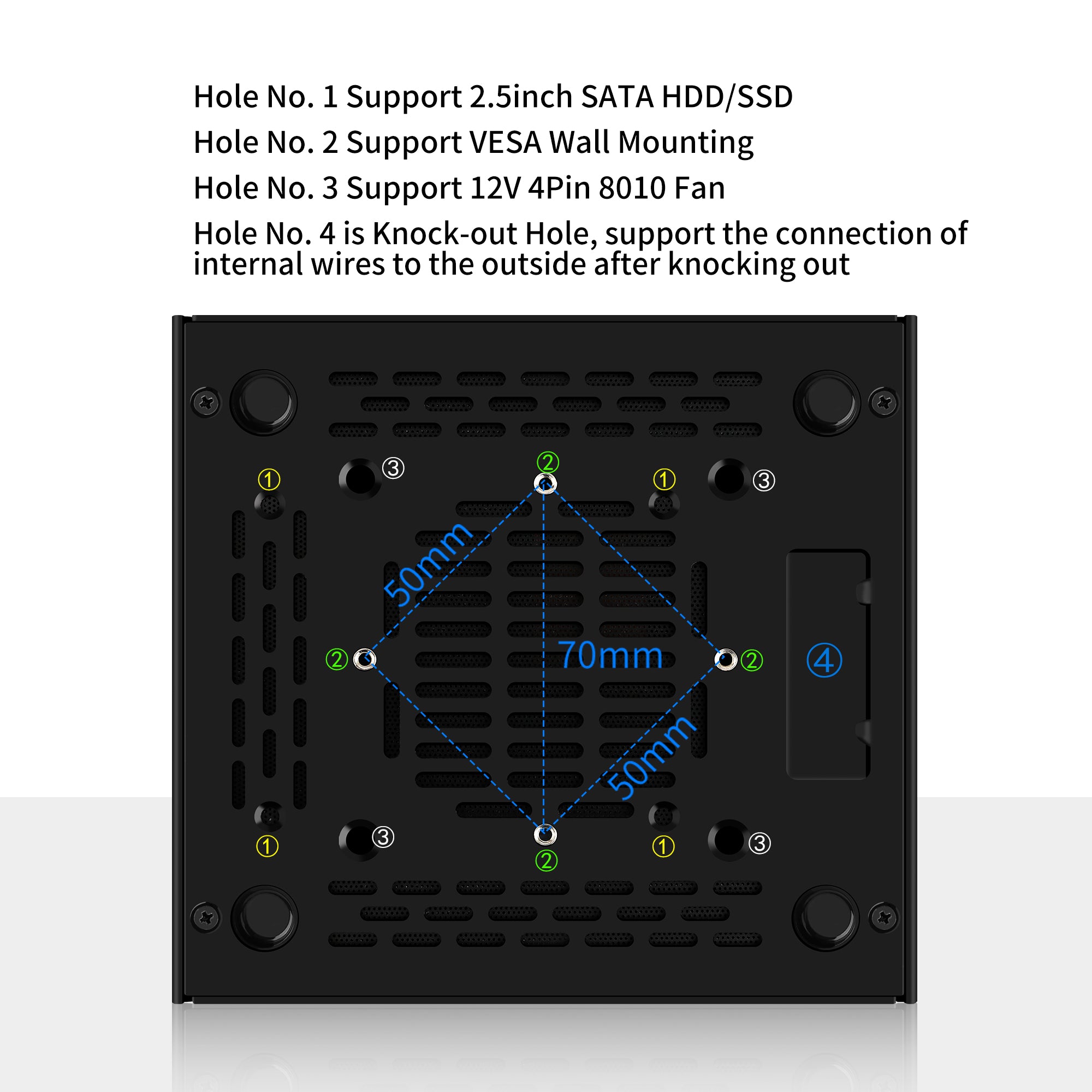

Chassis: Aluminum with knockout hole, wiring the cables to the external

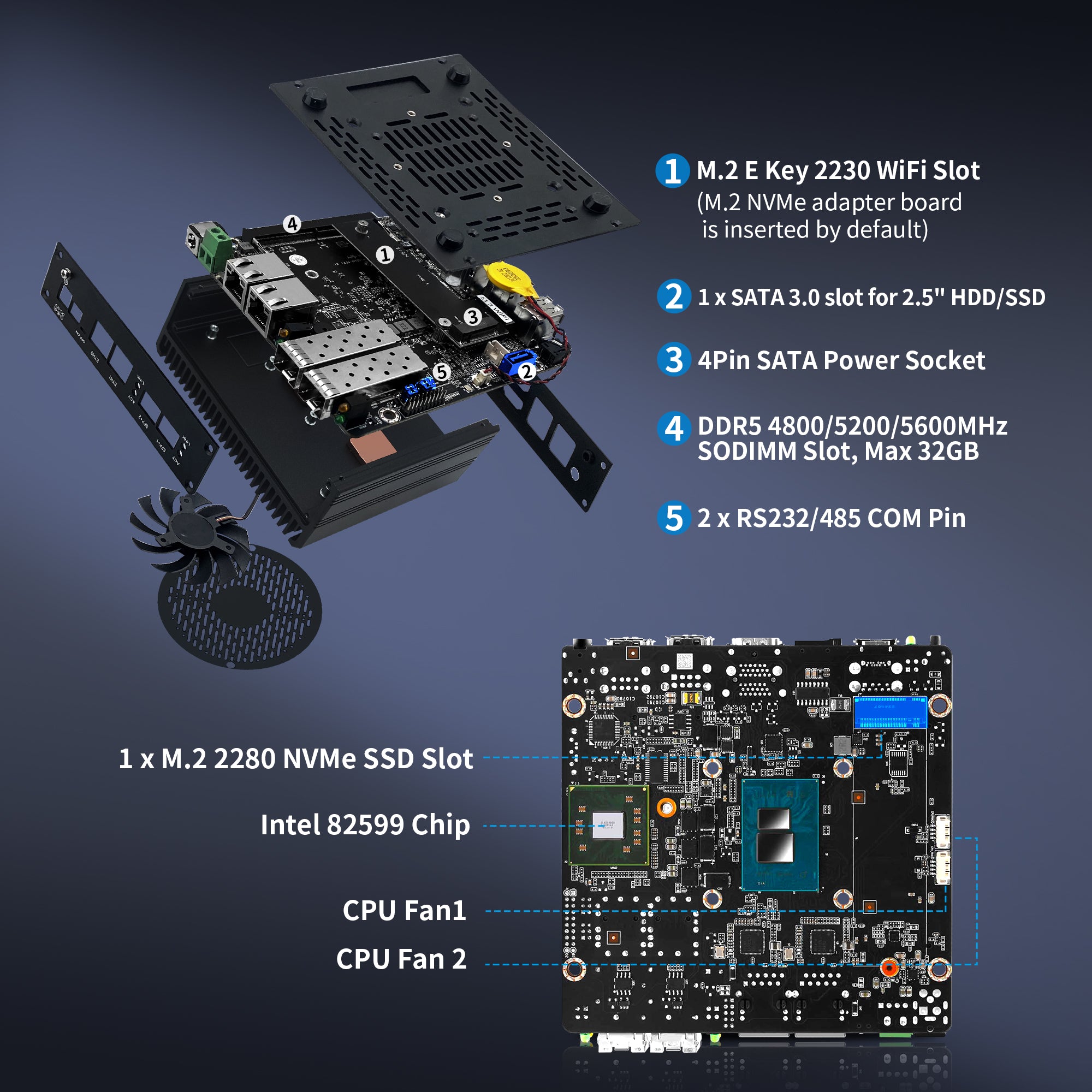

Memory: 1 x SODIMM DDR5 4800 MT/s, up to 32GB
Storage: 1 x M.2 2280 NVME SSD slot, 1 x SATA3.0 for 2.5 Inch SSD/HDD
Expand:1 x M.2 2230 Key-E WiFi Slot for dual band WiFi+BT or M.2 NVMe module expansion (NVMe adapter board is inserted by default)

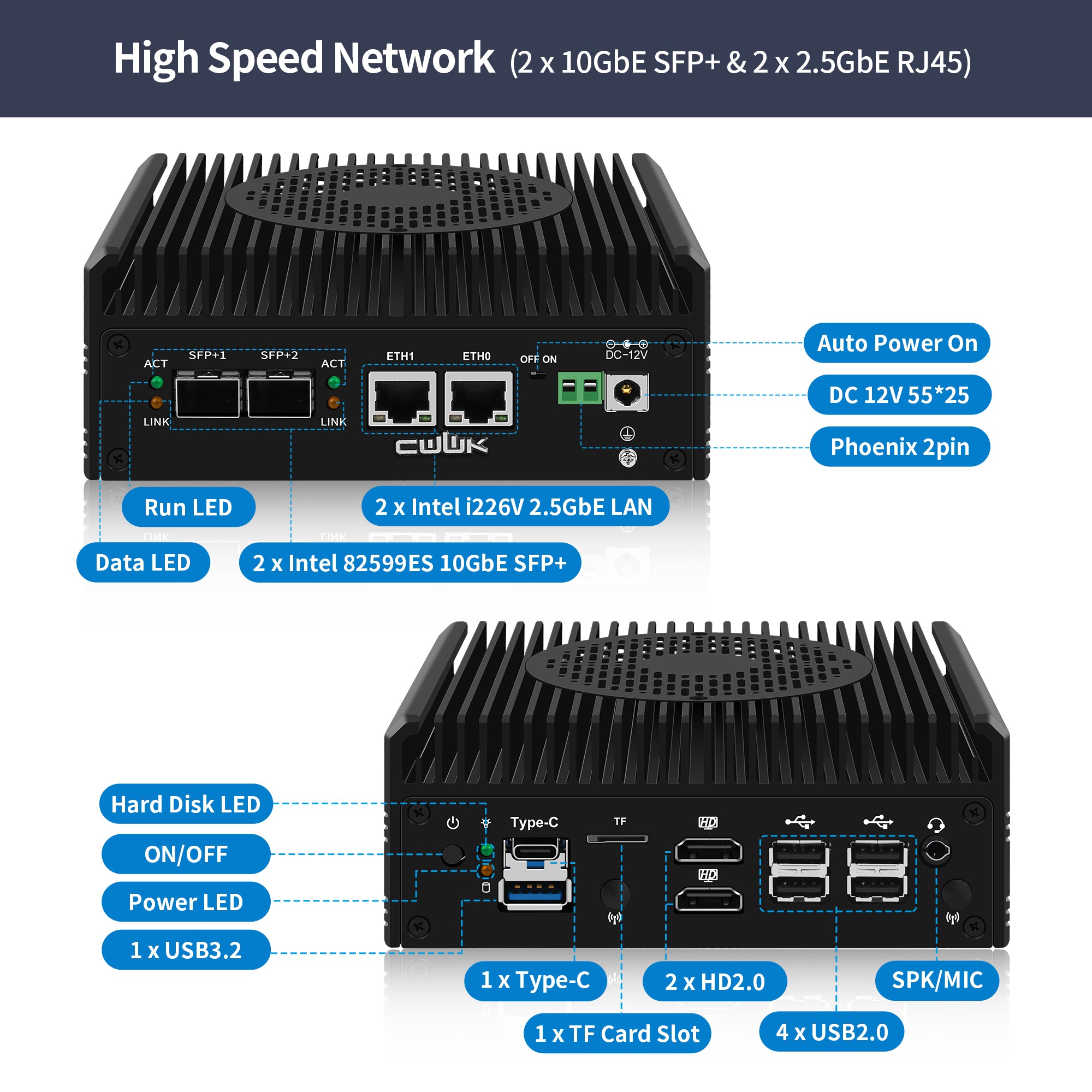

Network Card: 2 x 10GbE 82599ES SFP+, 2 x 2.5GbE I226-V

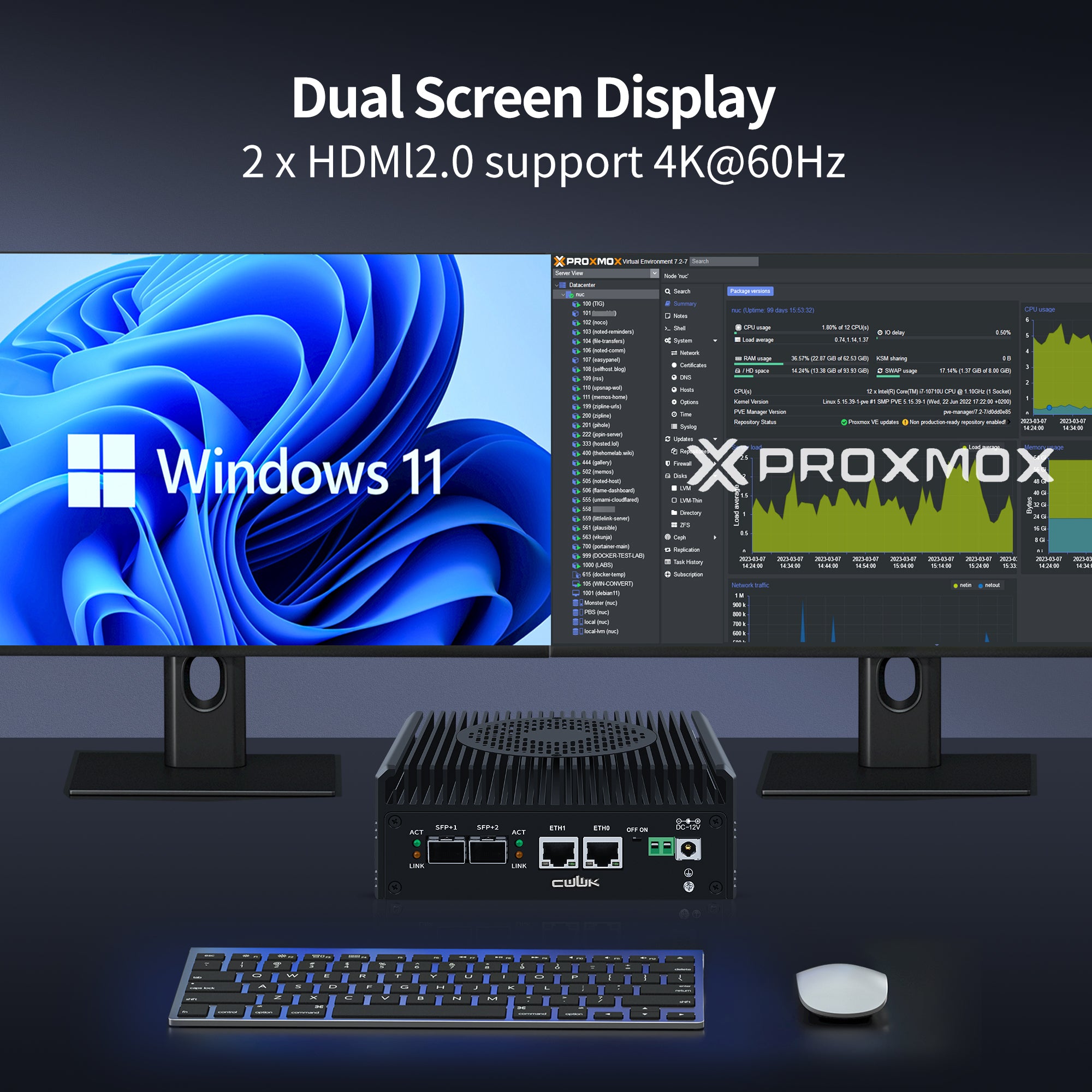

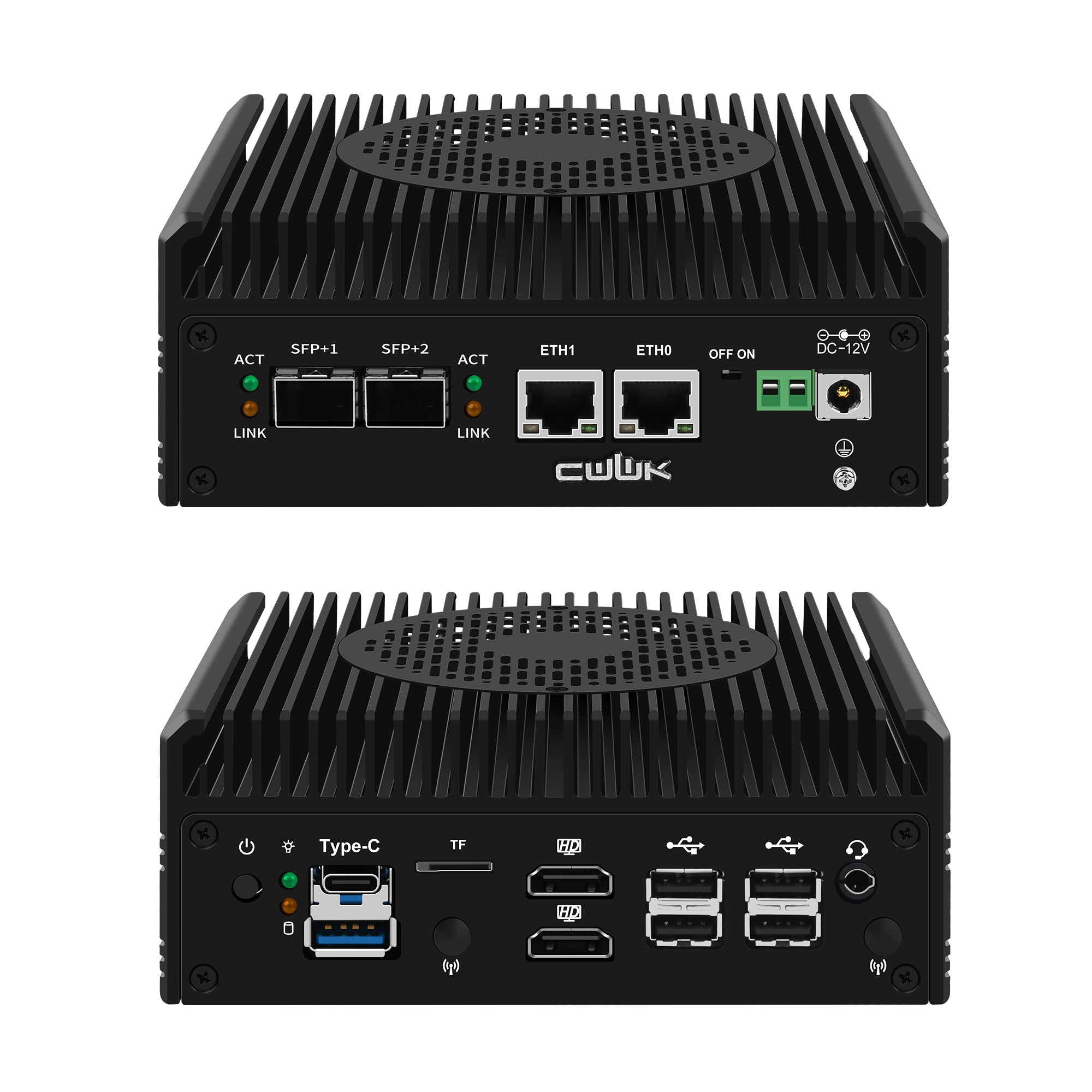

I/O Interface: Power ON/OFF, 4 x USB2.0, 1 x USB3.2 Type-A, 1 x USB3.2 Type-C, 2 x HDMl, 1 x TF slot for data storage / system boot, 4 x LAN, 1 x Phoenix 2pin, 1 x SPK/MIC, DC_IN
Power: 100-240V AC/50-60Hz, DC 12V
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% non-condensing
Cooling system: Combination of a passively cooled enclosure and fan-assisted cooling, 2 x fan socket, support to add 8010 temperature-control fan
Size: 6.96 x 4.72 x 2.16 inch
Weight: 2.65 LB
Packing List: 1 x AIOPCWA 10gb Firewall Mini PC, 1 x power adapter, 1 x VESA mount, 1 x SATA 3.0 cable, 1 x 4pin fan cable
Function: Supports Auto Power On, Wake on LAN, AES-NI, system power management, temperature management
Compatibility: Windows, PF-sense, OPN-sense, Open-Wrt, Linux distros, PVE, EXSi supported. UEFI support only
