CWWK YD6 Firewall Micro Appliance Mini PC The 11th generation i5-1135G7/i7-1165G7 fanless mini 6-port i226-2.5g soft route newly upgraded copper tube chassis

Processor:
Intel Cool Rong i5-1135G7 quad core/8-threaded 8M cache, 2.40 GHz
Intel Cool Rong i7-1165G7 quad core/8-threaded 12M cache, 2.80 GHz

Memory: 2 X SO-DDR4 3200MHZ compatible 2400/2666MHz, maximum single support 32GB
Display: 1XHDMI2.0 maximum resolution 4096x2304 60Hz
Storage: 1XM 2-slot 1X SATA interface
Network card: 6X Intel i226-V 2.5G network card
USB：4 X USB3.1
Heat dissipation: no fan, pure copper conductive aluminum shell passive heat dissipation
Extension: 1x Mini PCle, 1 * RJ45, 3pin CPU FAN pin
BIOS: AMIBIOS support (GPIO, PXE, network wake-up)
System: Windows/Linux only supports EFI mode startup
Power consumption: 15-28W (depending on the sub CPU model)
Material: aluminum alloy case
Color: black/iron grey
Size: 178.3mm (W) x 125.3mm (D) x 55mm (H)
Weight: 1.3kg
Power supply: DC 12V-5A 100-24oV 50/60Hz (5.5 * 2.5 connector)
Working environment: - 20 ° C~70 ° C/- 40 ° C-85 ° C0% - 90% RH 0.5grms/5-5-500HZ

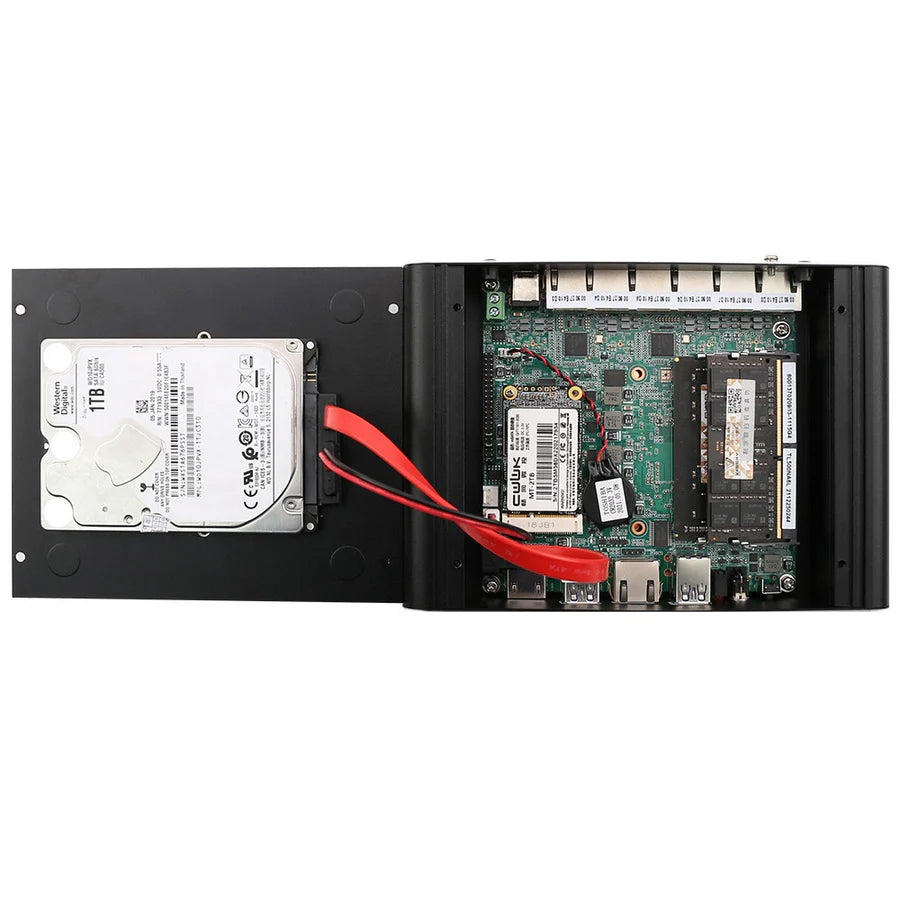

【New Upgrade】Double-row cooling holes are added, and a dust filter is provided by default. 40*40mm fan holes are added to support the installation of 4010 small fans. It supports knock-out holes, and supports wiring to the outside after knocking. Hole position, and support 2.5-inch mechanical hard disk or solid-state hard disk with a height of 15mm, so that the system has more capacity space.
【Professional OS installed】This Firewall Router pre-installed Pfsense and you can installOPNsense/OpenWrt/Unbutun/windows and other popular open-source software solutions. Which you can use it as an Firewall/Netgate/Softrouting/NAS/VPN/ESXI 、PVEvirtualization platform(support VT-X,VT-D).

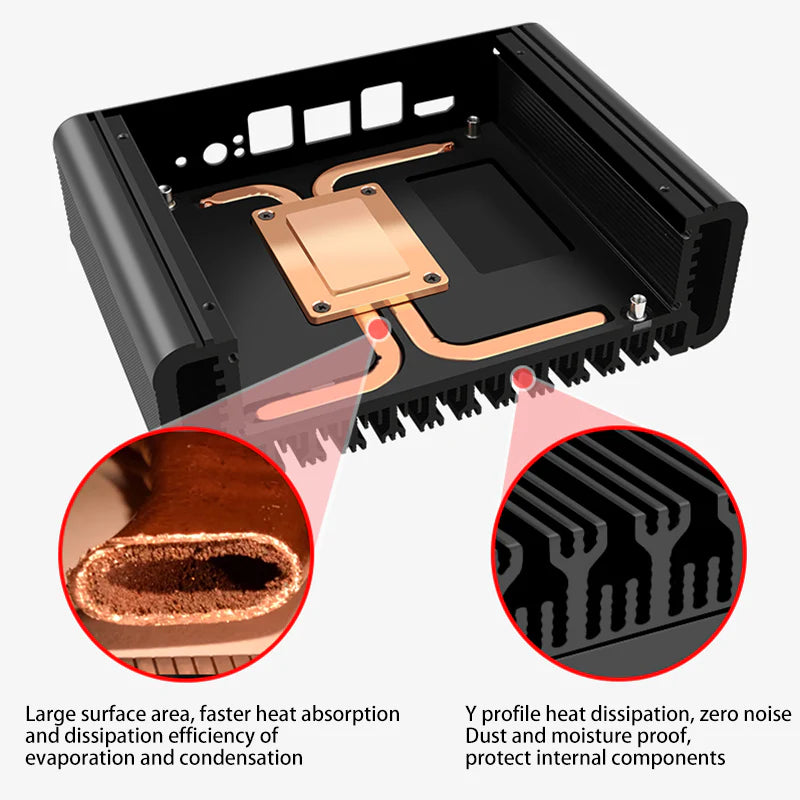

【Aluminum alloy body design】The use of aluminum alloy high-efficiency heat-conducting materials, and the Y-shaped material rapid heat dissipation design ensures the uninterrupted and stable operation of the computer.
【Professional Firewall PC】Firewall Mini PC-a fanless & silent professional firewall router pc bring you a secured and encrypted network environment.Multi-functional support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
【Quality With Warranty】If you have any questions or you need to add other configuration on LokSing Firewall mini pc, feel free to contact us . for it and WE'LL REPLY YOUR Quesstions within 24 hours(during Working Days).
