CWWK F6 Fanless Mini PC Firewall Hardware for Opnsense Pfsense,Softer Router Intel N100 N305, 4 x 2.5 Gbe i226V Lan, DDR5 RAM NVMe SSD

The CWWK F6 is a compact fanless firewall mini PC designed for home networks, small office gateways, VPN routing, OPNsense, pfSense, OpenWrt, and lightweight virtualization. Powered by Intel N100 or Core i3-N305 processor options, it combines low power consumption, 4-port 2.5GbE networking, DDR5 memory, and flexible storage expansion in a durable aluminum alloy chassis.

Intel N100 / Core i3-N305 Processor Options:
The CWWK F6 is available with Intel N100 and Core i3-N305 processor options, giving users a choice between efficient daily routing performance and stronger multi-service firewall or home lab workloads. It is suitable for running OPNsense, pfSense, OpenWrt, Proxmox, Ubuntu, Debian, and other open-source systems with Linux kernel 5.10 or higher.

4 × Intel i226-V 2.5GbE LAN Ports:

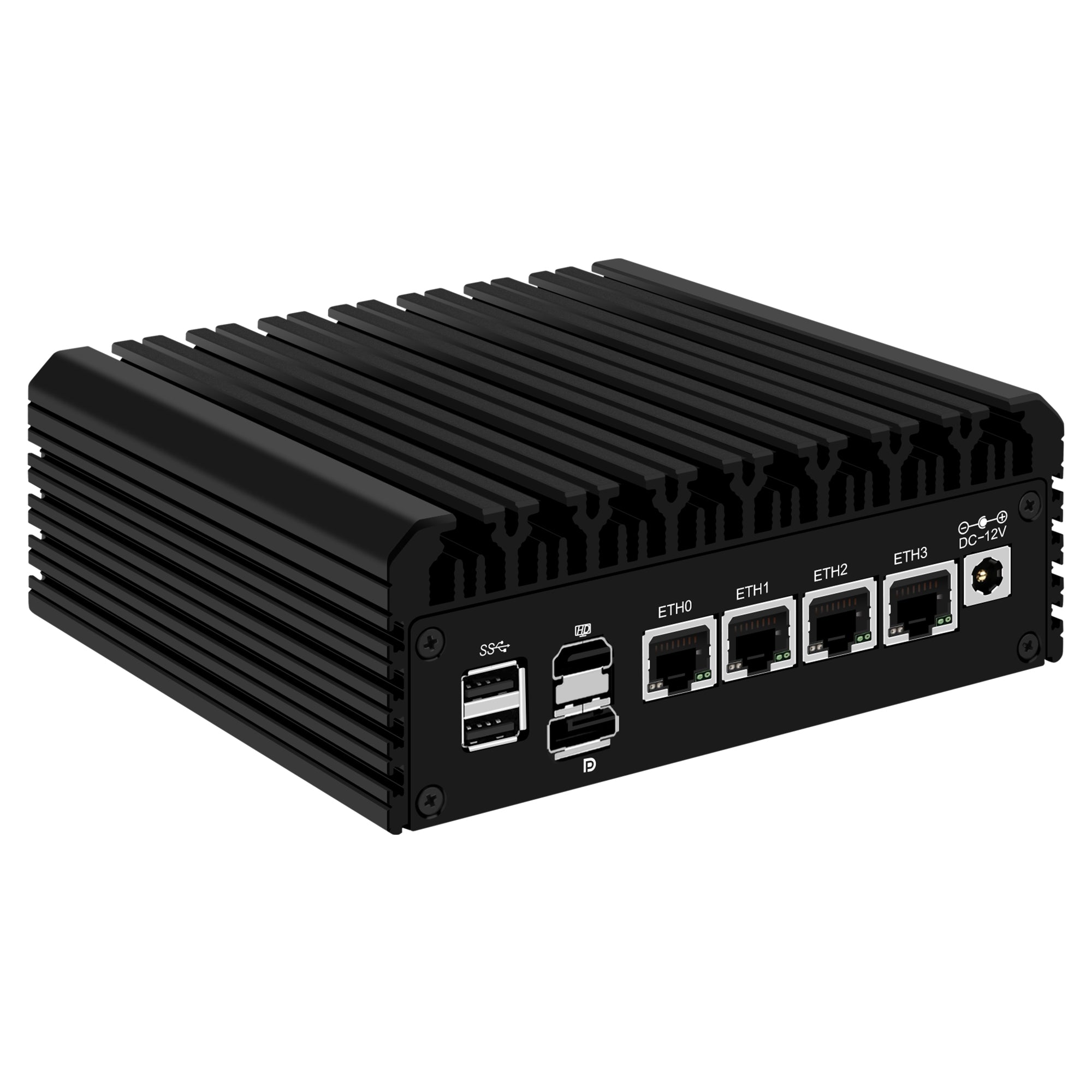

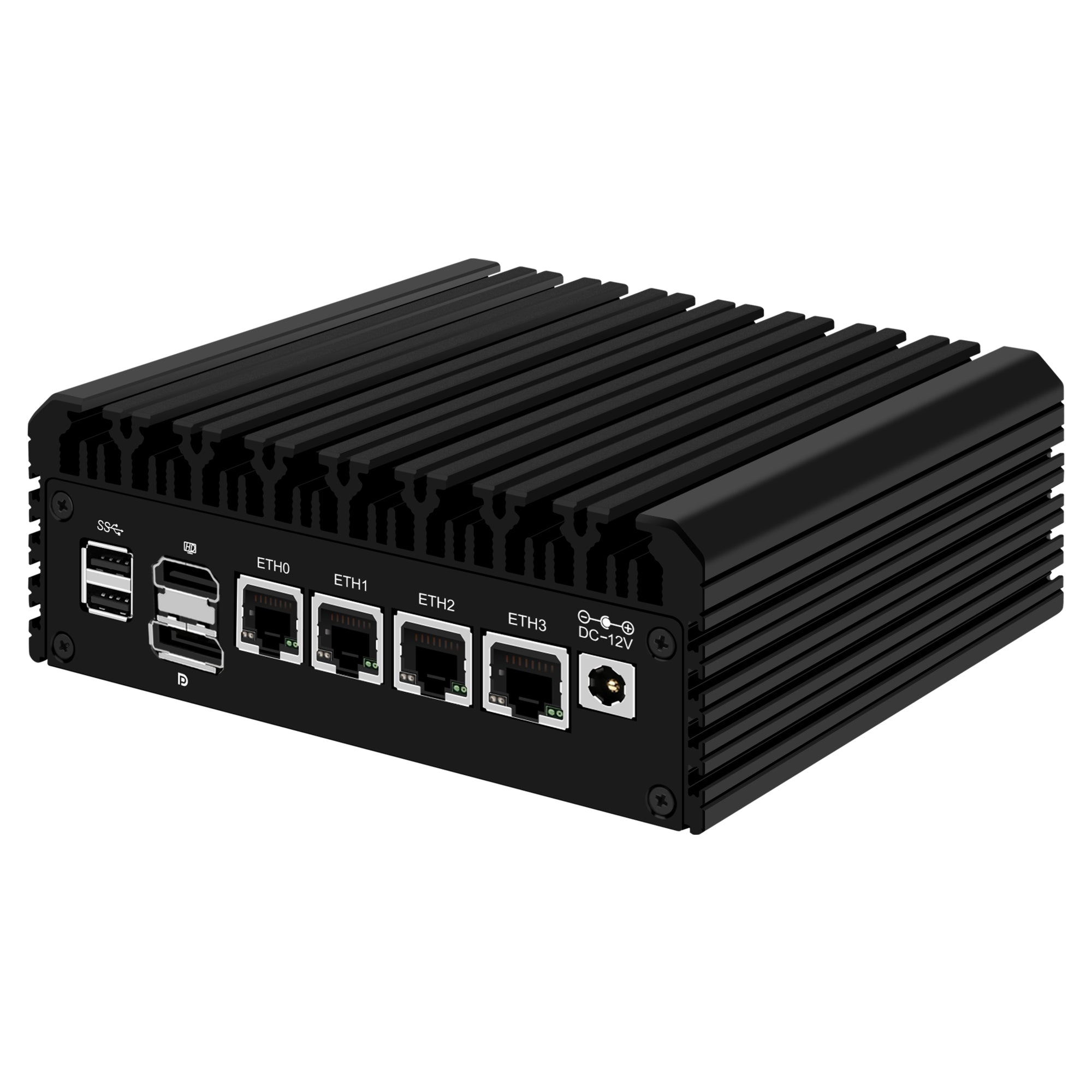

With four Intel i226-V 2.5GbE network ports, the F6 is ideal for firewall, router, multi-WAN, VLAN, VPN gateway, and small office network deployments. Compared with standard 1GbE mini PCs, the 2.5GbE ports provide more bandwidth for modern fiber broadband, NAS access, and internal network traffic.

DDR5 Memory and High-Speed NVMe Storage:

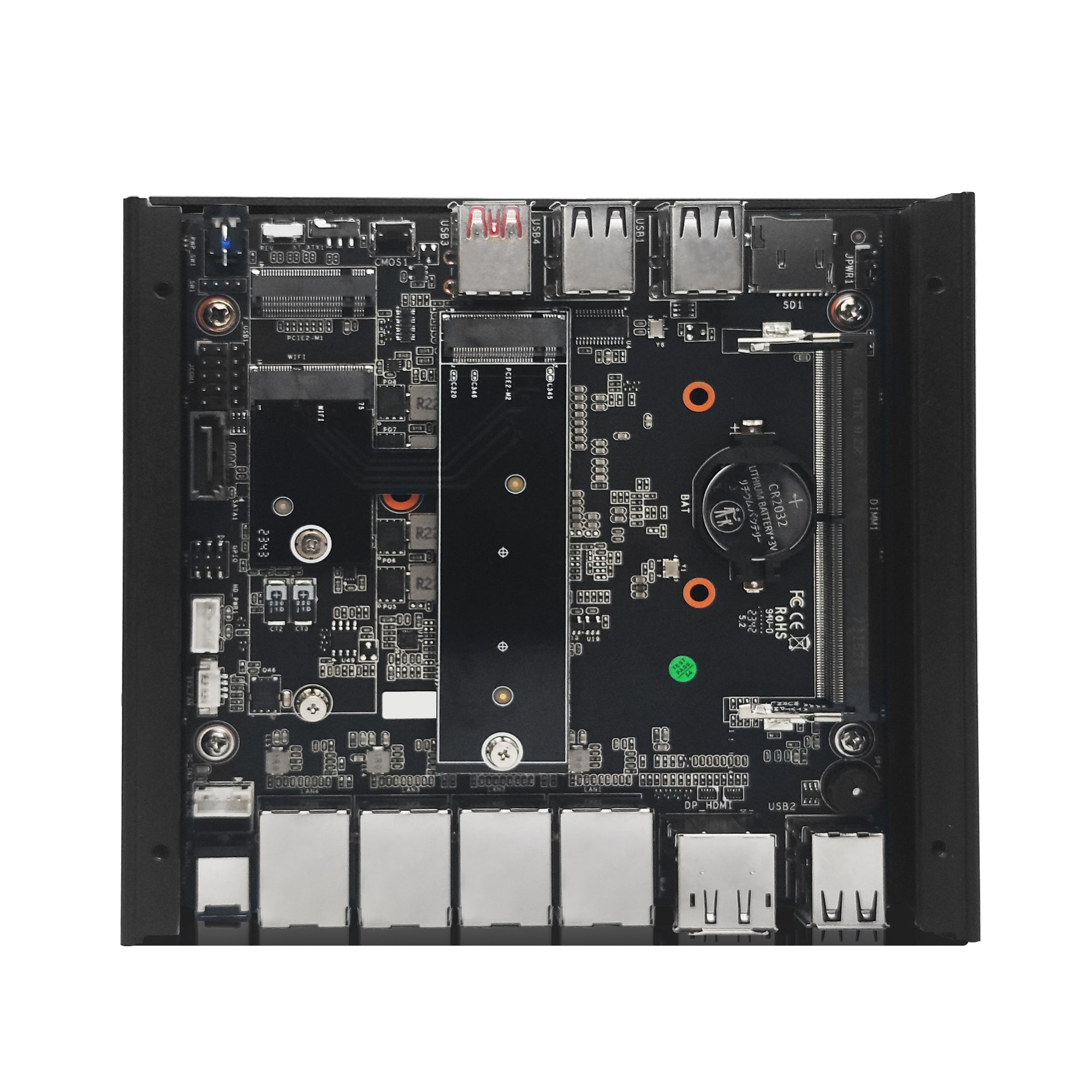

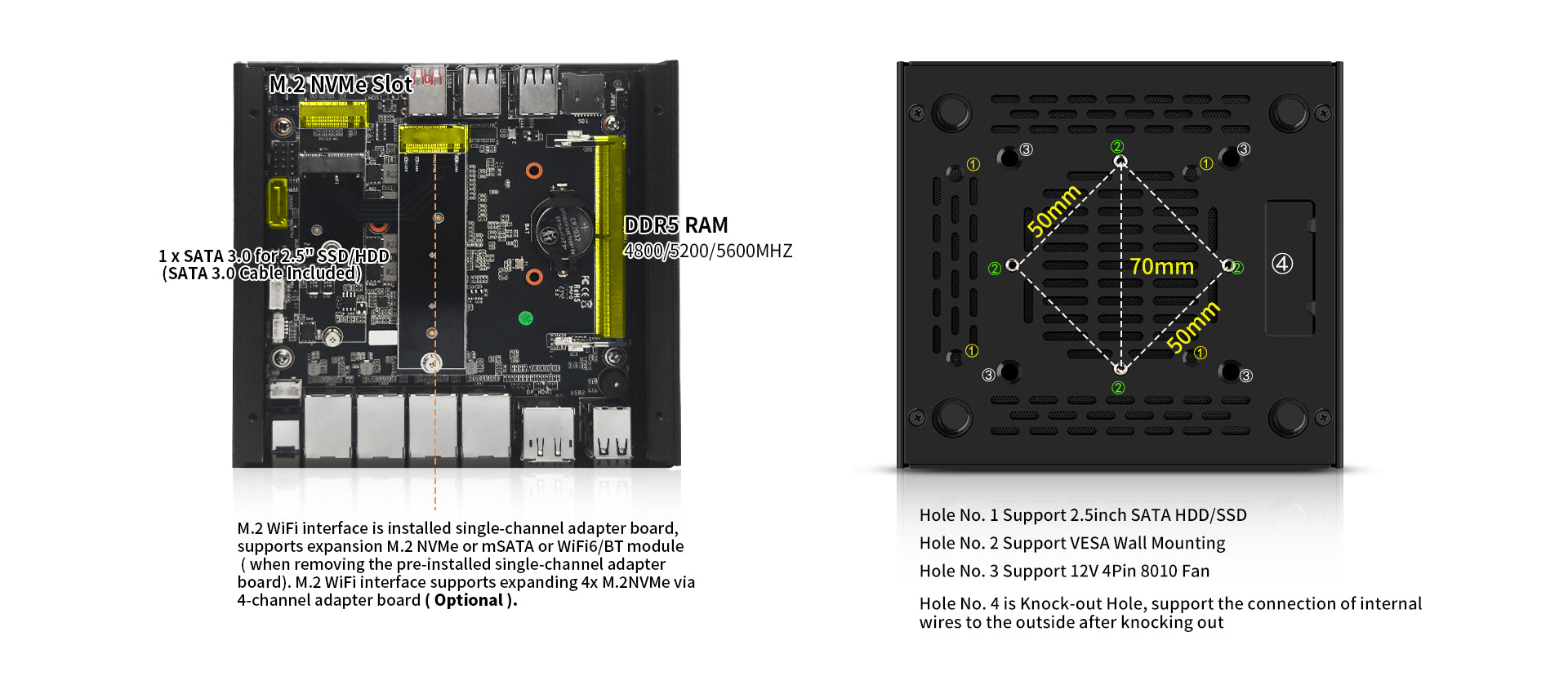

The F6 supports one SO-DIMM DDR5 memory slot with up to 32GB capacity. It also includes an M.2 NVMe x4 high-speed storage interface, a SATA3.0 interface, SATA power connector, and TF card slot. The TF card slot can be used for data storage or system boot, making the device flexible for firewall systems, Linux servers, and lightweight local storage use.

Fanless Aluminum Alloy Cooling Design:

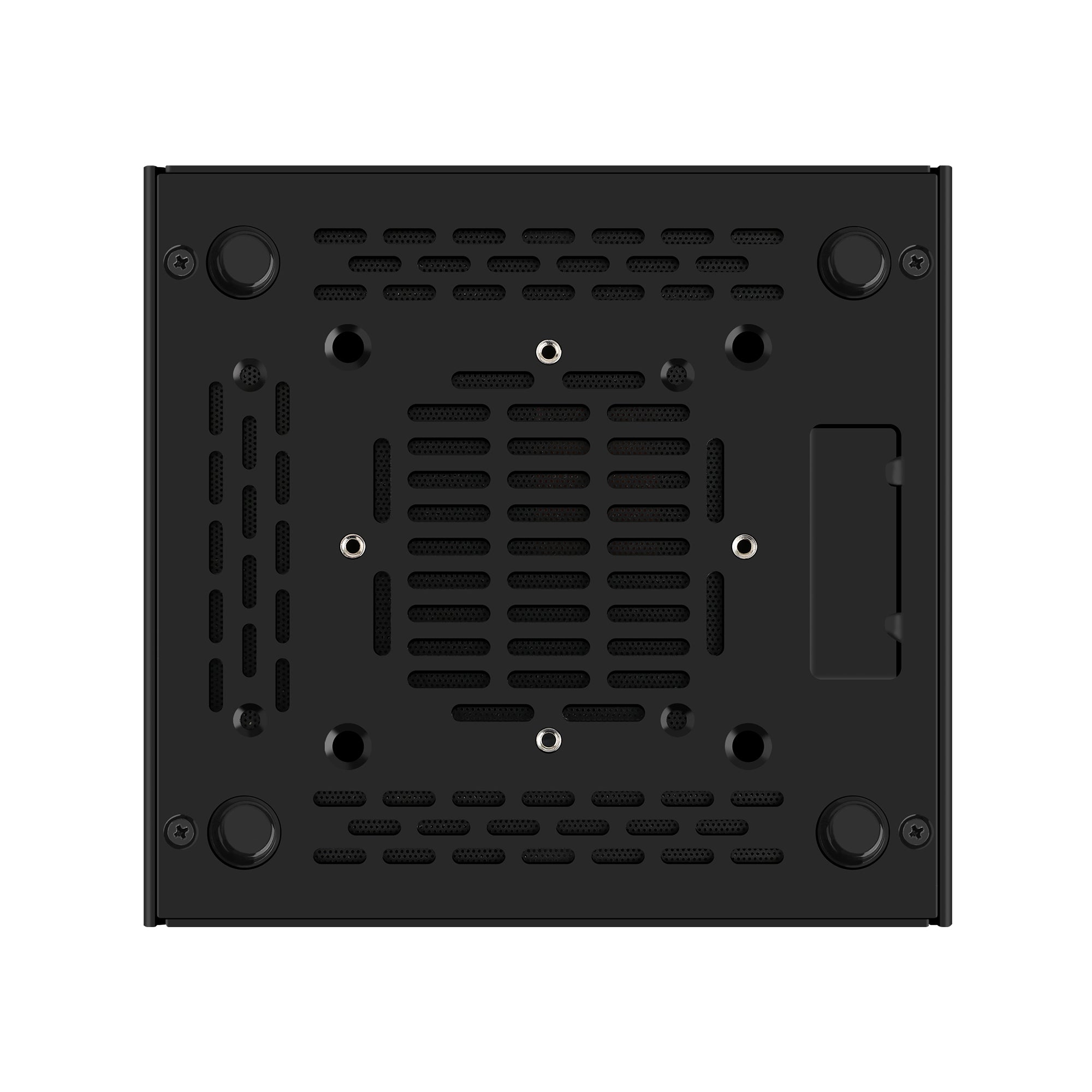

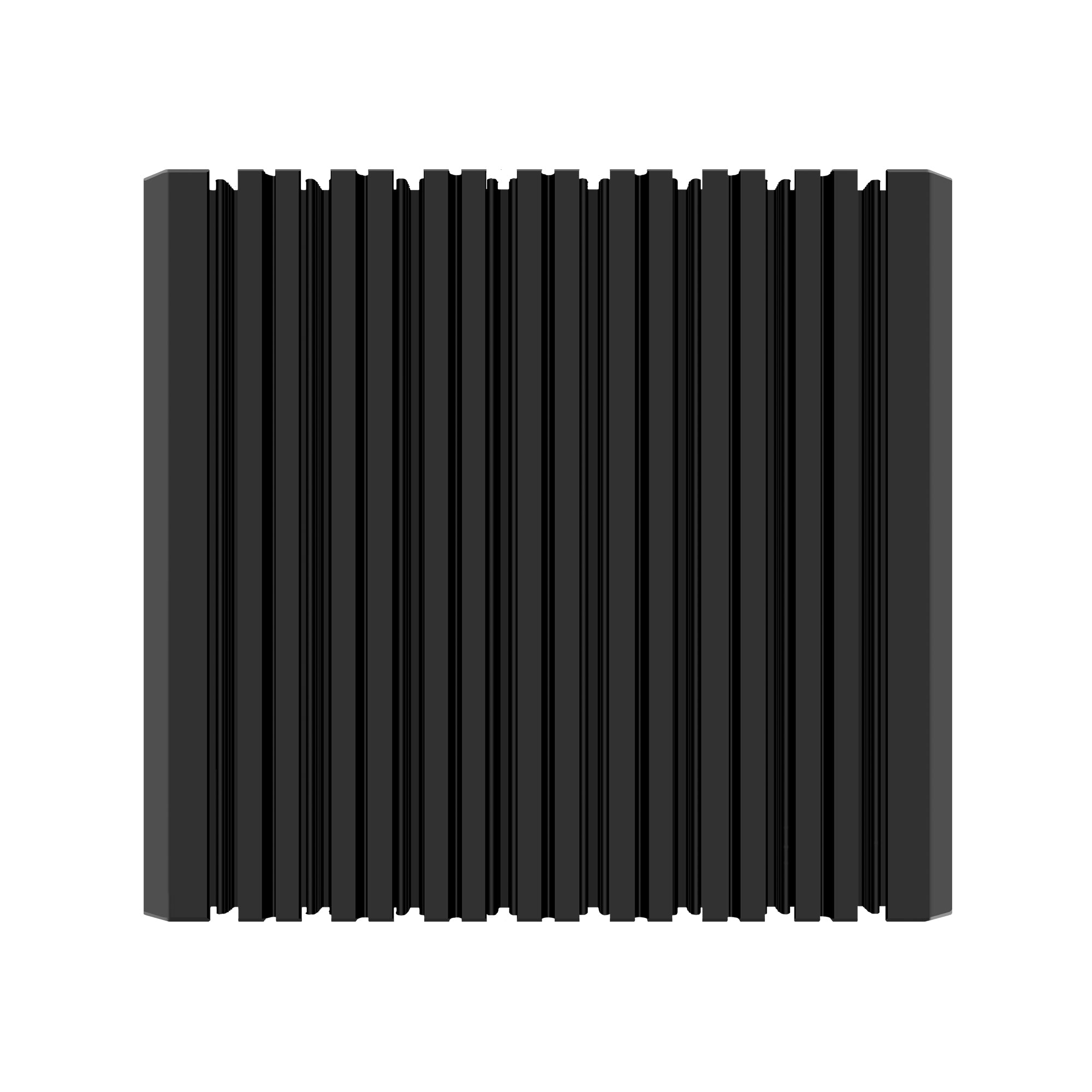

The full aluminum alloy chassis provides fanless passive cooling for quiet 24/7 operation. This makes the F6 suitable for home network cabinets, office desks, wall-mounted installations, and always-on firewall environments. For users who need extra cooling, the bottom of the chassis also supports an optional 12V 4-pin 80 × 80 × 10mm fan.

HDMI + DP Dual Display and Practical I/O:

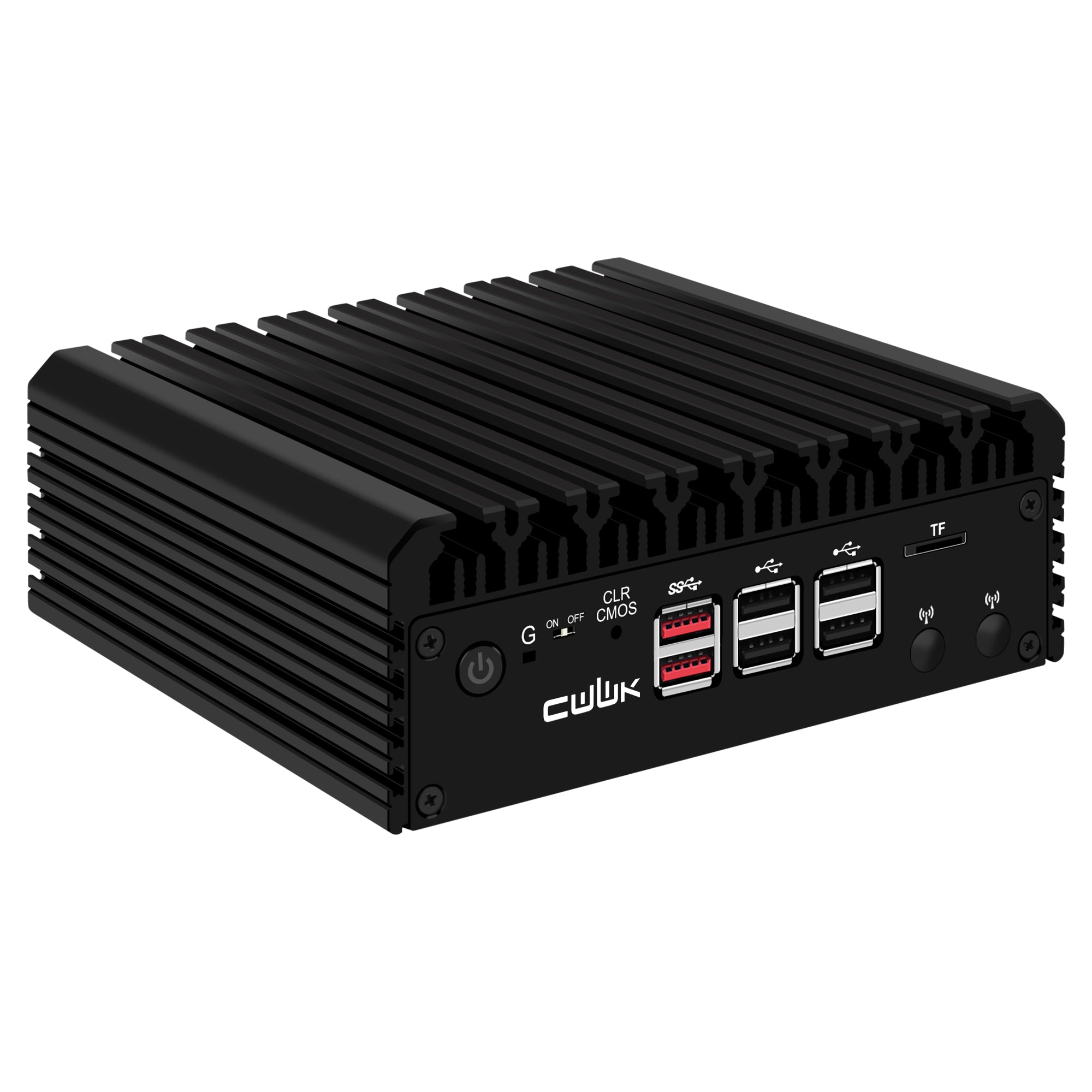

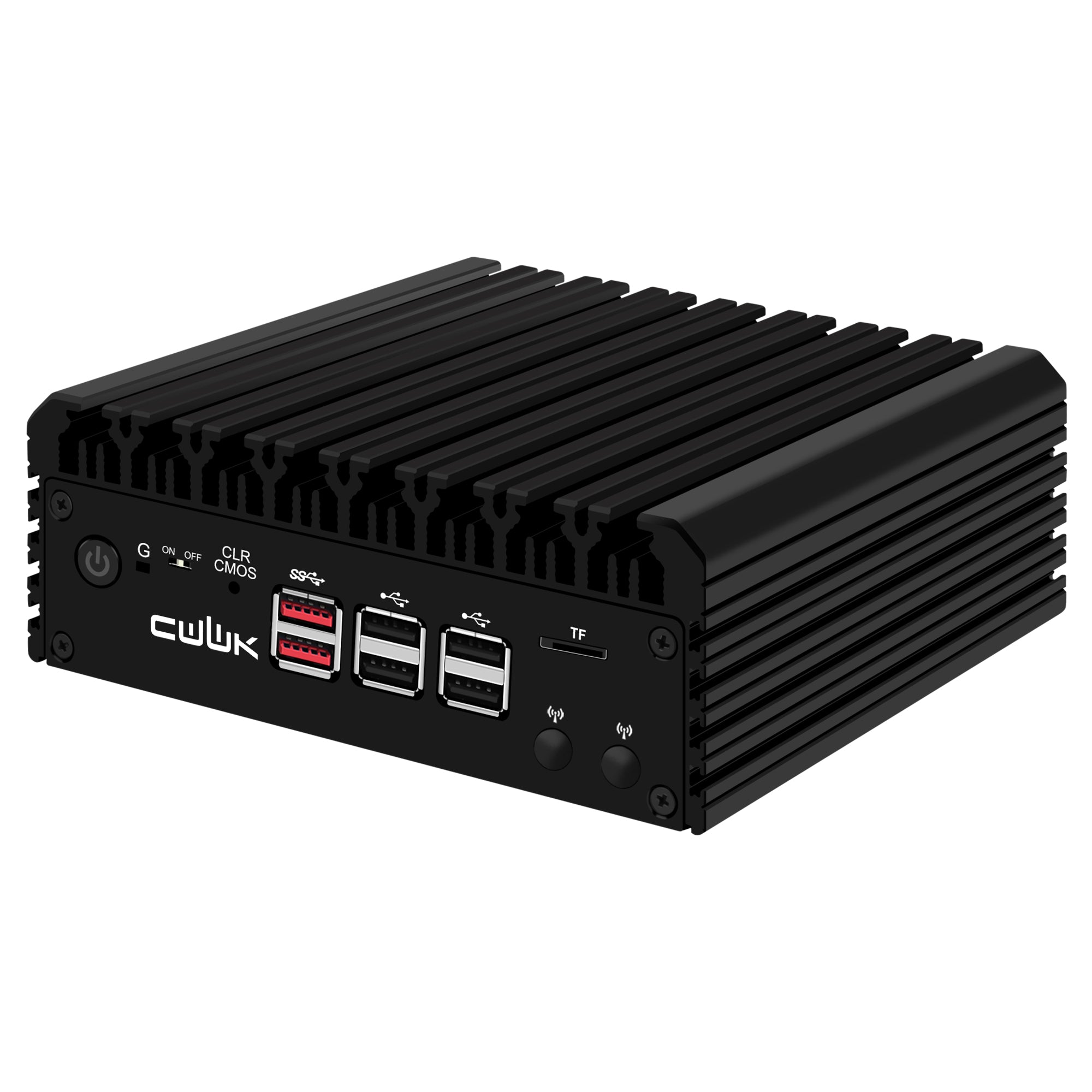

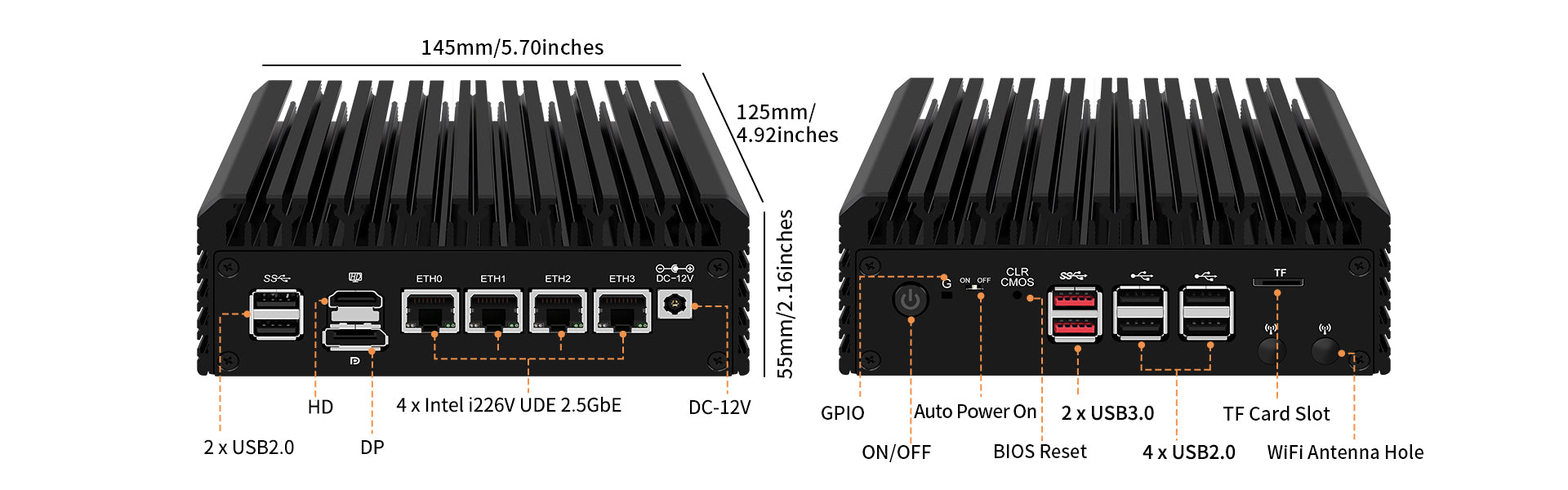

The F6 supports HDMI 1.4 and DP 1.4 dual display output, with support for 4K display use. It also provides USB3.0, USB2.0, TF card slot, GPIO, BIOS Reset, Auto Power On, and reserved WiFi antenna holes, giving users more flexibility for installation, troubleshooting, and network appliance deployment.

Built for Firewall, Router, and Home Lab Applications:

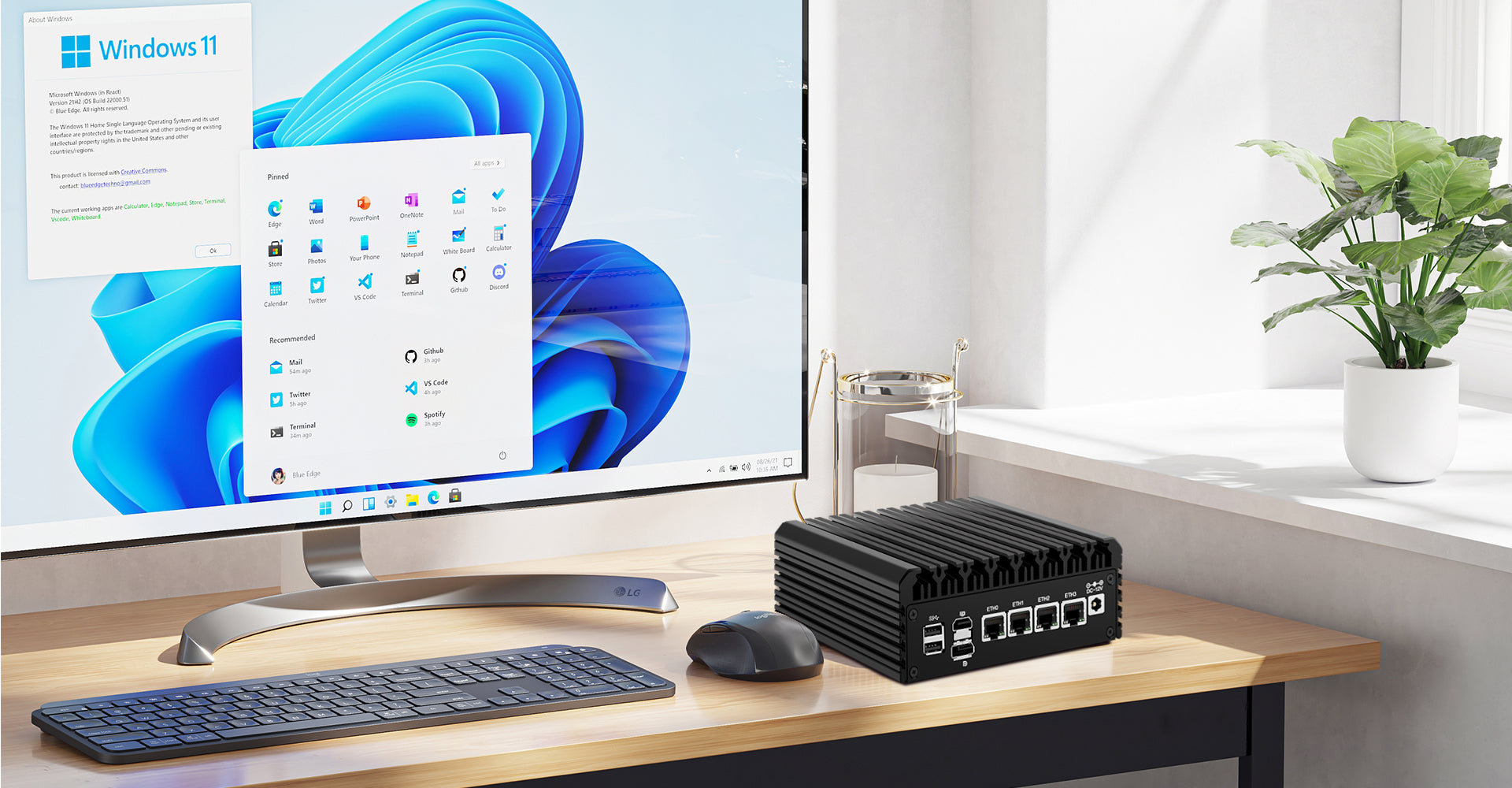

Whether used as an OPNsense firewall, pfSense router, OpenWrt soft router, VPN gateway, Proxmox host, small Linux server, or compact edge network appliance, the CWWK F6 provides a balanced combination of multi-port networking, low power consumption, silent operation, and compact hardware design.
