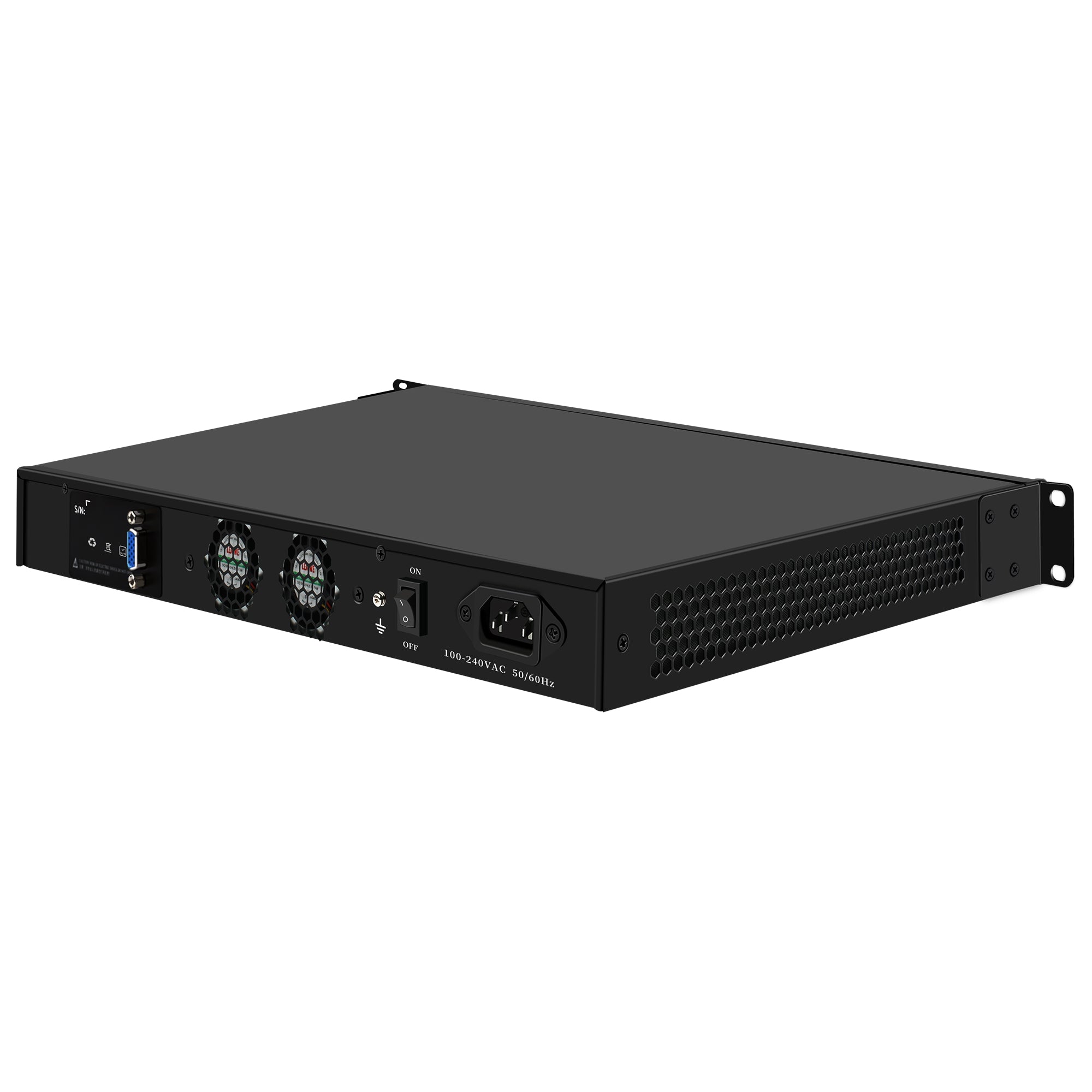

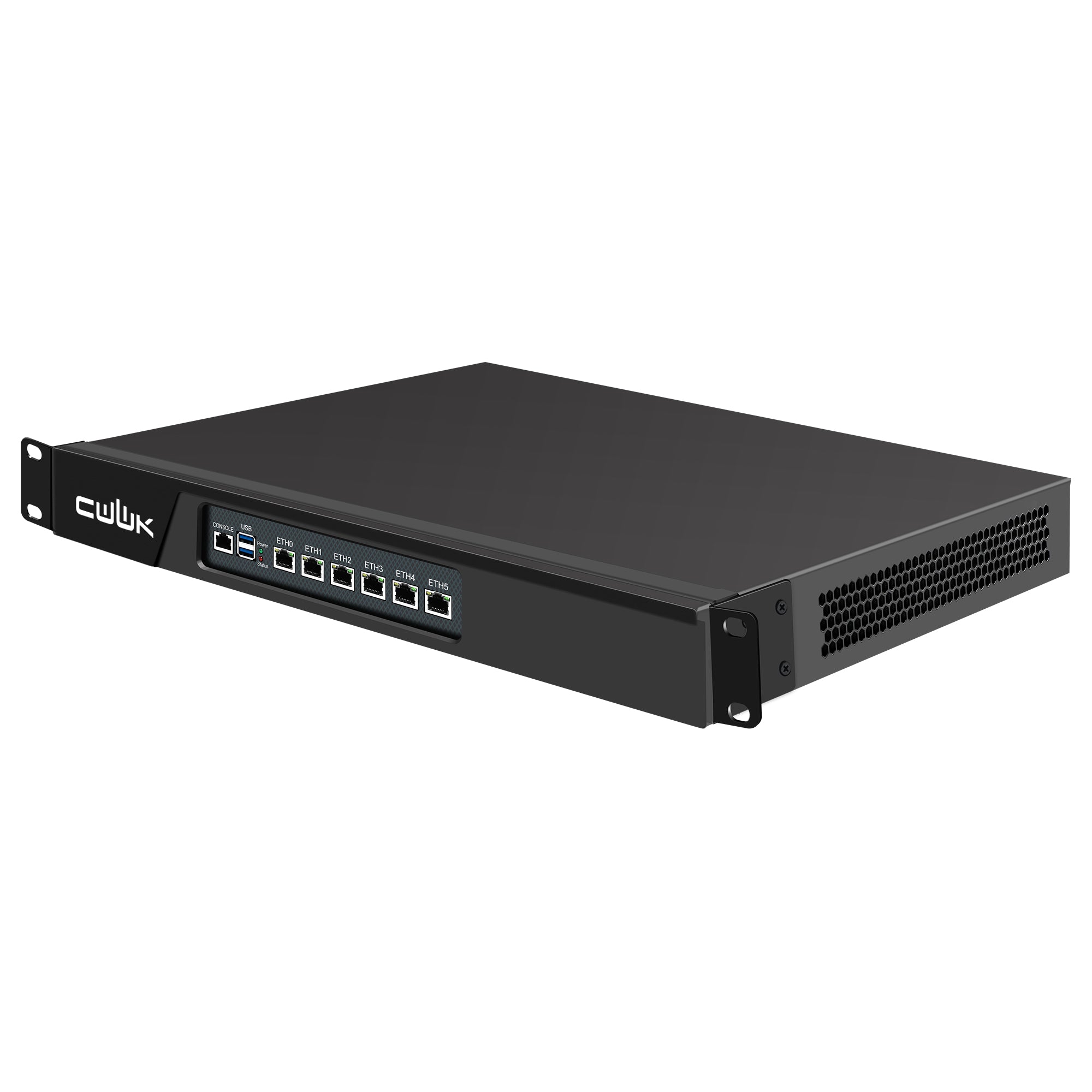

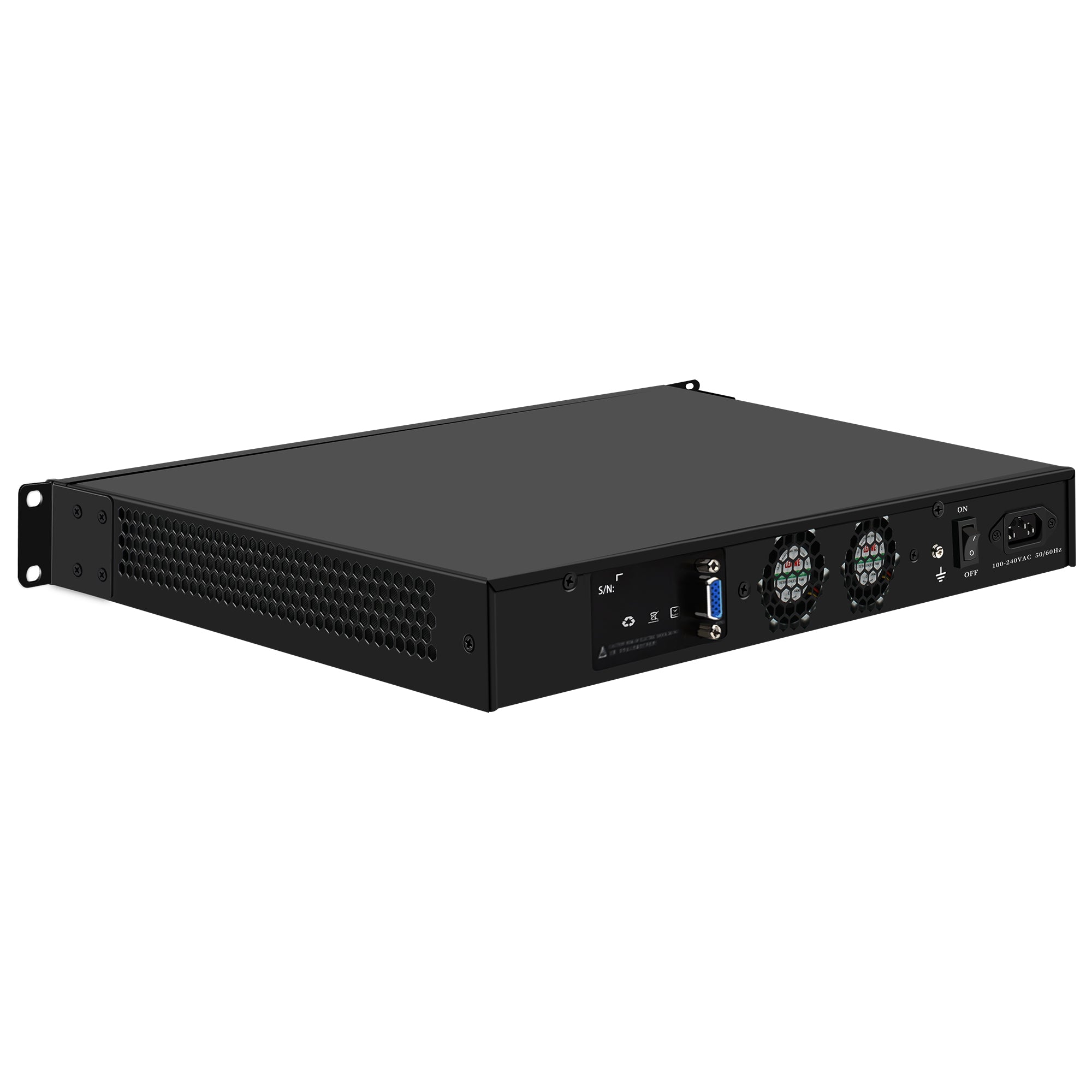

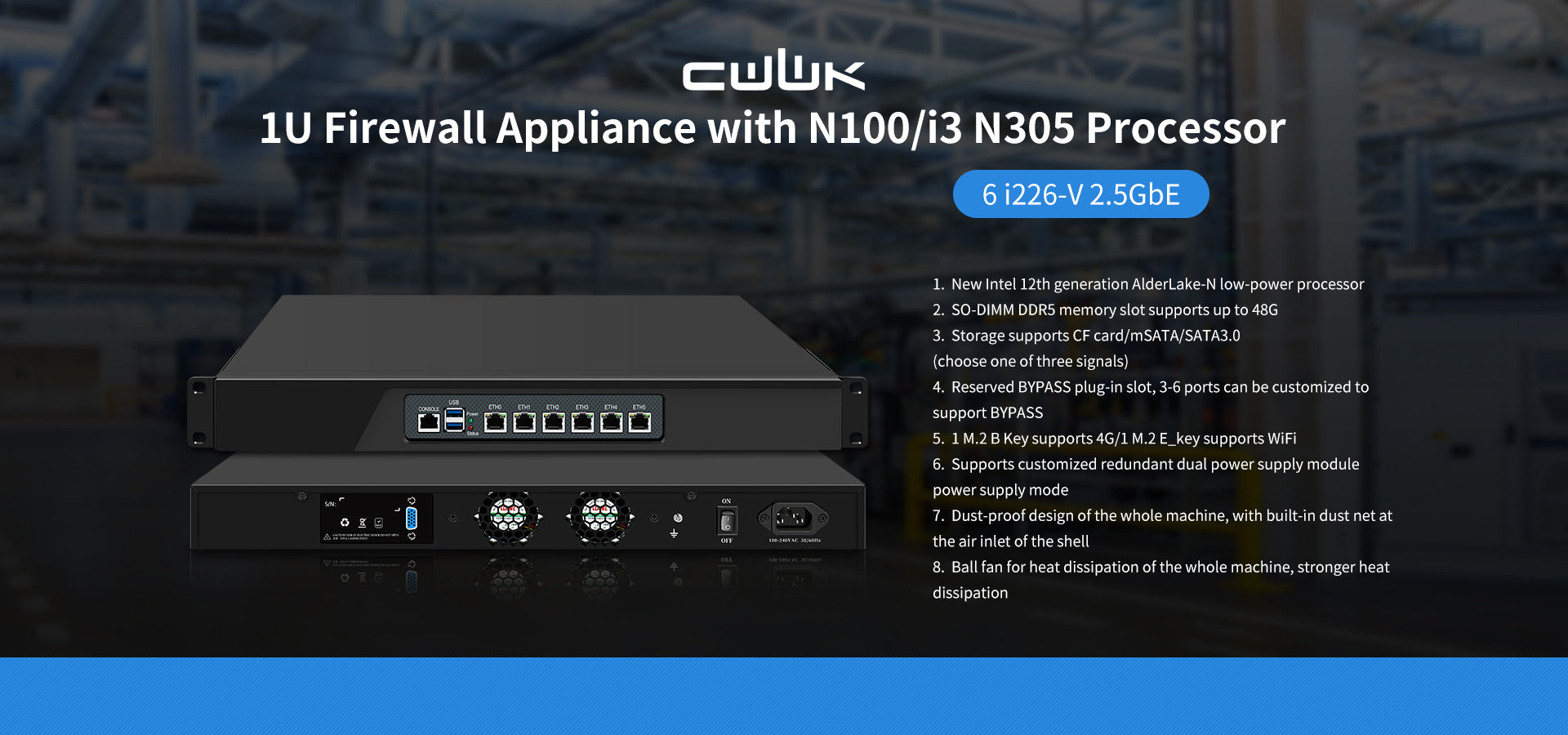

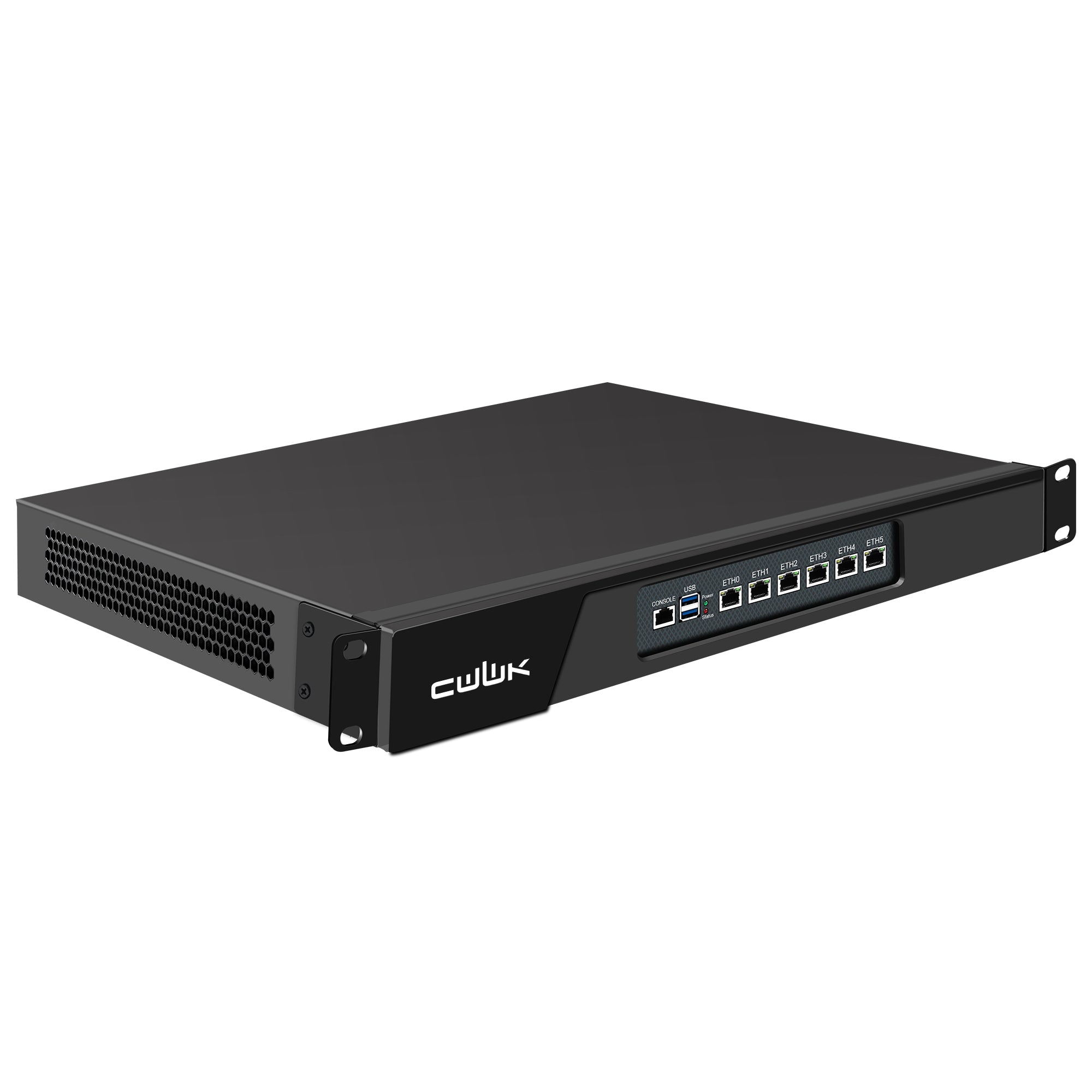

CWWK N14 1U Firewall Appliance N305/N100, 6 x i226-V 2.5GbE LAN Firewall Hardware VPN Router PC, DDR5 RAM SSD OPNsense Hardware 19”Rackmount for Homelab Server with VGA, SIM
Description
CPU: 12th Gen Core i3 N305 8C 8T, up to 3.8GHz, TDP15W

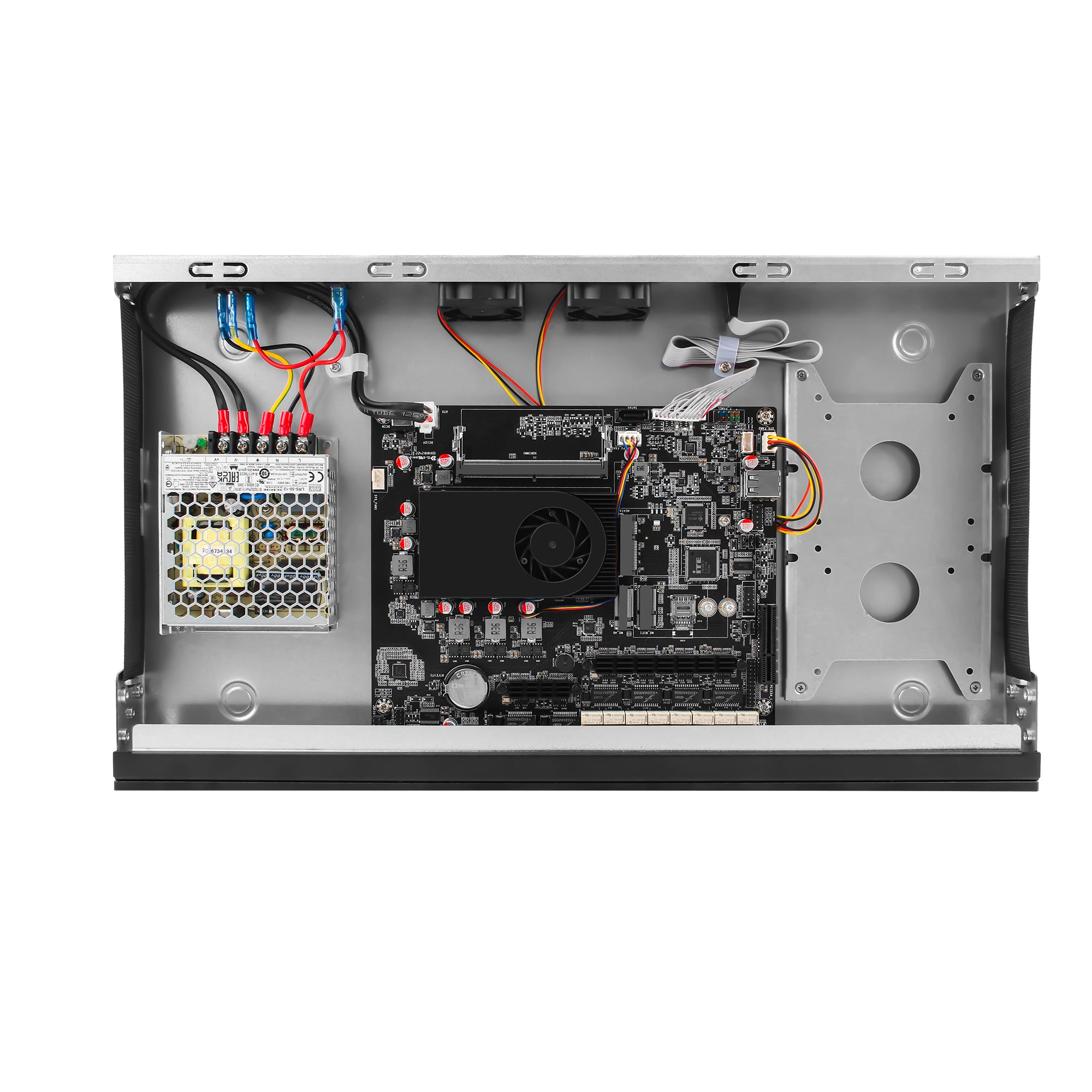

Chassis: 19” 1U rack mount server chassis with dust filter
GPU: In-tel UHD Graphics with 32EU
CPU: 12th Gen Alder Lake N100 4C 4T, up to 3.4GHz, TDP6W
Chassis: 19” 1U rack mount server chassis with dust filter
GPU: In-tel UHD Graphics with 24EU

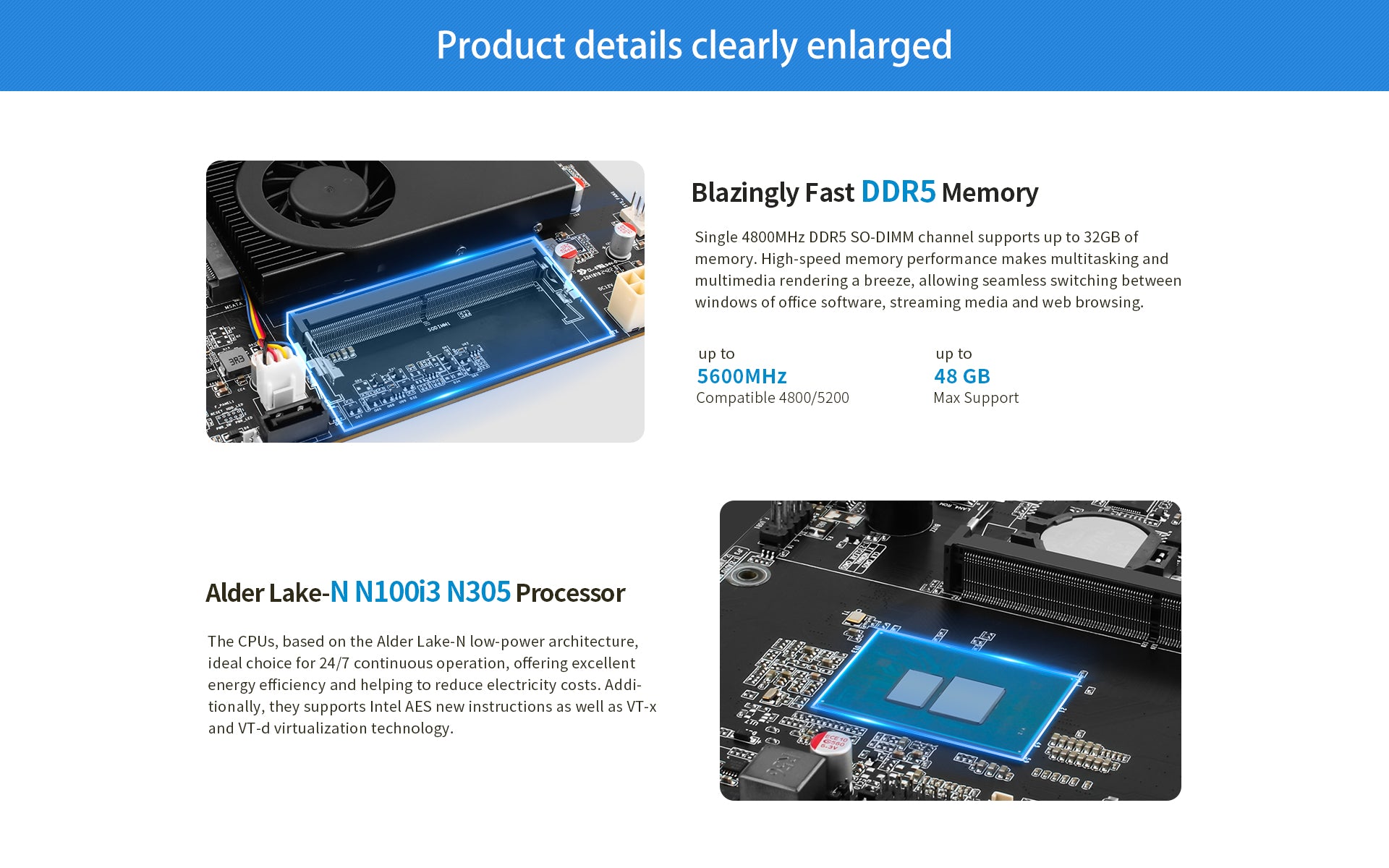

Memory: 1 x SODIMM DDR5 RAM slot, up to 48GB

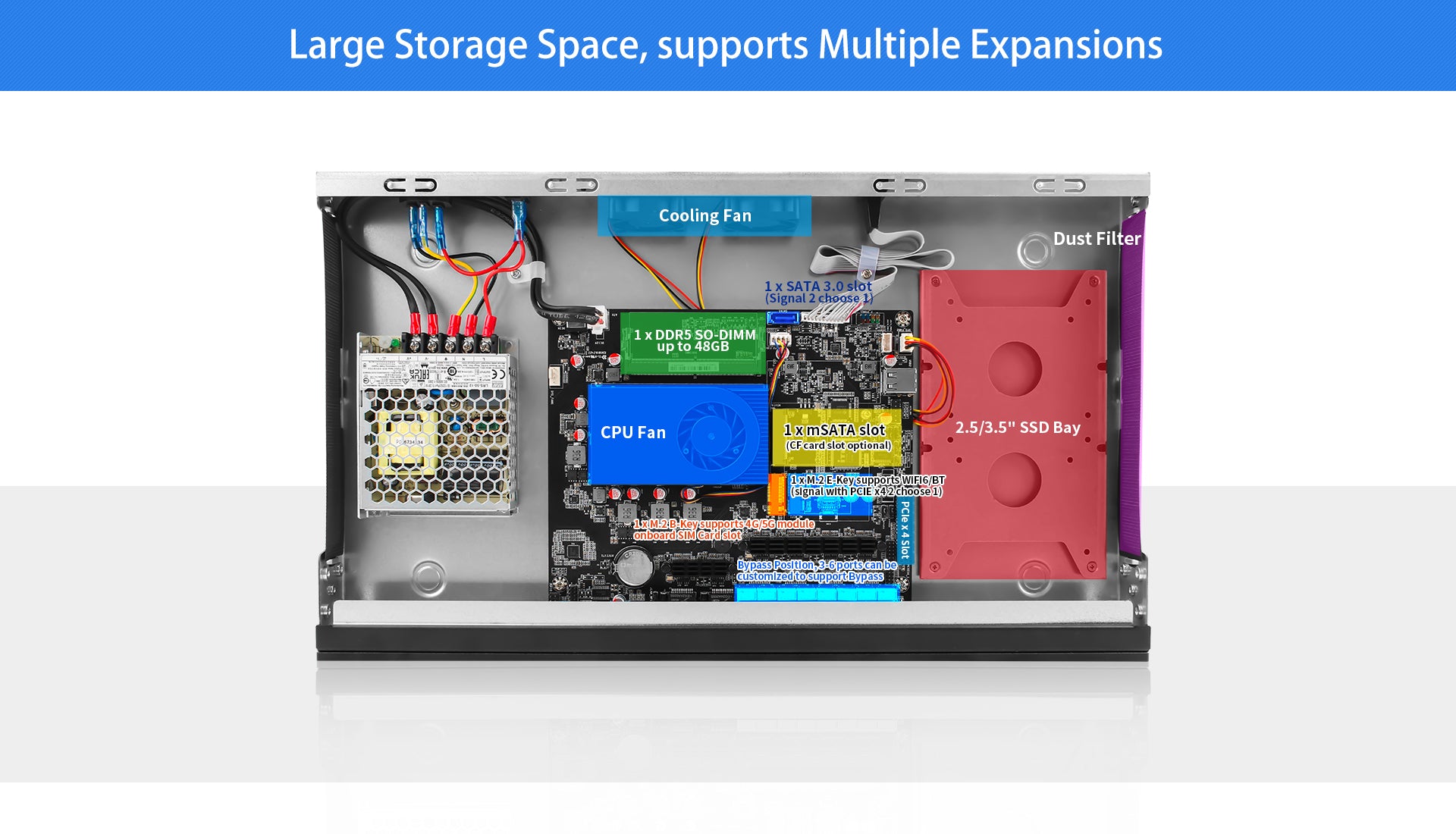

Storage: 1 x mSATA and 1 x SATA3.0, signal sharing, only supports 1 out of 2

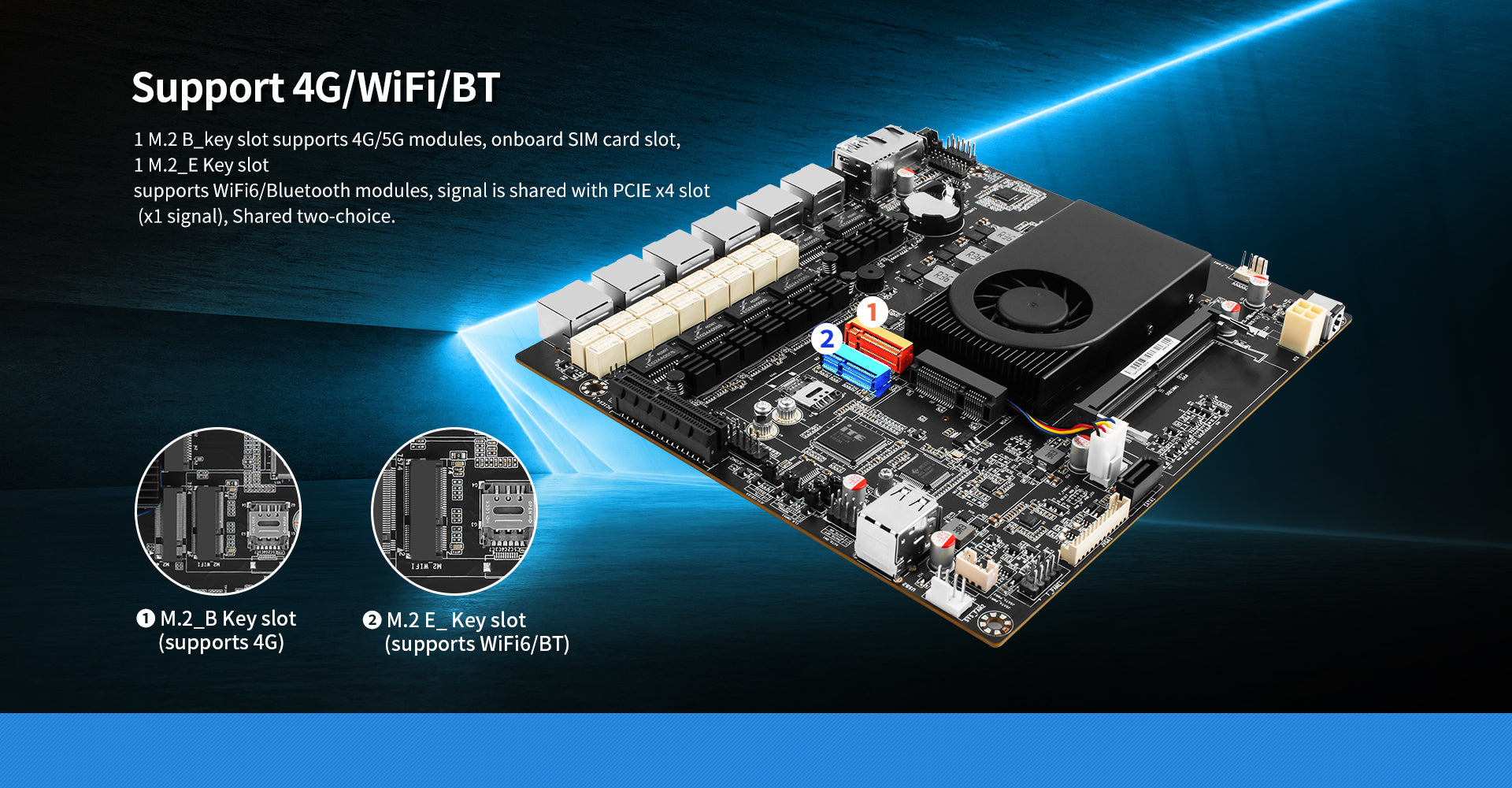

Expandsion 1 x M.2 E-Key (support WiFi6/BT) and 1x M.2 B-Key (support 4G/5G, with SIM slot), shares signal with 1x PCI-E x4 slot (PCIe3.0 x1,), only supports 1 out of 2

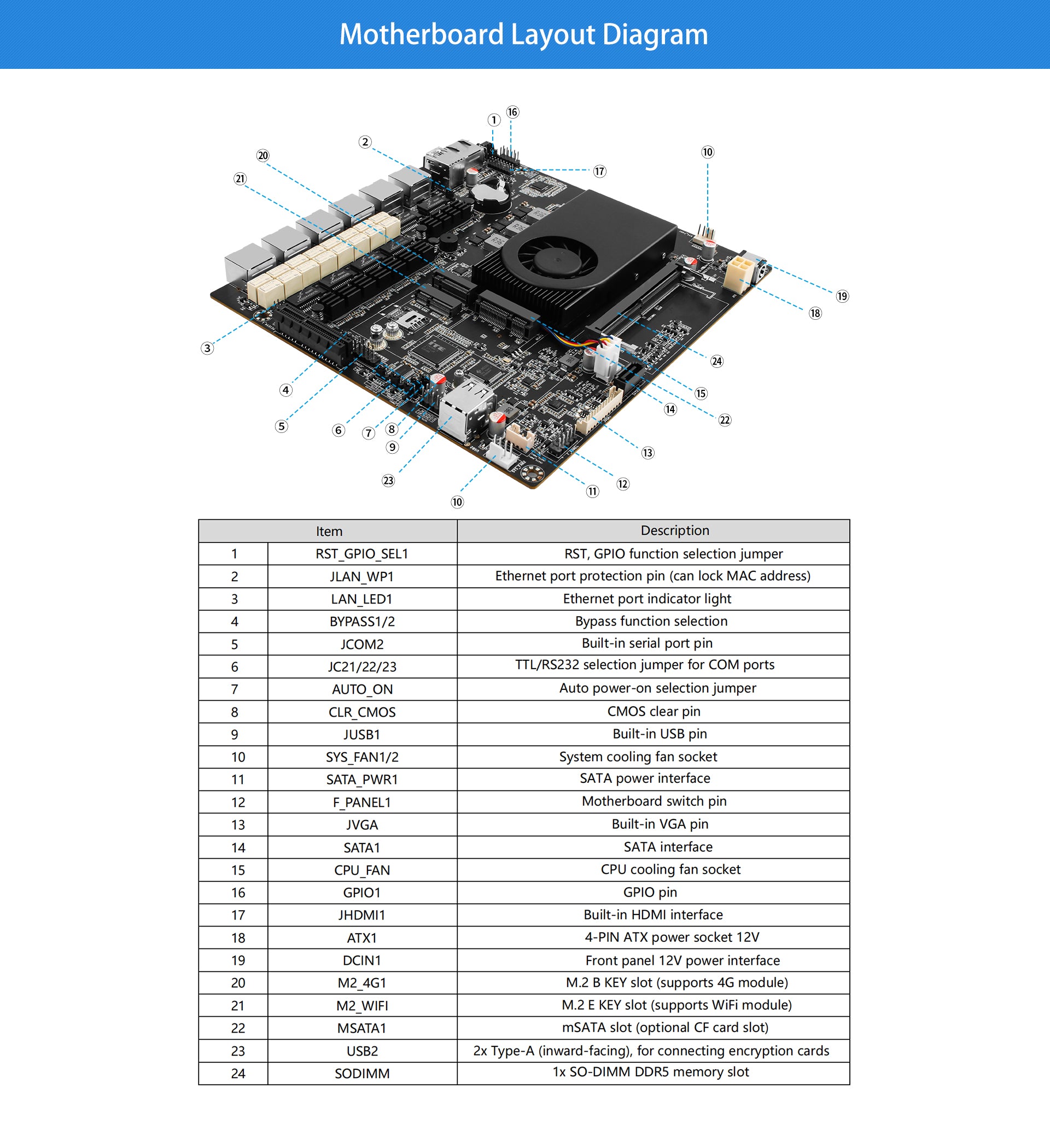

Pin Header: 1 x 16pin J_HDMl, 1 x J_GPIO, 1 x J_COM, 1 x J_USB2.0
Network Card: 6 x i226-V 2.5Gbbr>

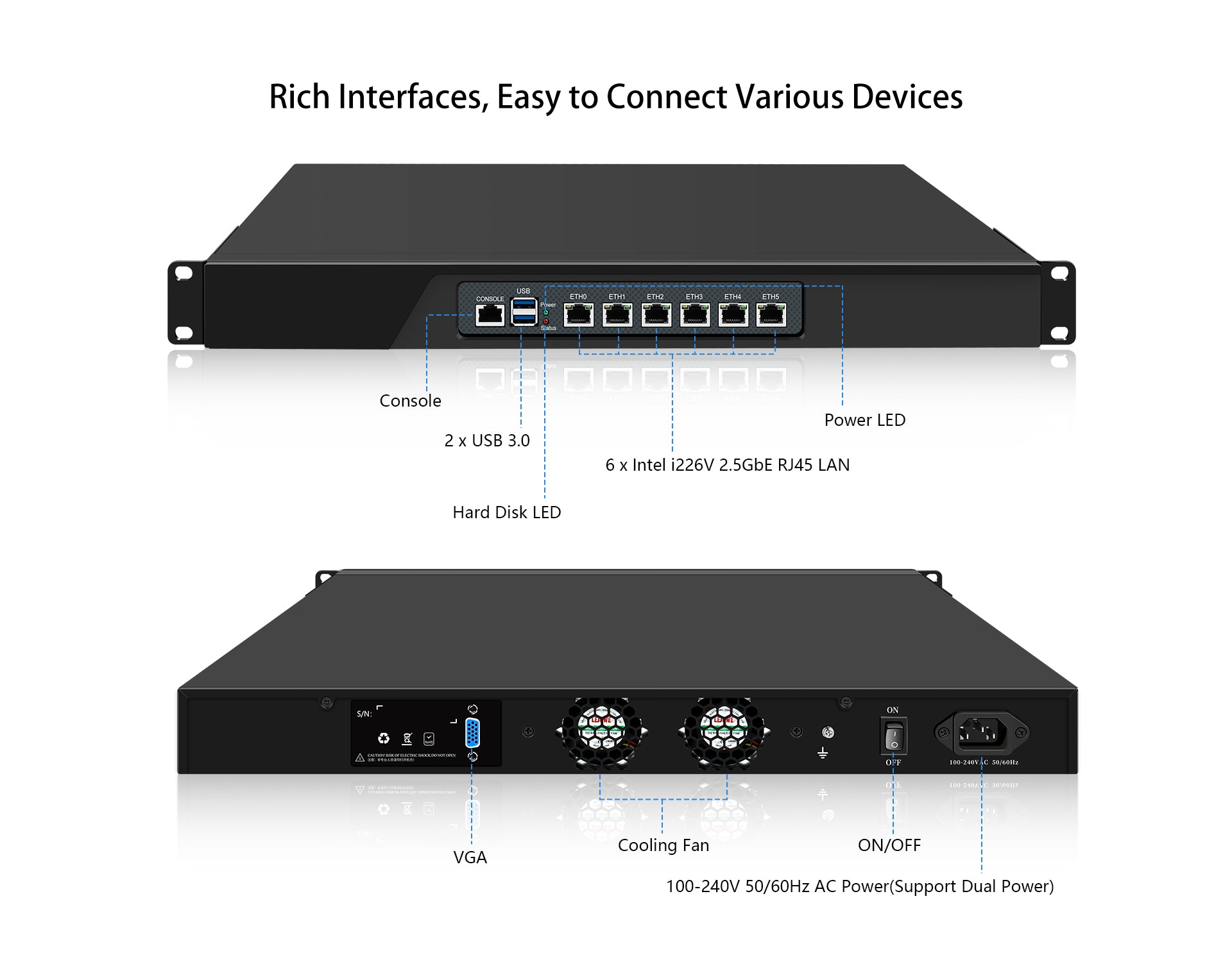

I/O Interface: 1 x RJ45 Console, 2 x USB3.0, 6 x LAN, 1 x VGA
Power Supply: AC 100-240V, 50-60Hz
Operating Temp: 0°c~70°c
Relative Humidity: 10%~90% non-condensing

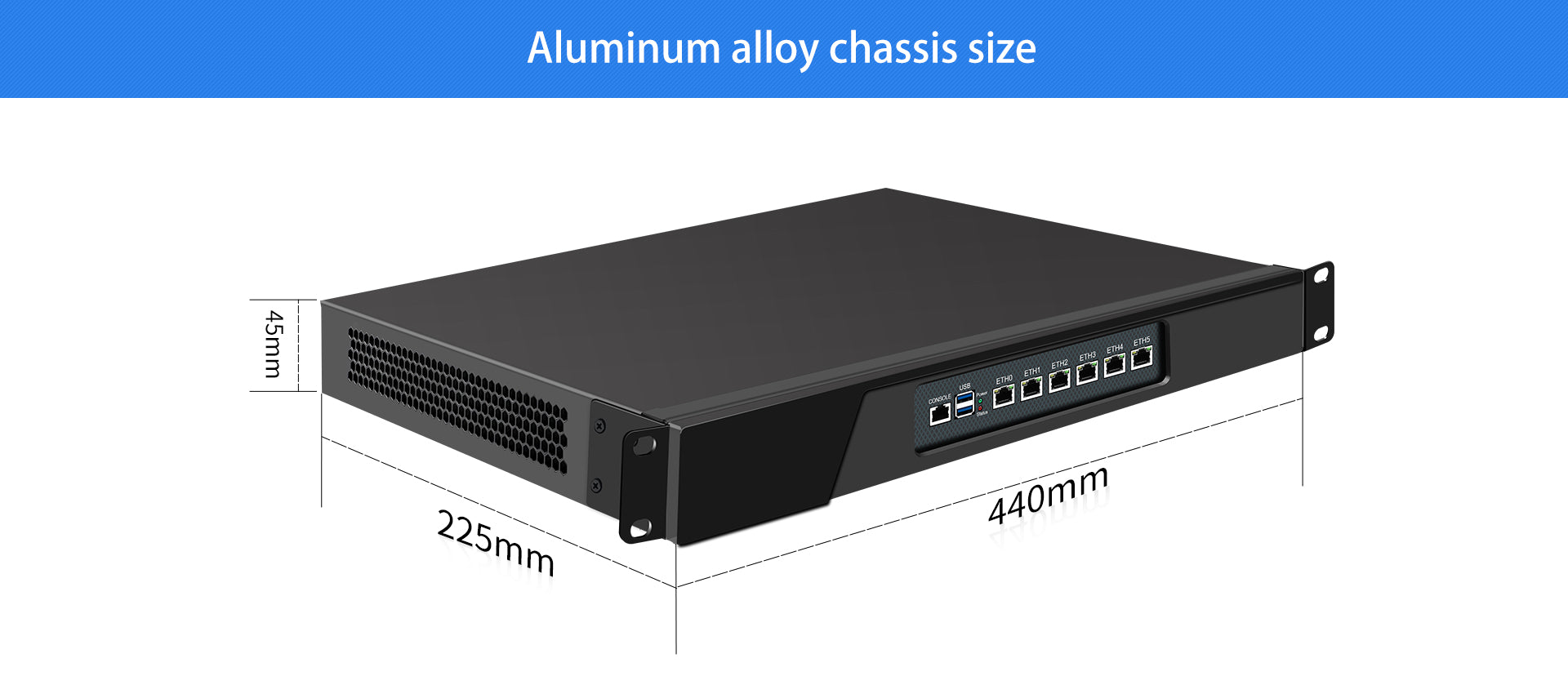

Size: 17.33 x 10.04 x 1.78 inch
Weight: 11.9 LB br>
Packing List: 1U firewall computer, 2 x rack ears, power cable, sata cable, screws
Function: Supports Auto Power On, Wake on LAN, PXE, AES-NI, one click flow control, system power management, temp management
Compatibility: Windows10/11, Windows Server, PF-sense, OPN-sense, Open-Wrt, Linux distros, PVE, EXSi supported. UEFI support only
Applicable Scenarios: soft routers, security gateways, IDS/IPS, firewalls, load balancing, network gates, AC control, bastion hosts
Customization options:
1. Chassis supports 9", 1U and 2U sizes
2. Power supports single power or dual power supply
3. Ethernet port supports 6 x i226-V 2.5Gb RJ45, 6 x i211-AT 1Gb RJ45 or 6 x i210-AT 1Gb RJ45, and supports 3-6 network ports customized Bypass function
4. Function expansion supports Wifi/BT/4G/5G
