CWWK AI Mini PC Core Ultra 7 155H Firewall Appliance, 8 x 2.5GbE LAN Mini Computer, F28 Linux Server Micro PC, Win11 Pro, DDR5 32GB RAM 1TB NVMe, PCIe4.0 x4, USB4(40Gbps), HD/DP
- CPU Designed for AI acceleration: The CWWK F28 multi-port mini PC features the 14th Gen Meteor Lake Core Ultra 7 155H processor with 16 cores 22 threads, base 1.4GHz, up to 4.8GHz, 24MB cache and a still low 28W TDP. It delivers stronger performance and supports AI Boost (NPU) for local AI inference, ideal for smart voice, image enhancement, and energy-saving AI applications
- CPU + NPU + GPU Triple AI Engines: The processor combines a powerful CPU and NPU with an integrated Arc Graphics GPU (8 Xe cores at up to 2.25GHz), supporting XeSS and ray tracing, enabling gaming, office tasks, and 3D designing. Their synergy, plus deep learning support, delivers enhanced AI performance, compatible with OpenVINO, WindowsML, DirectML, etc
- 8 x 2.5Gigabit LAN: Equipped with 8 x i226-V 2.5Gbit RJ45 Ethernet ports (The 4 below supports PCIe passthrough), capable of connecting multiple LAN devices. It is compatible with various common open-source software router or virtual machine systems, like OPNsense, Linux and PVE, ideal for building network security firewalls or virtualization AIO server

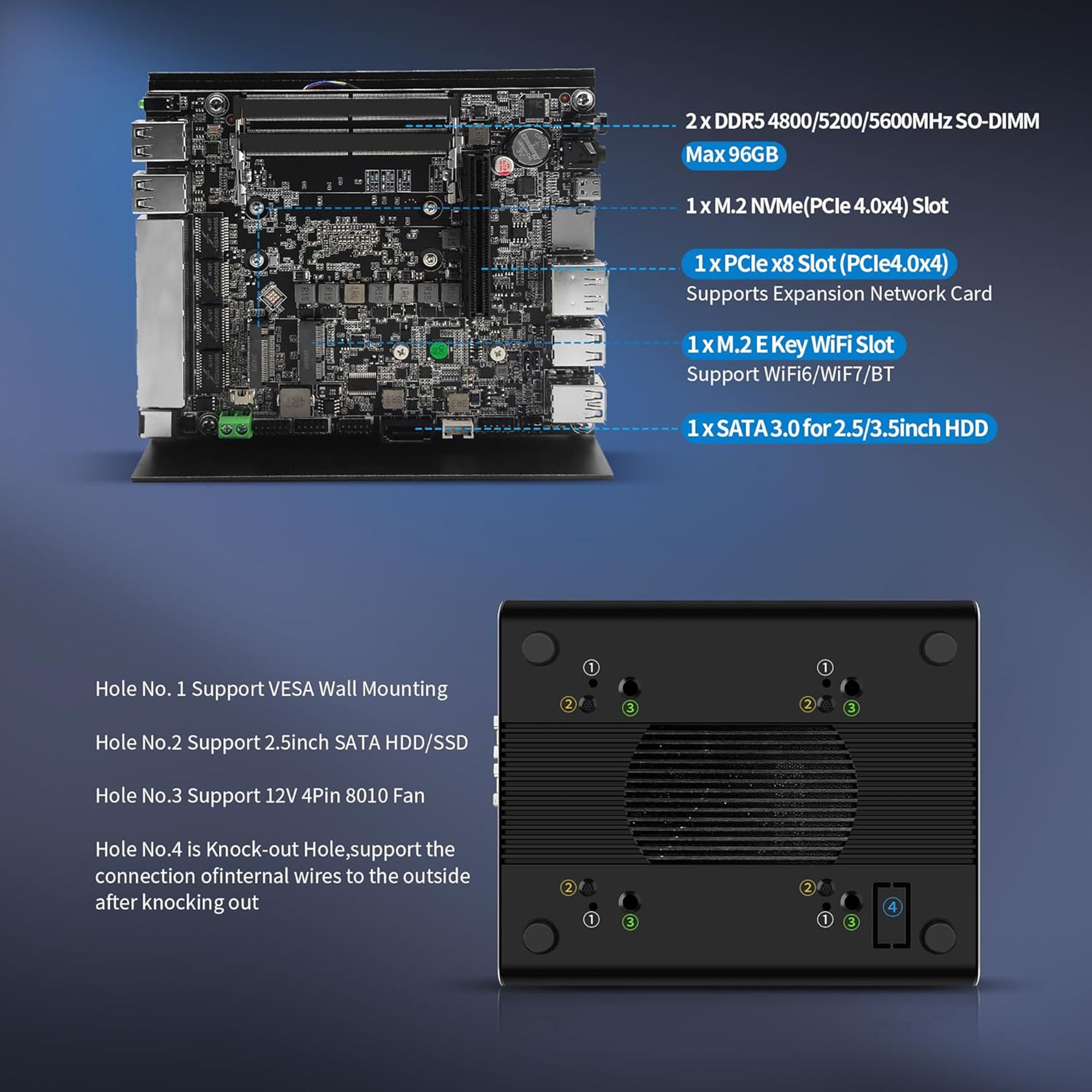

- DDR5&PCIe4.0 NVMe&M.2 WiFi: 2 x DDR5 SO-DIMM 4800/5200/5600MHz RAM slot, up to 96GB. With 1 x M.2 slots (PCIe4.0 x4) for 2280-sized NVMe SSDs, it also offers 1 x SATA3.0 ports for SATA SSD/HDD installation, which can be connected externally via cable. 1 x M.2 E-key WiFi slot for Wi-Fi/BT wireless card module (sold separately)
- Other External I/O: 1 x USB4 Type-C supports 40Gbps data transfer, 8K@60Hz display output, and 19V 120W PD power delivery. 2 x USB3.2 Gen2 (10Gbps), 6 x USB2.0, HD2.0 + DP1.4 support up to 4K@60Hz. 1 x TF card slot, 1 x audio port. 1 x BIOS reset button, various pin headers support jumper function settings. The product manual will be provided before shipment
