CWWK AI Mini PC Core Ultra 5 125H Firewall Appliance, 4 x 10GbE SFP+ Mini Computer, 4 Port 2.5GbE LAN, S10 Linux Server Micro PC, DDR5 NO RAM/SSD/OS, PCIe4.0 x4 NVMe, USB4, HD, DP
- CPU Designed for AI acceleration: The CWWK S10 multi-port mini PC features the 14th Gen Meteor Lake Core Ultra 5 125H processor with 14 cores 18 threads, base 1.2GHz, up to 4.5GHz, 18MB cache and a low 28W TDP. It delivers strong performance and supports AI Boost (NPU) for local AI inference, ideal for smart voice, image enhancement, and energy-saving AI applications
- CPU + NPU + GPU Triple AI Engines: The processor combines a powerful CPU and NPU with an integrated Arc Graphics GPU (7 Xe cores at up to 2.2GHz), supporting XeSS and ray tracing, enabling gaming, office tasks, and 3D designing. Their synergy, plus deep learning support, delivers enhanced AI performance, compatible with OpenVINO, WindowsML, DirectML, etc
- 4x 10Gb + 4x 2.5Gb LAN: Equipped with X710 chip with 4 x 10Gbit SFP+ (support PCIe passthrough) and 4 x i226-V 2.5Gbit RJ45 Ethernet ports, capable of connecting multiple LAN devices. It is compatible with various common open-source software router or virtual machine systems, like OPNsense, Linux and PVE, ideal for building network security firewalls or virtualization AIO server

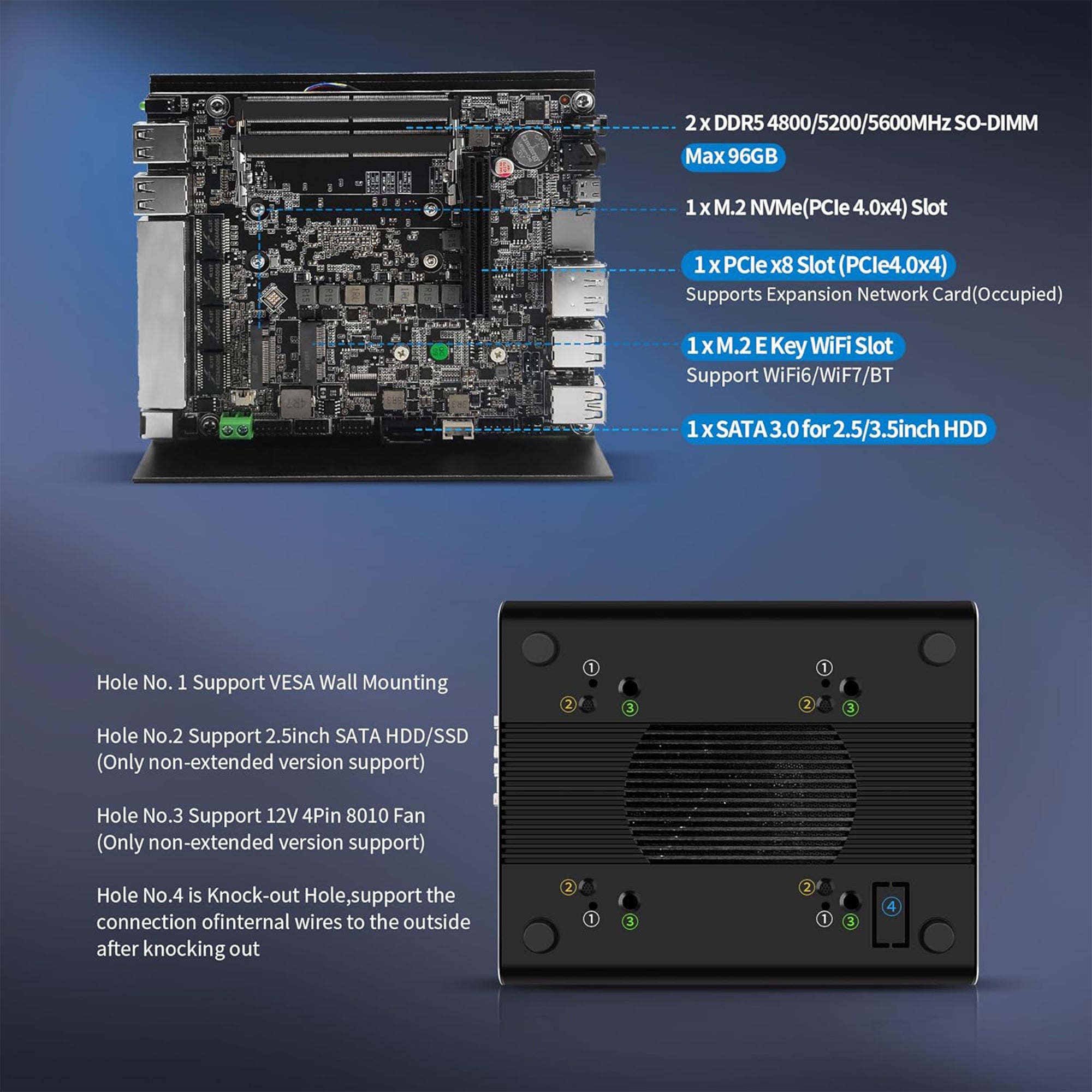

- DDR5&PCIe4.0 NVMe&M.2 WiFi: 2 x DDR5 SO-DIMM 4800/5200/5600MHz RAM slot, up to 96GB. With 1 x M.2 slots (PCIe4.0 x4) for 2280-sized NVMe SSDs, it also offers 1 x SATA3.0 ports for SATA SSD/HDD installation, which can be connected externally via cable. 1 x M.2 E-key WiFi slot for Wi-Fi/BT wireless card module (sold separately)
- Other External I/O: 1 x USB4 Type-C supports 40Gbps data transfer, 8K@60Hz display output, and 19V 120W PD power delivery. 2 x USB3.2 Gen2 (10Gbps), 6 x USB2.0, HD2.0 + DP1.4 support up to 4K@60Hz. 1 x TF card slot, 1 x audio port. 1 x BIOS reset button, various pin headers support jumper function settings. The product manual will be provided before shipment
