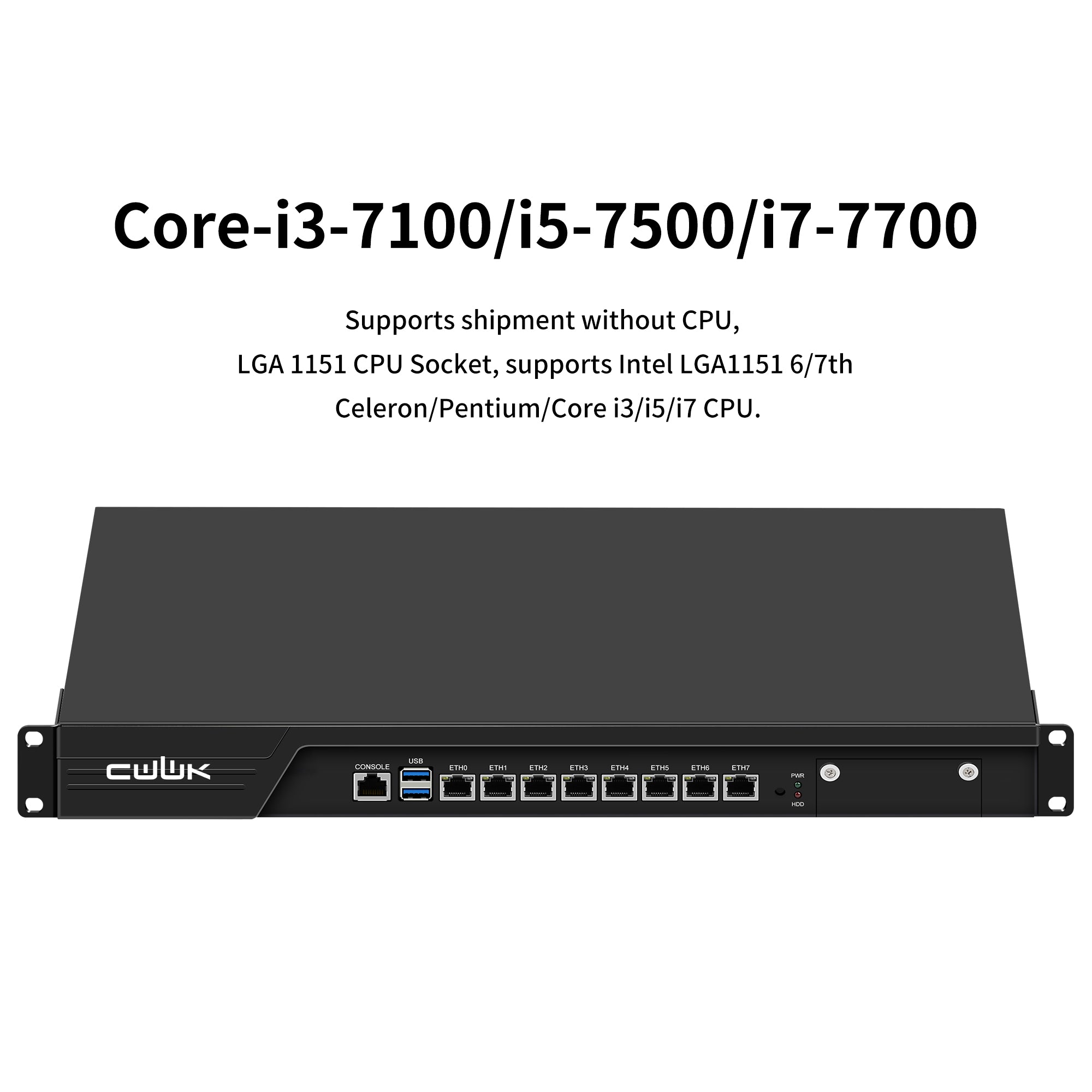

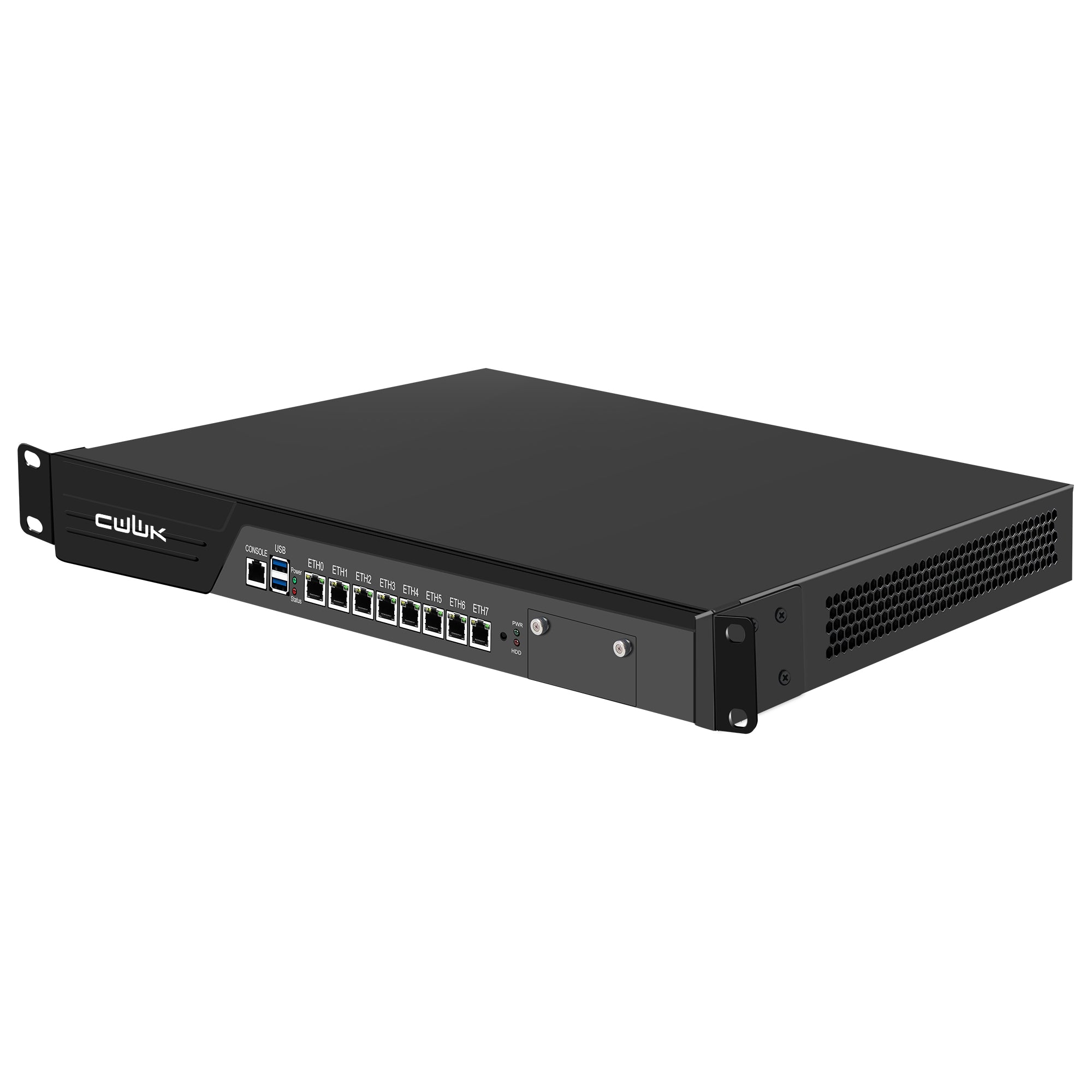

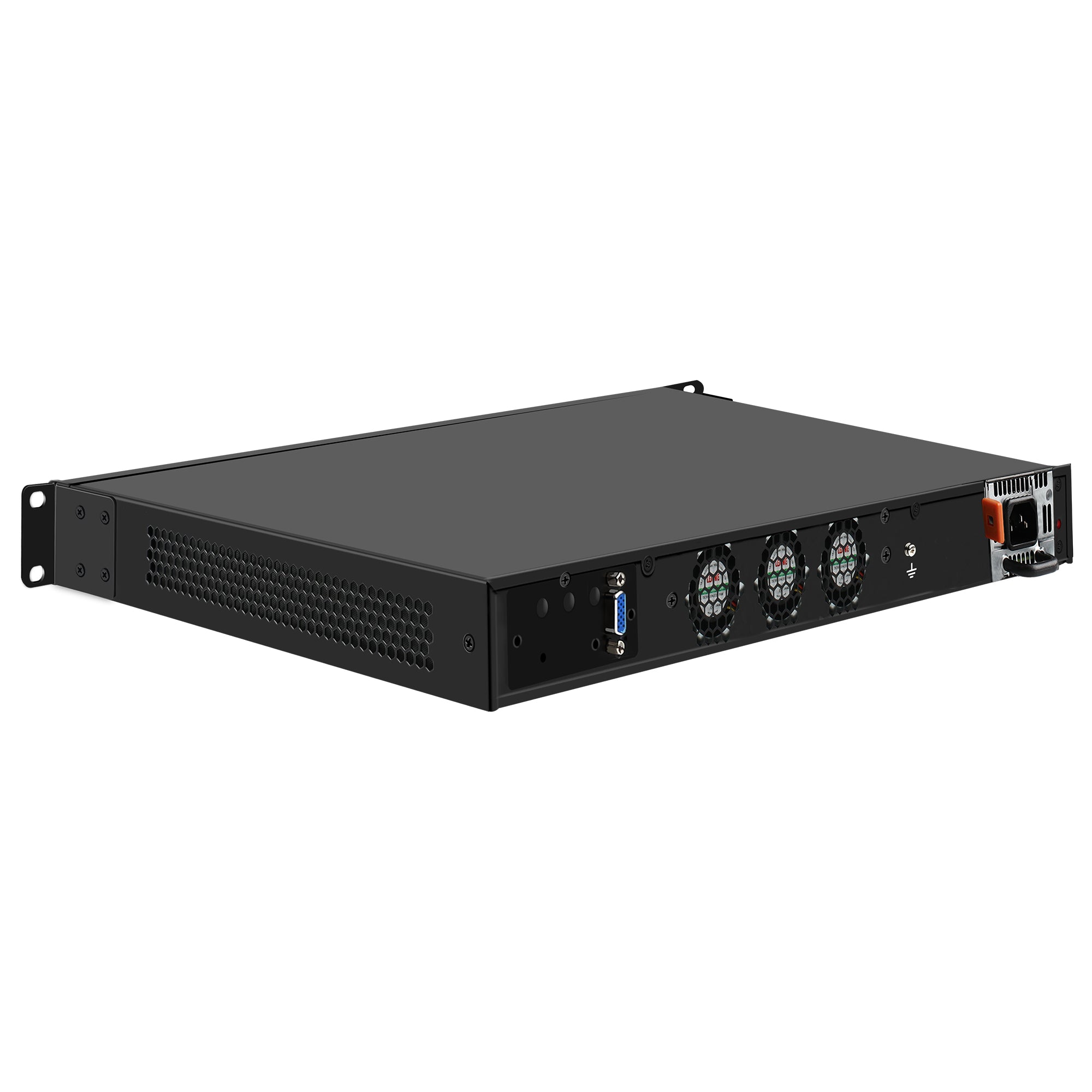

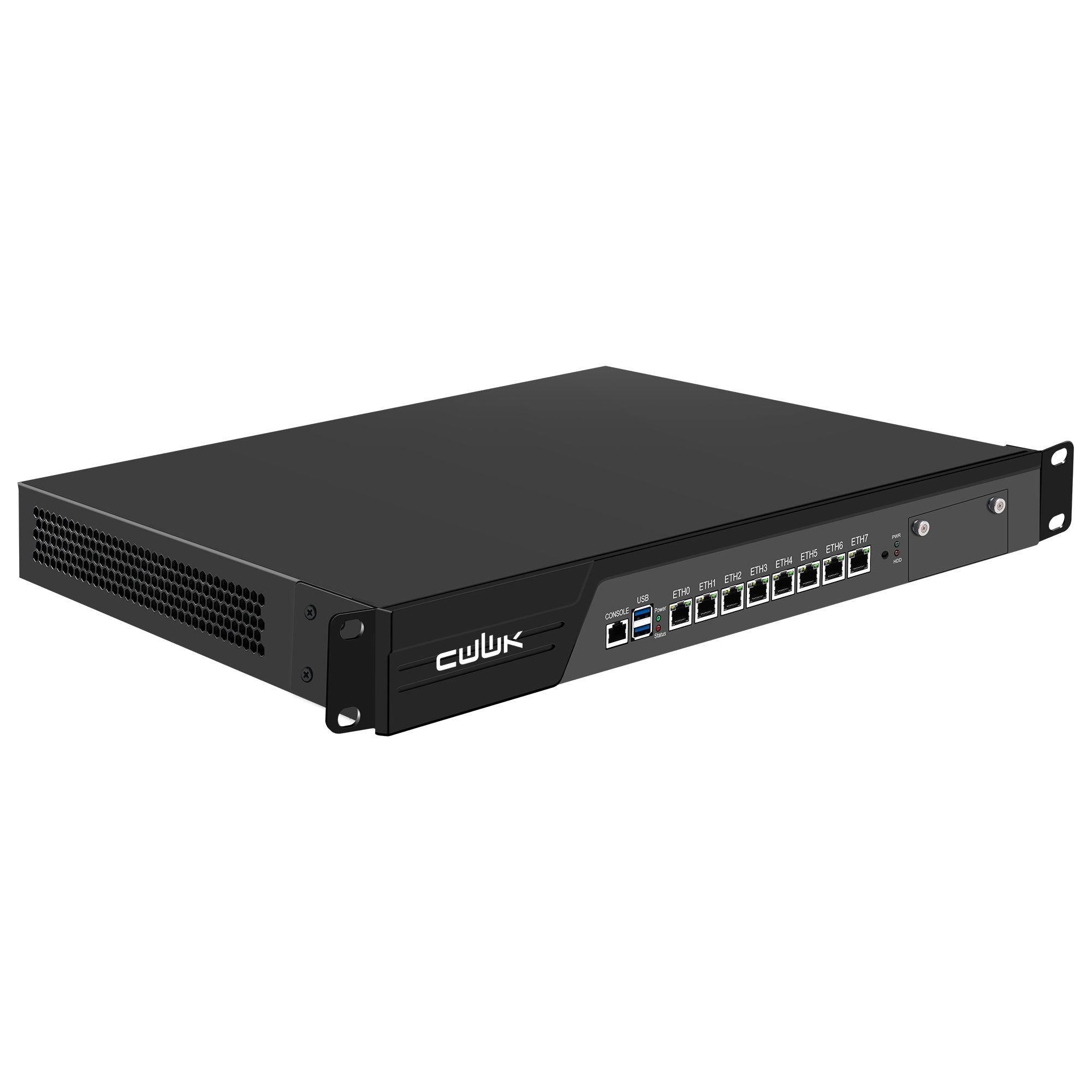

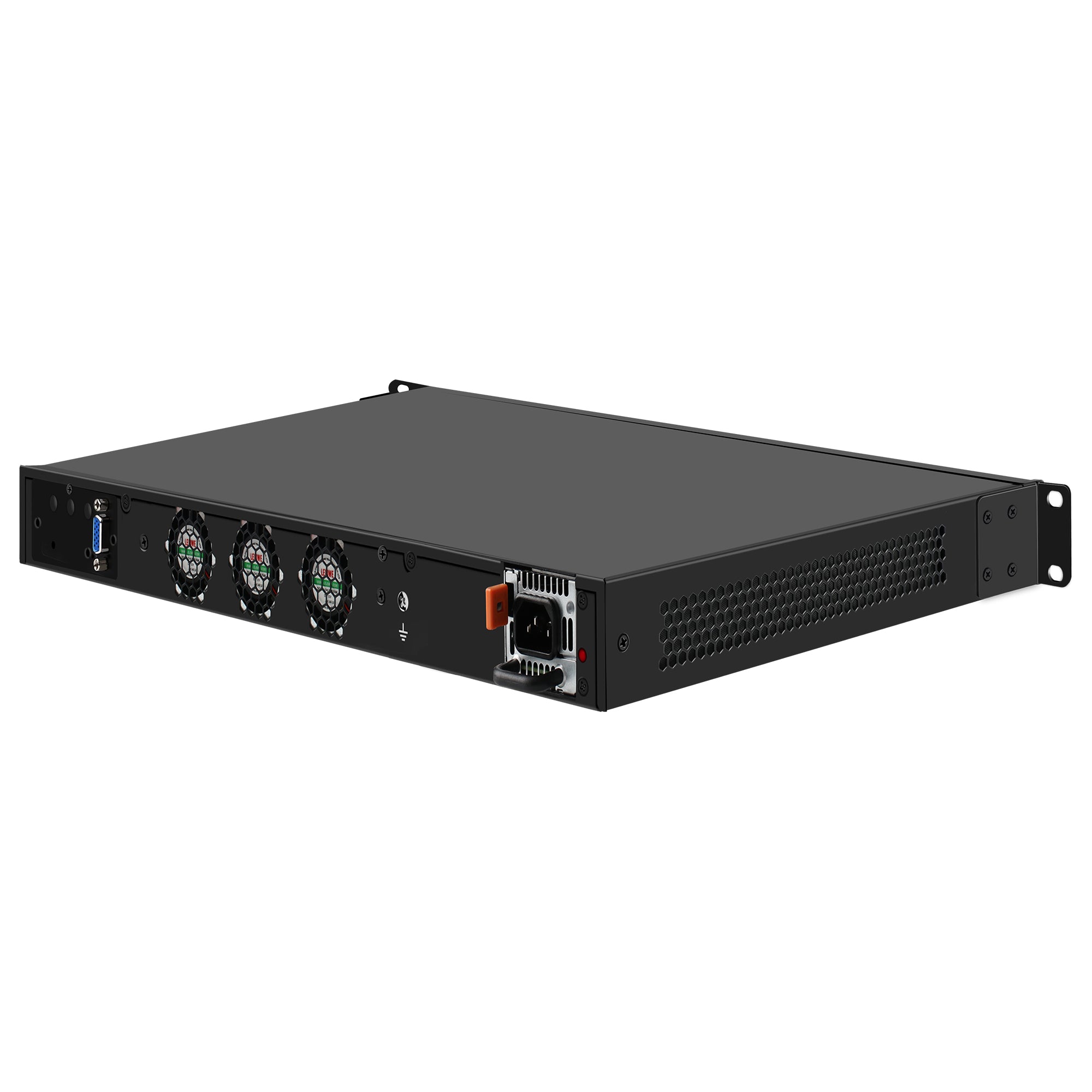

CWWK N6 19” 1U Firewall Appliance B150 Core i3 7100/Core i5 7500/Core i7 7700, 8 x i226V 2.5GbE LAN Firewall Hardware VPN Router PC, DDR4 RAM SSD OPNsense Hardware Rackmount for Homelab with VGA, SIM

CPU: In-tel Core i3 7100 2C 4T, 3.9GHz, TDP51W

CPU: In-tel Core i5 7500 4C 4T, 3.4GHz, up to 3.8GHz, 6 MB Cache, TDP65W

CPU: In-tel Core i7 7700 4C 8T, 3.6GHz, up to 4.2GHz, 8 MB Cache, TDP65W

Chassis: 19” 1U rack mount server chassis with dust filter

GPU: In-tel HD Graphics 630

Memory: 2 x SODIMM DDR4 RAM slot, up to 64GB

Storage: 1 x mSATA and 3 x SATA3.0

Expandsion 1 x mini-PCIe (support WiFi/BT), 1 x PCI-E x8 slot

Pin Header: 1 x 8*Programmable GPlO, 2 x USB2.0 Pin

Network Card: 8 x i226-V 2.5Gb

I/O Interface: 1 x RJ45 Console, 2 x USB3.0, 8 x LAN, 1 x VGA

Power Supply: AC 100-240V, 50-60Hz

Operating Temp: 0°c~60°c

Storage Temp: -10°c~70°c

Relative Humidity: 10%~90% non-condensing

Size: 17.33 x 12.68 x 1.78 inch

Weight: 14.33 LB br>

Packing List: 1U firewall computer, 2 x rack ears, power cable, sata cable, screws

Function: Supports Auto Power On, Wake on LAN, PXE, AES-NI, system power management, temp management

BIOS: Supports UEFI and Le-gacy 2 modes

Compatibility: Windows10/11, Windows Server, PF-sense, OPN-sense, Open-Wrt, Linux distros, PVE, EXSi supported. UEFI support only

Applicable Scenarios: soft routers, security gateways, IDS/IPS, firewalls, load balancing, network gates, AC control, bastion hosts

Customization options:

1. Chassis supports 1U and 2U sizes

2. Power supports single power or dual power supply

3. Ethernet port supports to customize 8 x i226-V 2.5Gb RJ45 + 2/4 x 10Gb SFP+, and supports to customize Bypass function

4. Function expansion supports Wifi/BT
