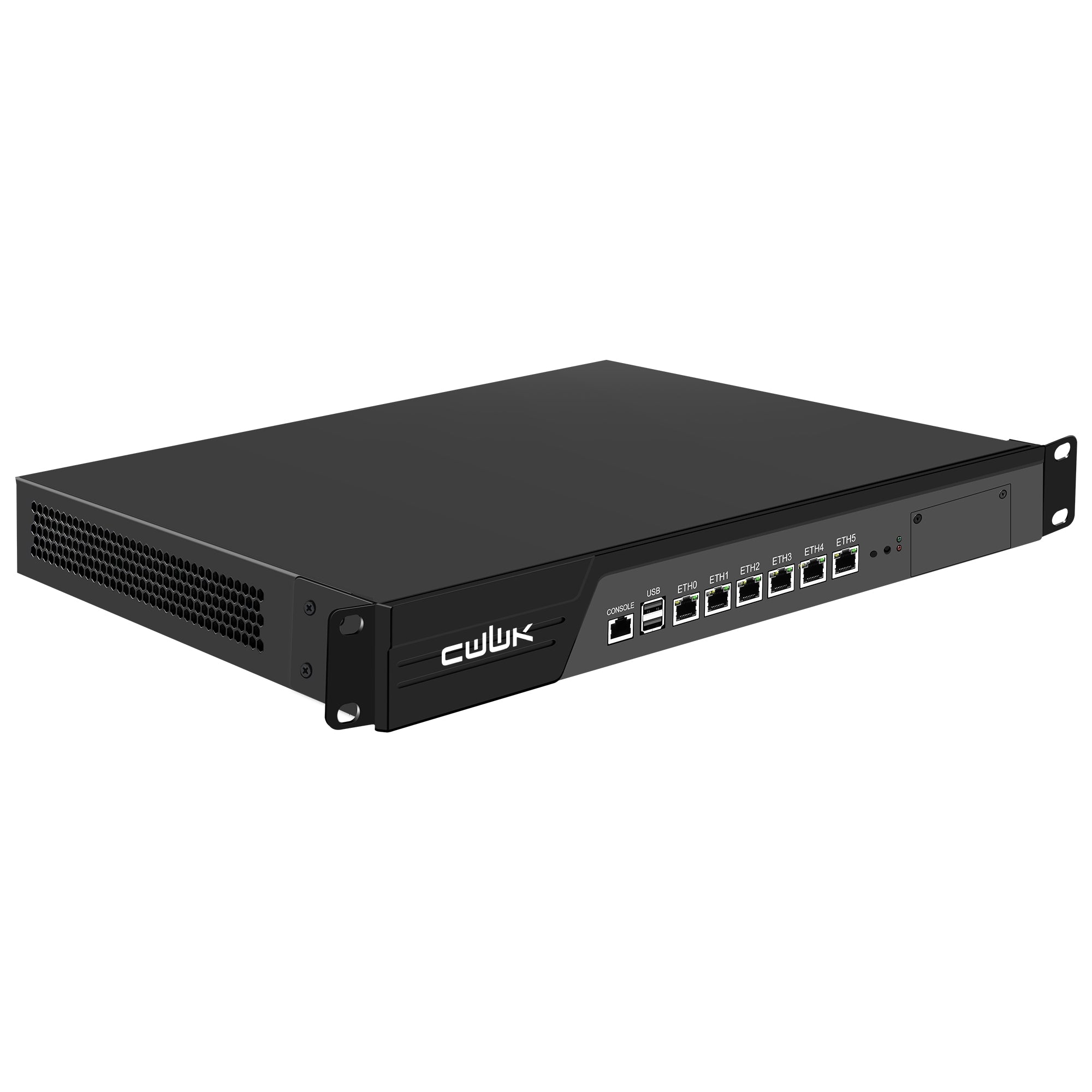

CWWK N9 19” 1U Firewall Appliance B250 Core i5 8500/Core i7 8700/Core i7 9700, 6 x i225V 2.5GbE LAN Firewall Hardware VPN Router PC, DDR4 RAM SSD OPNsense Hardware Rackmount for Homelab with VGA, SIM

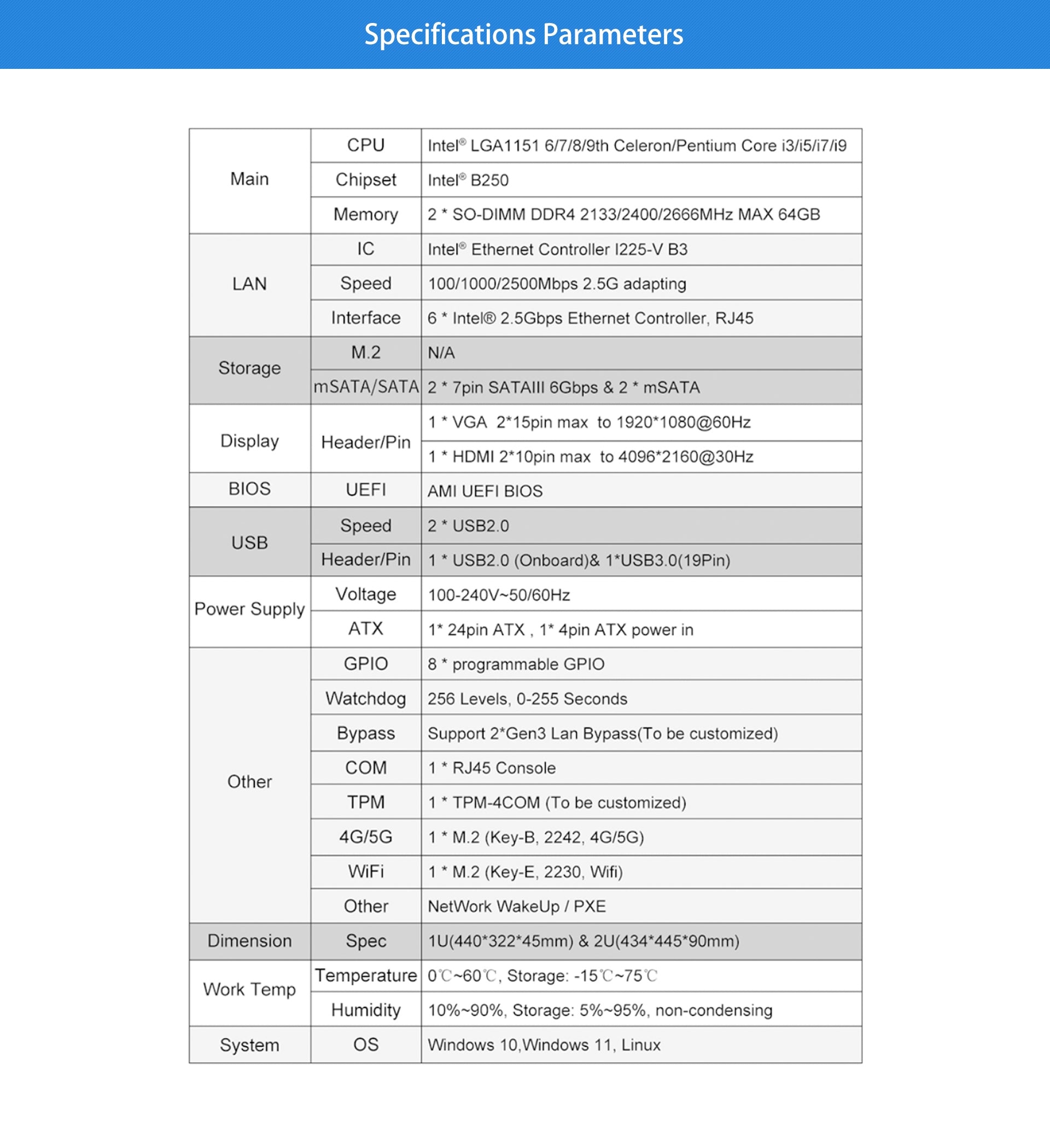

Product Description
-

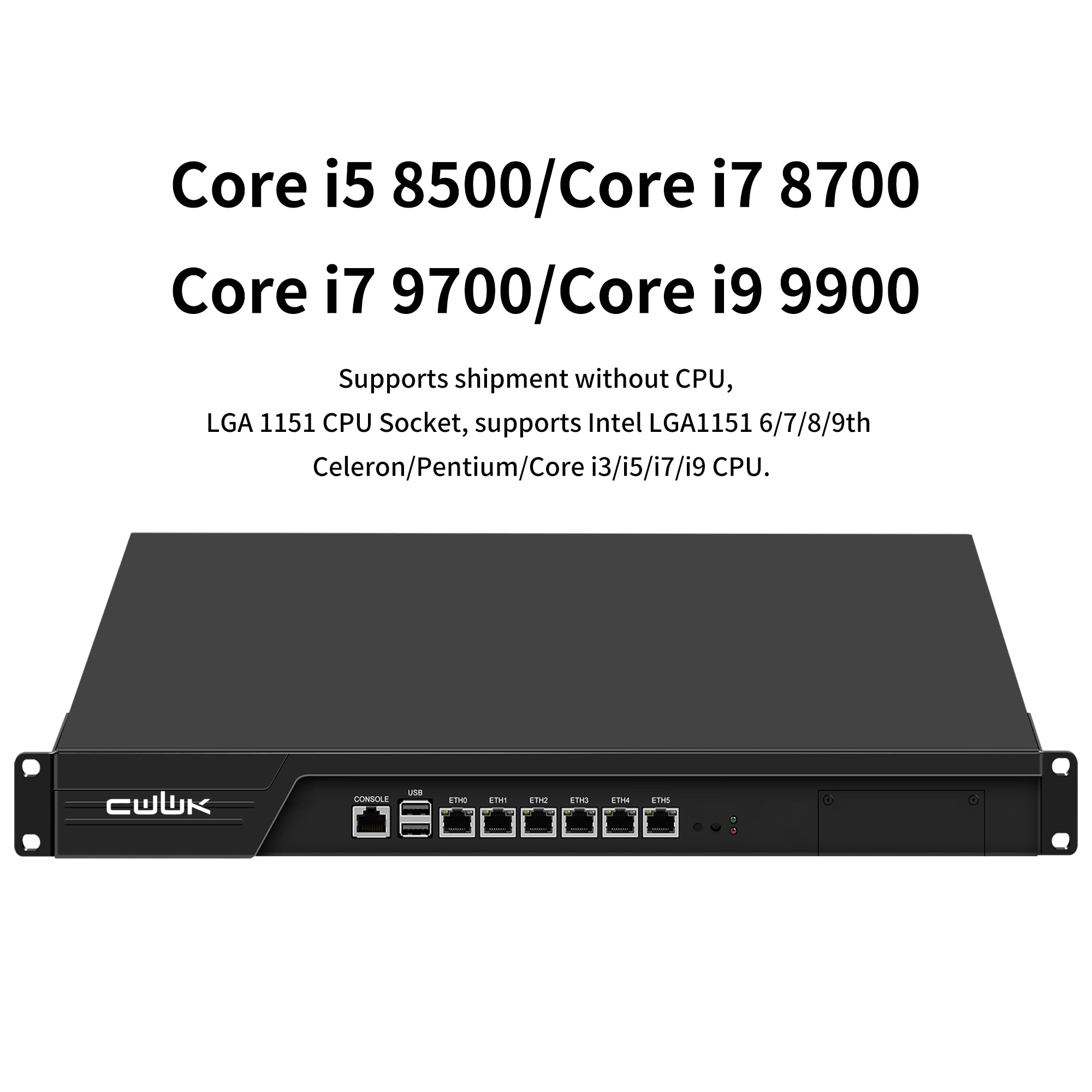

CPU:
In-tel Core i5 8500 6C 6T, Base 3.0GHz, Turbo Boost up to 4.1GHz, 9 MB Cache, TDP65W
In-tel Core i7 8700 6C 12T, Base 3.2GHz, Turbo Boost up to 4.6GHz, 12 MB Cache, TDP65W
In-tel Core i7 9700 8C 8T, Base 3.0GHz, Turbo Boost up to 4.7GHz, 12 MB Cache, TDP65W
In-tel Core i9 9900 8C 16T, Base 3.1GHz, Turbo Boost up to 5.0GHz, 16 MB Cache, TDP65W
- Chipset: B250 / Coffee Lake compatible chipset with LGA1151 socket
-
Chassis: 19” 1U rack mount server chassis with dust filter
-
GPU: In-tel HD Graphics 630
-

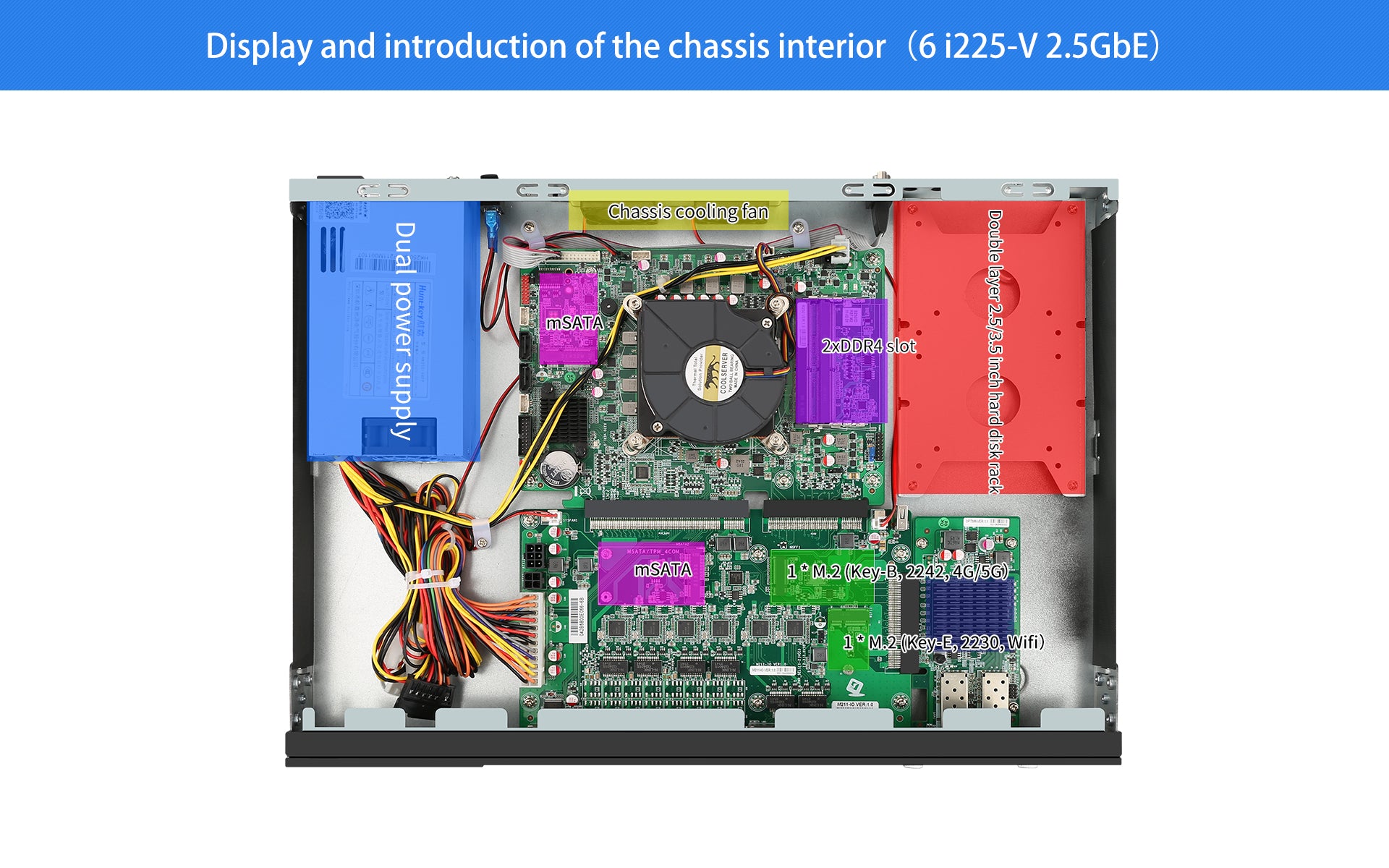

Memory: 2 x SODIMM DDR4 RAM slot, up to 64GB
-
Storage: 2 x mSATA SSD slot and 2 x SATA3.0
-
Expandsion: 1 x M.2 2242 B_Key (4G/5G), 1 x M.2 2230 E_Key (WiFi/BT), 1 x PCI-E x8 slot for NIC expansion
-
Pin Header: 1 x 8*Programmable GPlO, 1 x USB3.0 19Pin, 1 x USB2.0 Pin, 1 x HDMI 20Pin
-

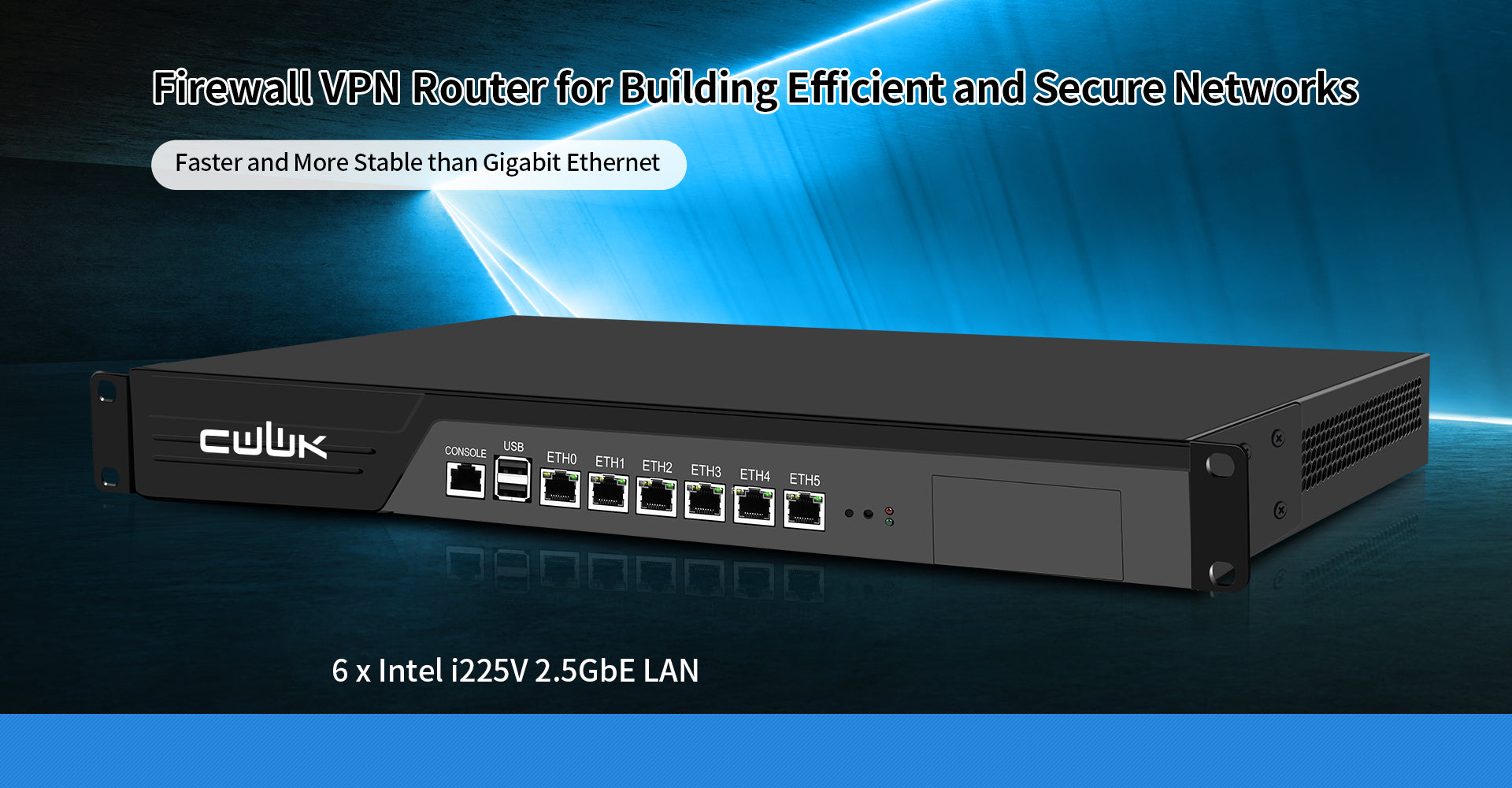

Network Card: 6 x i225-V 2.5Gb
-

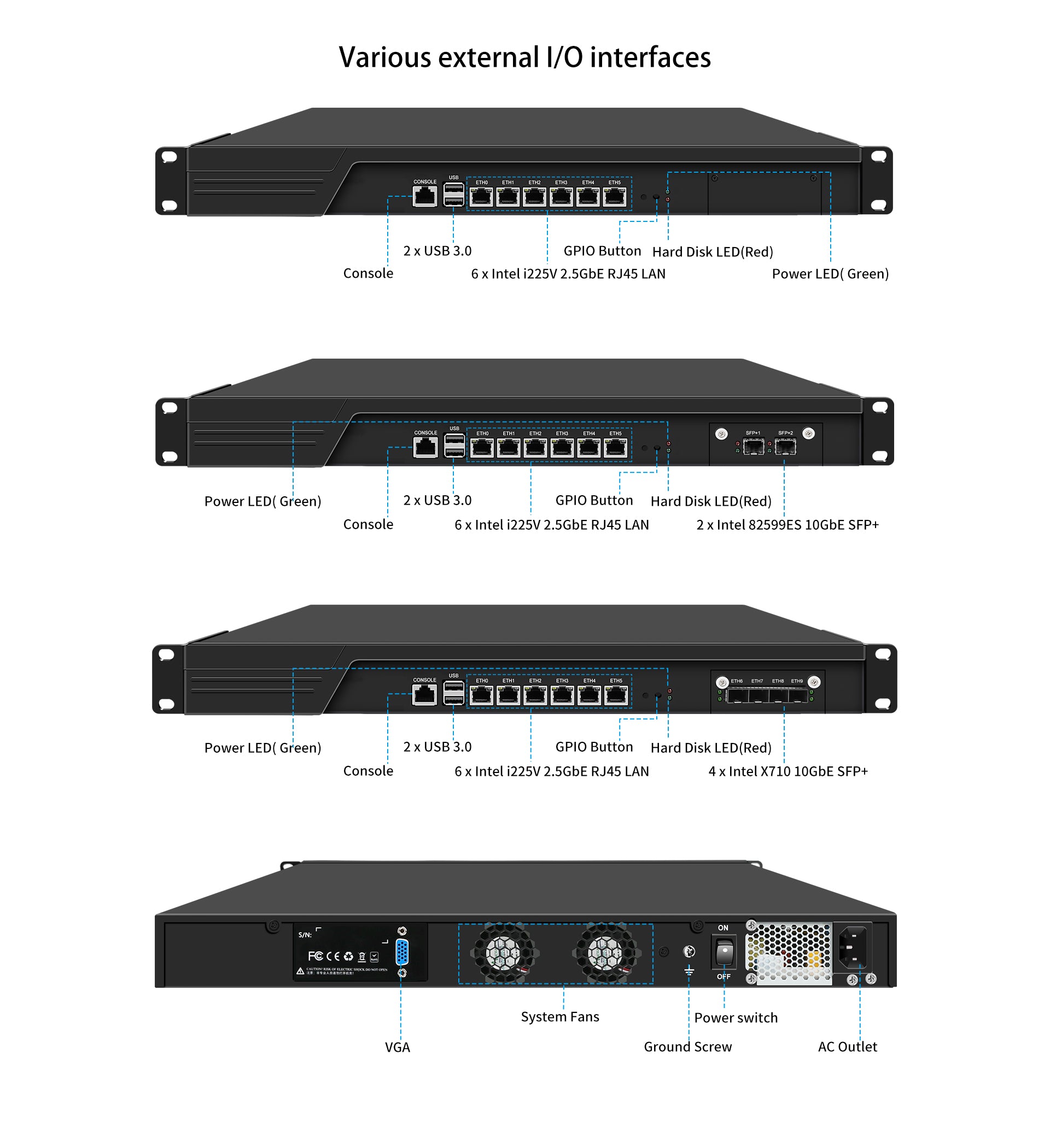

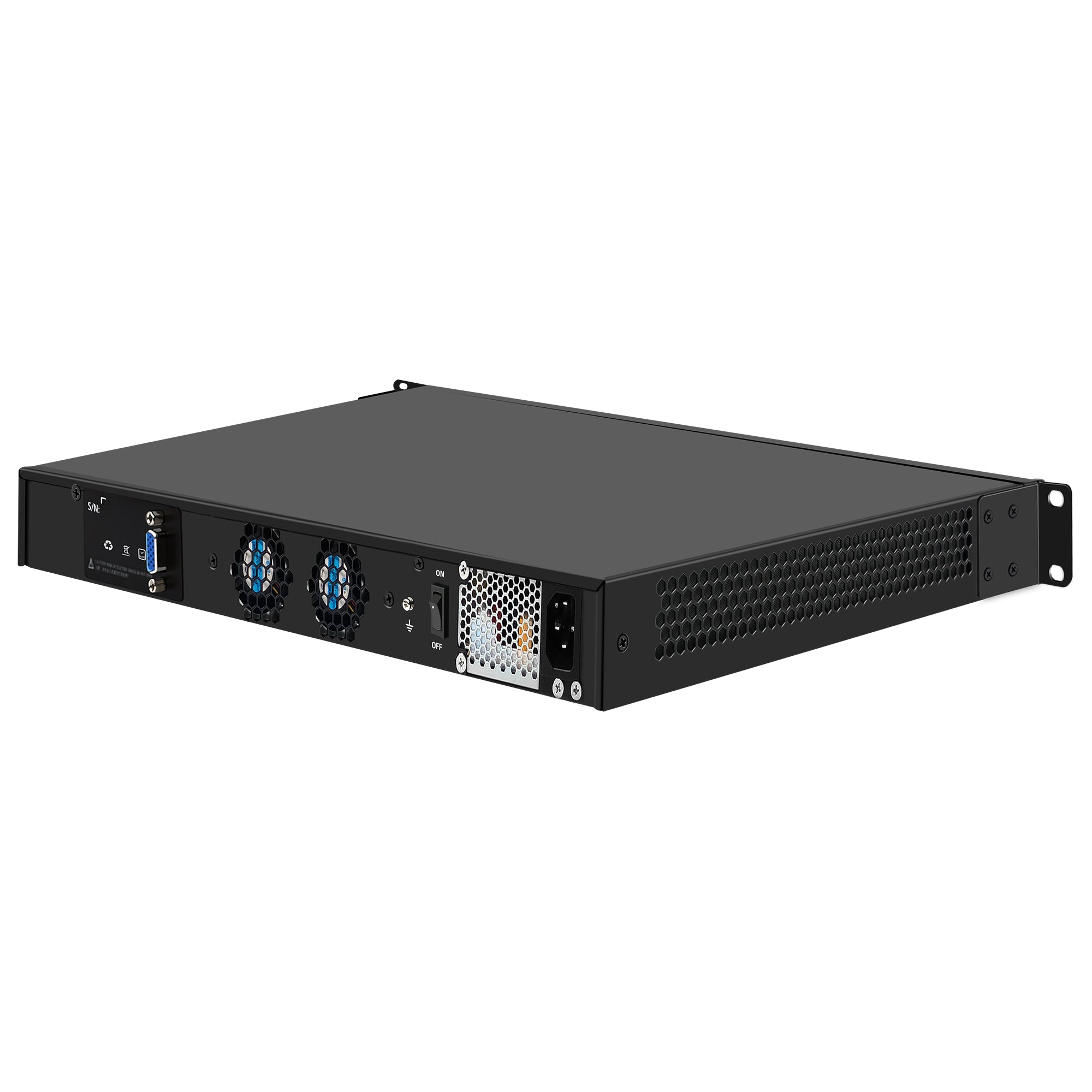

I/O Interface: 1 x RJ45 Console, 2 x USB2.0, 6 x LAN, 1 x VGA
-
Power Supply: AC 100-240V, 50-60Hz
-
Operating Temp: 0°c~60°c
-
Storage Temp: -15°c~75°c
-
Relative Humidity: 10%~90% non-condensing
-

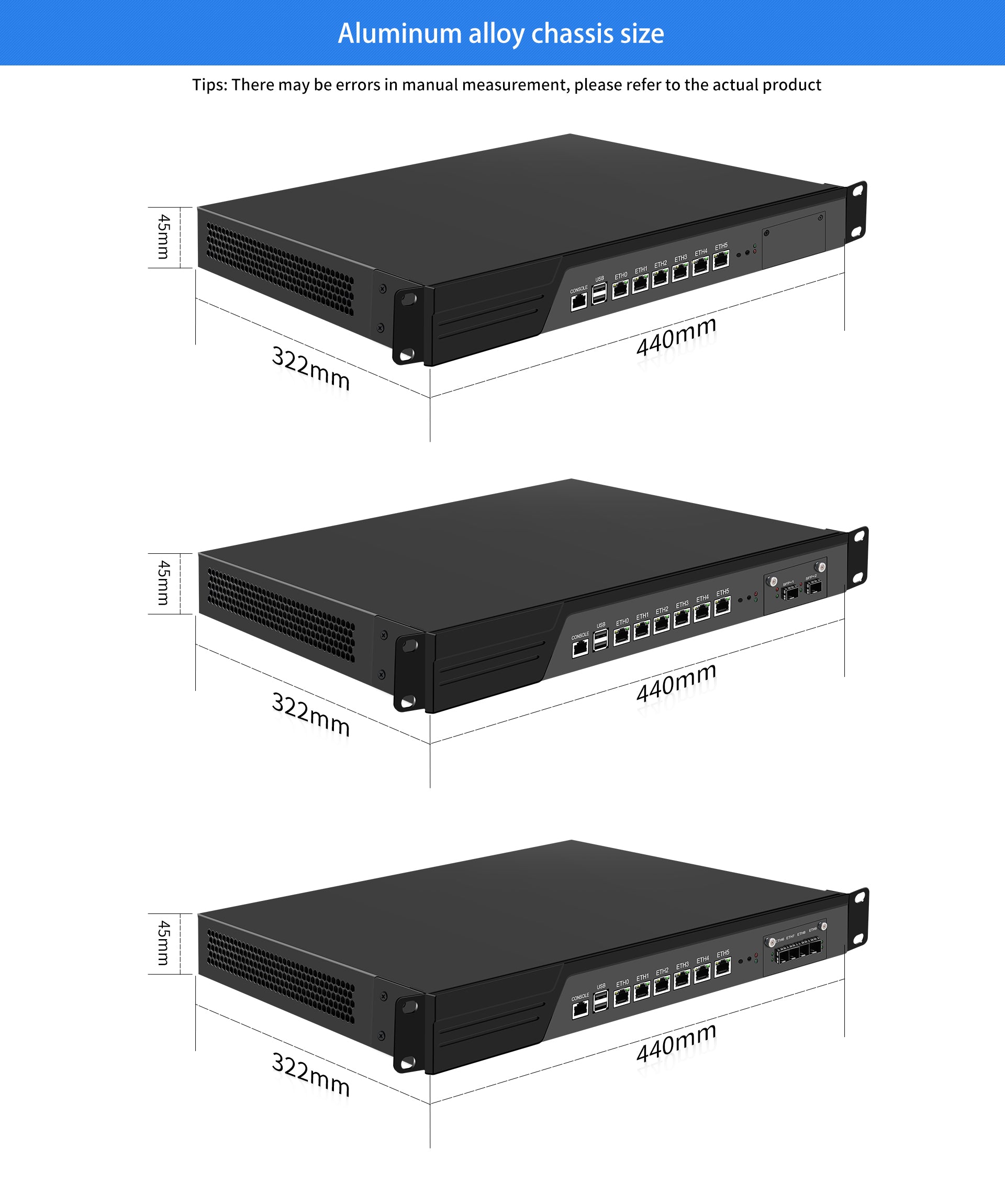

Size: 17.33 x 12.68 x 1.78 inch
- Weight: 14.33 LB br>
-
Packing List: 1U firewall computer, 2 x rack ears, power cable, sata cable, screws
-
Function: Supports Auto Power On, Wake on LAN, PXE, AES-NI, Watch-dog
-
BIOS: Only supports AMIUEFI
-
Compatibility: Windows10/11, Windows Server, PF-sense, OPN-sense, Open-Wrt, Linux distros supported.
-
Applicable Scenarios: soft routers, security gateways, IDS/IPS, firewalls, load balancing, network gates, AC control, bastion hosts
-
Customization options:
1. Chassis supports 1U and 2U sizes
2. Power supports single power or dual power supply

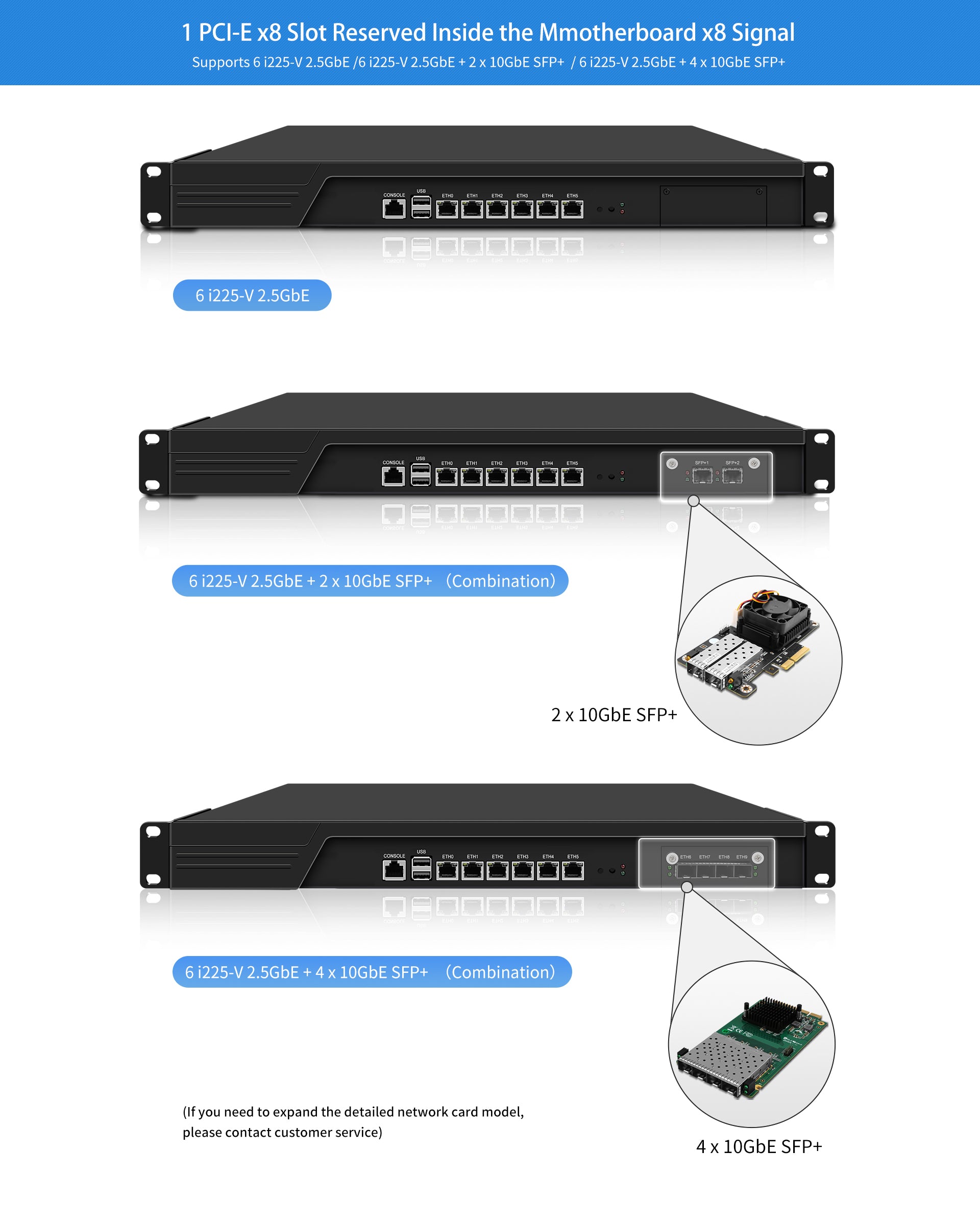

3. Ethernet port supports to customize 6 x i225-V 2.5Gb RJ45 + 2/4 x 10Gb SFP+, and supports to customize Bypass function
4. Function expansion supports Wifi/BT/4G/5G
