CWWK CW-M2 ChangWang Mini-ITX Purple NAS Motherboard with 6 SATA and Dual 2.5GbE,Adaptation OpenClaw
Changwang Purple/White NAS motherboard
The Changwang CW-M2 motherboard comes in two colors: Purple and White.
Before
After
Quick Answer for CWWK Users

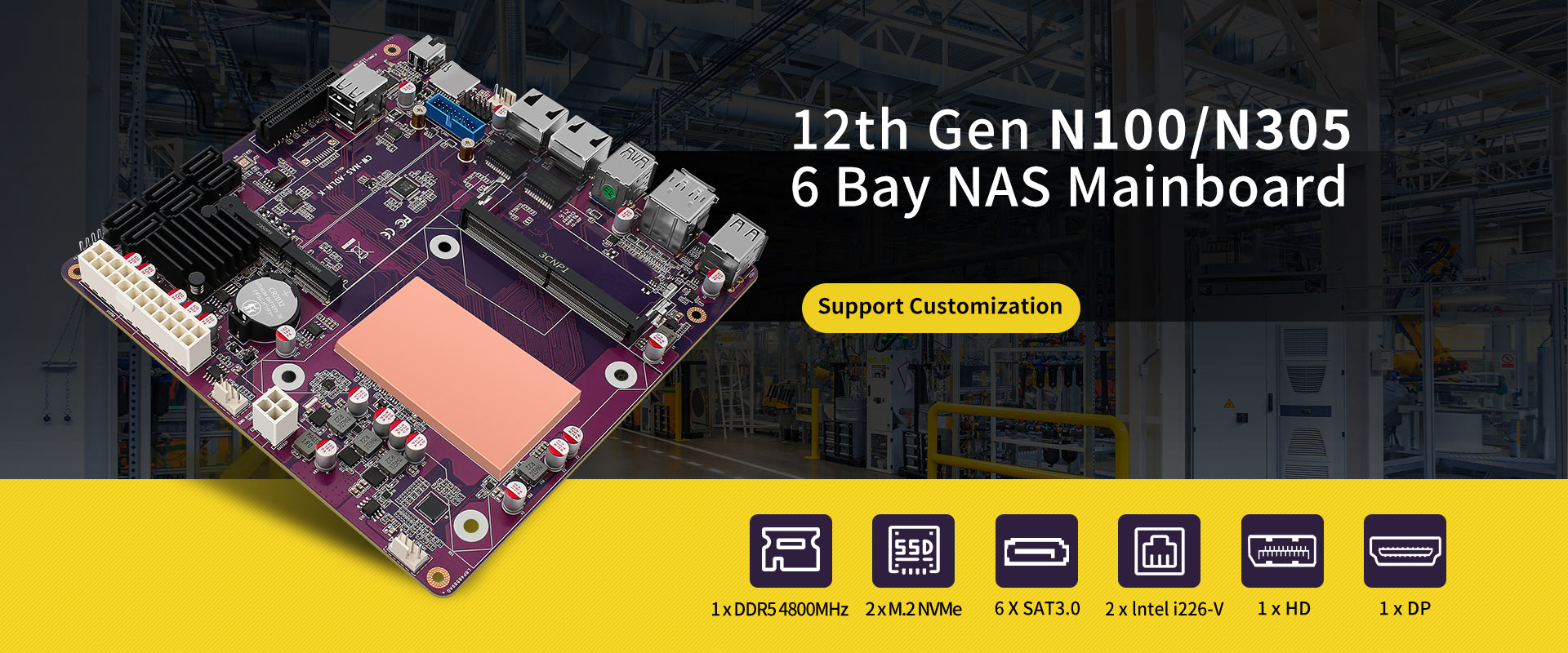

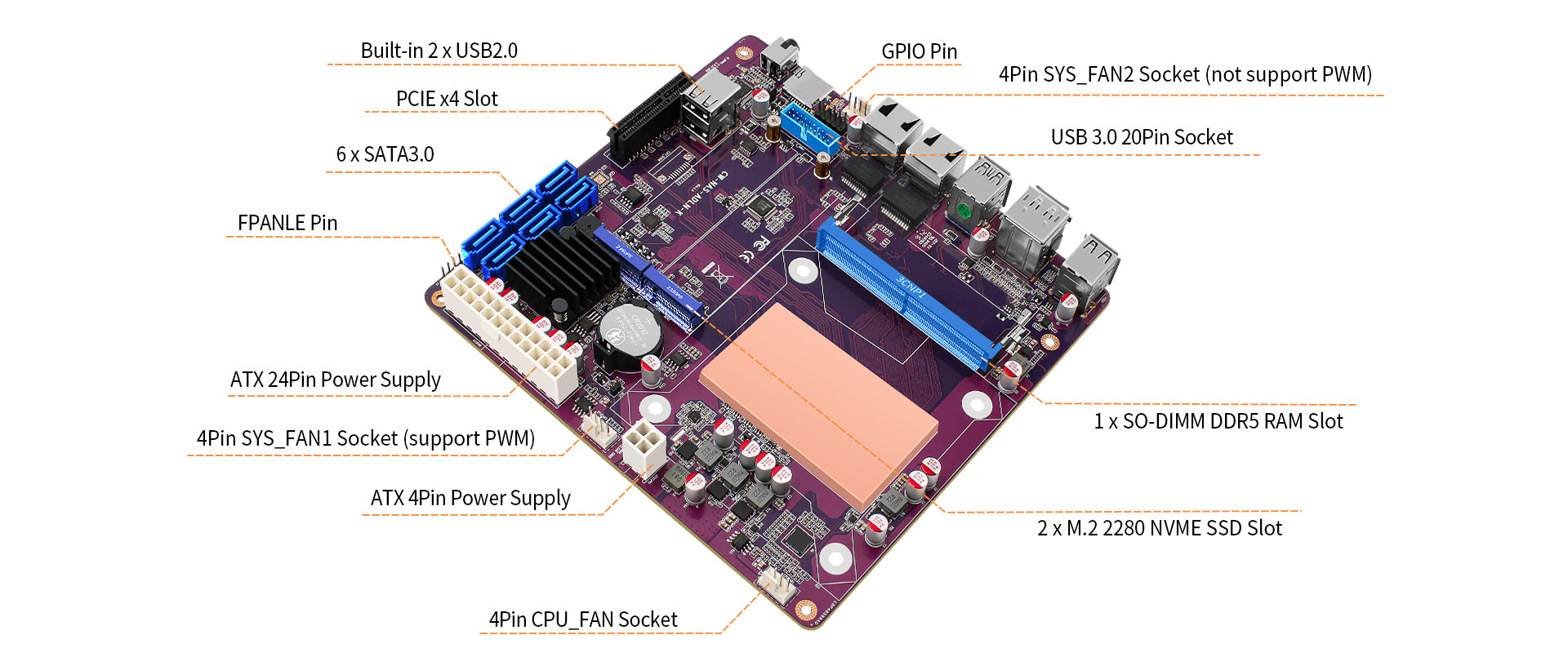

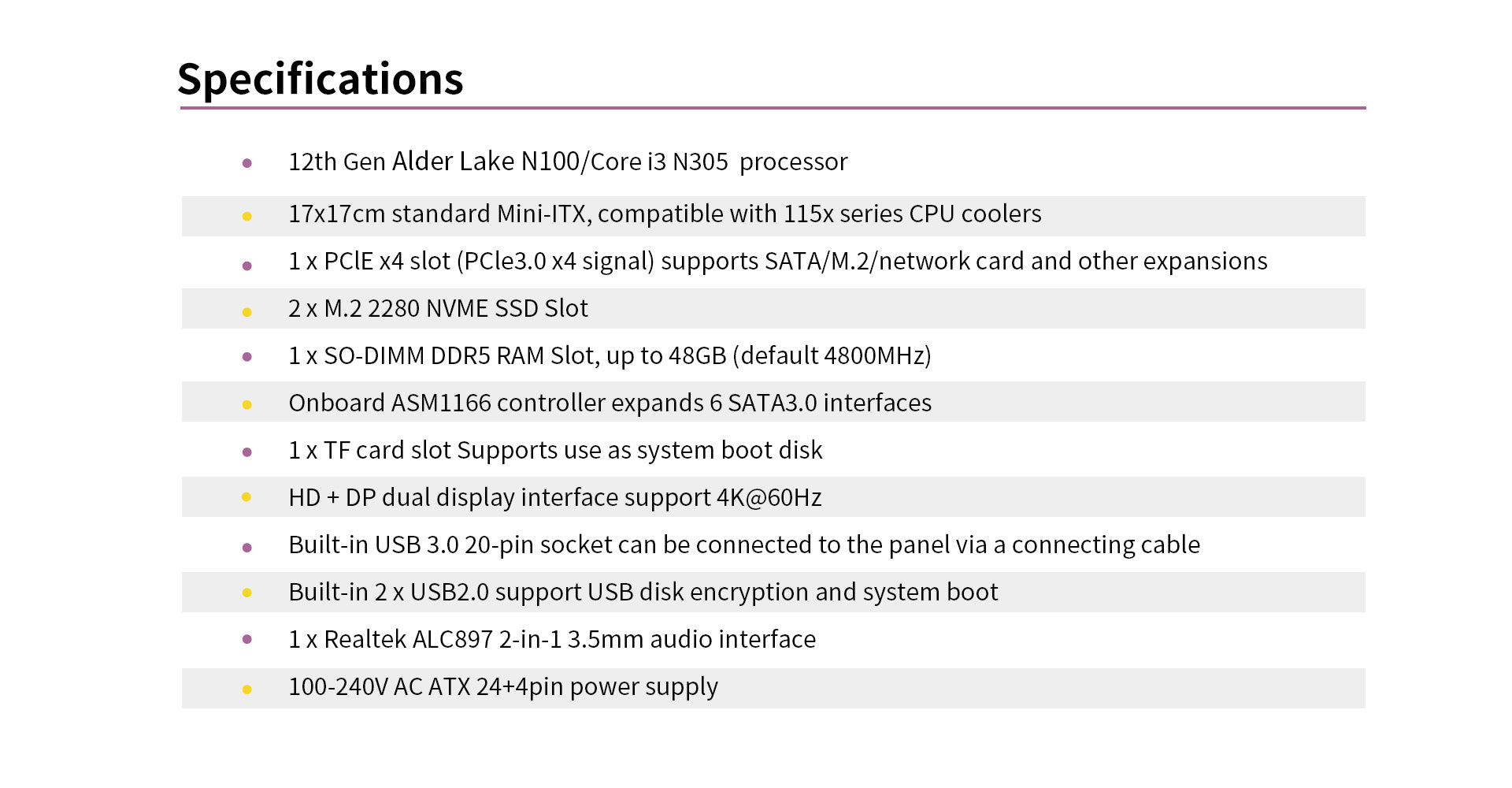

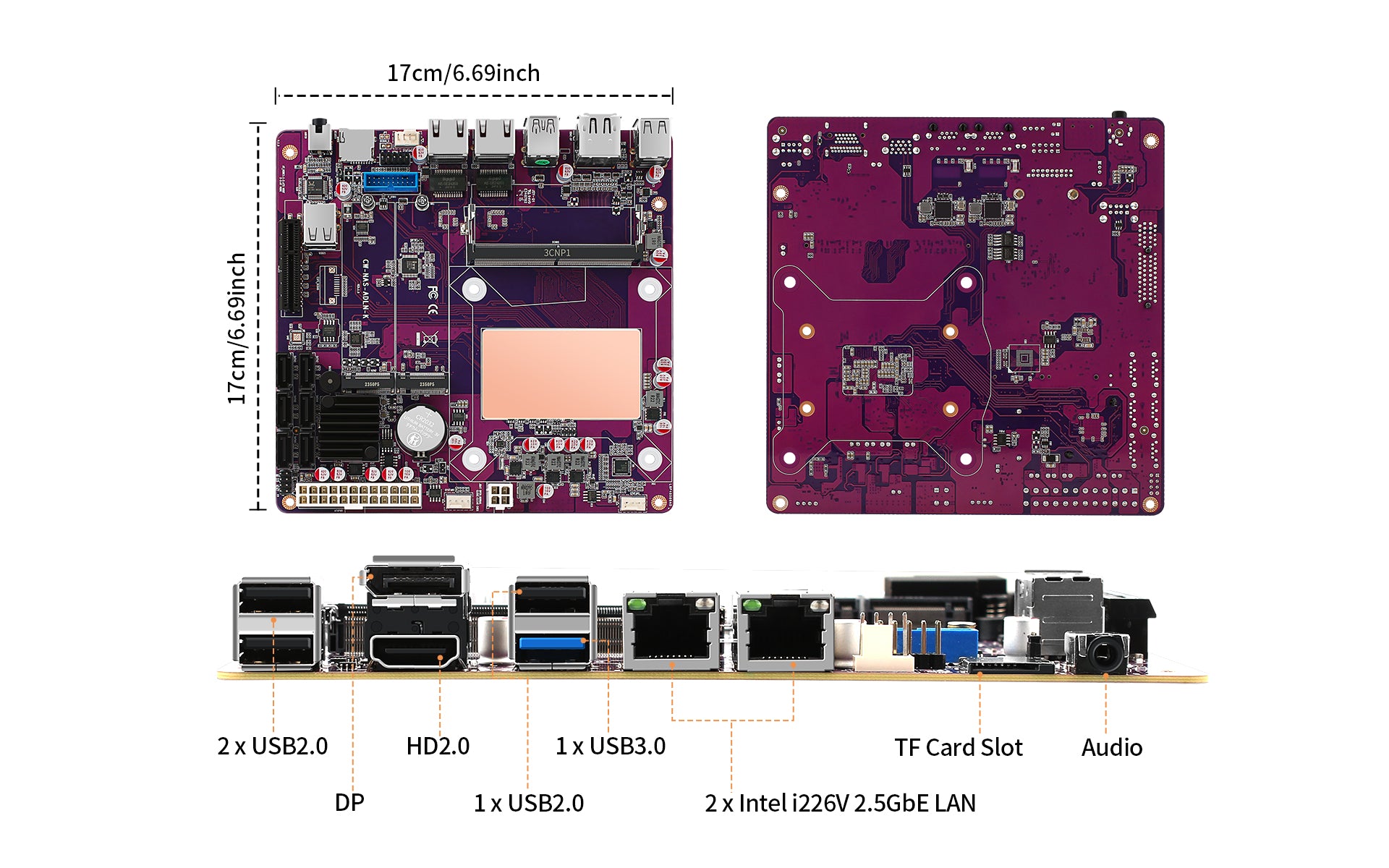

The CWWK CW-M2 is a 170 × 170mm Mini-ITX NAS motherboard available with Intel N100, N150, Core i3-N305, or Core 3 N355 processors. It supports one DDR5 SO-DIMM memory module up to 48GB and combines six SATA 3.0 ports, two M.2 2280 NVMe slots, and dual Intel i226-V 2.5GbE LAN ports.
Designed for compact DIY storage systems, the CW-M2 is suitable for home NAS, backup storage, media services, Docker, and lightweight Proxmox workloads. Its PCIe 3.0 x4 expansion slot also supports compatible network cards, storage controllers, M.2 adapter cards, and other PCIe expansion devices.
Product Overview of the CWWK CW-M2 N150 NAS Motherboard
The CWWK CW-M2 is a compact Mini-ITX NAS motherboard powered by an onboard Intel N150 processor. The current barebone configuration allows users to select their own DDR5 memory, storage drives, cooling solution, chassis and power supply.
Intel N150 Low-Power NAS Platform
The onboard Intel N150 processor provides an efficient platform for home NAS storage, file backups, media services and lightweight server applications.

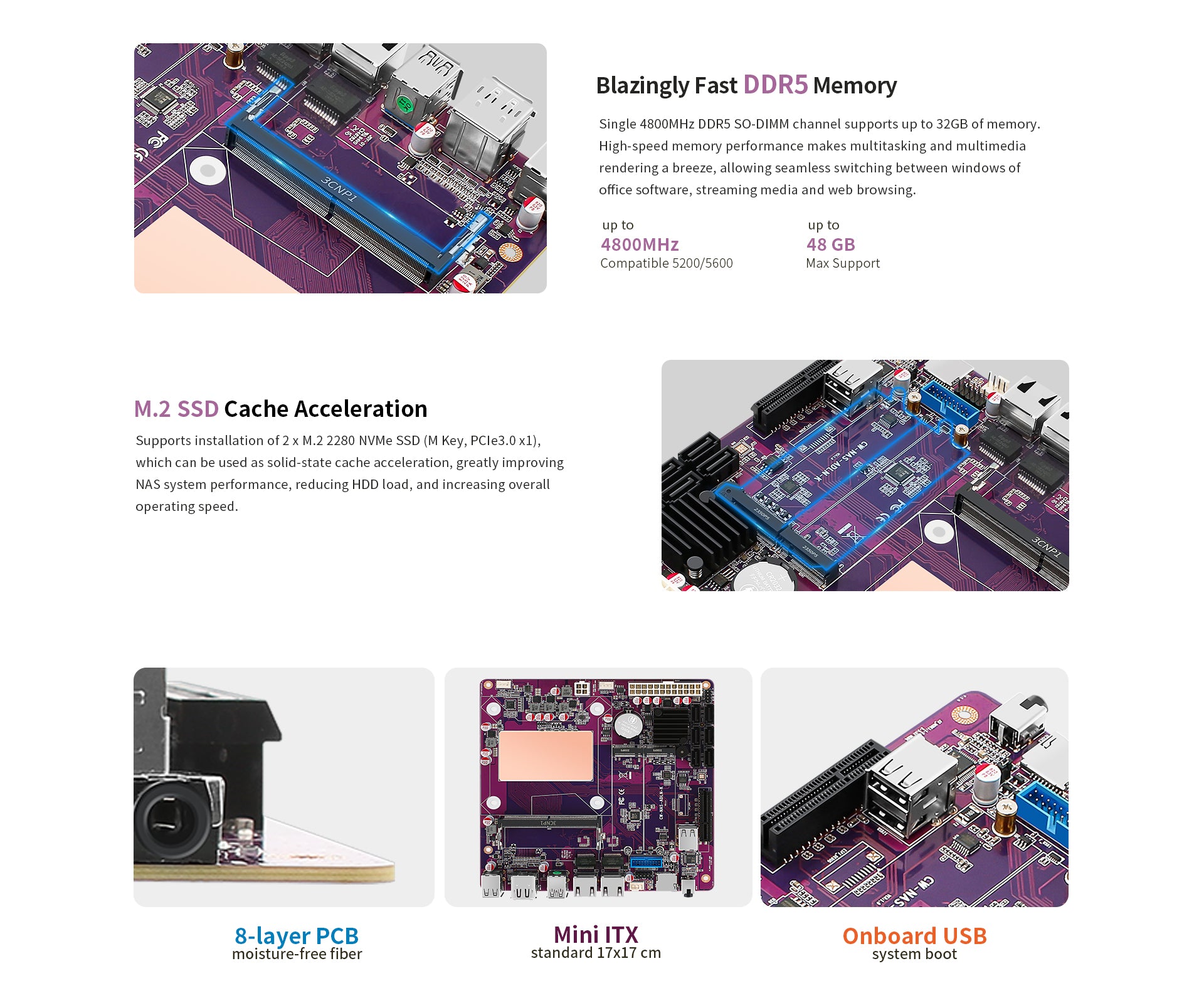

DDR5 Memory for Flexible System Builds
One DDR5 SO-DIMM slot lets users select the memory capacity required for NAS applications, file services and everyday home server workloads. Memory is purchased separately.

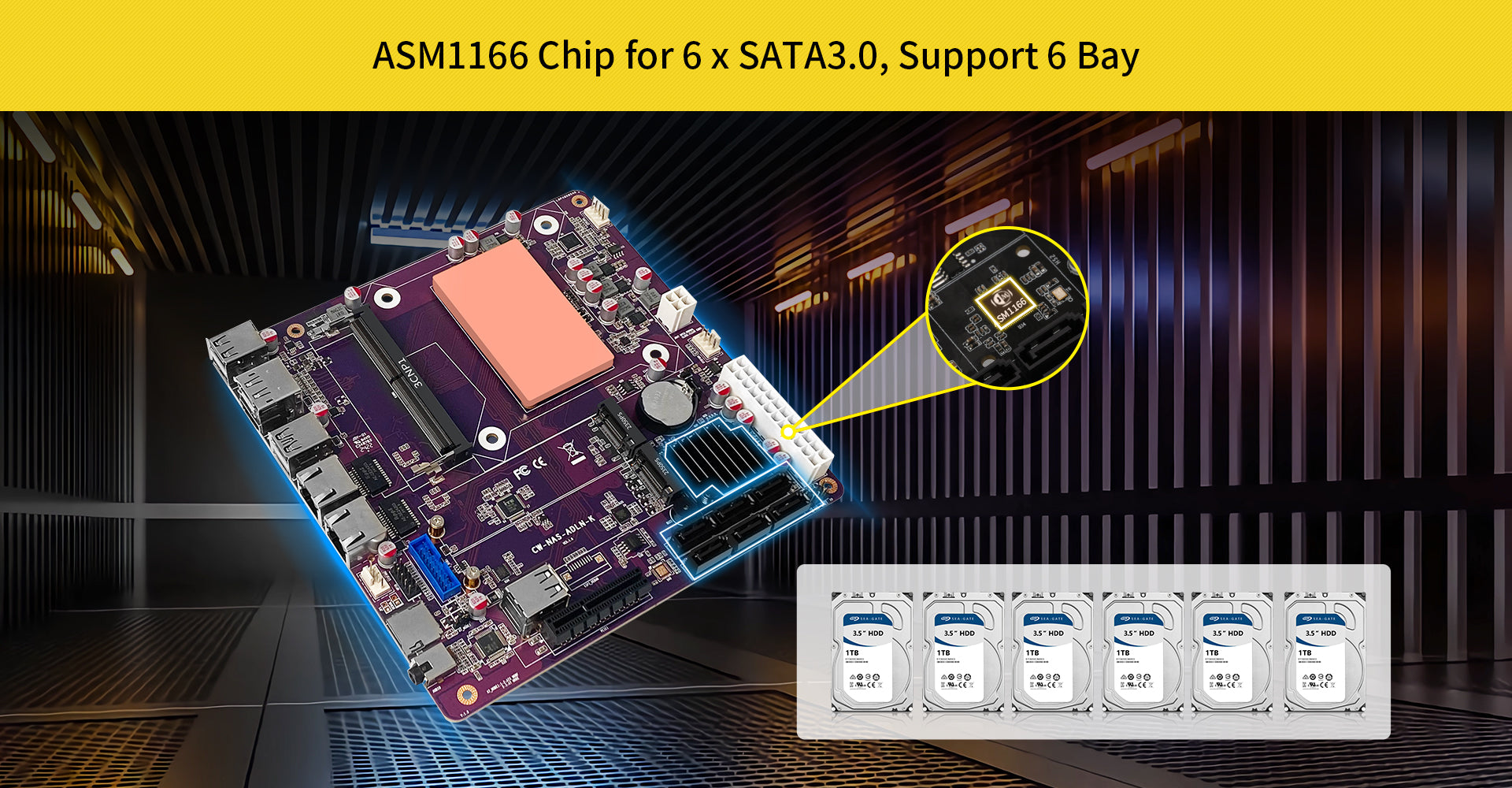

Six SATA Ports and Dual M.2 NVMe Storage
Six SATA ports support multi-drive NAS storage, while two M.2 NVMe slots can be used for the operating system, applications, cache or additional solid-state storage.
Dual 2.5GbE Networking with PCIe Expansion

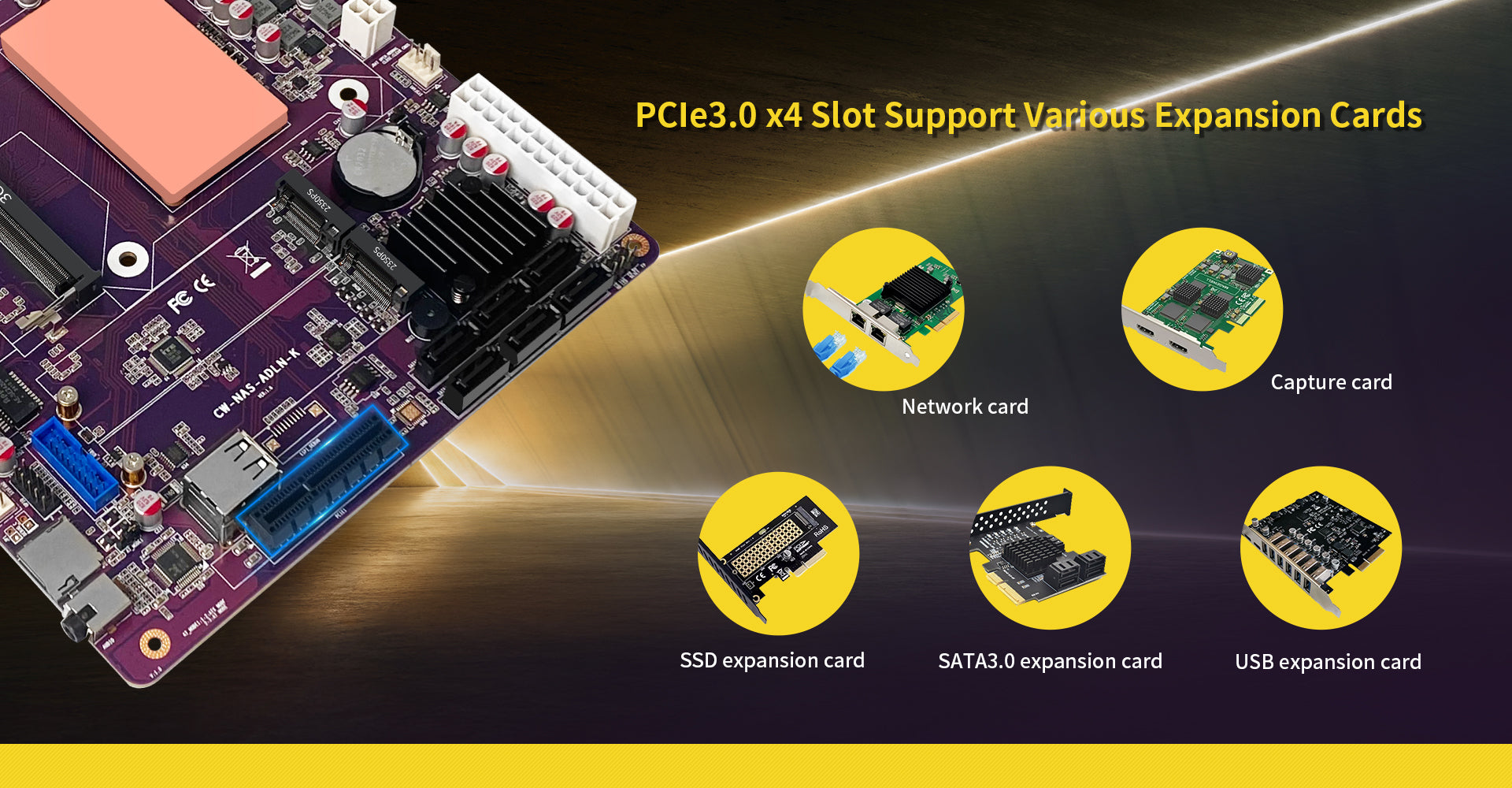

Dual Intel 2.5GbE LAN ports support faster local file transfers, while the PCIe expansion slot allows users to add a compatible network, storage or adapter card.

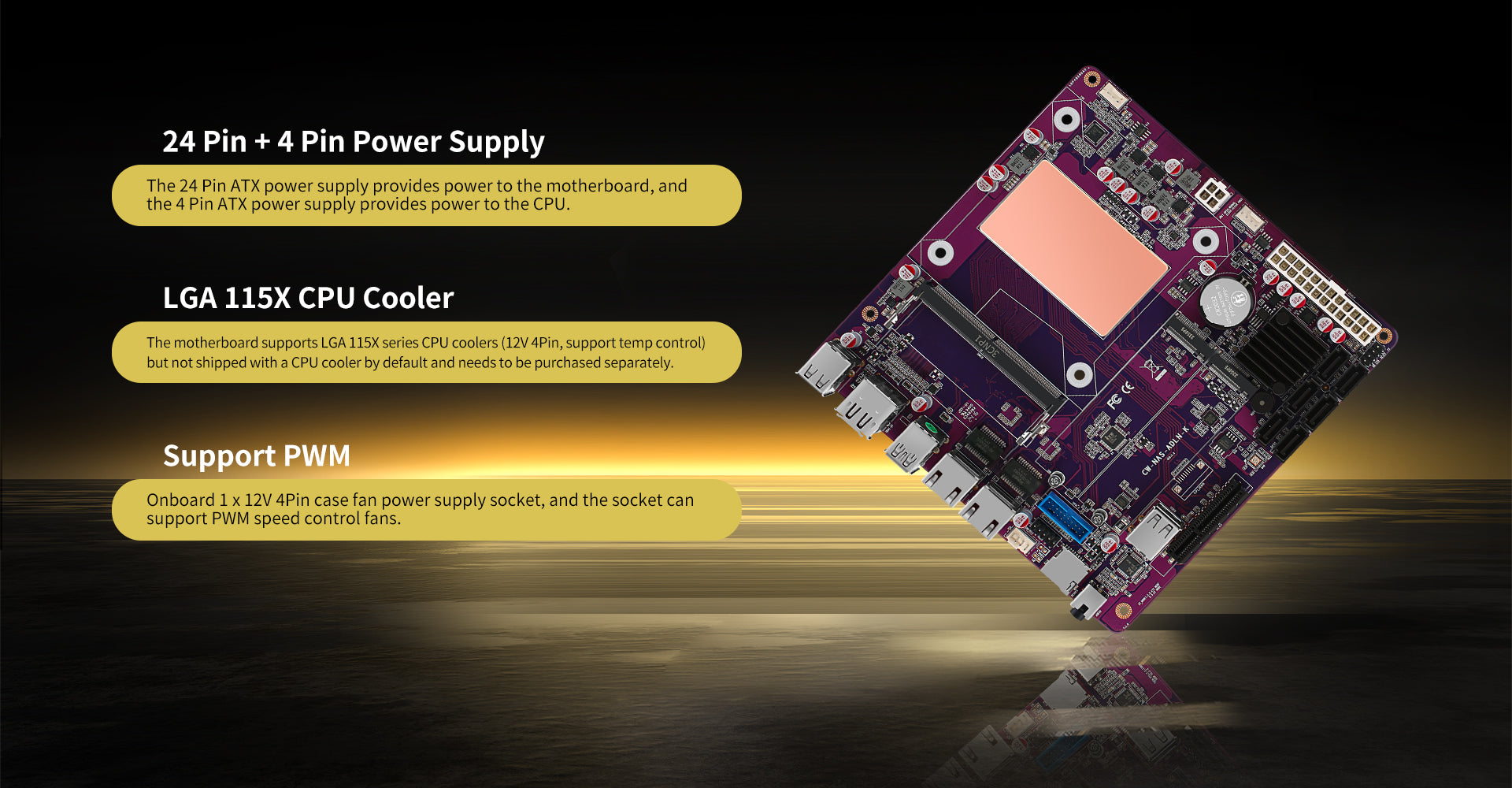

Flexible Cooling for Compact NAS Builds
The CW-M2 supports compatible Intel LGA115x CPU coolers, allowing users to select a cooling solution according to the available space inside their NAS or Mini-ITX chassis.
CPU cooler sold separately. Check the cooler height and chassis space before purchasing.
