CWWK W680 NAS Motherboard Micro ATX 12 Bay, LGA 1700 mATX White PC Mainboard
- W680 for 12th–14th Gen Intel CPUs
- Supports ECC UDIMM memory
- 3 x M.2 + 3 x SFF-8643
- 10GbE + dual 2.5GbE LAN
- Built for 24/7 NAS use
Product Details
- W680 Chipset & LGA1700 Socket: The W680 chipset supports vPro, ideal for enterprise and pro use. It has an LGA1700 socket, compatible with 12/13/14th-gen desktop CPUs. Optimized thermals and power for workstation & small server ensure stability under high load while reducing power. 28 PCIe lanes support various high-speed expansion for data-intensive apps, storage arrays, etc
- 4 x DDR5 & 3 x NVMe & 12-Bay: Equipped with 4-channel U-DIMM desktop memory slots (supports ECC), up to 4 × 32GB, 5600MT/s, backward compatible. It offers a total of 3 × M.2 NVMe slots: 2 × PCIe4.0 x4 and 1 × PCIe3.0 x4. Comes with 3 × SFF-8643 ports, which can be converted into 12 × SATA 3.0 ports using three SFF-8643 to 4-SATA adapter cables (sold separately)
- 10Gbit & Dual 2.5Gbit RJ45 LAN: Features 1 x AQC113CS 10 Gbit RJ45 port (10GBase-T), adaptive 1G/2.5G/5G/10G, allowing 10Gbps high-throughput, low-latency networking. 1 x i226-LM and 1 x i226-V 2.5 Gb RJ45 ports, the i226-LM support vPro remote management. Compatible with various open-source NAS systems (like TrueNAS or unraid), WinOS, Linux or PVE virtualization
- Various I/O Interfaces: Equipped with 2 x HD2.0 + 2 x DP1.4 + 1 x USB Type-C for display support, max displays depend on the iGPU of the installed CPU. The USB-C (USB 3.2) up to 10Gbps, plus 4 × USB 3.2 Gen2 (10Gbps) & 2 × USB 2.0 for data/peripherals. 2 x built-in USB 2.0 for USB drive encryption/system boot. Built-in USB 3.0 and Type-E headers for front USB 3.0 and USB-C connecting
- Other Specifications: This M-ATX motherboard (24.4 × 24.4 cm) requires 24-pin + 8-pin (or 8+4 pin) power input. 2 × PCI-E x16 slot (PCIe5.0 x16 or two PCIe4.0 x8) and 2 × PCI-E x4 slot (PCIe3.0 x4) for expansion card. 1 x M.2 E-key slot supports WiFi/BT, with antenna holes on the I/O shield (included). Debug LED can be used for Post and troubleshooting. PDF manual offered

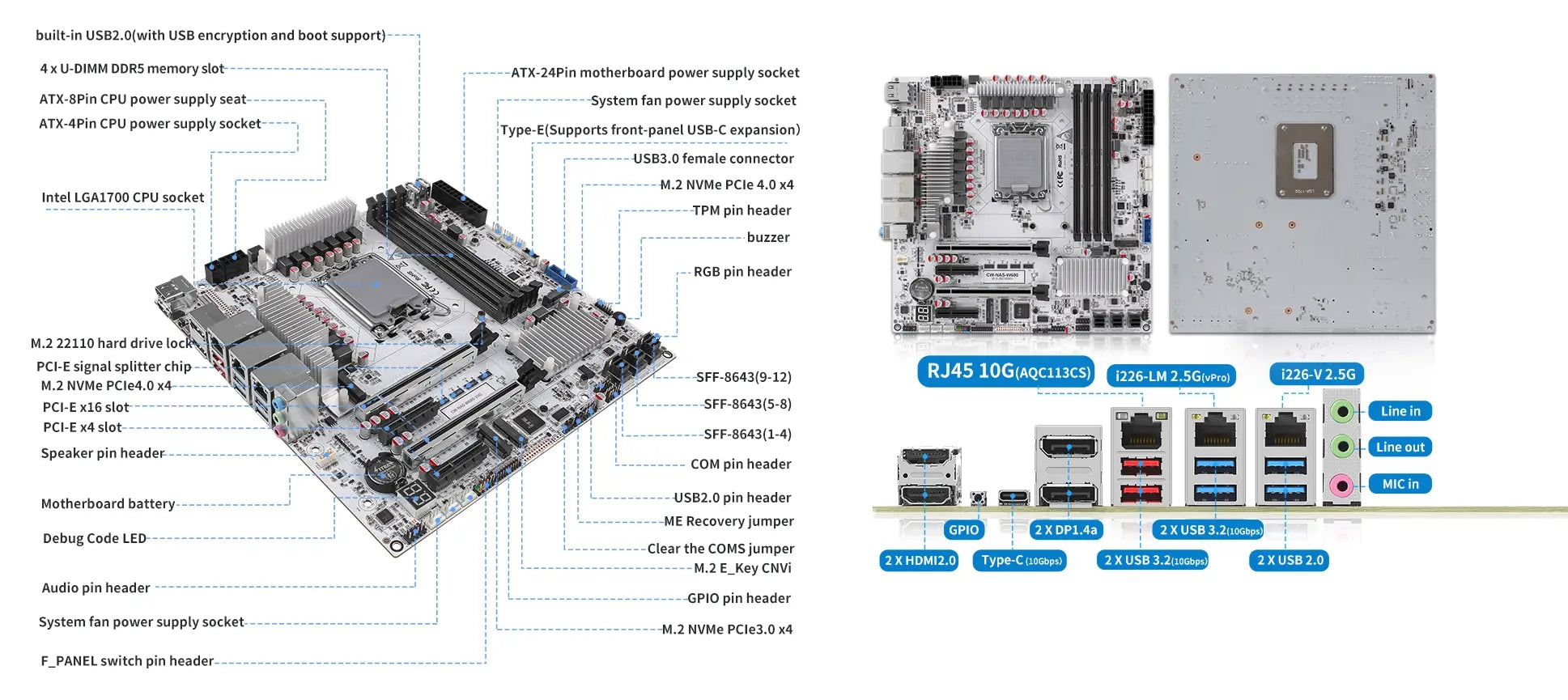

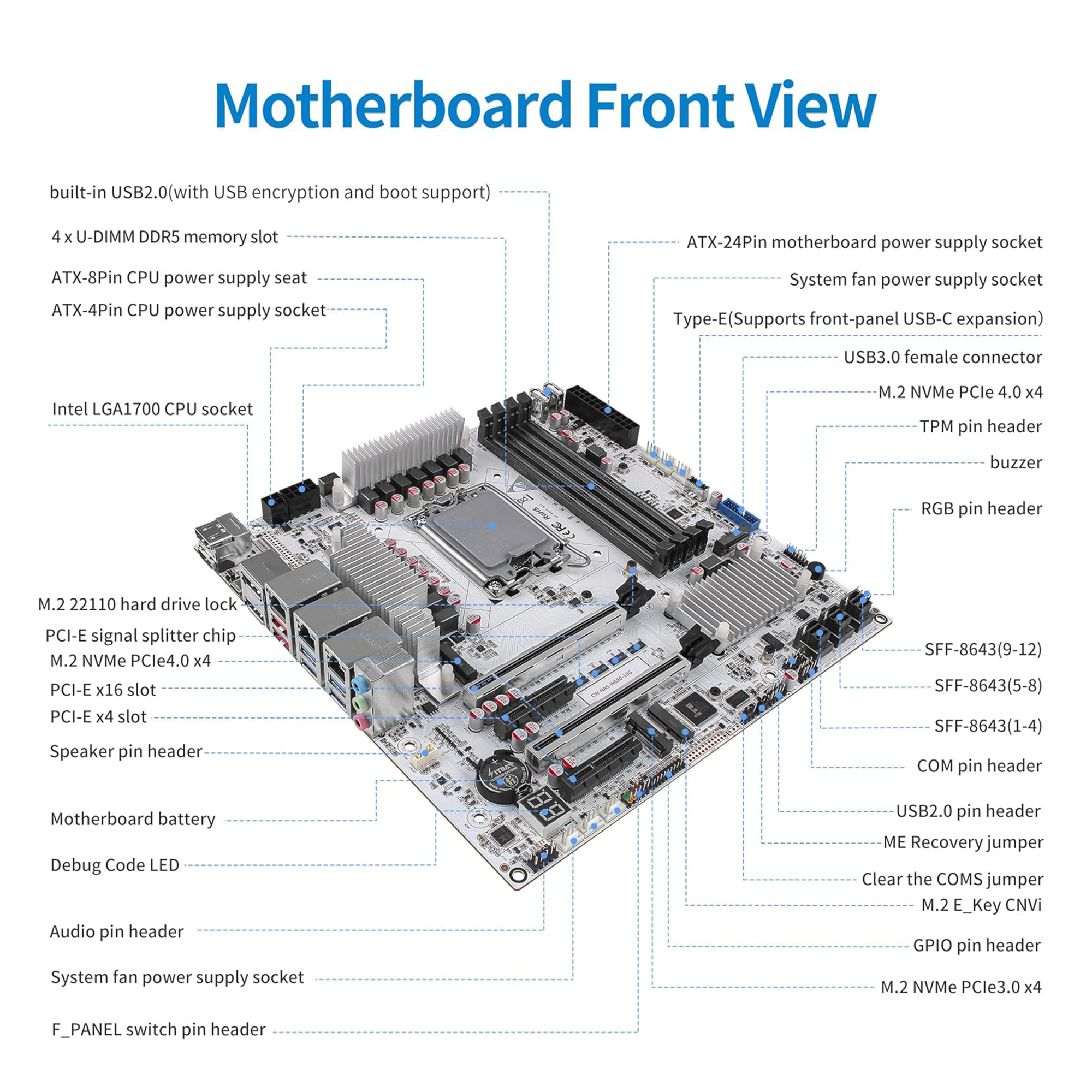

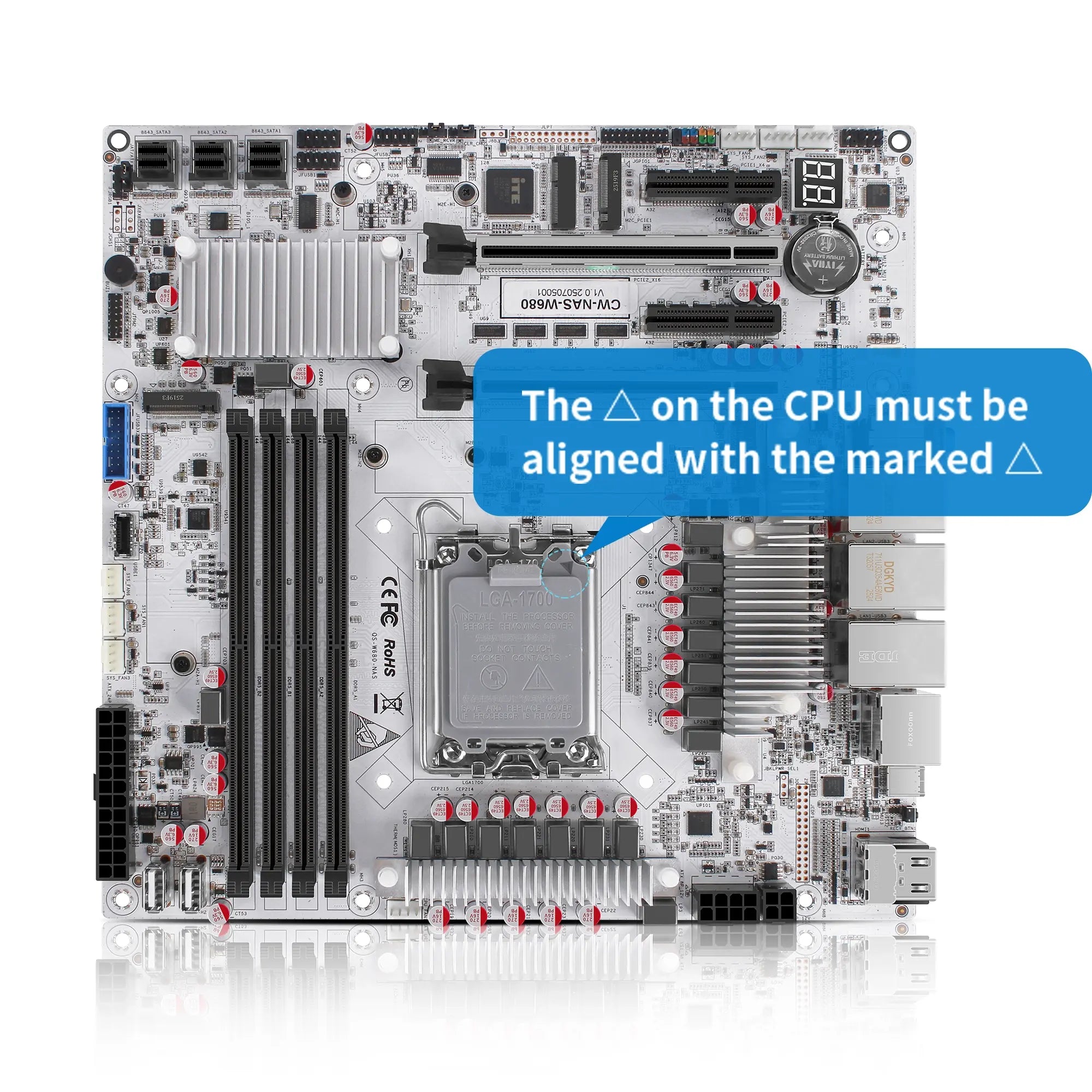

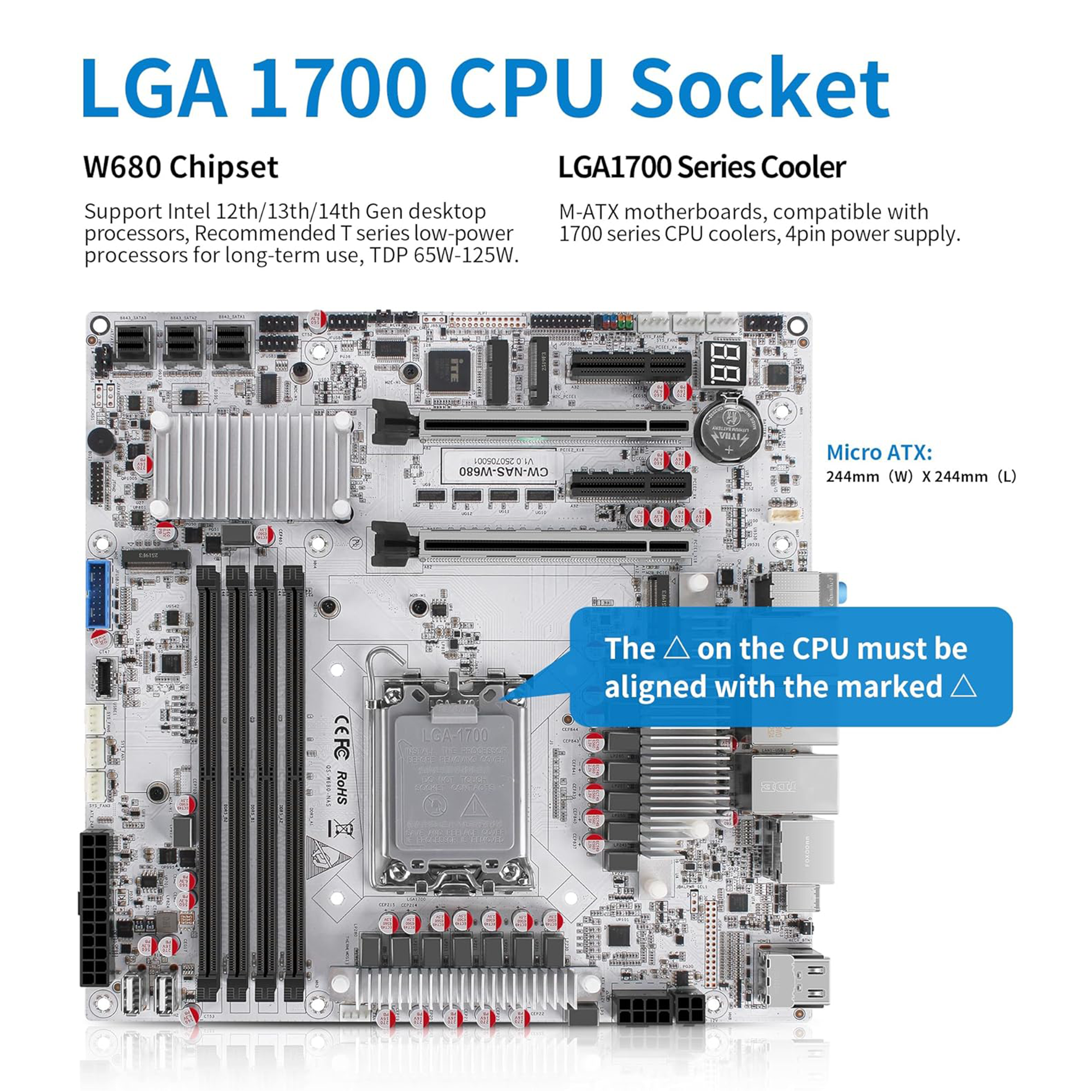

LGA 1700 CPU Socket
W680 Chipset
support Intel 12th/13th/14th Gen desktop processors, RecommendedT series low-power processors for long-term use, TDP
LGA1700 Series Cooler
M-ATX motherboards, compatible with 1700 series CPU coolers,4pin power supply.

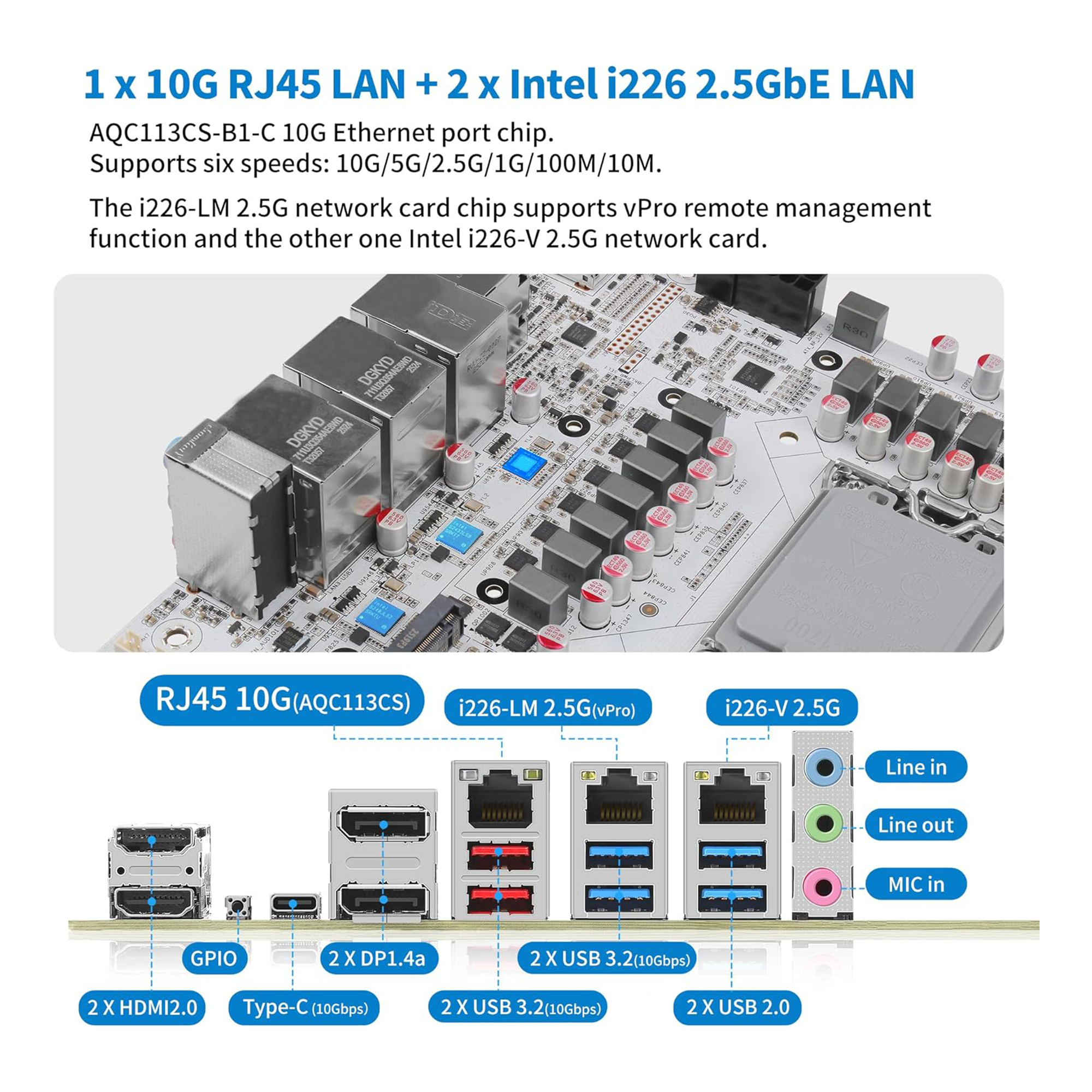

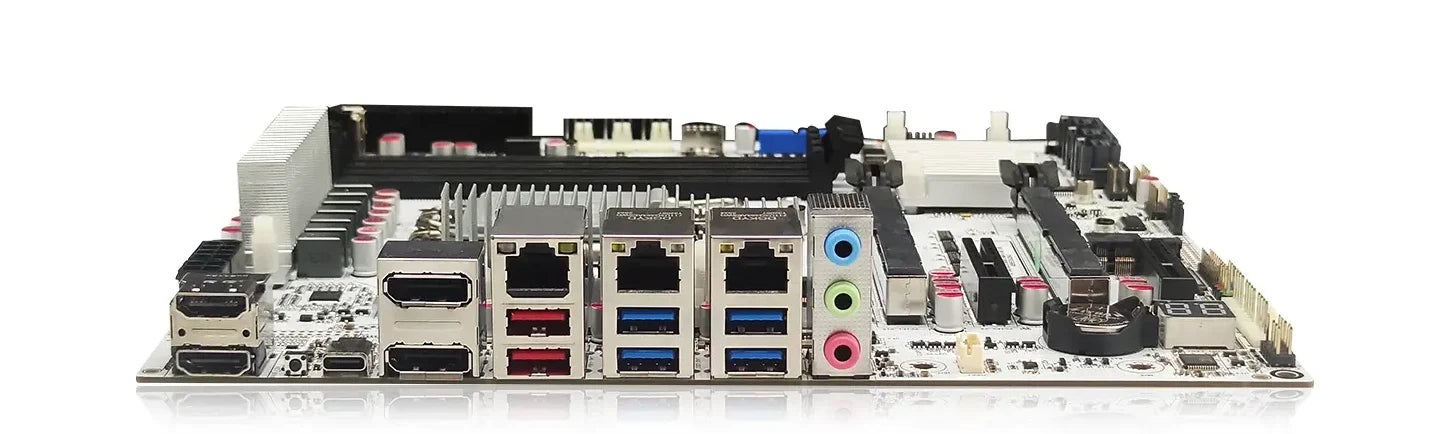

1 × 10GbE RJ45 LAN + 2 × Intel i226 2.5GbE LAN
AQC113CS-B1-C 10G Ethernet port chip.
Supports six speeds:10G/5G/2.5G/1G/100M/10M.
The i226-LM 2.5G network card chip supports vPro remote management function and the other one intel i226-V2.5G network card.

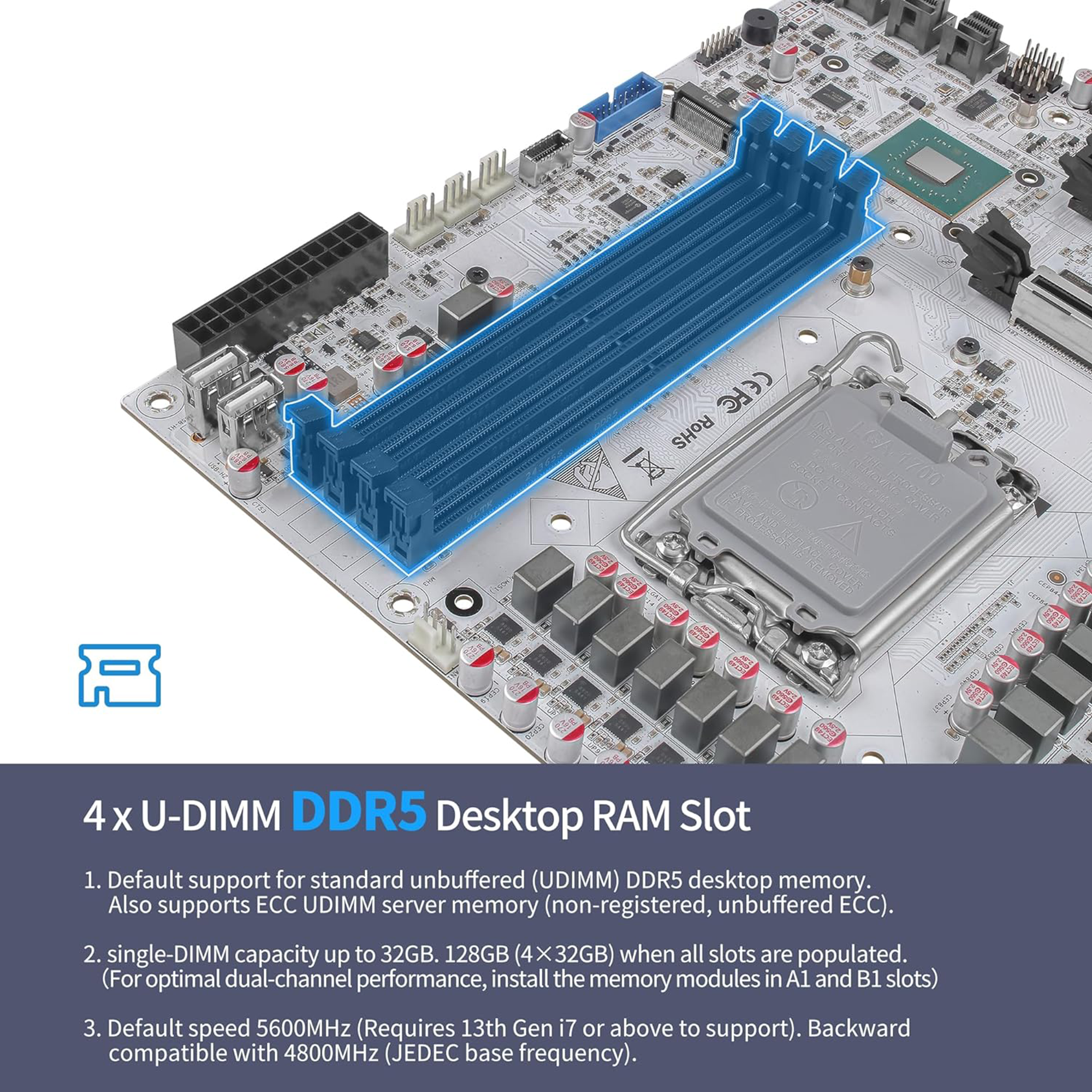

4 × U-DIMM DDR5 Desktop Memory Slots
Supports up to 128GB DDR5 memory with 4 × 32GB U-DIMM slots. ECC error correction is supported for better data reliability. DDR5 5600MHz memory is supported by default, depending on CPU compatibility.

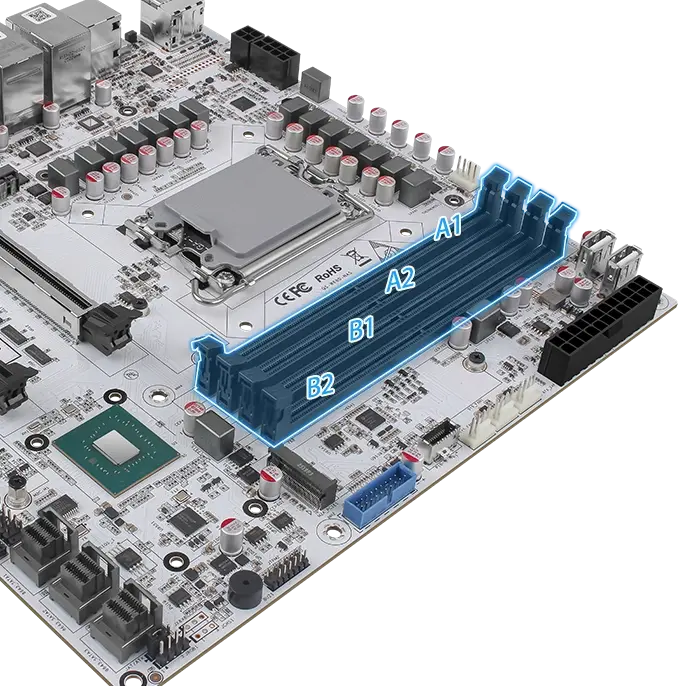

RAM Installation Order:
For 1 DDR5 module, install it in DIMM B2.
For 2 DDR5 modules, install them in DIMM A2 + DIMM B2.
For 4 DDR5 modules, use DIMM A1 + DIMM A2 + DIMM B1 + DIMM B2.
Note: Incorrect RAM installation order may cause the system to fail to boot.

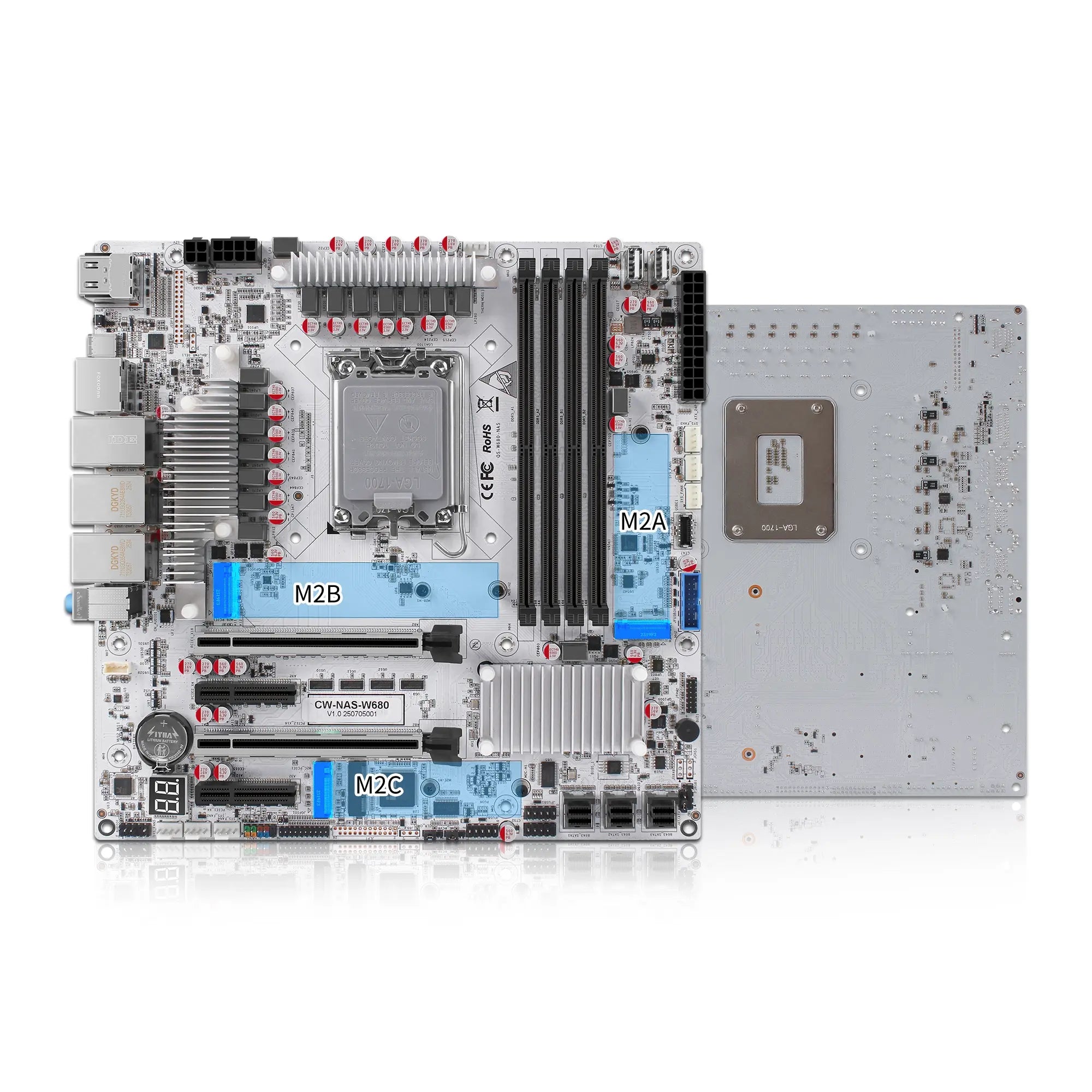

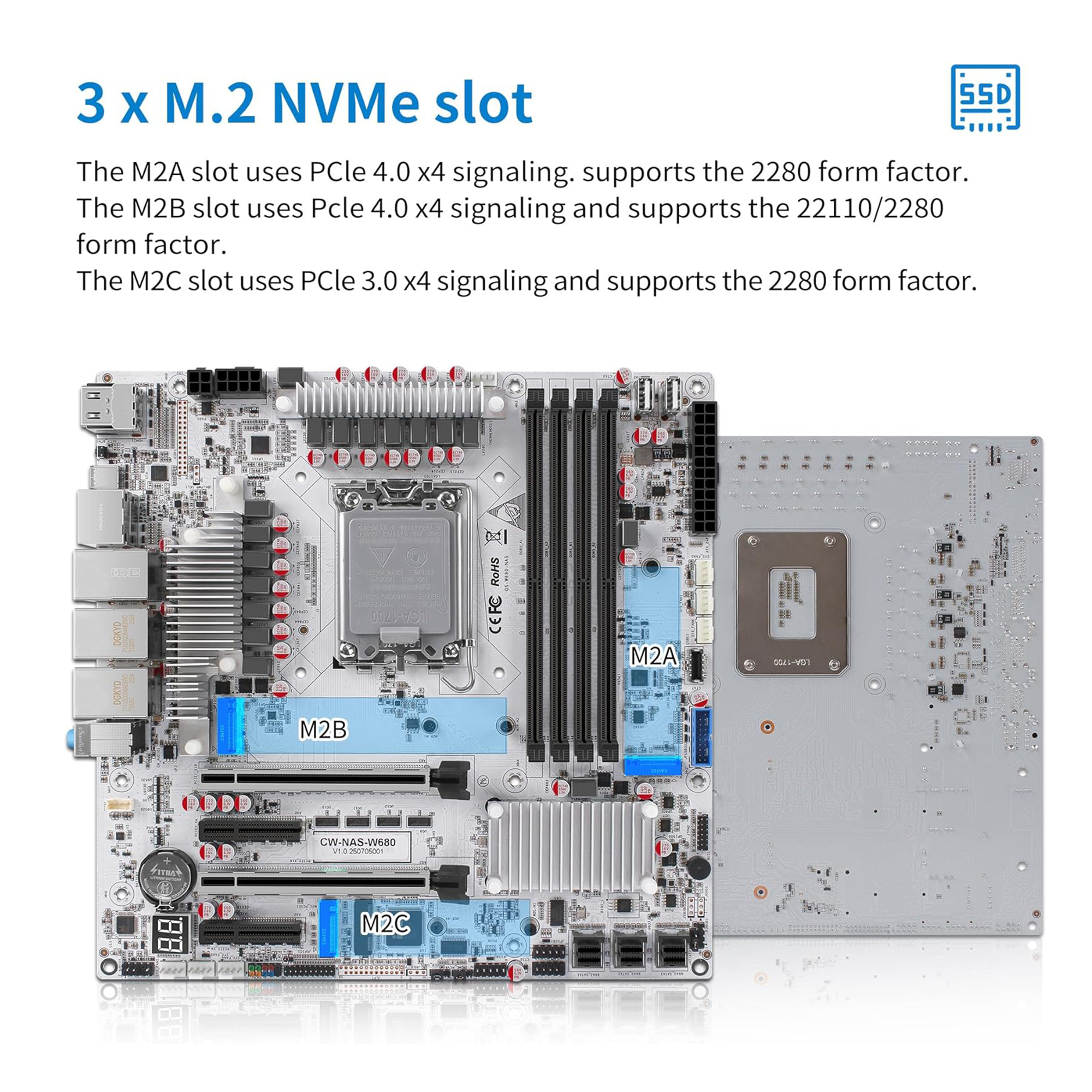

3 × M.2 NVMe SSD Slots for High-Speed Storage
The system supports three M.2 NVMe SSD slots for high-speed storage expansion. The M2A and M2B slots support PCIe 4.0 ×4 NVMe SSDs, delivering much faster data transfer performance than PCIe 3.0 and SATA 3.0 SSDs, with PCIe 4.0 ×4 bandwidth up to 7.88 GB/s.

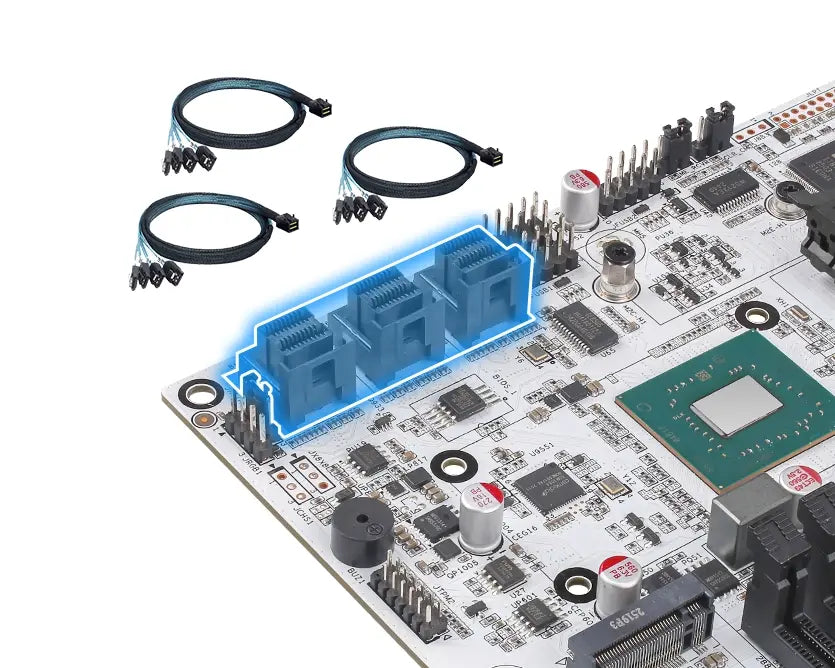

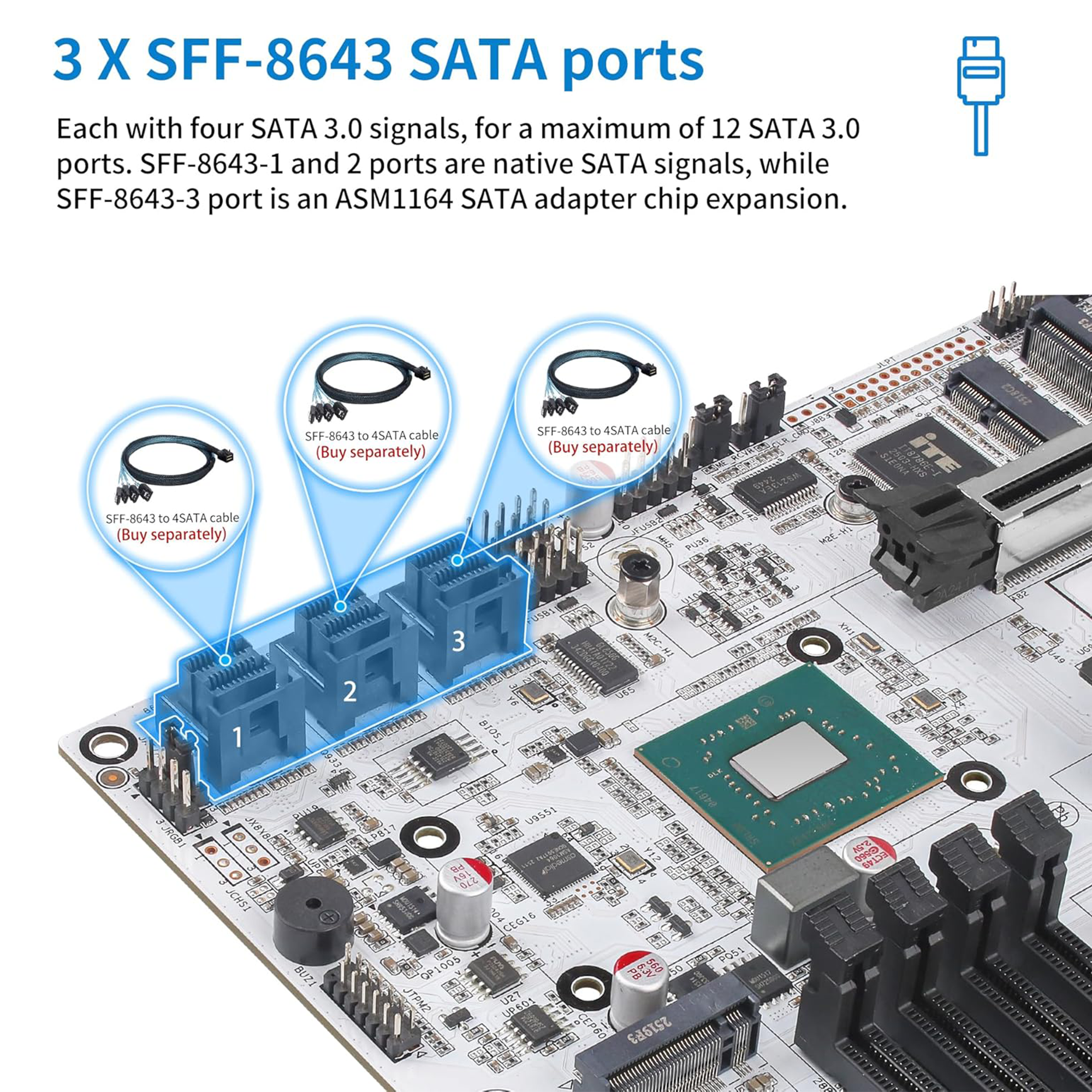

3 × SFF-8643 Ports for Up to 12 SATA Drives
The motherboard provides 3 × SFF-8643 SATA ports, with each connector carrying four SATA 3.0 signals, supporting up to 12 SATA 3.0 drives in total. The SFF-8643-1 and SFF-8643-2 ports use native SATA signals, while the SFF-8643-3 port is expanded through the ASM1164 SATA controller chip.
Optional Cable:
SFF-8643 to 4 × SATA cable is optional and can be used for multi-drive storage expansion.

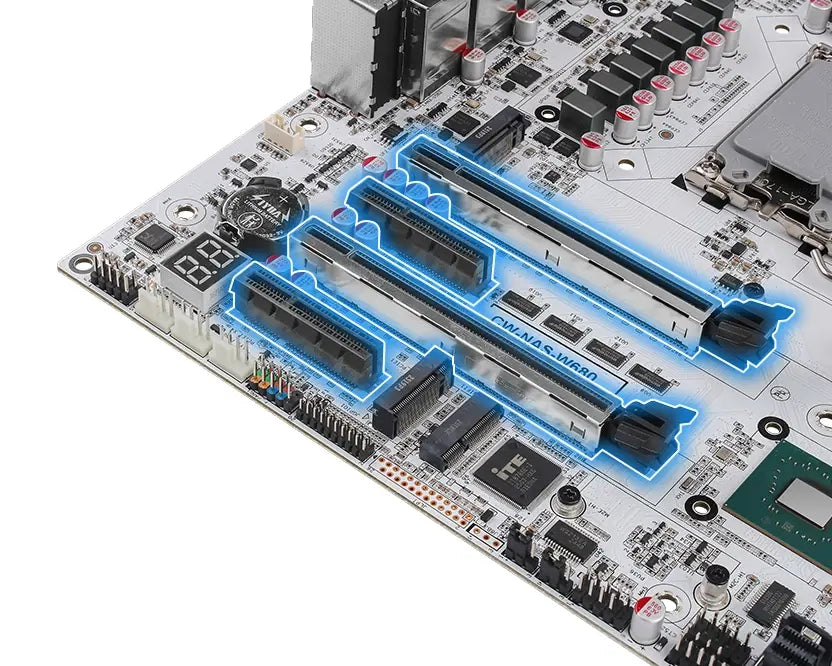

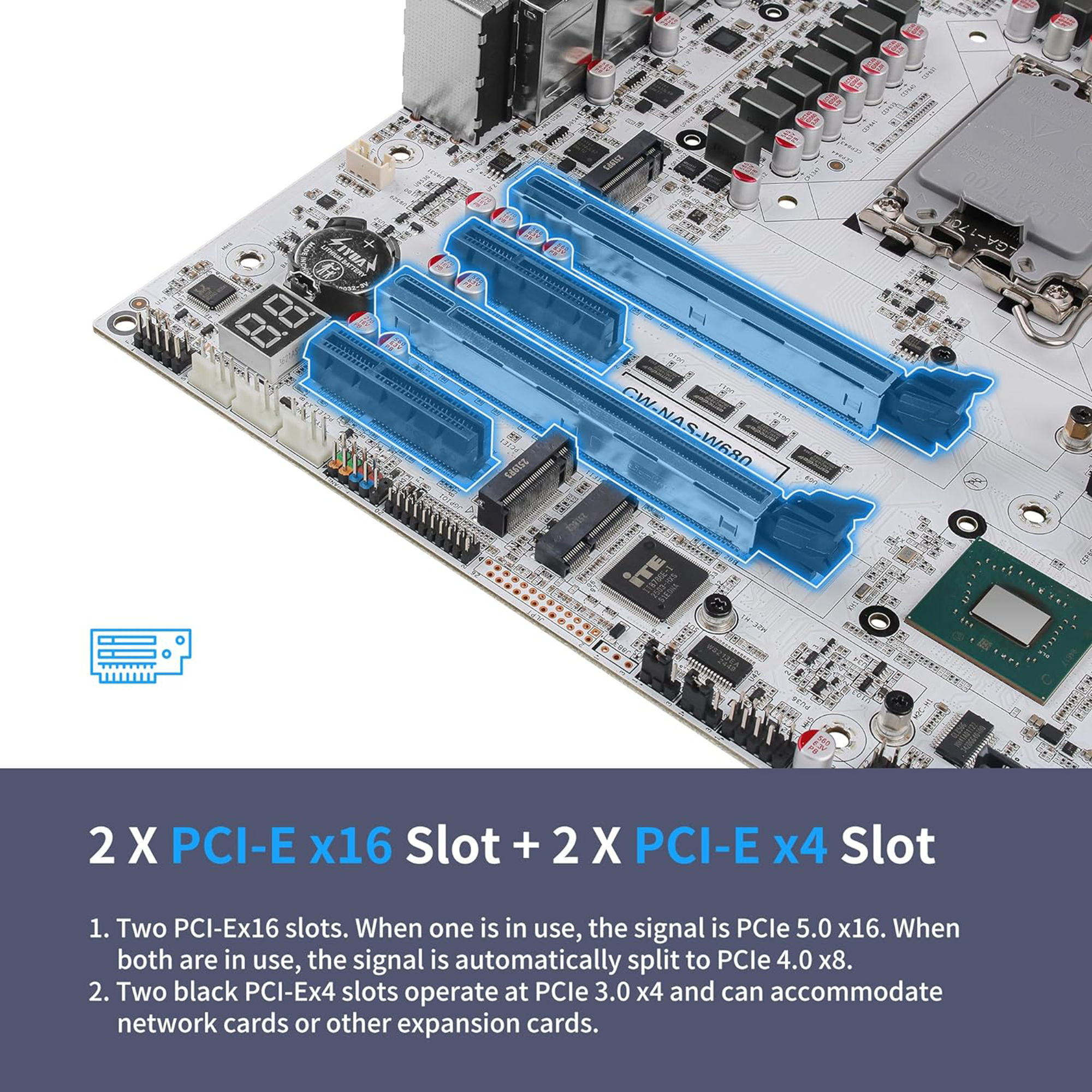

2 × PCIe x16 Slots + 2 × PCIe x4 Expansion Slots
The motherboard includes two PCIe x16 slots for high-performance expansion. When a single x16 slot is used, it supports up to PCIe 5.0 x16 bandwidth. When both x16 slots are used at the same time, the lanes are automatically divided into PCIe 4.0 x8 + x8.
It also provides two PCIe x4 slots, operating at PCIe 3.0 x4, suitable for adding network cards, storage expansion cards, or other PCIe devices.
