About this item

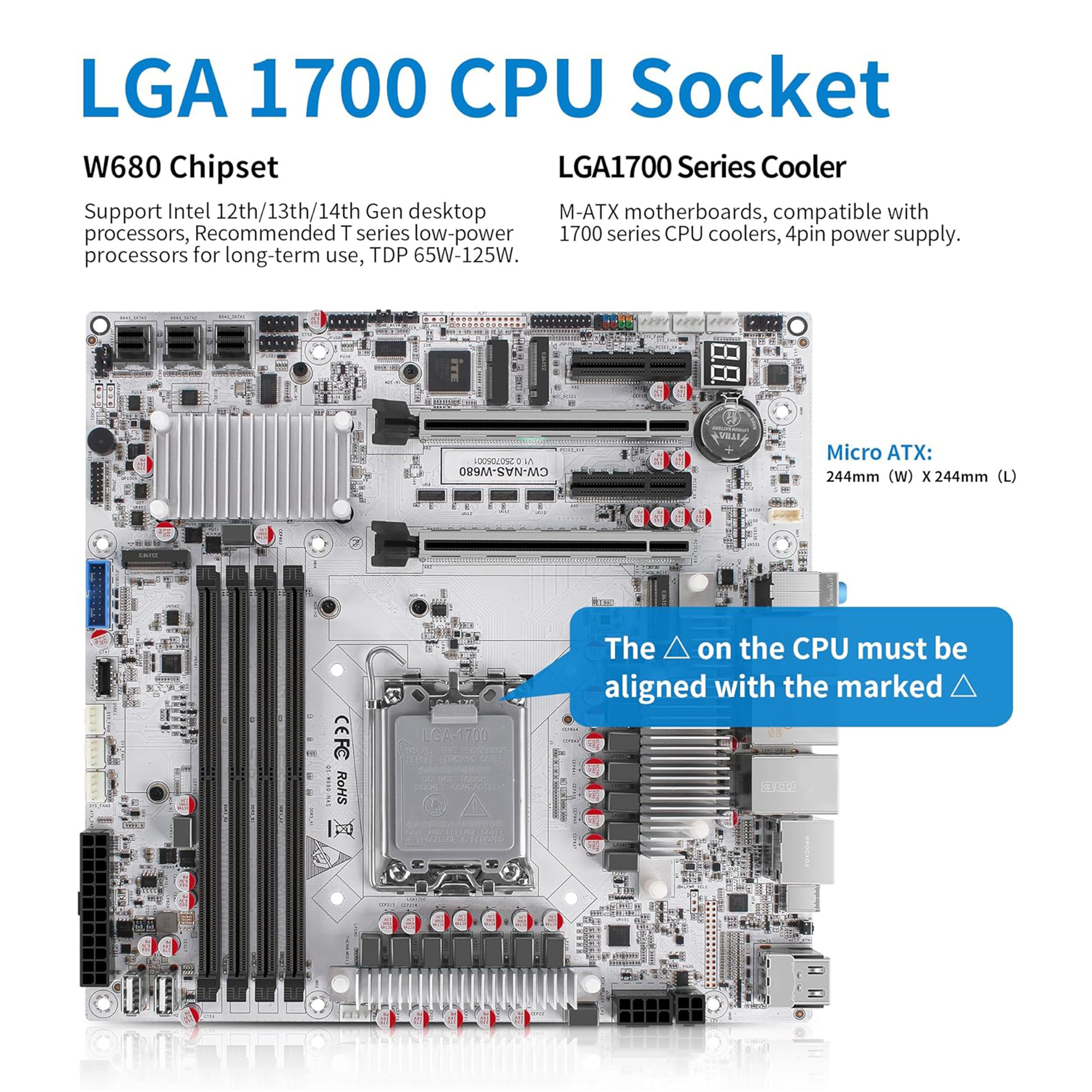

• W680 Chipset & LGA1700 Socket: The W680 chipset supports vPro, ideal for enterprise and pro use. It has an LGA1700 socket, compatible with 12/13/14th-gen desktop CPUs. Optimized thermals and power for workstation & small server ensure stability under high load while reducing power. 28 PCIe lanes support various high-speed expansion for data-intensive apps, storage arrays, etc

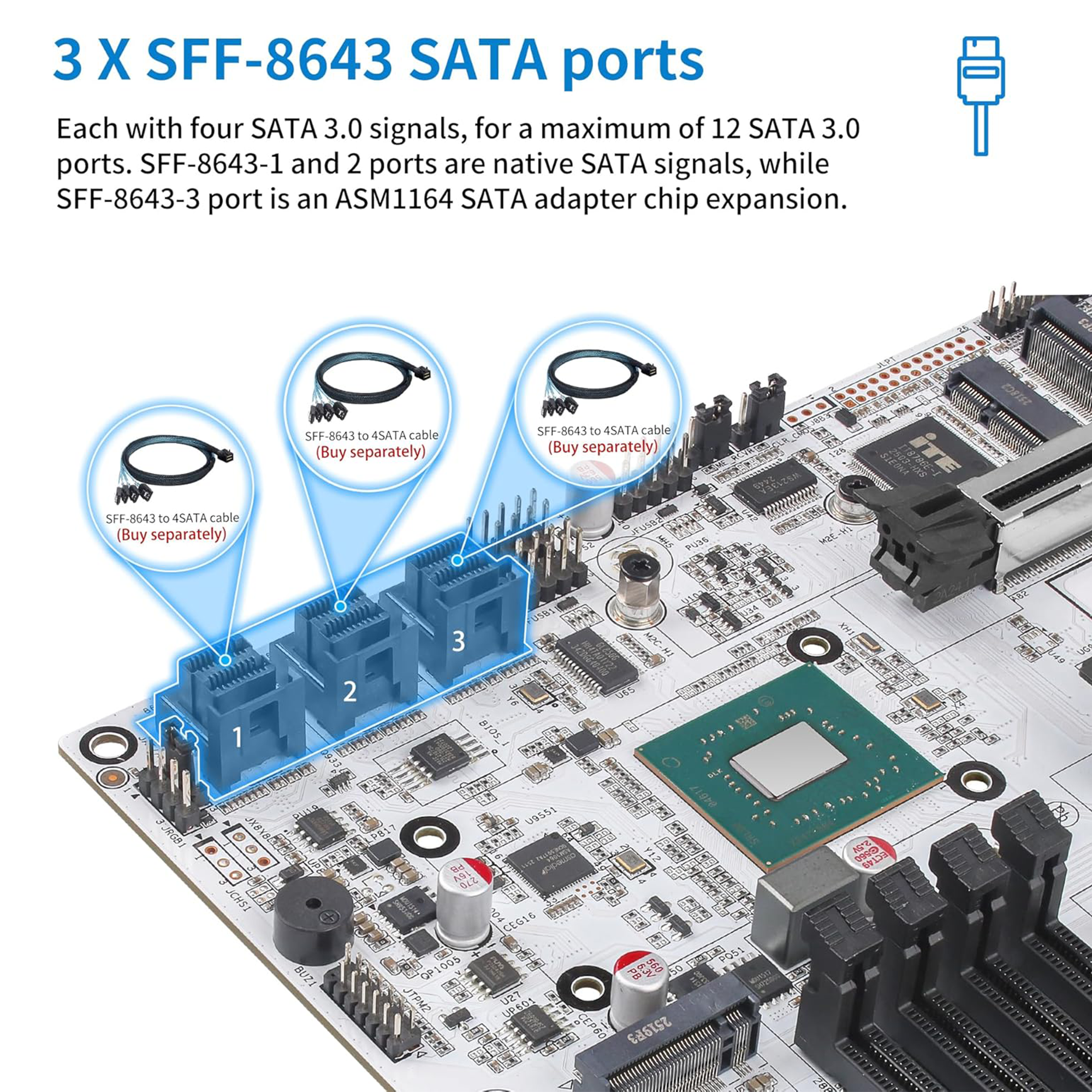

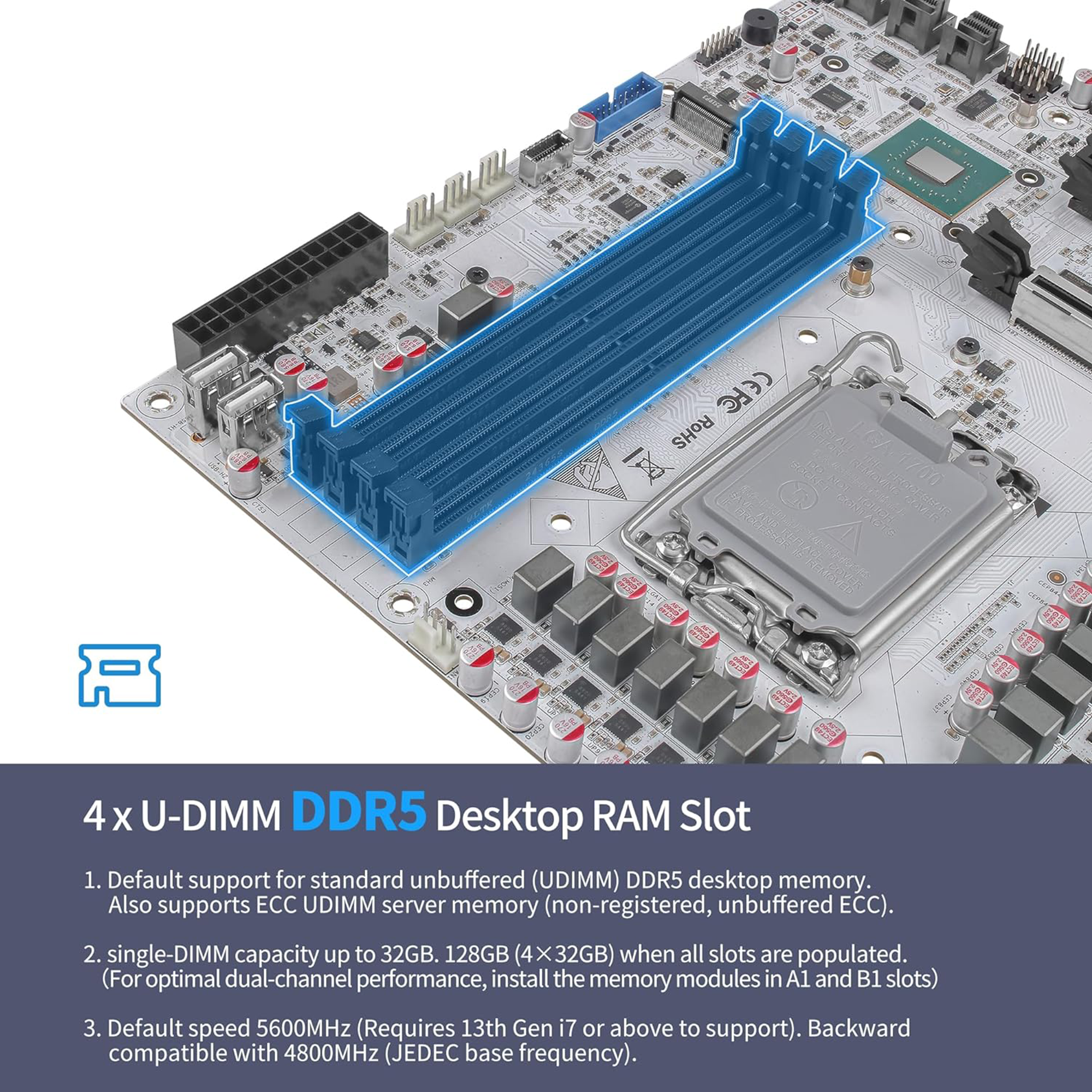

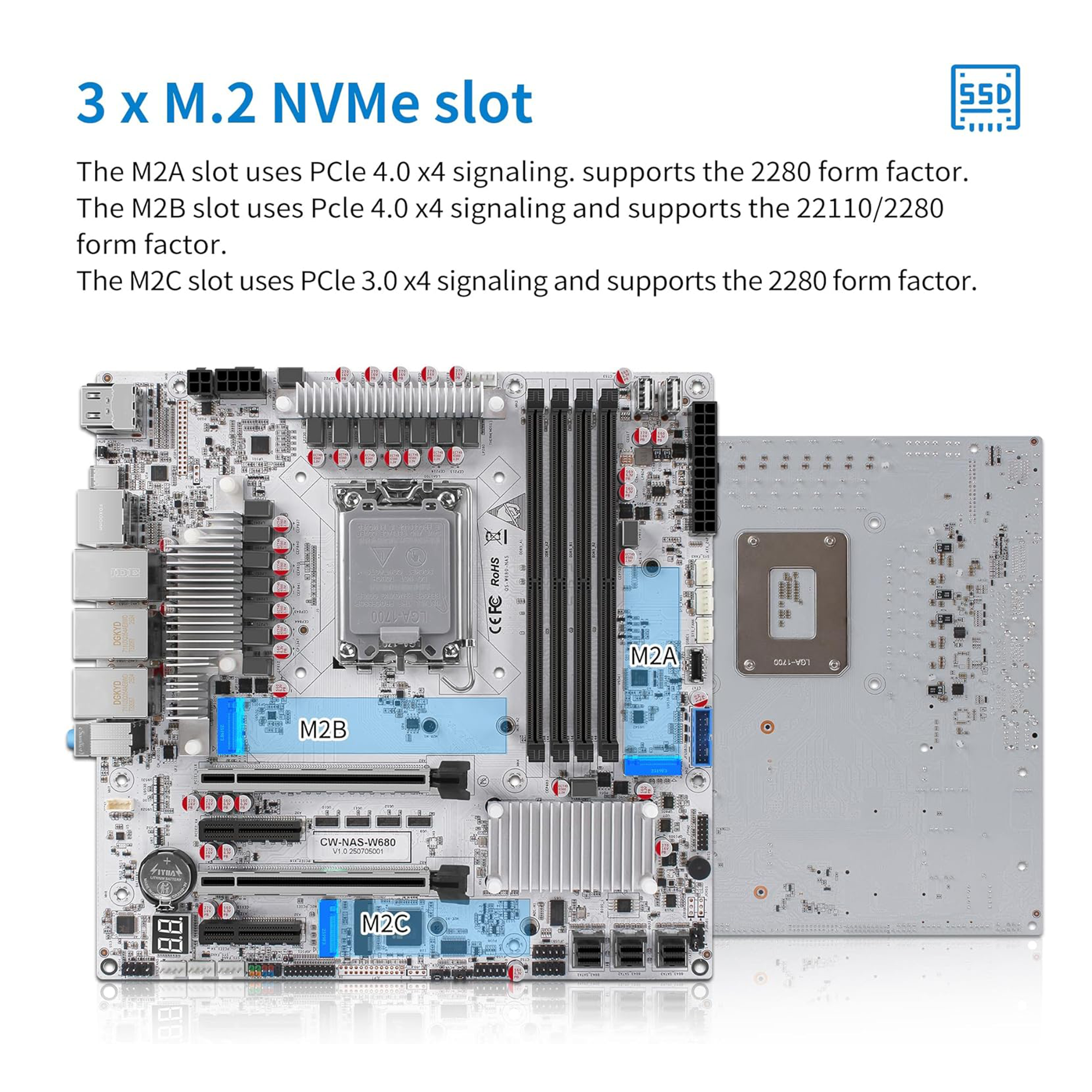

• 4 x DDR5 & 3 x NVMe & 12-Bay: Equipped with 4-channel U-DIMM desktop memory slots (supports ECC), up to 4 × 32GB, 5600MT/s, backward compatible. It offers a total of 3 × M.2 NVMe slots: 2 × PCIe4.0 x4 and 1 × PCIe3.0 x4. Comes with 3 × SFF-8643 ports, which can be converted into 12 × SATA 3.0 ports using three SFF-8643 to 4-SATA adapter cables (sold separately)

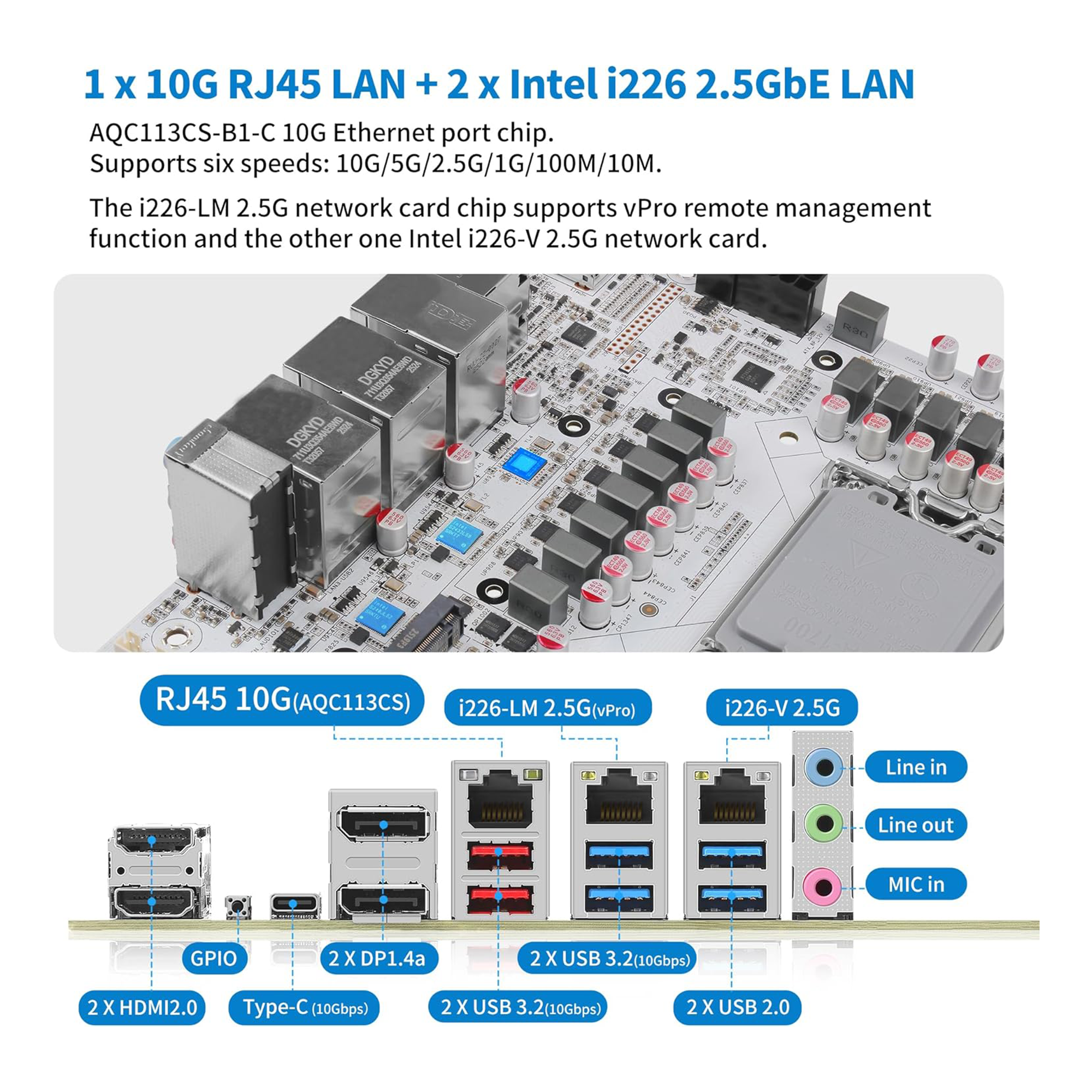

• 10Gbit & Dual 2.5Gbit RJ45 LAN: Features 1 x AQC113CS 10 Gbit RJ45 port (10GBase-T), adaptive 1G/2.5G/5G/10G, allowing 10Gbps high-throughput, low-latency networking. 1 x i226-LM and 1 x i226-V 2.5 Gb RJ45 ports, the i226-LM support vPro remote management. Compatible with various open-source NAS systems (like TrueNAS or unraid), WinOS, Linux or PVE virtualization
• Various I/O Interfaces: Equipped with 2 x HD2.0 + 2 x DP1.4 + 1 x USB Type-C for display support, max displays depend on the iGPU of the installed CPU. The USB-C (USB 3.2) up to 10Gbps, plus 4 × USB 3.2 Gen2 (10Gbps) & 2 × USB 2.0 for data/peripherals. 2 x built-in USB 2.0 for USB drive encryption/system boot. Built-in USB 3.0 and Type-E headers for front USB 3.0 and USB-C connecting

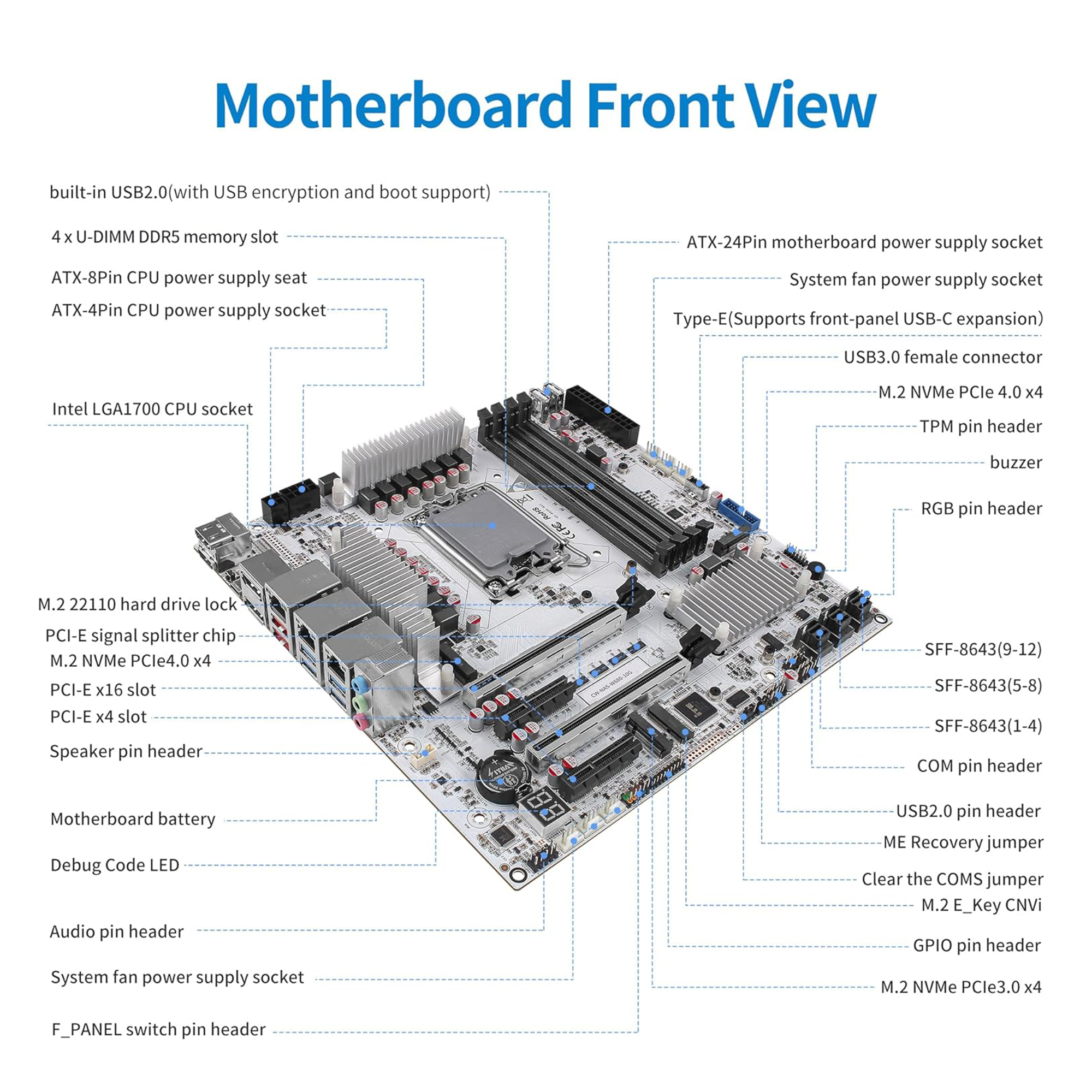

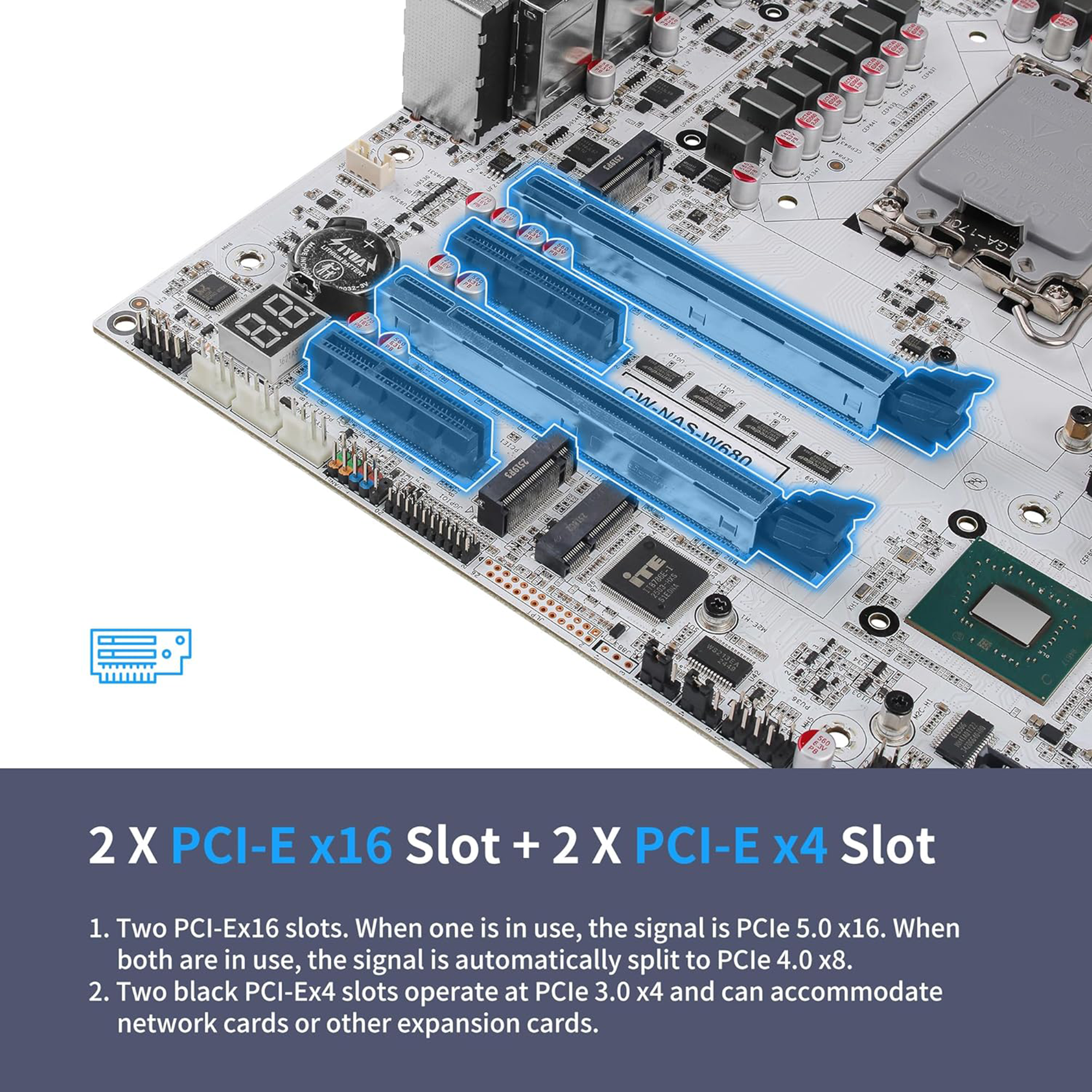

• Other Specifications: This M-ATX motherboard (24.4 × 24.4 cm) requires 24-pin + 8-pin (or 8+4 pin) power input. 2 × PCI-E x16 slot (PCIe5.0 x16 or two PCIe4.0 x8) and 2 × PCI-E x4 slot (PCIe3.0 x4) for expansion card. 1 x M.2 E-key slot supports WiFi/BT, with antenna holes on the I/O shield (included). Debug LED can be used for Post and troubleshooting. PDF manual offered
