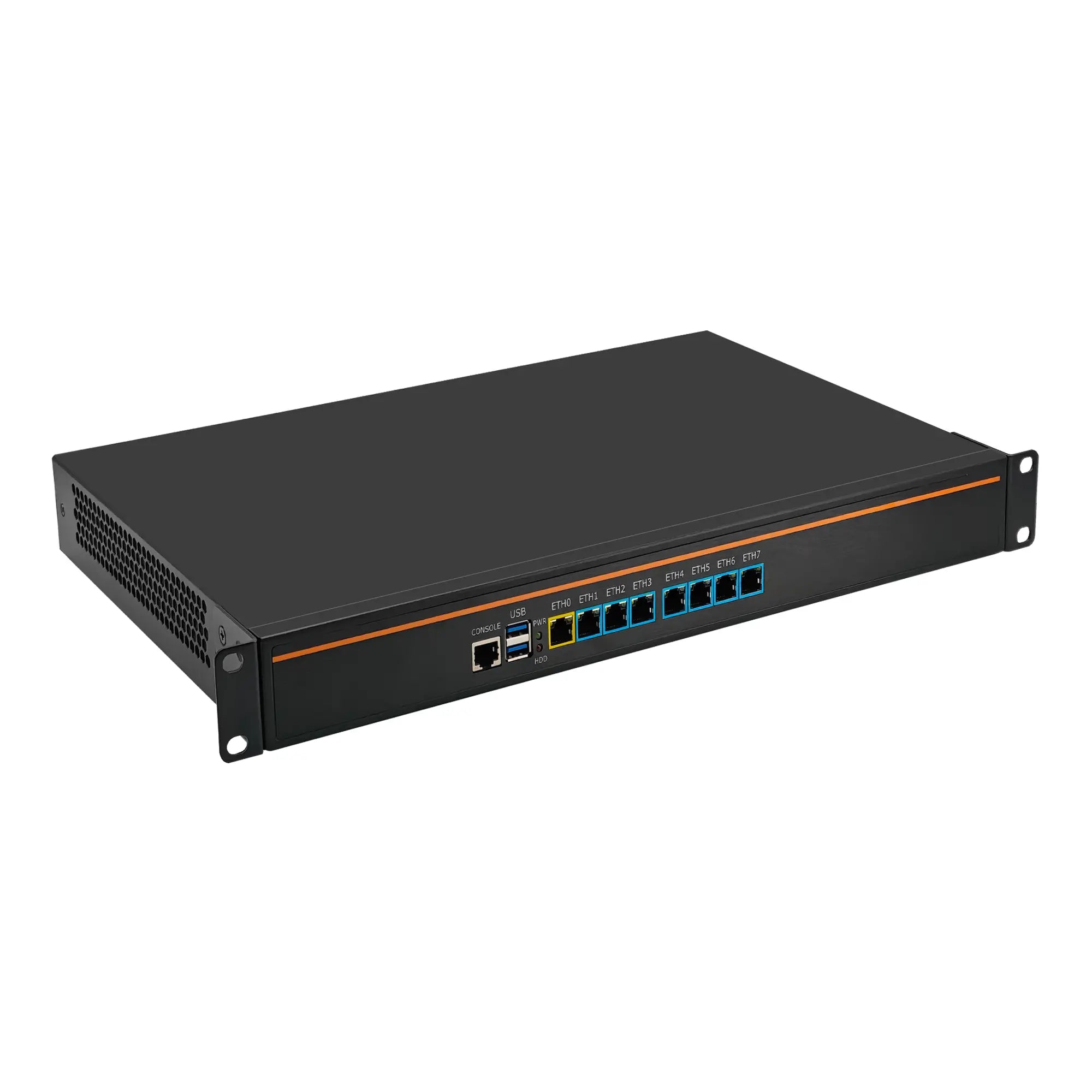

CWWK 1U-Z87 Rackmount Firewall Appliance, Intel Core i5-4300M, 8 port 2.5GbE LAN and Optional 2×10GbE SFP+
Intel Core i5-4300M firewall appliance
| CPU | Intel Core i5-4300M Processor, 2 Cores 4 Threads, 3M Cache, 3.3GHz, TDP 37W |
|---|---|
| System | Supports OPNsense, OpenWrt, Linux, ESXi, AES-NI and other open-source systems. Tap “Delete” to enter BIOS setup. |
| GPU | Intel HD Graphics 4600 |
| Output | VGA |
| Memory | 2 × DDR3L SO-DIMM slots, max 16GB, 8GB per module |
| Storage |
1 × M.2 SSD, SATA protocol 2 × SATA slots 1 × mPCIe, supports 3G/4G module and SATA solid-state drive |
| I/O |
8 × Intel i226-V RJ45 LAN / 2 x 10GbE 1 × COM 2 × USB 3.0 1 × Power LED 1 × Hard Disk LED 1 × VGA 1 × Power Supply |
| Power | 100–240V 50/60Hz AC |
| Size | 44 × 25.5 × 4.5cm / 17.33 × 10.04 × 1.78in, weight 5.4kg / 11.9lb |

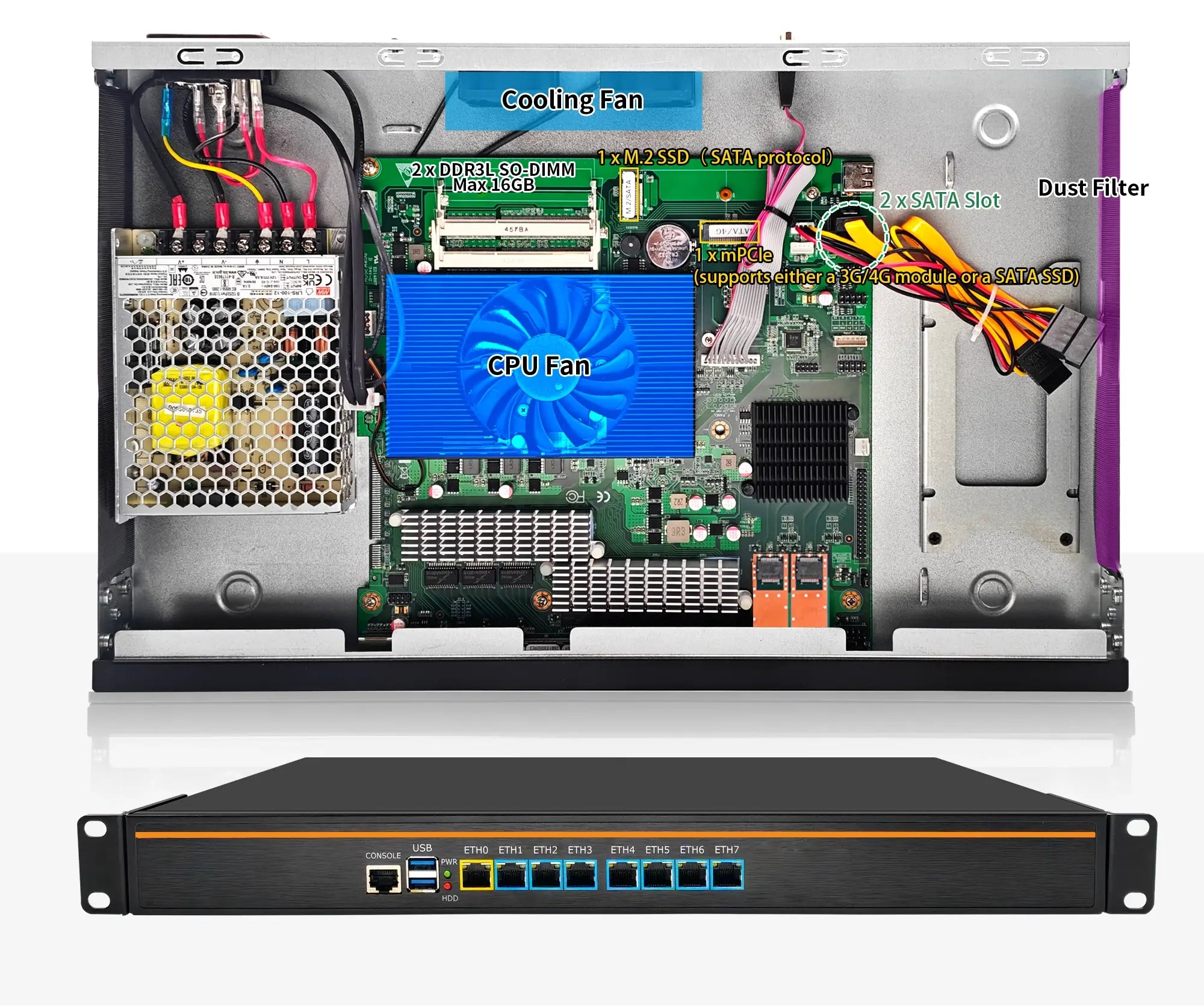

Display and introduction of the chassis interior
8x2.5GbE LAN

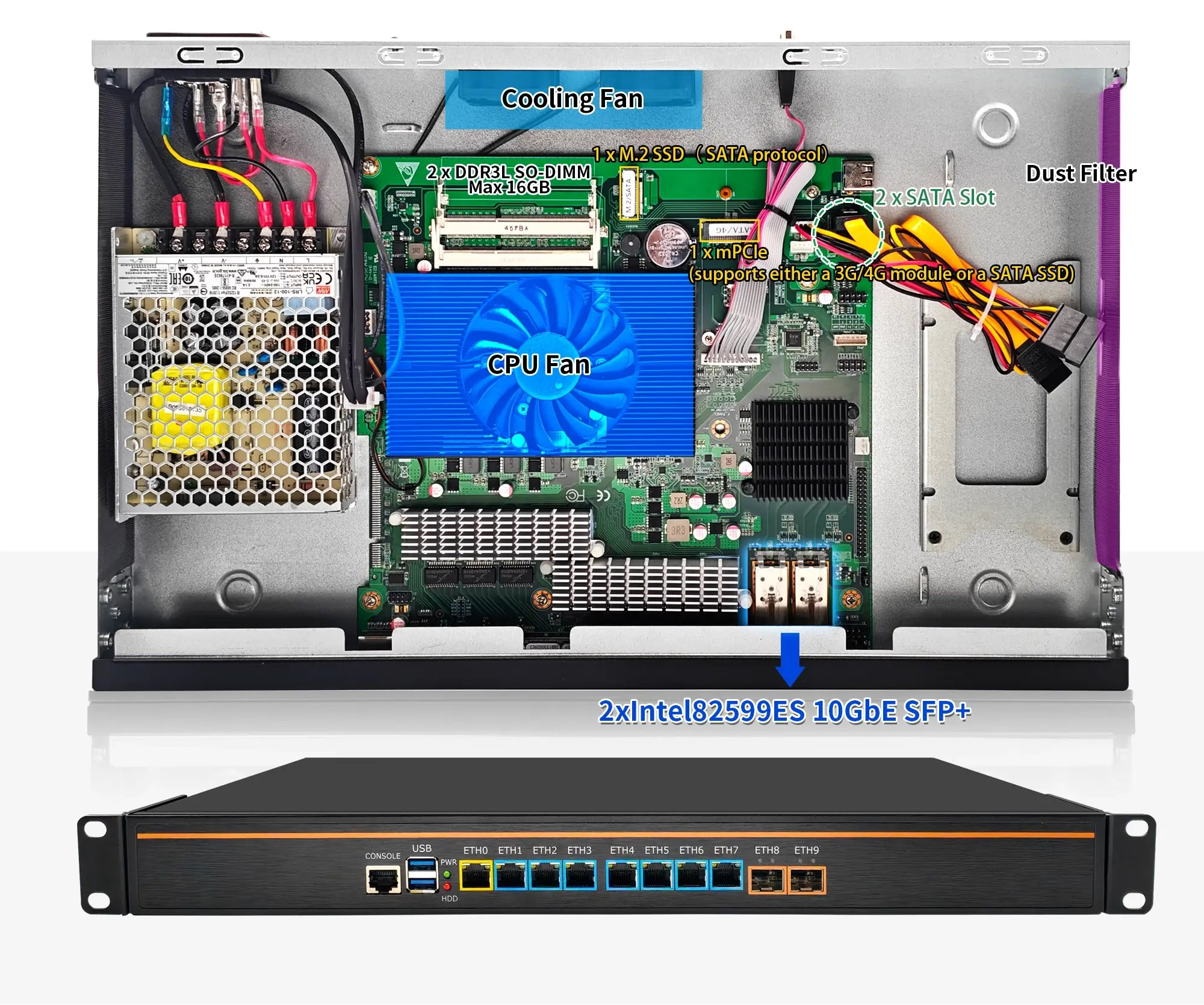

Display and introduction of the chassis interior
8x2.5GbE LAN + 2x10GbE SFP+
