CWWK NAS Motherboard 8 Bay with 10GbE RJ45 LAN, N150 CPU Mini ITX PC Motherboard White M8 (N100 Upgrade), 2 x NVMe, Dual 2.5Gb Ethernet, M.2 WiFi, USB-C, DDR5 , PCIe x1, TF (Optional 2X 4-SATA Cable)

• 2025 New Generation N150 Processor The CWWK CWWK M8 motherboard is equipped with the new Twin Lake N150 CPU model (upgrade of the Alder Lake N100), 4 cores/4 threads, up to 3.6GHz, 6MB cache. With an ultra-low TDP of only 6W, it is ideal for energy-efficient systems. Supports Auto Power-On, Scheduled Power On, Wake-on-LAN, PXE boot, Secure Boot, CPU temperature monitoring. Only UEFI is supported
• 10GbE + Dual 2.5GbE RJ45 LAN: Equipped with 1× AQC113C 10Gbit RJ45 port for high-speed data transfers in demanding applications. Also with 2× i226-V 2.5GbE Ethernet controllers, compatible with various open source NAS systems (such as TrueNAS or unraid), WinOS, Linux or PVE virtualization systems. Suitable for VM creation, NVMe RAID and 24/7 continuous operation
• 8-Bay SATA 3.0+2×NVMe:Equipped with 2×SFF-8643 connectors, which can be converted into 8×SATA 3.0 ports via two SFF-8643 to 4 SATA adapter cables. Includes 2×M.2 NVMe slots, suitable for NVMe SSDs in 2280 format. Features 1× DDR5 4800MHz SO-DIMM RAM slot, supports up to 48GB RAM

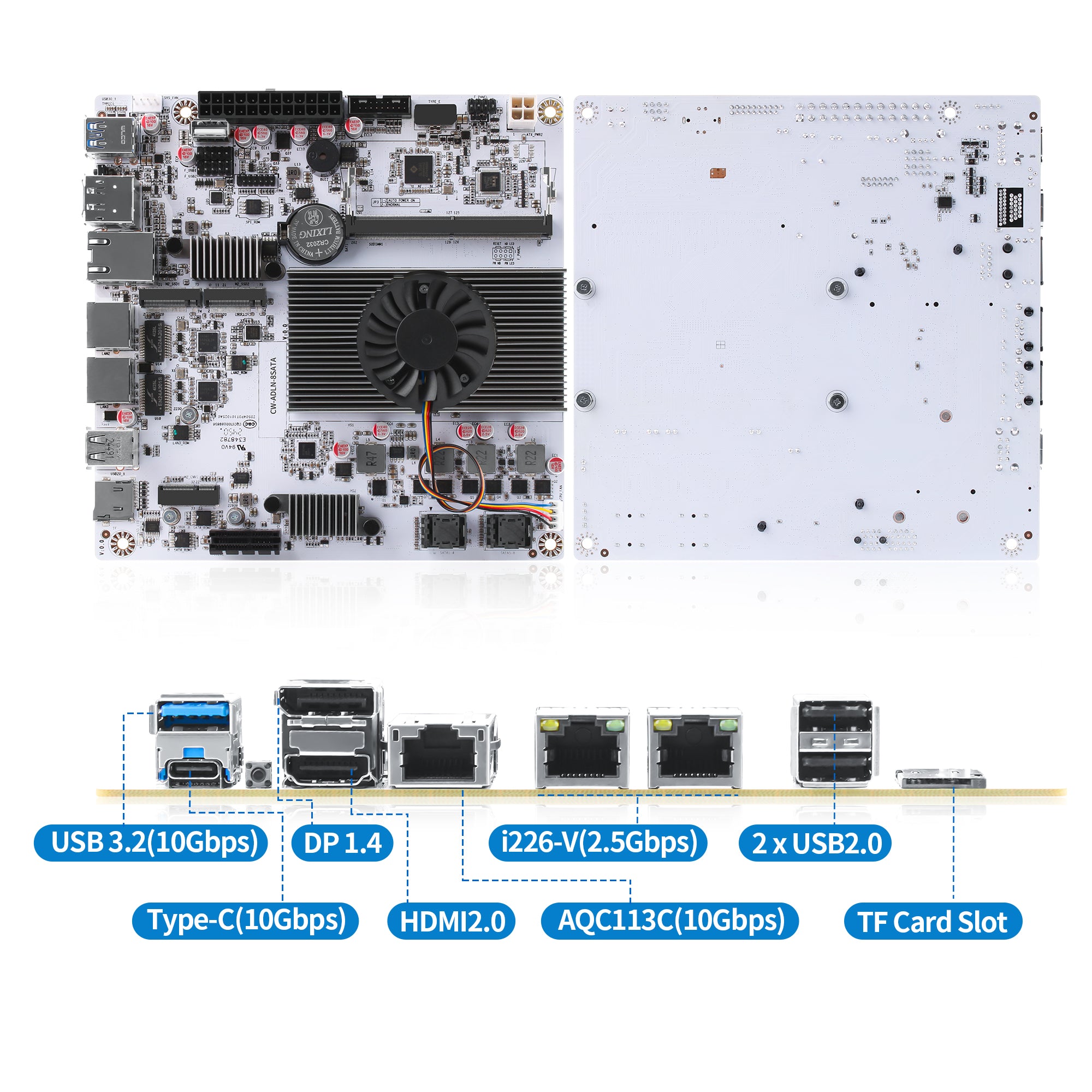

• Multiple I/O Interfaces: The processor has built-in UHD graphics (1GHz, 24EU), supports hardware decoding and 4K video output. Equipped with HD2.0 + DP1.4 ports, supports dual display up to 4K@60Hz. 1 × USB Type-C (10Gbps), 1 × USB3.2-A 10Gbps and 2 × USB2.0 for data transfer or USB peripherals. Internal 1 × TF slot for MicroSD cards, can be used for system startup
• Other specifications: This mini ITX motherboard (17 × 17 cm) requires a 24-pin + 4-pin power connector. It features 1×M.2 E-key slot (PCIe/CNVi) for WiFi/BT modules and 1×PCIE x1 slot (PCIe 3.0, side notched, x4/x8 compatible; shares lanes with e-key). Includes USB 3.0 and Type-E headers for connecting front I/O. I/O shield included PDF manual available

Product description

CWWK M8 10GbE LAN 8-Bay NAS Motherboard

CPU options: Alder Lake N100 / Twin Lake N150 / Core i3 N305 / Core 3 N355

Memory: 1 x SO-DIMM DDR5 RAM slot, up to 48 GB (max. 4800 MHz).

Storage: 2 x M.2 2280 NVMe SSD slots (PCIe3.0 x1), 2 x SFF-8643 ports (support up to 8 x SATA3.0), 1 x TF card slot

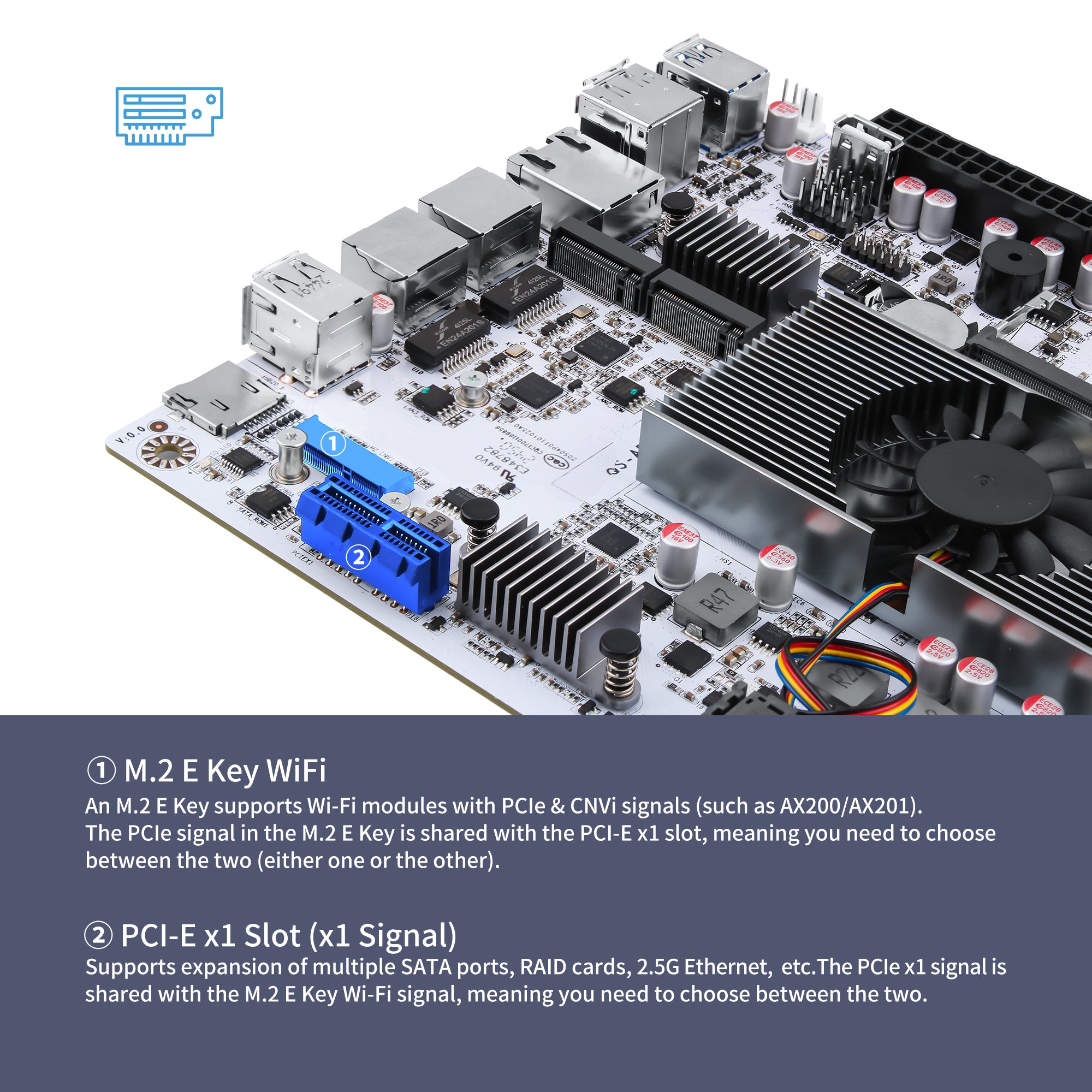

PCIe slot: 1 x PCIe x1 slot, compatible with x4/x8, shares the lanes with M.2 E key, only 1 in 2 can be used simultaneously

Network controller: 1×AQC113C 10GbE LAN, 2 x i226-V 2.5GbE LAN

Wireless Interface: 1 x M.2 E-Key 2230 WiFi Slot (PCIe/CNVi)

Display ports: HD2.0 + DP1.4, supports up to 4K@60Hz

USB Ports: 1 x USB Type-C (10 Gbps), 1 x USB 3.2 Type-A (10 Gbps), 2 x USB2.0-A, 1 x Internal USB2.0 port for boot up or USB encryption

Internal Header: Type-E Header, USB3.0 Header, 2 x F_USB Header, Auto Power On Jumper

Fan Installation: Compatible with original CWWK CPU fans only; Includes 1 x system fan connector with PWM support

Size: Mini ITX 17 x 17 cm

Box contents: CWWK M8 NAS motherboard (with CPU fan), I/O panel

OFFICIAL SUPPORT User manual, various driver files and other product-related documents available on the official website

Functions: Auto Power-On, Scheduled Power-On, Wake-on-LAN, PXE boot, Secure Boot, CPU temperature monitoring

Operating System: Supports Win10/11/Server, PVE, EXSi, Linux, TrueNAS, unraid, OMV and other open source systems
