About this item

• 2025 New Gen. N150 Processer: The CWWK S7 Pro Mini PC features the new model Twin Lake N150 CPU (upgrade of the Alder Lake N100), 4C/4T, up to 3.6GHz, 6MB cache. With an ultra-low TDP of just 6W, it’s perfect for energy-efficient systems. Supporting Auto Power-On, Scheduled Power-On, Wake-on-LAN, PXE Boot, Secure Boot, CPU Temperature Monitoring. UEFI only

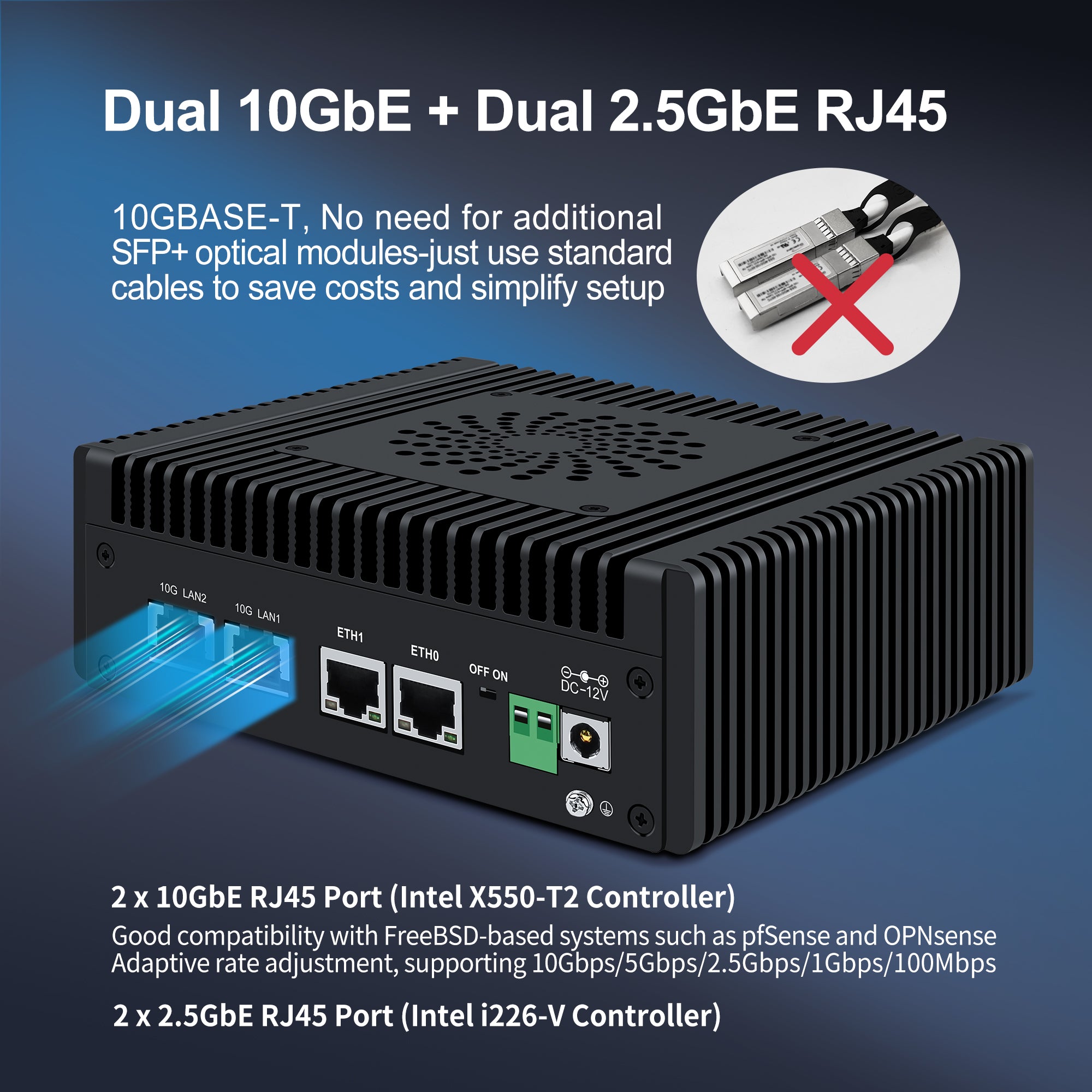

• Dual 10GbE + Dual 2.5GbE RJ45: Equipped with 2 × 10Gbit RJ45 ports (X550-T2 controller, supporting FreeBSD-based systems, Linux, ESXi), compatible with 10G/5G/2.5G/1G/100Mbps and usable directly with Cat6a/Cat7 cables (10GBase-T) without additional SFP+ modules, plus 2 × 2.5Gbit RJ45 ports (i226-V), delivering 4 Ethernet ports for software routers, firewalls, data servers, or virtualization AIO
• DDR5 Memory and 2 × NVMe: 1 × SO-DIMM 4800MHz DDR5 slot, up to 48GB. 2 × M.2 2280 NVMe slots (PCIe 3.0 x1); the rear slot is native, while the front NVMe slot is adapted from an M.2 E-key, only supporting up to 2TB. Removing the adapter allows the E-key to install a WiFi7/BT5.4 module. 1 × SATA3.0 slot for HDD/SSD. Supports AES-NI, Auto Power On, Wake on LAN, PXE boot

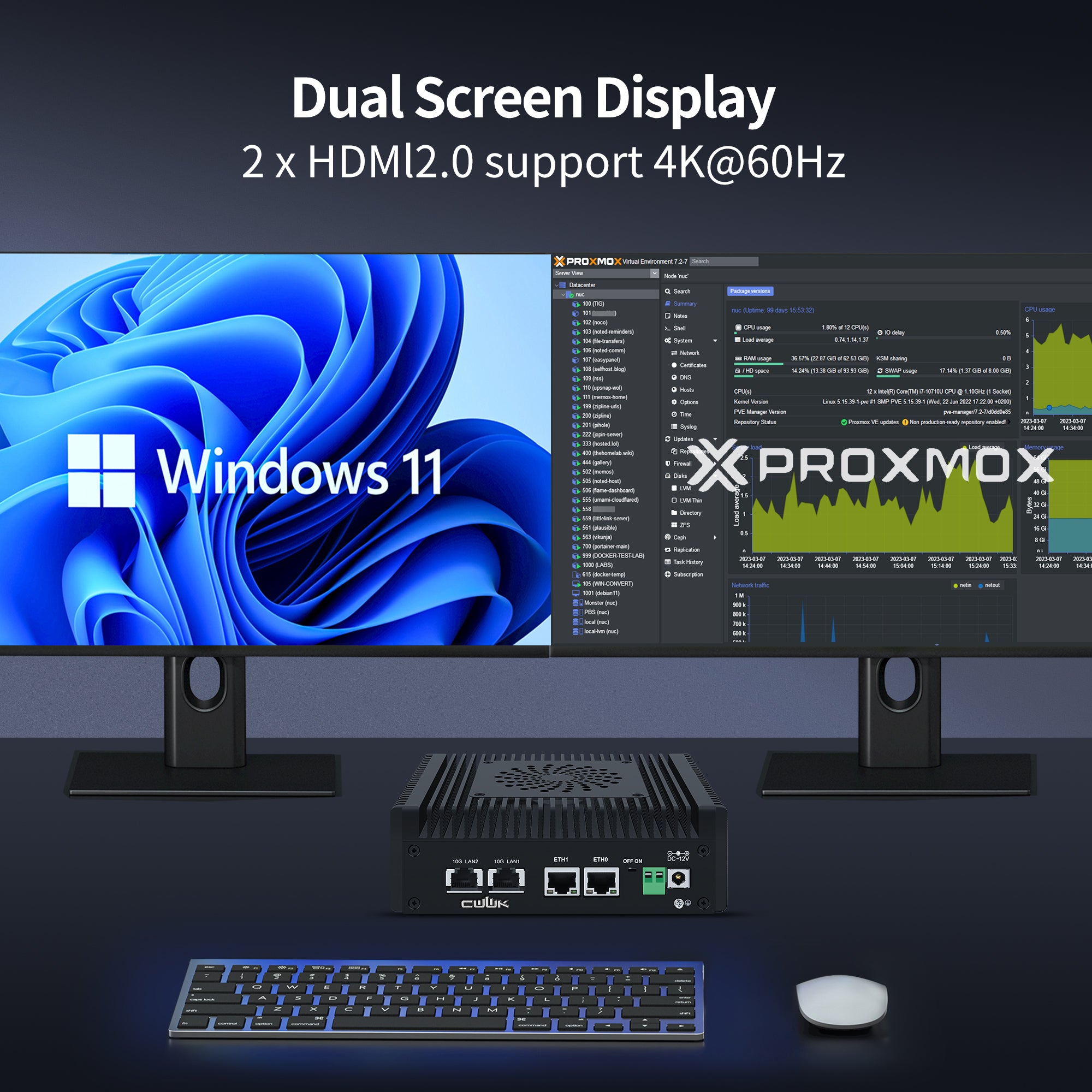

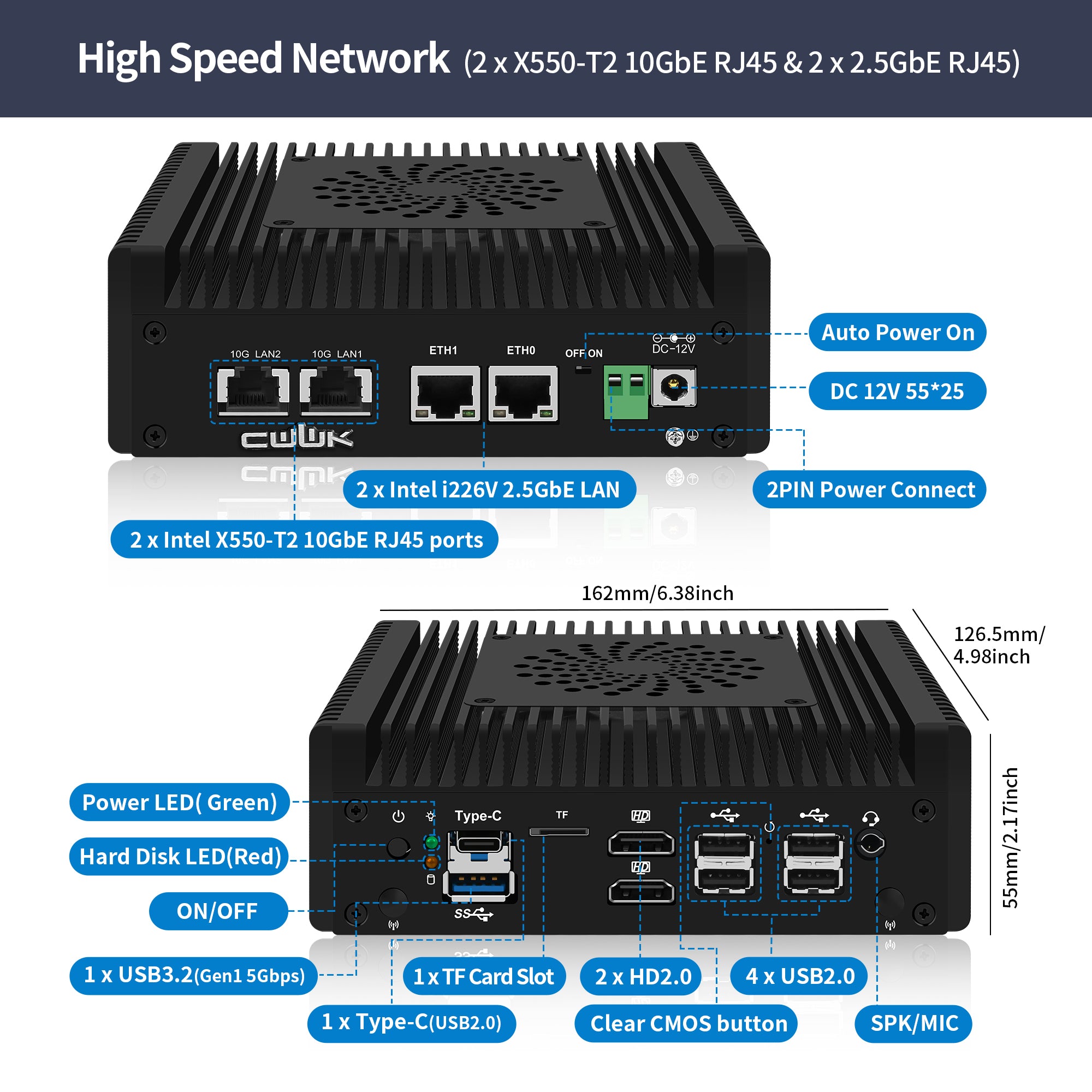

• Varied External I/O Ports: Integrated UHD Graphics (1GHz, 24EUs) with 2 × HD2.0 ports, supporting dual 4K@60Hz displays. 1 × USB 3.1 Gen1 (5Gbps), 1 × USB Type-C (USB2.0), 4 × USB 2.0 ports, 1 × MicroSD slot for system boot, CLR_CMOS button for BIOS reset/discharge, Auto Power-On jumper for quick auto-on control, and 2-pin Phoenix connector for backup or redundant DC power

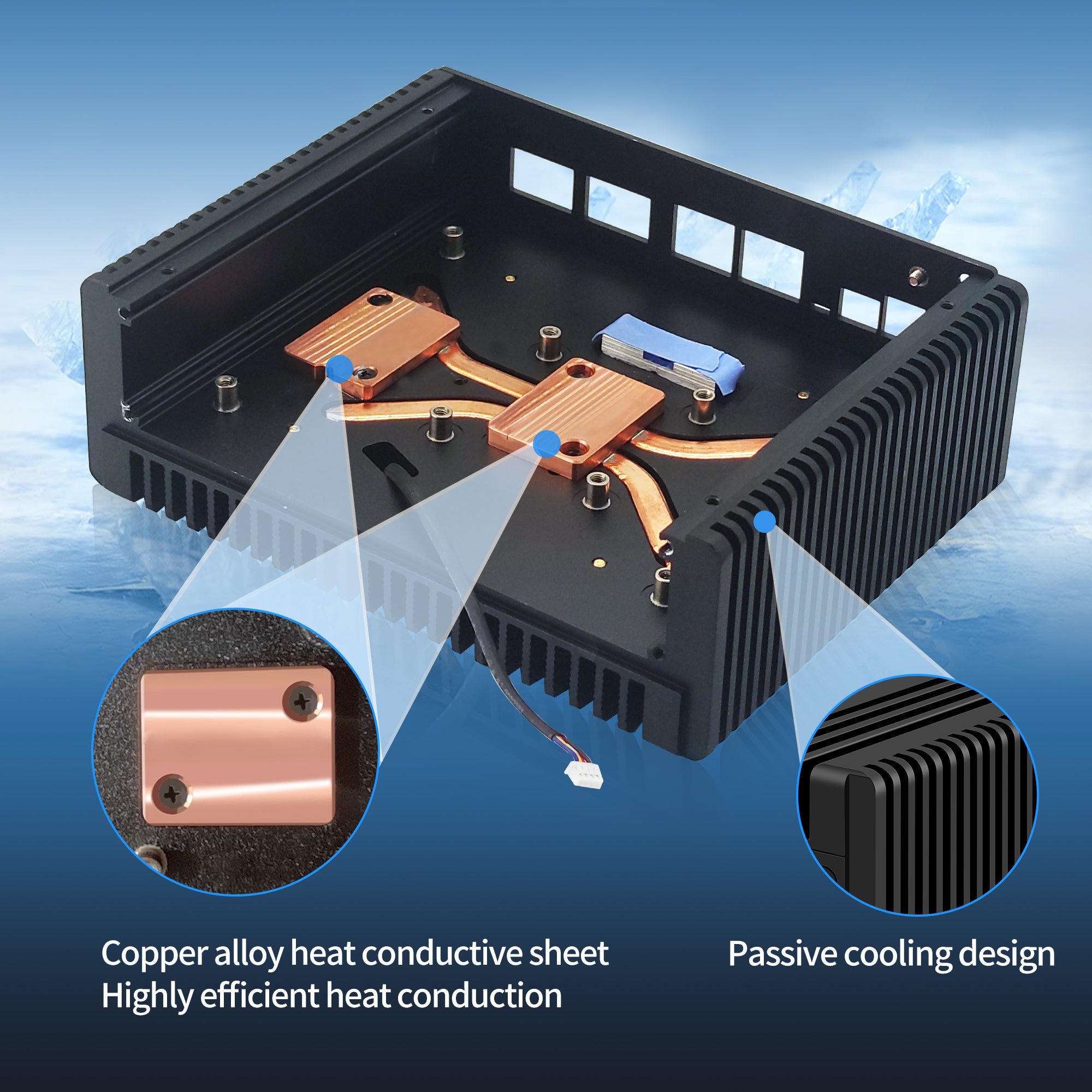

• Supports Passive and Active Cooling: Features an all-metal case with passive cooling and dual heat pipes closely connected to the CPU and network chip, plus a smart fan that can stop at low load. The fan is isolated from the motherboard to prevent dust and moisture. Includes power adapter and common cables; only an electronic user manual is provided
