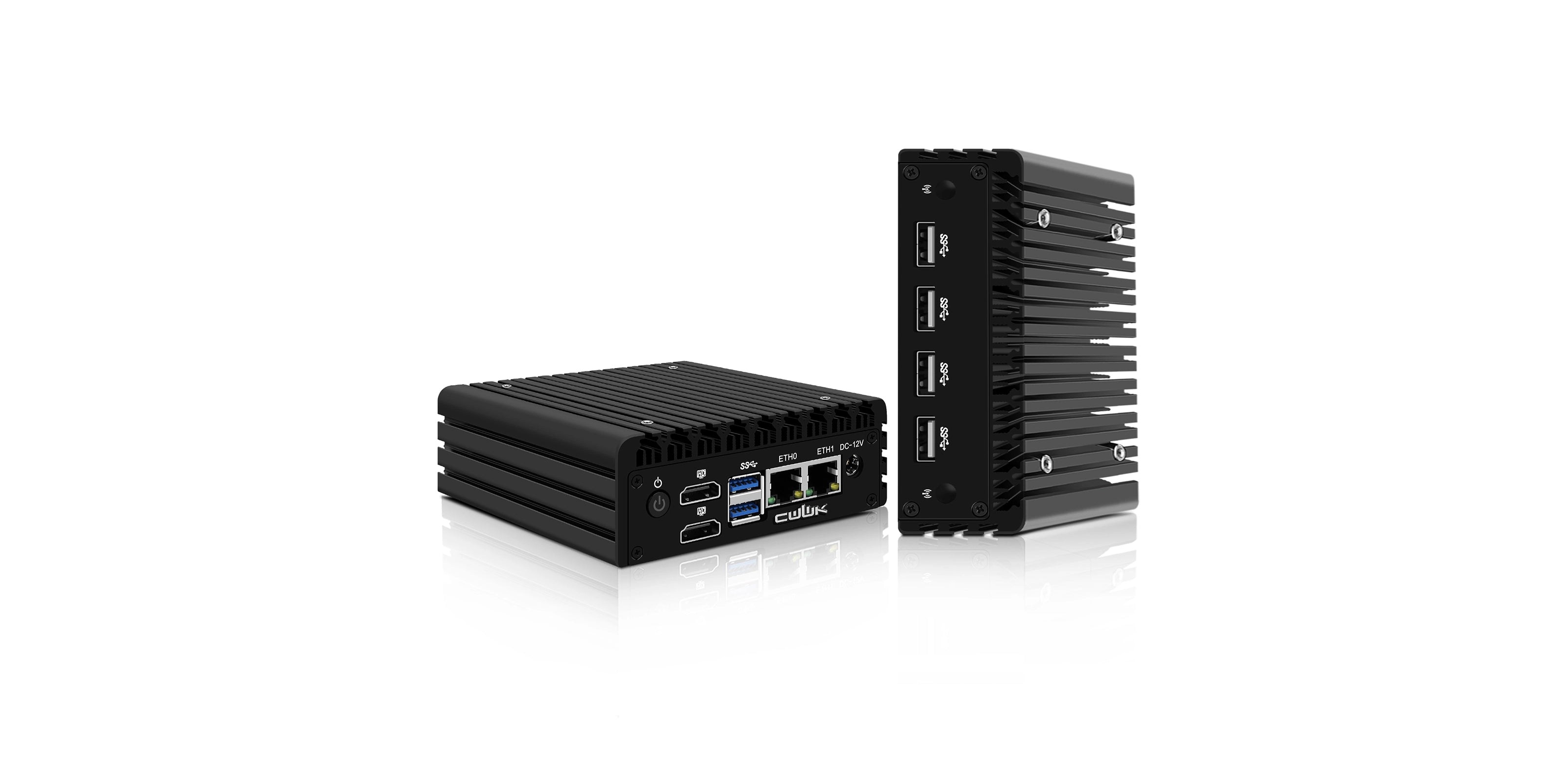

CWWK X86-P5/X86-P6 Fanless Firewall Mini PC Intel N100 N200 i3-N305 Dual 2.5G LAN 2 + 4 USB DDR5 NVMe for OPNsense Proxmox
Product description
X86-P5 Alder Lake-N Processor Options: The CWWK X86-P5 is available with Intel N100, N200, and Core i3-N305 processor options. The N100 and N200 provide 4 cores and 4 threads for energy-efficient firewall, router, and home lab applications, while the Core i3-N305 offers 8 cores and 8 threads for stronger multitasking, virtualization, and lightweight server workloads.
X86-P6 Twin Lake Processor Options: The CWWK X86-P6 is available with Intel N150 and Core 3 N355 processor options. The N150 is a newer-generation 4-core processor for efficient daily networking and firewall use, while the N355 provides 8 cores and 8 threads for more demanding Proxmox, NAS, VPN, and multi-service home server applications.
Dual Intel i226-V 2.5GbE LAN: The X86-P5/P6 series features dual Intel i226-V 2.5GbE Ethernet ports, making it suitable for OPNsense, pfSense, OpenWrt, VPN, firewall, gateway, and small office network deployments. It also supports Windows, Linux, and Proxmox VE for flexible home lab use.
DDR5 RAM and NVMe SSD Support: Equipped with one DDR5 SO-DIMM memory slot, the X86-P5/P6 series supports up to 32GB memory. It also supports M.2 NVMe 2242/2280 SSD storage, SATA 3.0 expansion, and M.2 E-Key WiFi/Bluetooth module expansion.
Fanless Aluminum Chassis with Rich I/O: The X86-P5/P6 series includes dual HDMI 2.0 4K@60Hz output, USB 3.2, internal USB headers, COM, GPIO, TPM, and DC 12V power input. The fanless aluminum alloy chassis uses passive cooling for quiet and stable 24/7 operation.
Compact 112 × 100 × 36.3mm Size: The palm-sized chassis is easy to place on a desk, shelf, wall, or network cabinet, making it ideal for home labs, small offices, and space-saving firewall setups.
