CWWK C3 Fanless Mini Computer N5105, Dual 2.5GbE LAN, RS232 COM, WiFi/BT/SIM, Industrial Firewall
Product Description
Product Overview
The CWWK C3 Fanless Mini PC is a compact and powerful industrial-grade computer designed for stable, 24/7 operation. Powered by the Intel Celeron N5105 processor, it delivers efficient performance for multitasking, networking, and edge computing applications.
Featuring a fanless silent design, dual high-speed 2.5GbE LAN, and flexible connectivity including WiFi, Bluetooth, and SIM support, the C3 is an ideal solution for firewall systems, industrial automation, and remote networking environments.
Key Features
High-Performance Intel N5105 Processor
- Quad-core, energy-efficient CPU
- Smooth multitasking performance
- Ideal for firewall, office, and industrial workloads
Dual 2.5GbE High-Speed Networking
- 2 × Intel i226V 2.5GbE LAN ports
- Stable and high-speed data transmission
- Perfect for:
Firewall / router systems
Network security appliances
Soft routing platforms (pfSense, OPNsense)
WiFi + Bluetooth + 4G SIM Support
- Built-in WiFi and Bluetooth connectivity
- SIM slot for 4G LTE (optional networking)
- Suitable for remote and mobile deployments
Rich Industrial Interfaces
- 2 × RS232 COM ports for industrial equipment
- Multiple USB ports for peripherals
- Flexible integration with external devices
Fanless & Silent Design
- Completely fanless cooling system
- No noise during operation
- Dust-resistant and low maintenance
- Built for 24/7 continuous use
Fast Memory & Storage
- 8GB DDR4 RAM + 128GB NVMe SSD
- Fast boot and responsive performance
- Expandable for future needs
Wide OS Compatibility
- Pre-installed / supports Windows & Linux
- Advanced features:
Wake On LAN
Auto Power On
PXE Boot
RAID support

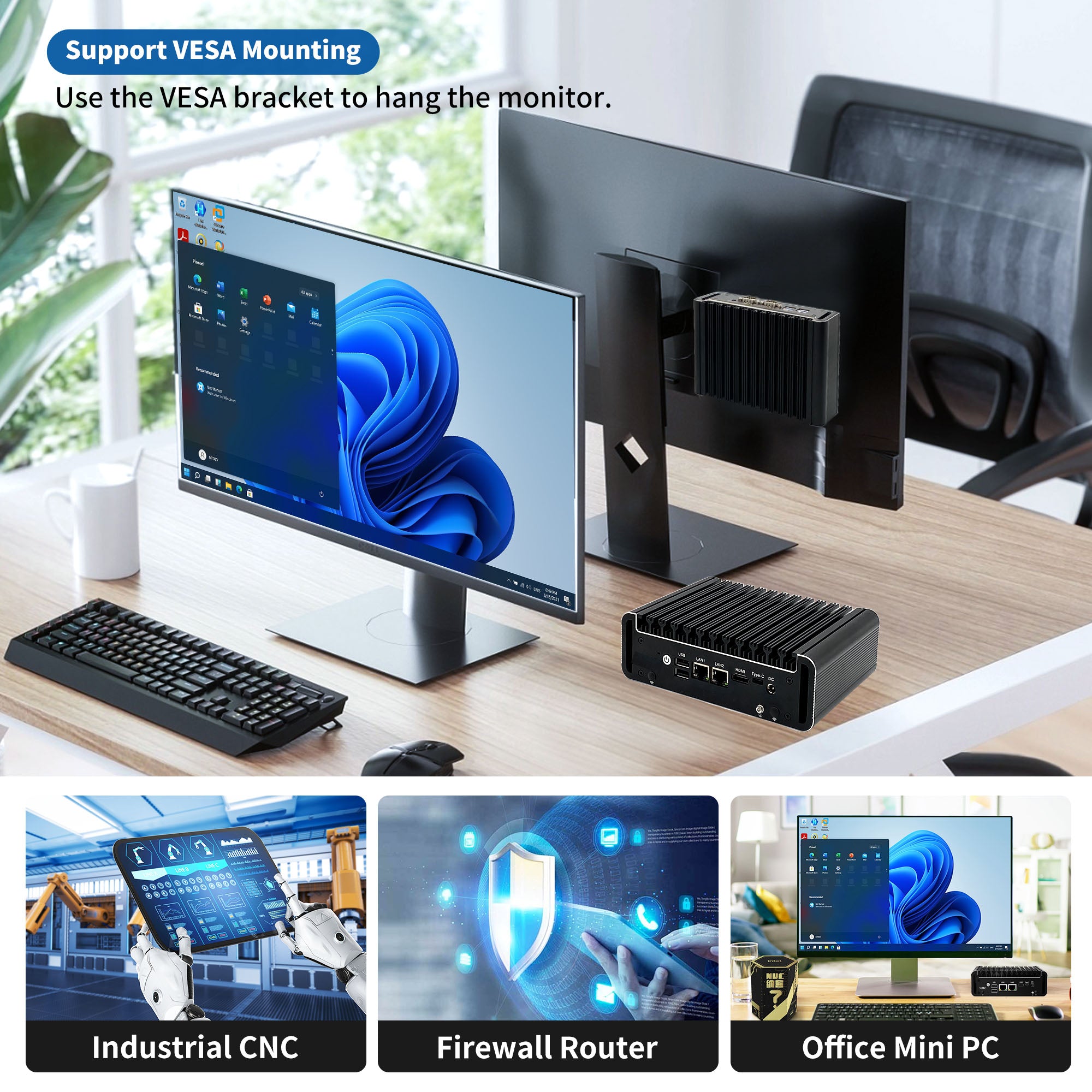

Application Scenarios
-
🔐 Firewall / Network Security Appliance
-
🌍 Edge Computing Gateway
-
🏭 Industrial Automation Systems
-
📡 Remote Monitoring & IoT Devices
-
🧠 Smart Networking & Communication
-
🖥️ Business & Office Workstations

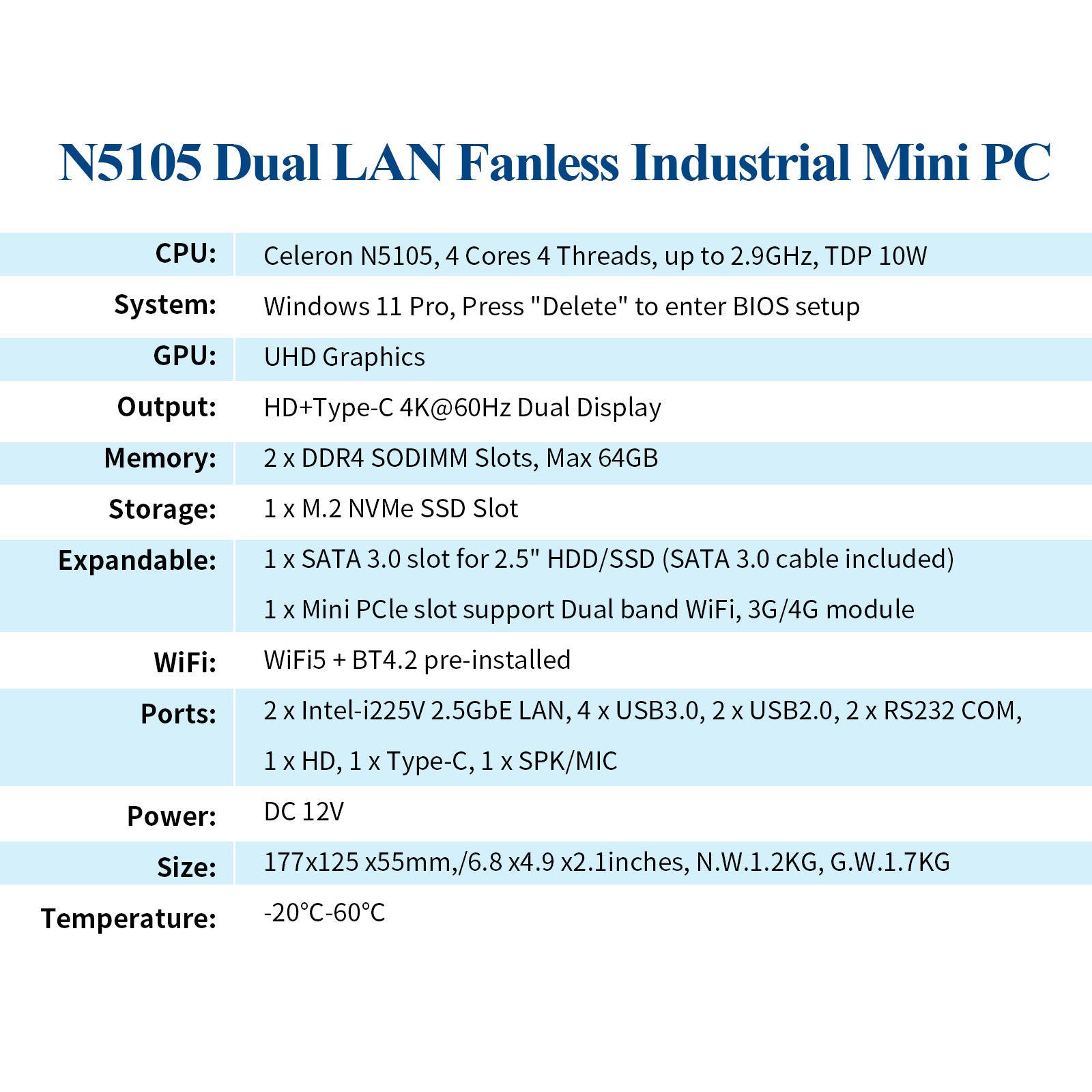

Technical Specifications
Processor
- Intel Celeron N5105
- 4 Cores / 4 Threads
- Base Frequency: 2.0GHz
- Burst Frequency: Up to 2.9GHz
- 10nm Jasper Lake Architecture
- 4MB Cache
- TDP: 10W
- Intel UHD Graphics
Efficient and reliable performance for multitasking, firewall applications, and industrial workloads

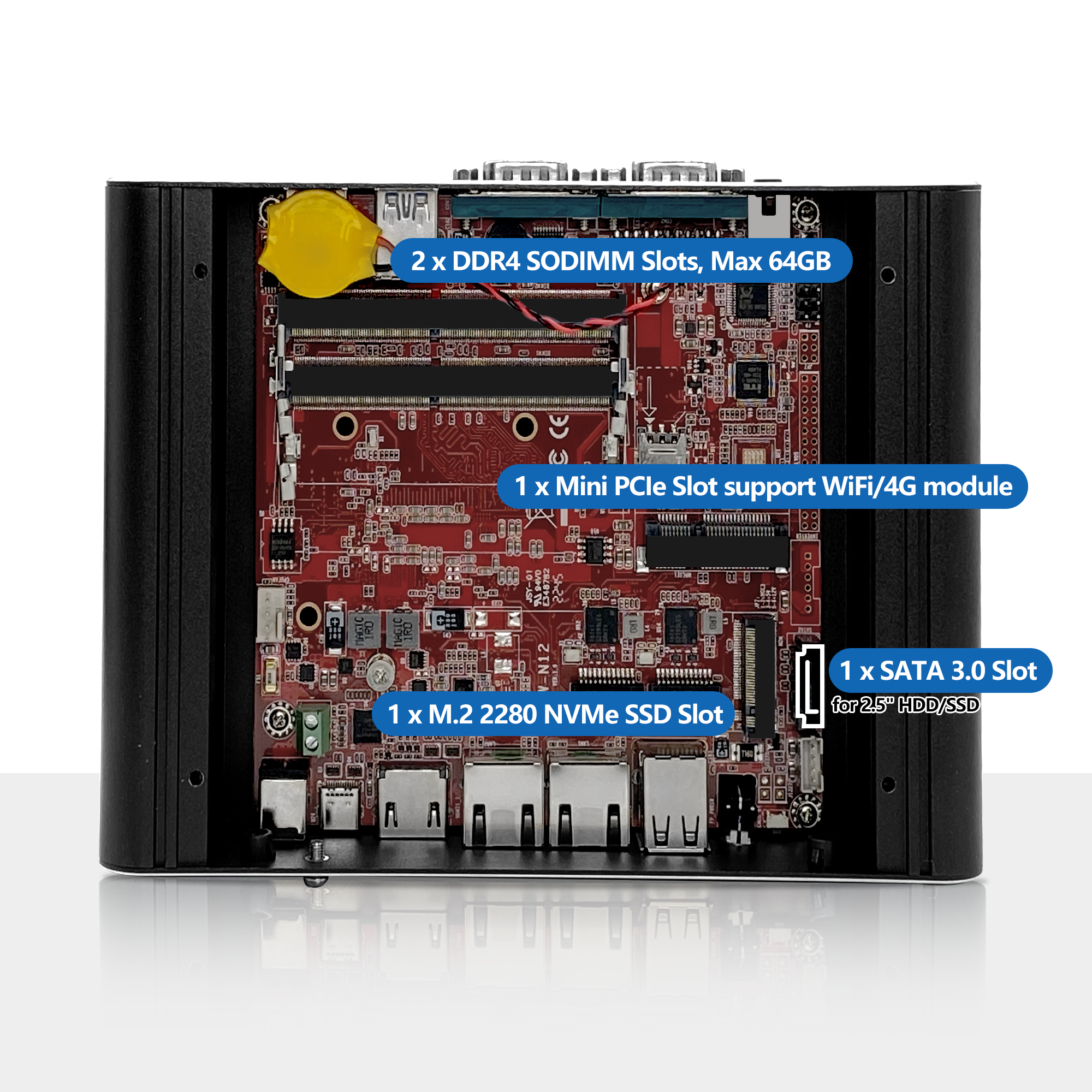

Memory & Storage
- 8GB DDR4 RAM
- 128GB NVMe SSD
- Supports expansion options
Networking
- 2 × Intel i226V 2.5GbE LAN Ports
Wireless & Mobile Connectivity
- WiFi Support
- Bluetooth Support
- SIM Slot (4G LTE support)
Interfaces
- 2 × RS232 COM Ports
- USB Ports

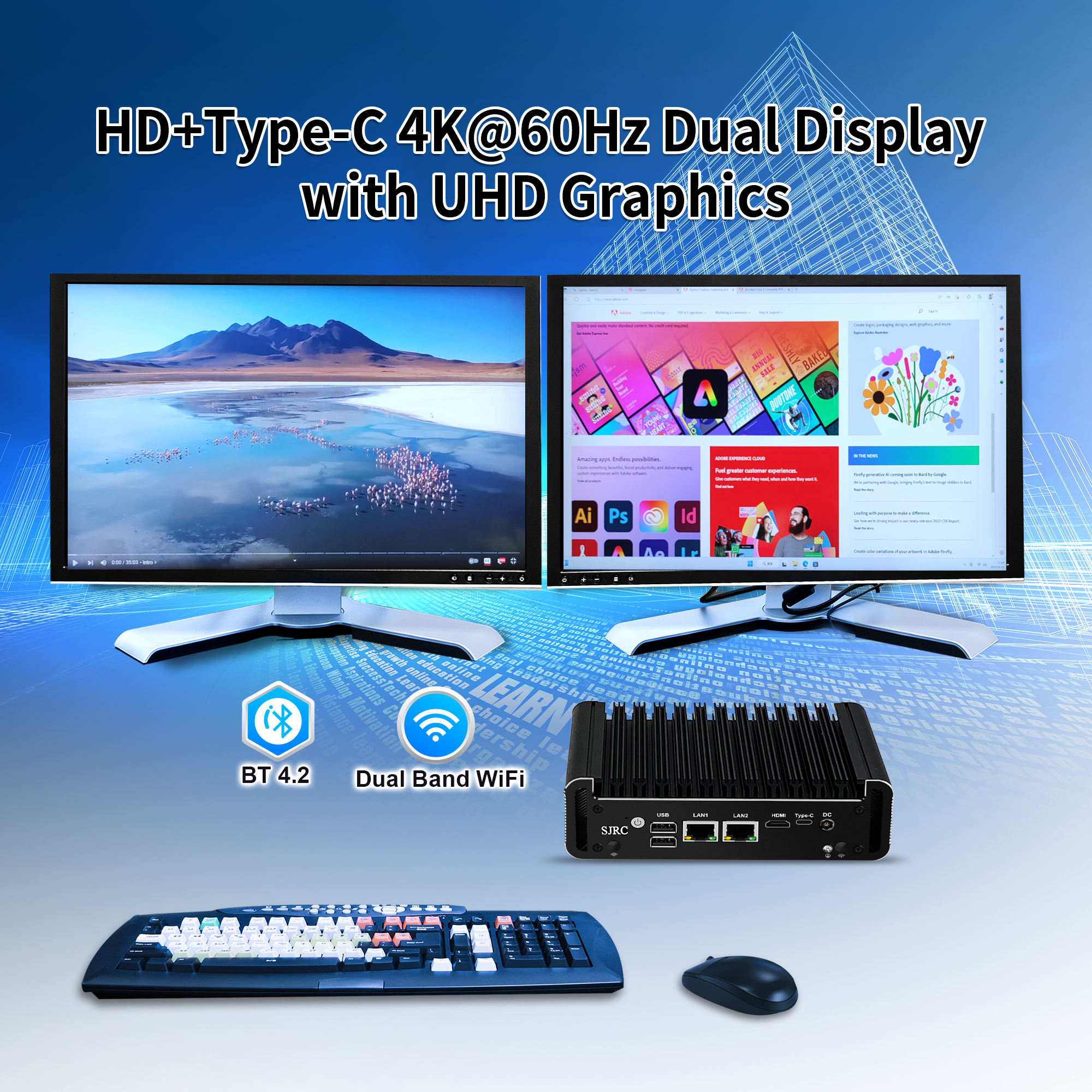

- Display Outputs (HD / VGA depending on configuration)
Cooling System
- Fanless Passive Cooling
- Silent operation
- Dust-resistant design
Operating System
- Windows / Linux Compatible
Smart Features
- Wake On LAN (WOL)
- Auto Power On
- PXE Boot
- RAID Support
Why Choose CWWK C3?
- High-performance N5105 processor with low power consumption
- Dual 2.5GbE LAN for high-speed networking
- WiFi + Bluetooth + SIM for flexible connectivity
- Fanless design for silent and reliable operation
- Industrial-grade interfaces for versatile deployment
- Ideal balance of performance, size, and cost
