CWWK NUC67D/NUC67D-S Compact NUC Mini PC, Dual LAN, 2 COM / 4 COM
- Low-power Intel platform
- Dual Gigabit LAN

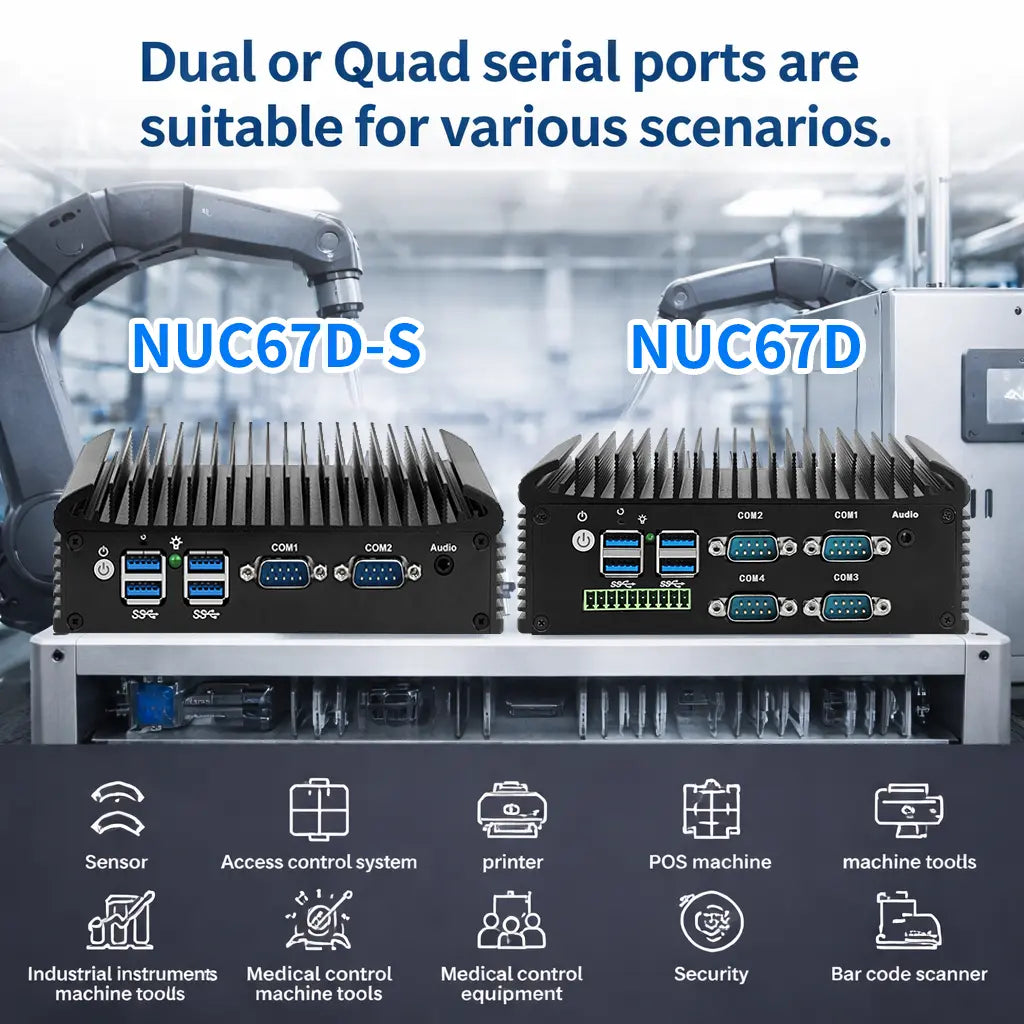

- 2 COM / 4 COM options
- HDMI + VGA output
- Compact and expandable design
CWWK NUC67D/NUC67D-S Compact NUC Mini PC, Dual LAN, 2 COM / 4 COM
Sale price$252.94
Technical Specifications
Detailed technical information and specifications for this product
Processor
Intel Core i3-8130U / i5-8250U / i7-8550U
Memory
1 × SO-DIMM DDR4, up to 32GB, 2133MHz
Storage
1 × M.2 Key-M 2280 + 1 × SATA 3.0
Networking
2 × Realtek Gigabit LAN, optional Wi-Fi / 4G via Mini-PCIe
Expansion
1 × Mini-PCIe, optional up to 4 × RS232, GPIO header
I/O Ports

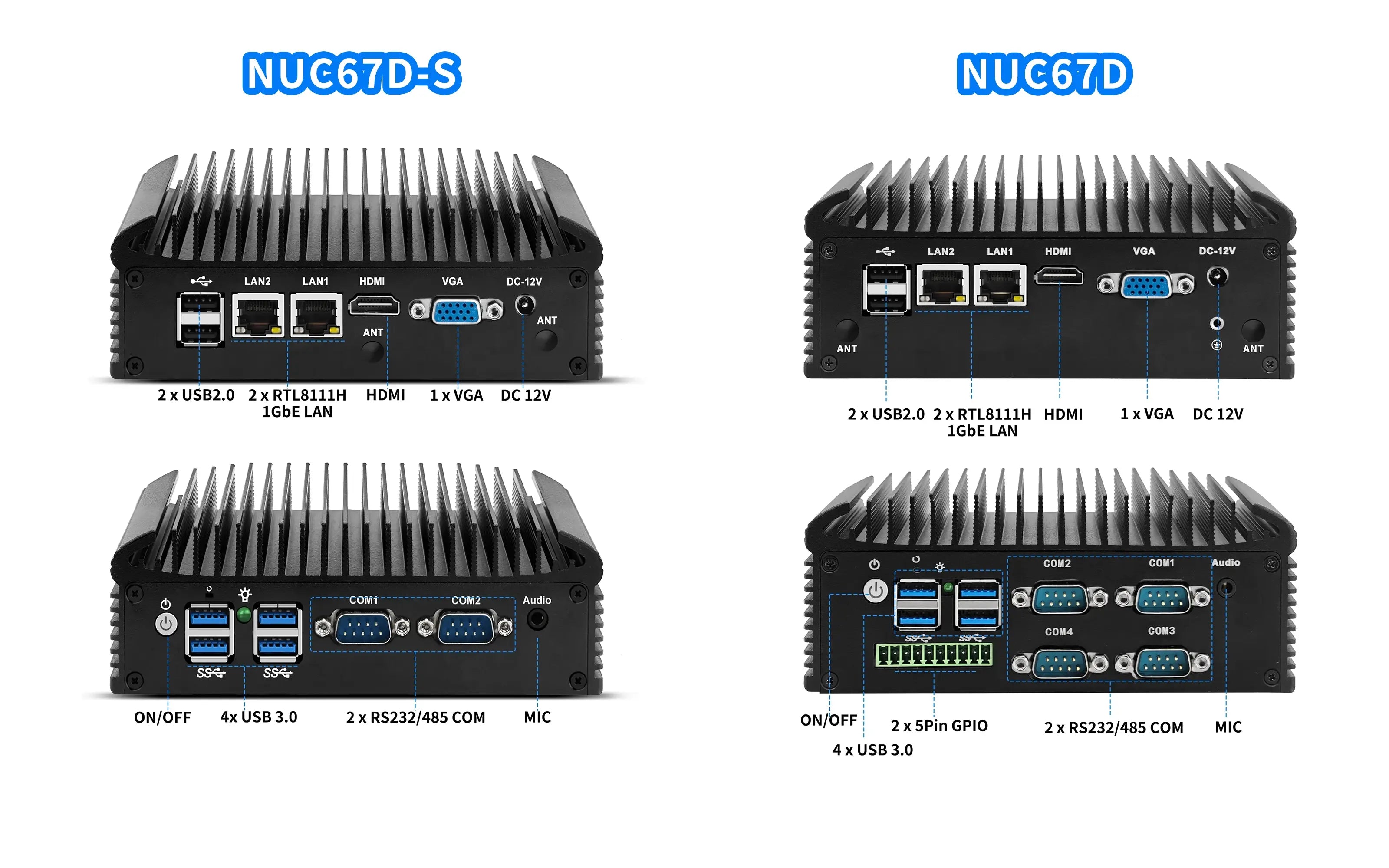

HDMI, VGA or DP, 2 × LAN, 2 × COM, 6 × USB, Audio, 12V DC In
Form Factor
155 × 125 × 55 mm
Processor
| CPU Model | Intel Core i3-8130U ,Intel Core i5-8250U , Intel Core i7-8550U |
| Cores / Threads | i3-8130U: 2 Cores / 4 Threads, i5-8250U: 4 Cores / 8 Threads, i7-8550U: 4 Cores / 8 Threads |
| Base / Turbo Frequency | i3-8130U: 2.20GHz / 3.40GHz, i5-8250U: 1.60GHz / 3.40GHz, i7-8550U: 1.80GHz / 4.00GHz |
| Cache | i3-8130U: 4MB Intel Smart Cache, i5-8250U: 6MB Intel Smart Cache, i7-8550U: 8MB Intel Smart Cache |
| TDP | 15W / 15W / 15W |
Memory
| Memory Type | DDR4 SO-DIMM |
| Memory Slots | 1 × SO-DIMM |
| Maximum Capacity | 32GB |
| Memory Speed | 2133MHz |
| Dual Channel | Yes |
Storage
| M.2 Slots | 1 × M.2 Key-M 2280, PCIe / SATA self-adaption |
| SATA Support | 1 × SATA 3.0, up to 6Gbps |
Networking
| Ethernet | 2 × Realtek RTL8111H Gigabit LAN, supports Wake-on-LAN / PXE |
| Wi-Fi | Support is achieved through the selection of 1 × Mini-PCIe along with a Wi-Fi module. |

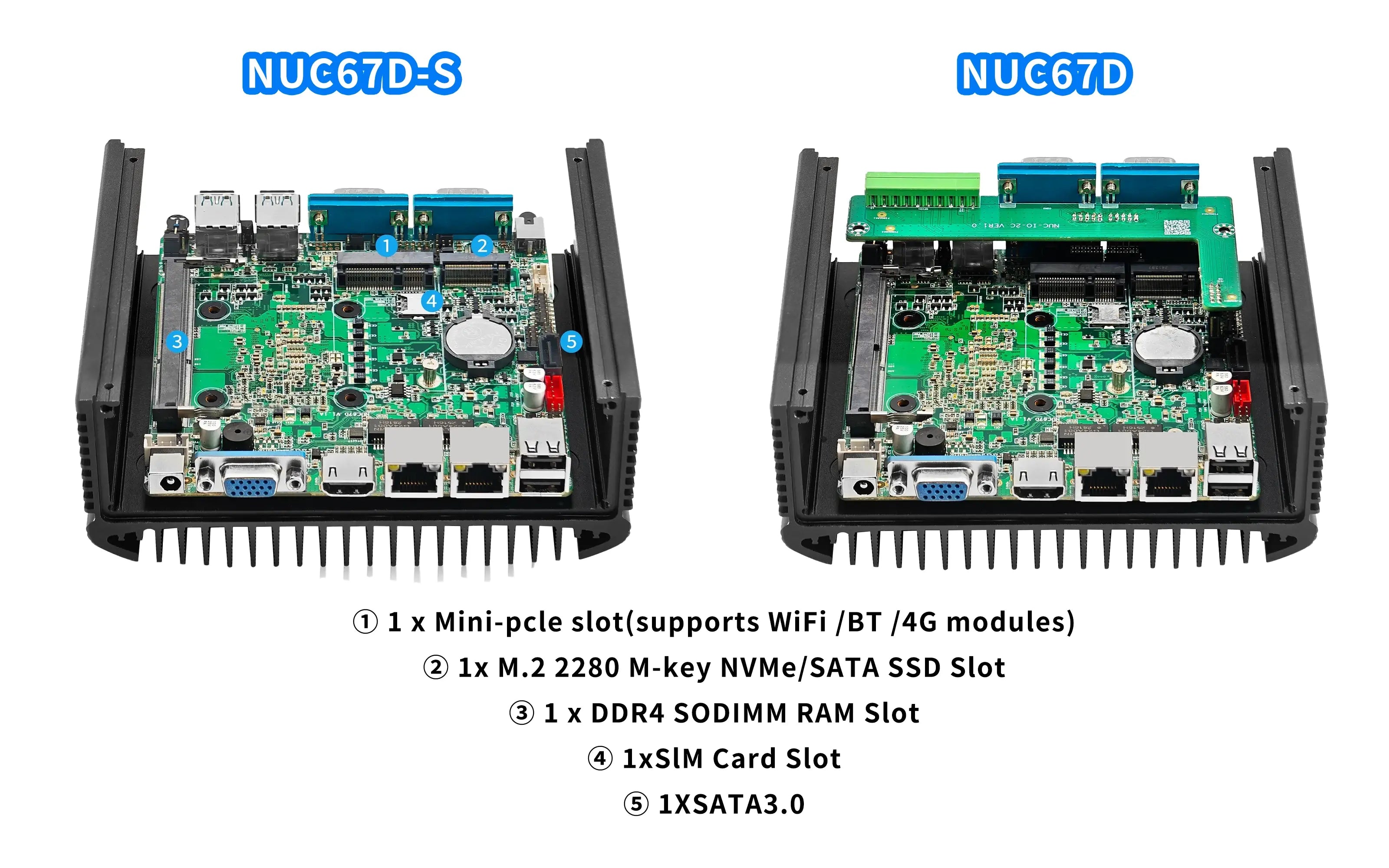

Expansion & I/O
| PCIe Slot | No standard PCIe slot; supports 1 × Mini-PCIe expansion |
| USB Ports | External: 2 × USB 2.0 + 4 × USB 3.0 Internal: 1 × USB 2.0 header, expandable 2 × USB 2.0 |
| Display Outputs | 1 × HDMI 1 × VGA, or optional DP (VGA / DP: choose one) |
| Audio | 1 × 3.5mm Audio Jack, supports Line-out / Mic-in |
| Power Input | 12V DC In |

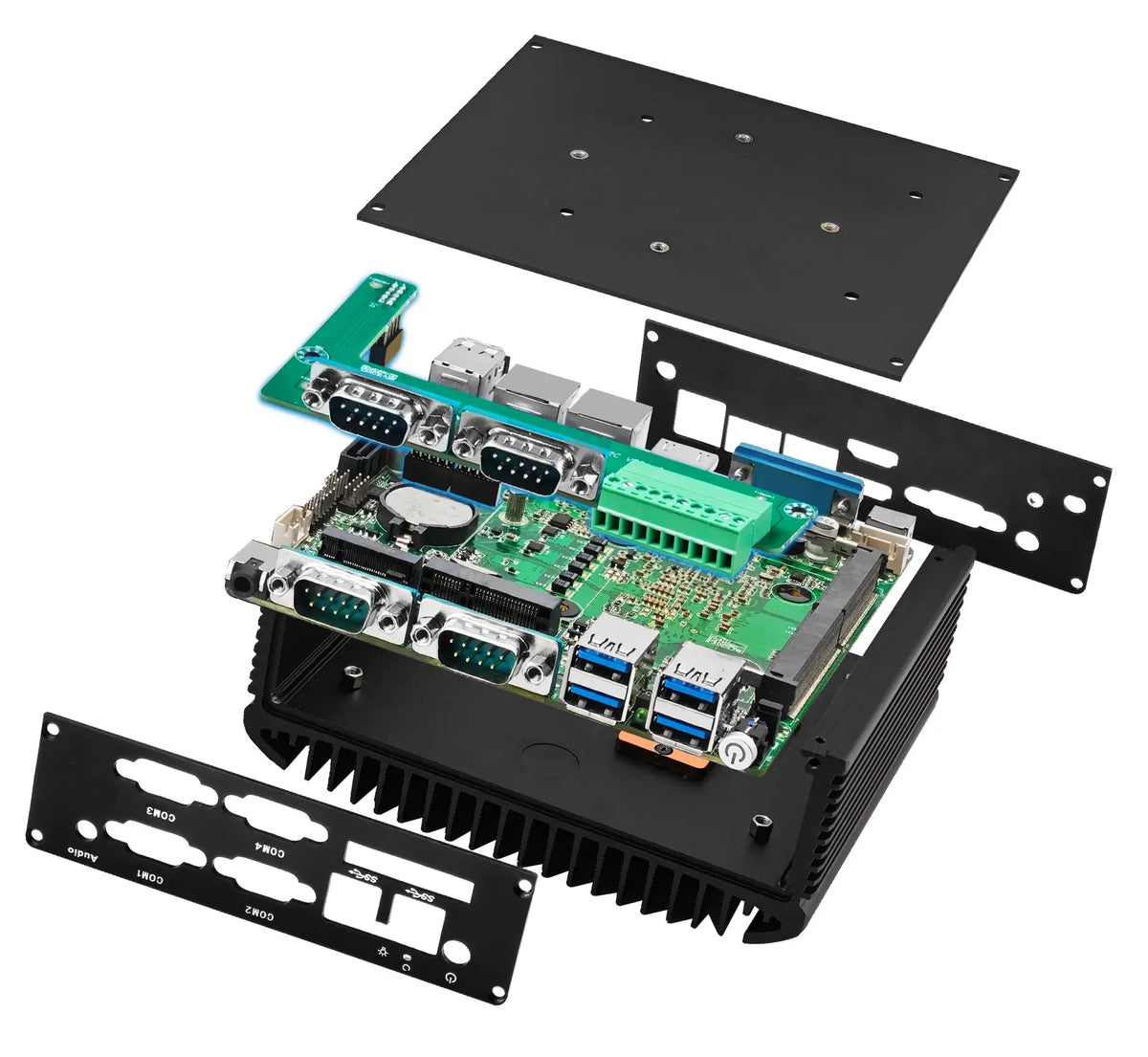

NUC67D product explosion diagram
Cable-Free Design
“Optimized internal layout minimizes clutter, creating a neater and more organized system.”
“Maintains stable connections with excellent resistance to interference.”
“Improves overall system reliability and boosts thermal performance.”
Dual Display Ready
- Connect two monitors at once
- HDMI + VGA for flexible setups
- Smooth multitasking for office & industrial use

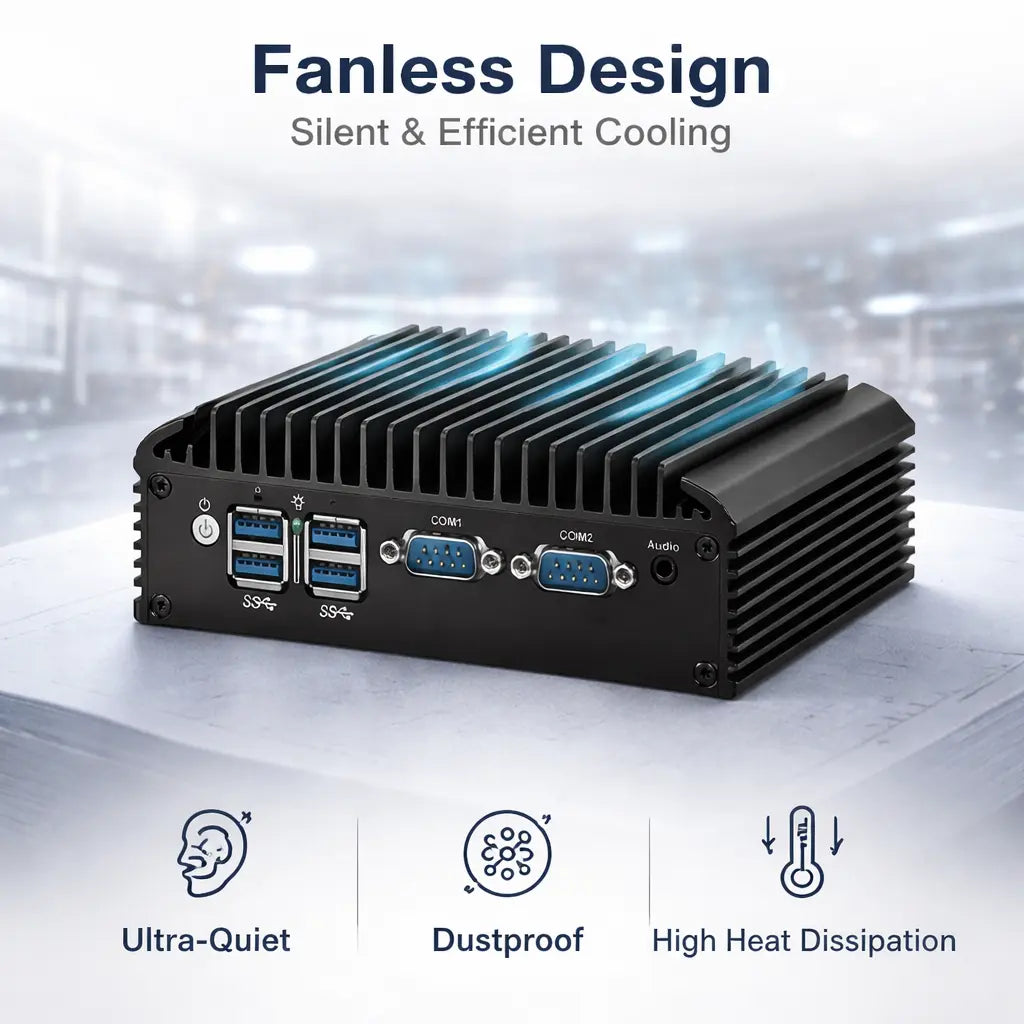

Fanless Design
Fanless design minimizes noise and dust interference, while providing efficient heat dissipation to ensure system stability and reliability.
