CWWK NUC32D Fanless Industrial NUC PC, Dual LAN, 2 COM / 4 COM, Intel Alder Lake-N
- Intel Alder Lake-N / Twin Lake-N platform
- Fanless design for stable compact deployment
- Dual LAN for gateway and networking use
- 2 COM / 4 COM options for serial devices
- DDR4, M.2, Mini-PCIe, and triple-display ready
Technical Specifications
Detailed technical information and specifications for this product
Processor
Intel Processor N100 / N150 / Intel Core i3-N305
Memory
1 × DDR4 SO-DIMM, 3200MHz
Storage
1 × M.2 Key-M 2280 + 1 × SATA 3.0.
Networking
2 × Gigabit LAN, optional Wi-Fi / 4G via Mini-PCIe.
Expansion
1 × Mini-PCIe, TPM 2.0, GPIO, 2 COM / 4 COM options.

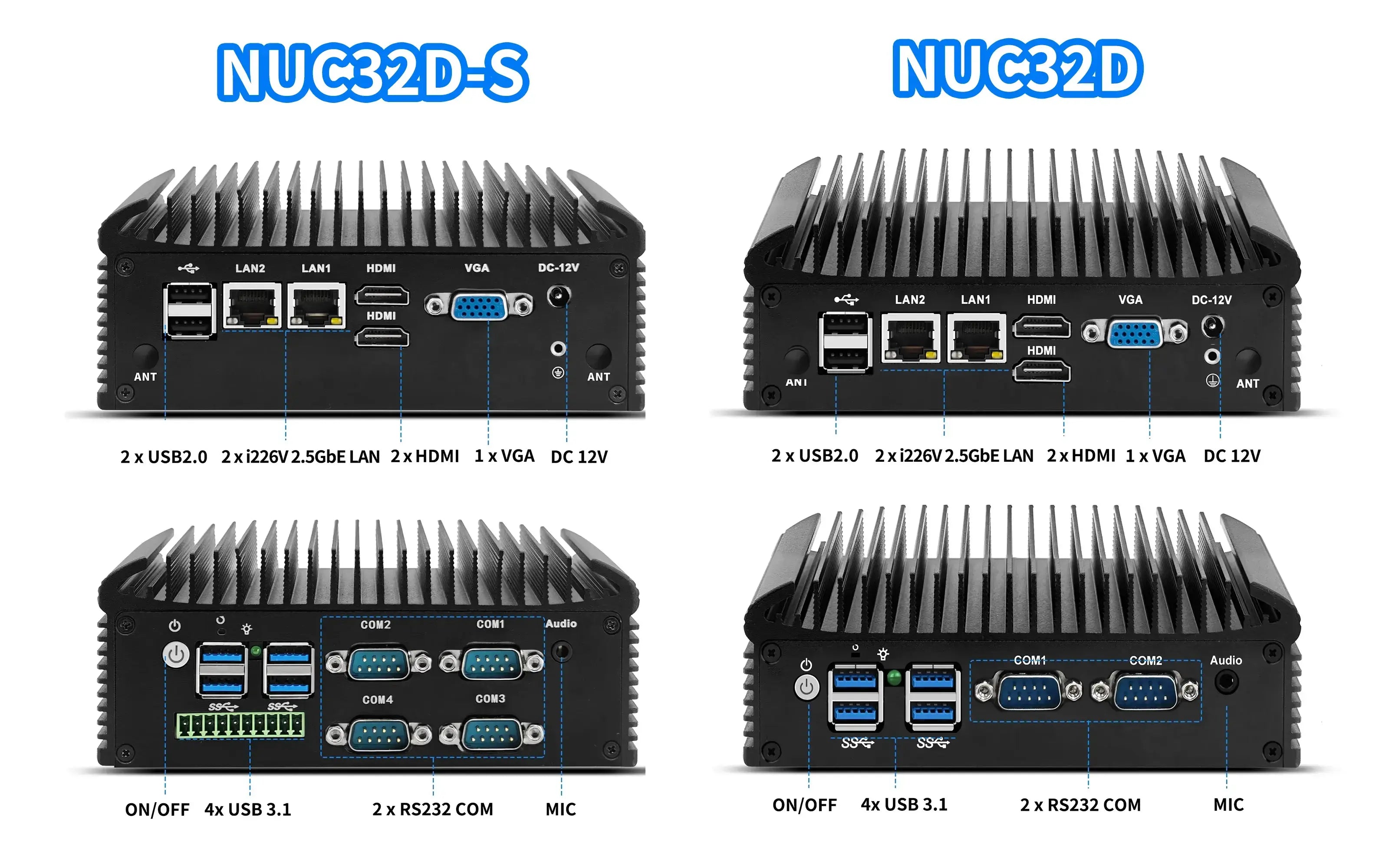

I/O Ports
HDMI, VGA, 2 × LAN, USB, Audio, DC 12V.
Form Factor
155 × 125 × 55 mm
OPERATING SYSTEM
Windows 10 / Windows 11 / Linux.
Processor
| CPU Model | Intel Processor N100 / Intel Processor N150 / Intel Core i3-N305 |
| Cores / Threads | N100: 4 Cores / 4 Threads, N150: 4 Cores / 4 Threads, i3-N305: 8 Cores / 8 Threads. |
| Base / Turbo Frequency | N100: 0.8GHz / Up to 3.4GHz, N150: 0.8GHz / Up to 3.6GHz, i3-N305: 1.8GHz / Up to 3.8GHz. |
| Cache | N100: 6MB, N150: 6MB, i3-N305: 6MB. |
| TDP | N100: 6W, N150: 6W, i3-N305: 15W. |
Memory
| Memory Type | DDR4 SO-DIMM. |
| Memory Slots | 1 × SO-DIMM. |
| Memory Speed | 3200MHz. |
| Dual Channel | NO |
Storage
| M.2 Slots | 1 × M.2 Key-M 2280, PCIe / SATA adaptive. |
| SATA Support | 1 × SATA 3.0, up to 6Gbps. |
Networking
| Ethernet | 2 × Realtek Gigabit LAN, supports Wake-on-LAN / PXE. |
| Wi-Fi | Support is achieved through the 1 × Mini-PCIe interface by selecting a Wi-Fi module. |
| Bluetooth | It depends on the selected wireless module. |
Expansion & I/O
| PCIe Slot | No standard PCIe slot; supports 1 × Mini-PCIe expansion. |
| USB Ports | 4 × USB 3.1, 2 × USB 2.0, 1 × Type-C USB 2.0 (This is a binary choice option among some interfaces) |
| Display Outputs | 2 × HDMI 1 × VGA |
| Audio | 1 × 3.5mm Audio Jack, supports Line-out / Mic. |
| Power Input | 12V DC In |
NUC67D product explosion diagram
Cable-Free Design
“Optimized internal layout minimizes clutter, creating a neater and more organized system.”
“Maintains stable connections with excellent resistance to interference.”
“Improves overall system reliability and boosts thermal performance.”

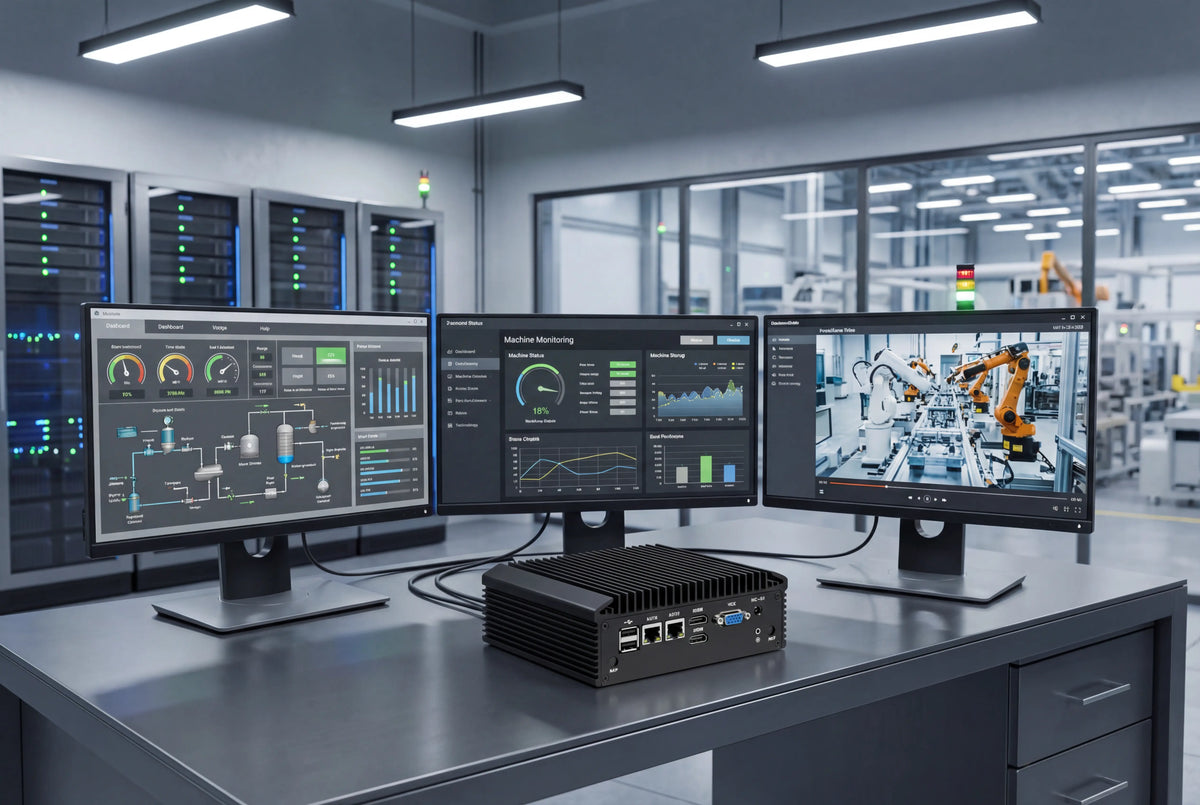

Three Display Ready
Supports simultaneous output on three screens, allowing for the display of different contents at the same time, making office work, multitasking and information viewing more efficient.
Fanless Design
Fanless design minimizes noise and dust interference, while providing efficient heat dissipation to ensure system stability and reliability.
