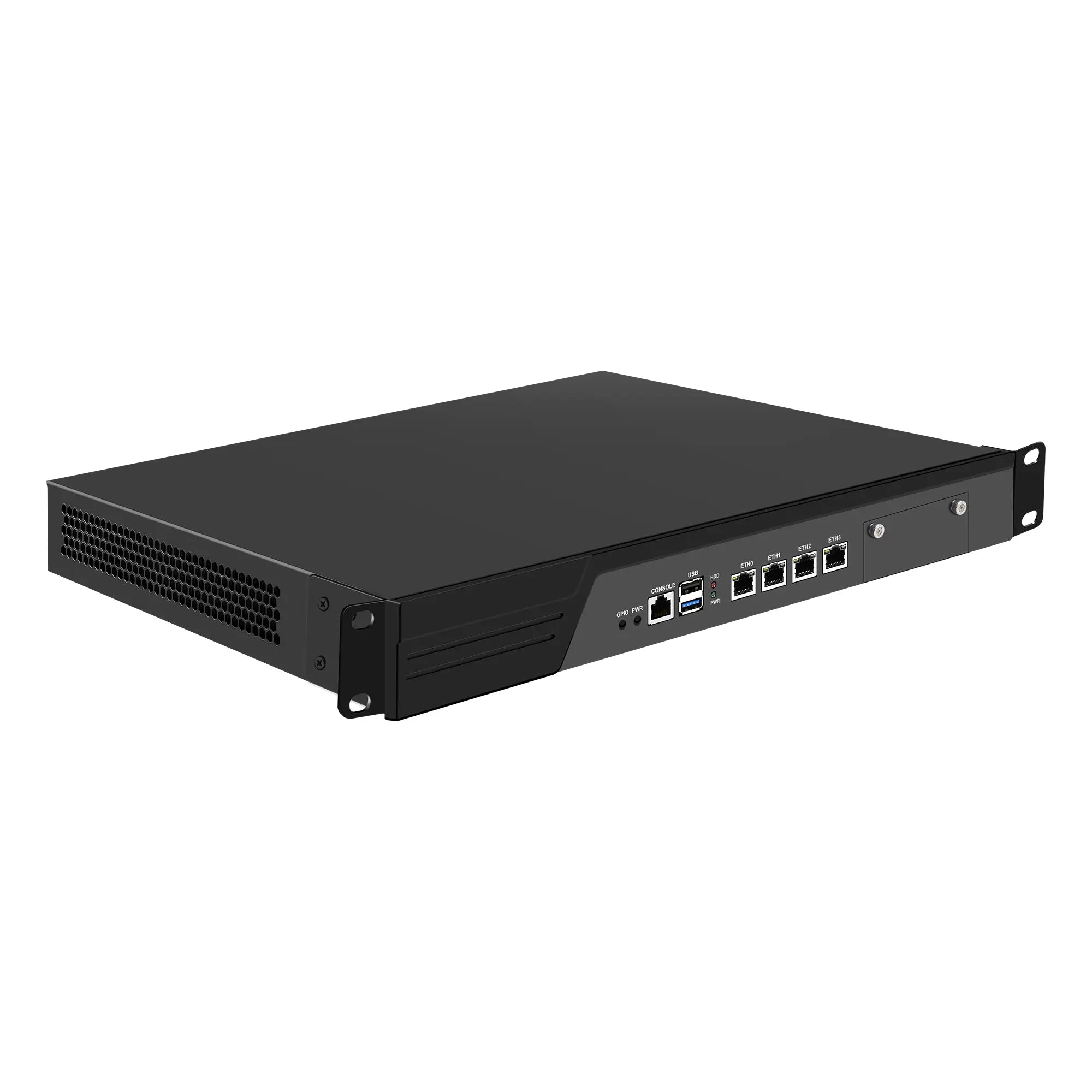

CWWK U2 Firewall Hardware, 19 Inch 1U Rackmount, Intel N100 N200 N150 N300 Core i3 N305,4×2.5GbE or 2×10GbE SFP+ for OPNsense & pfSense, Network Security Appliance, Router PC, VGA, DDR5
Three Network Options for Different Firewall Deployments
4×2.5GbE / 8×2.5GbE / 10GbE SFP+
Blazingly Fast DDR5 Memory
- SO-DIMM DDR5 Memory slots
- 4800MHZ Memory frequency
- 48GB Max Support

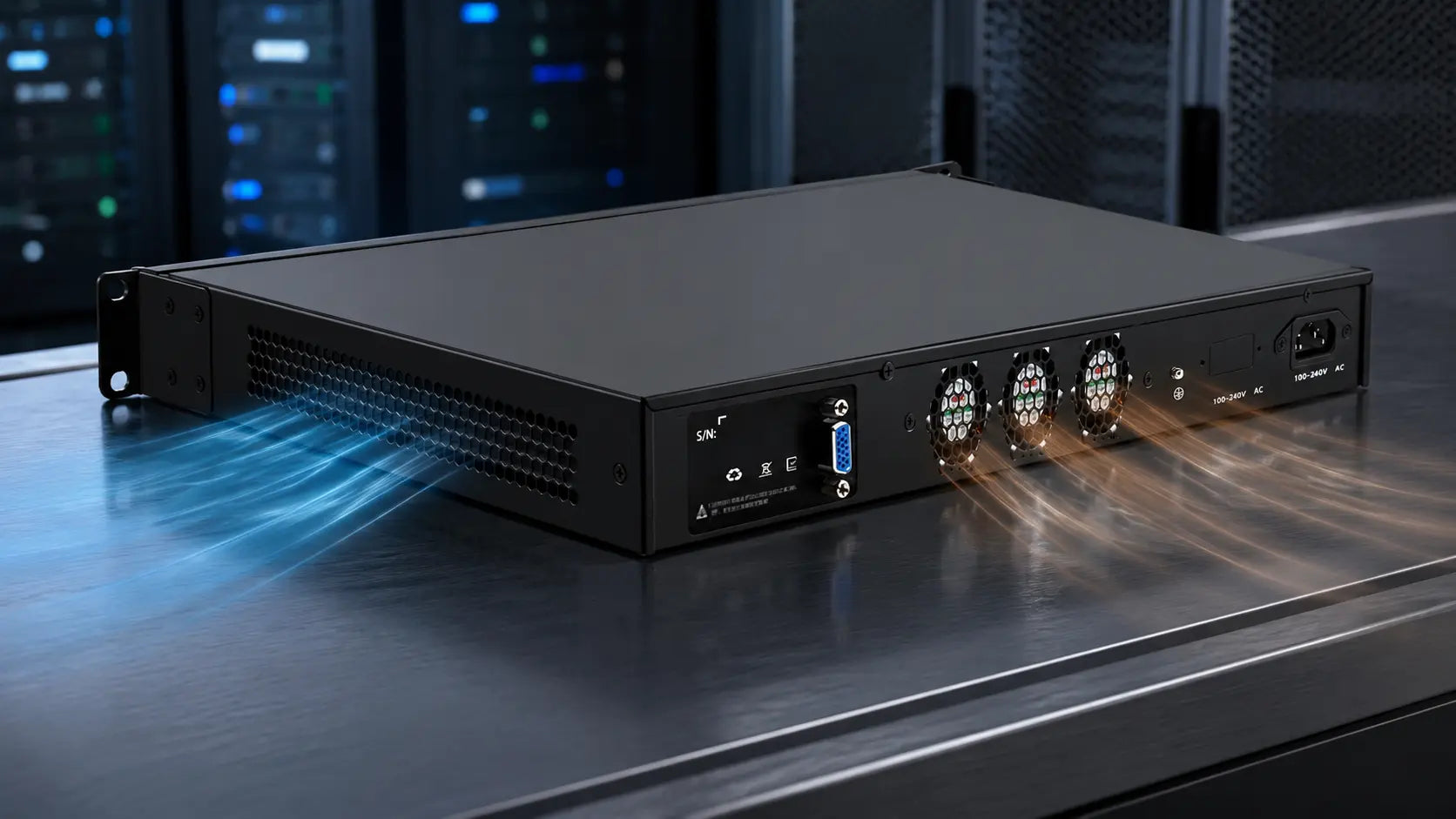

19" Cabinet Firewall
with Cooling Fan Dust Filter
Better Heat Dissipation for Safe and Stable Long-term Work
Product Description
- Router PC: Compatible with FreeBSD-based router systems, supports Linux distributions or Windows OS, easy to configure and manage. Supports Intel AES-NI encryption instructions for secure networking performance. Supports UEFI, Network Wake-Up, PXE boot, Auto Power On, Wake-on-LAN (WoL) and other system management features.
- Firewall Hardware: The firewall hardware has been tested with popular open-source firewall software including pfSense, OPNsense, Untangle and other router operating systems, ensuring stable compatibility for network security, routing and gateway deployments.
- Onboard CPU Model: Supports Intel Processor N100, N150, N200,N300 and Intel Core i3-N305 processors. Built on Intel 7 process technology, with up to 8 cores and 8 threads, max turbo frequency up to 3.8GHz and 6MB cache. Integrated Intel UHD Graphics with low power consumption design (TDP around 6W–15W depending on CPU model).
-

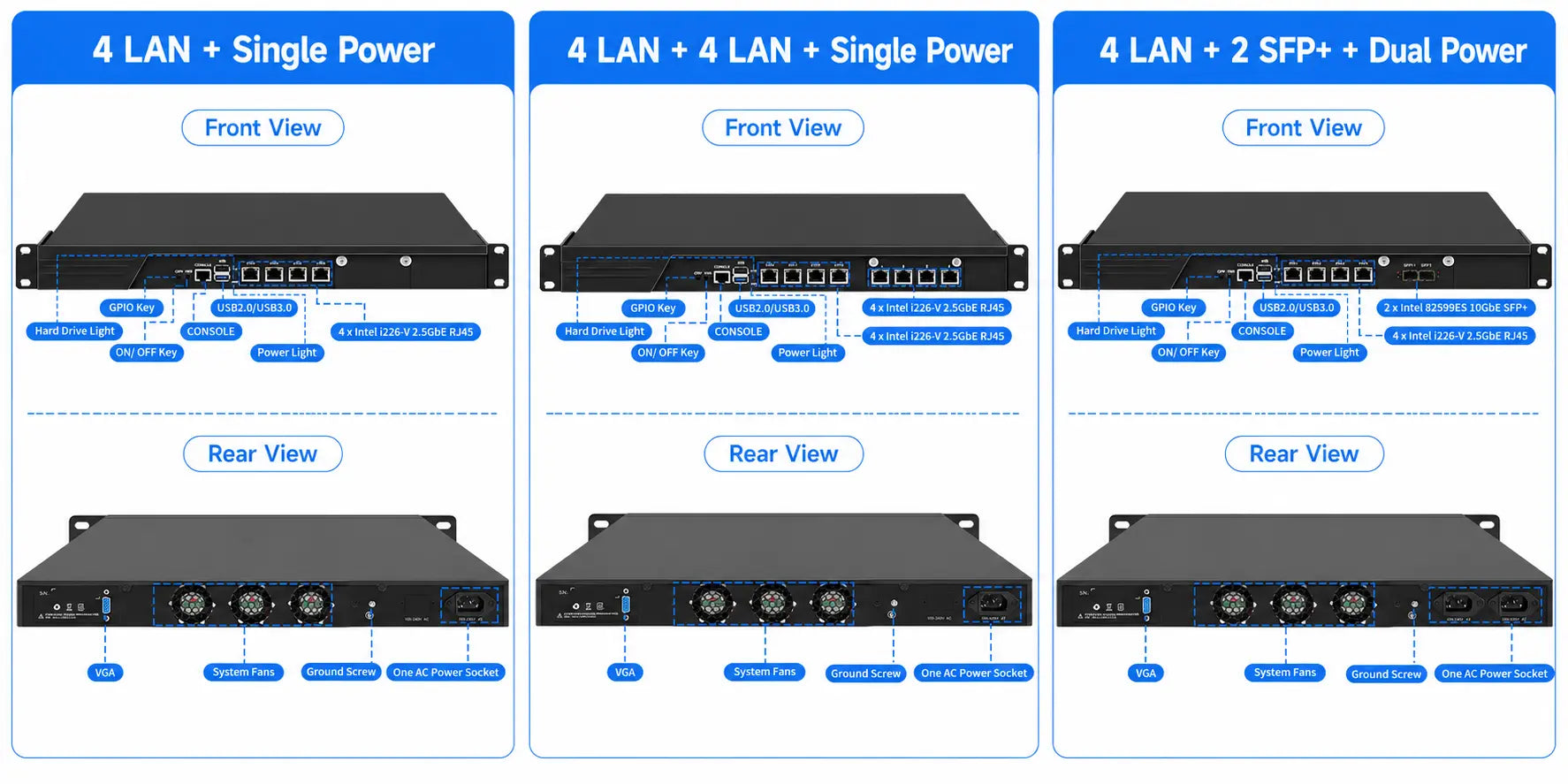

Interfaces: Two network interface configurations are available.
Option 1: 4 × Intel i226-V 2.5GbE Ethernet ports with RJ45 connectors supporting 100M / 1G / 2.5G adaptive transmission.
Option 2: 4 × Intel i226-V 2.5GbE RJ45 LAN ports + 4 × Intel i226-V 2.5GbE RJ45 LAN ports

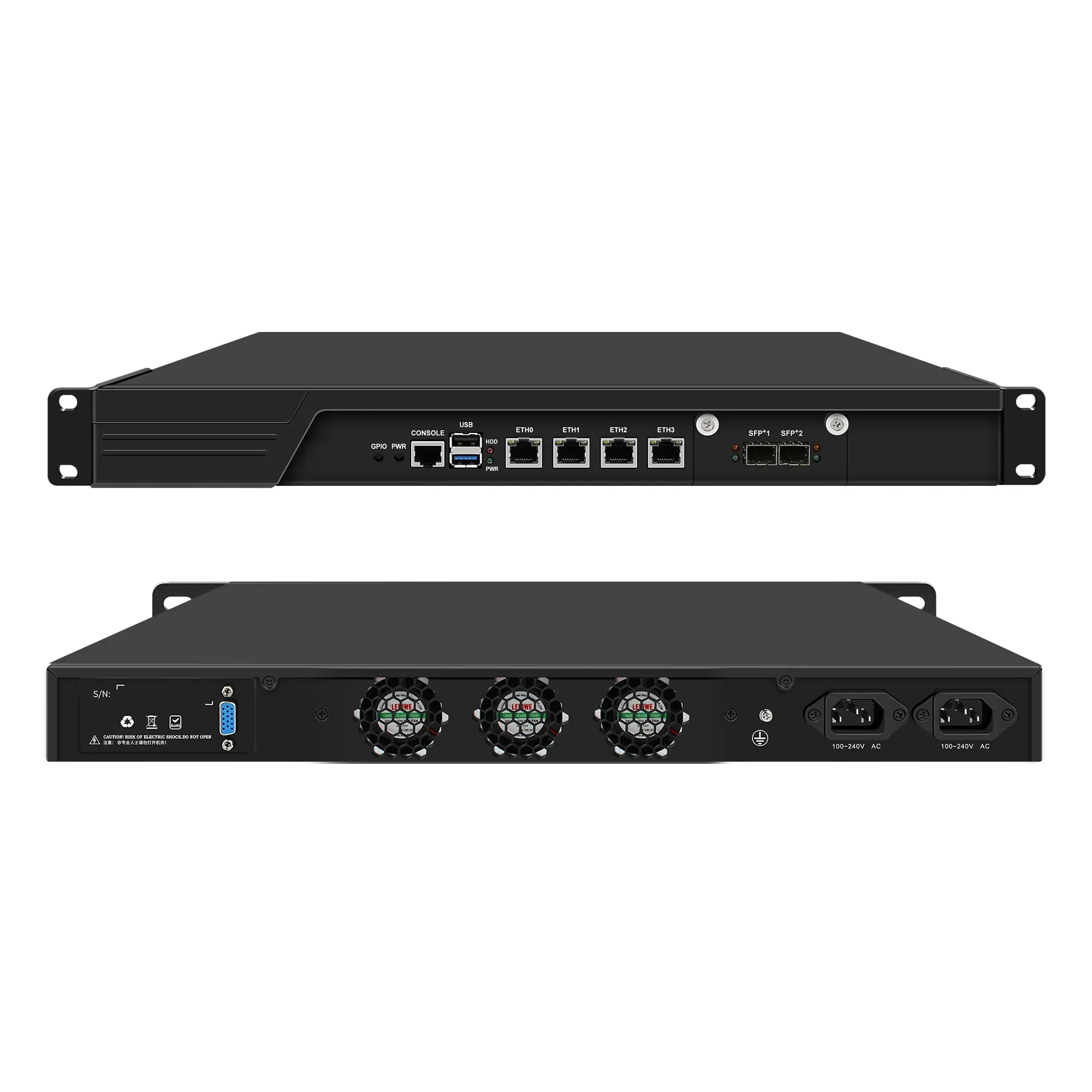

Option 3: 4 × Intel i226-V 2.5GbE RJ45 LAN ports + 2 × 10GbE SFP+ fiber ports for high-speed network applications.

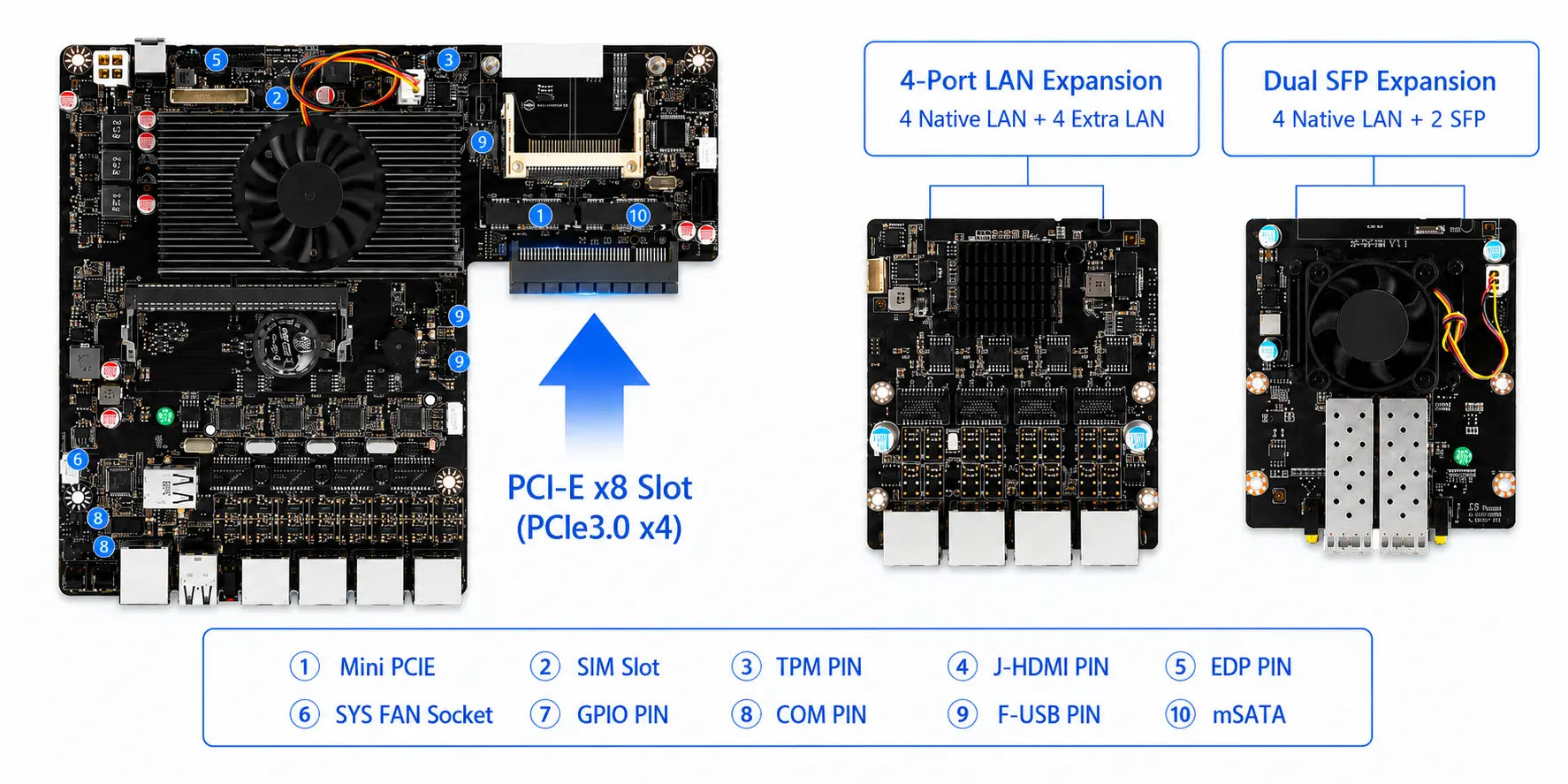

Additional I/O includes 1 × USB3.0 port, 1 × USB2.0 port, 1 × CONSOLE port and 1 × VGA video output port. - Expansion Specs: 1 × DDR5 SO-DIMM memory slot supporting up to 32GB RAM with speeds up to 4800MT/s. Storage options include 1 × mSATA slot and 1 × SATA3.0 interface supporting 2.5-inch SSD or HDD. Also includes 1 × Mini PCIe slot for WiFi or 4G modules with SIM slot support, and 1 × PCIe x8 expansion slot.
- Equipment Specs: 1U standard 19-inch rackmount chassis, size 19 × 12.6 × 1.75 inches, weight 11.68 lb. Powered by a 65W power supply. Designed for rack installation with mounting bracket ears included. Ideal for firewall appliances, network gateways, routing systems and rackmount network infrastructure deployments.
