CWWK N7 NAS Motherboard 8 Bay with 2 x 10GbE RJ45 LAN, Ryzen 7 8845HS CPU Mini ITX White PC Mainboard, 2 x NVMe PCIe4.0 x4, USB4 40Gbps, DDR5 32GB RAM 1TB SSD, PCIe x16 Slot
Description

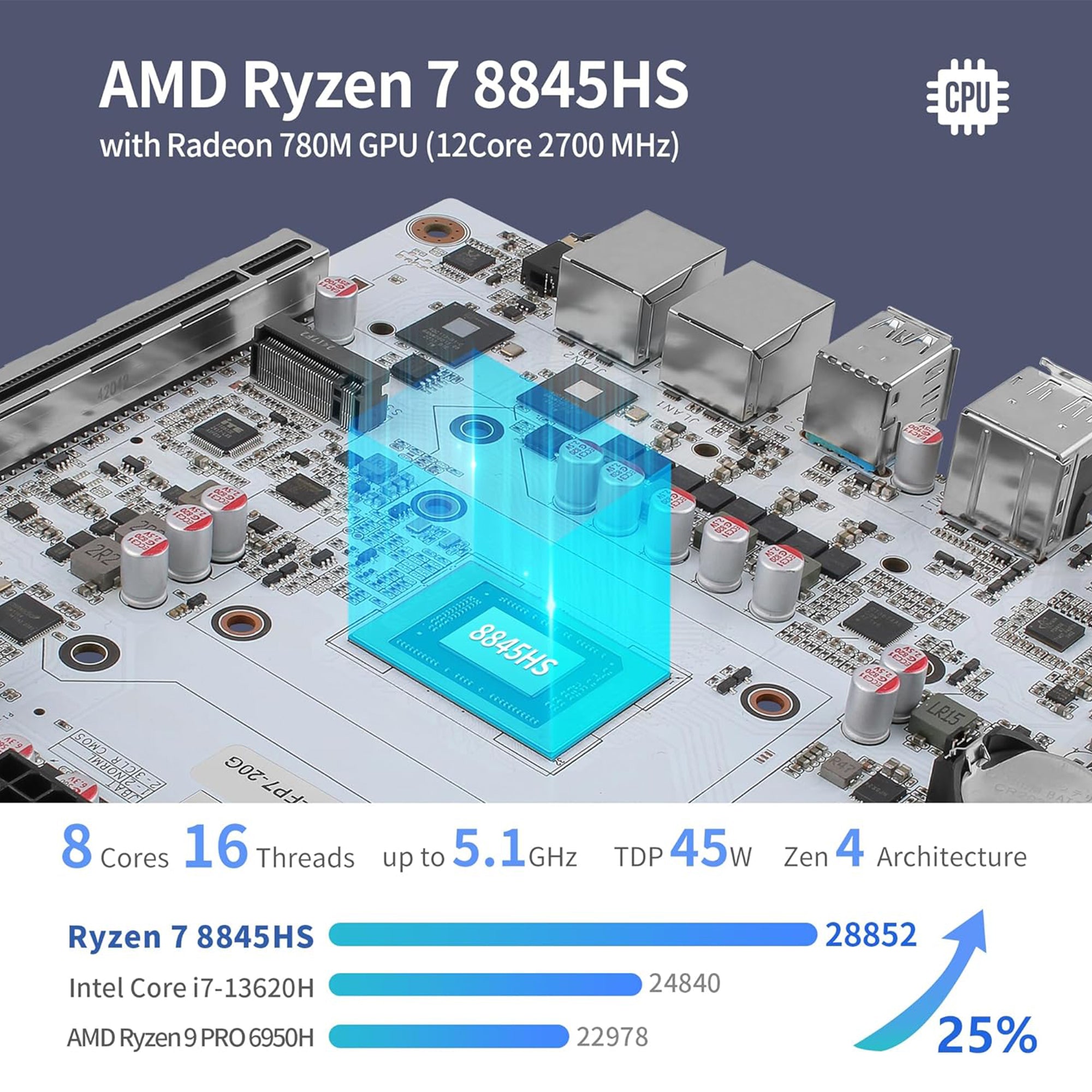

- Ryzen 7 AI Processer: The CWWK N7 equipped with Ryzen 7 8845HS CPU, Zen 4 architecture, 8C/16T, base 3.8GHz, up to 5.1GHz, 16MB cache, TDP35-54W. Integrated Ryzen AI NPU (delivering up to 16 TOPS). Its multithreaded performance is ideal for tasks like virtualization, multi-user services, etc. Radeon 780M GPU (12-Core, 2.7GHz) is sufficient to handle media application needs in most scenarios

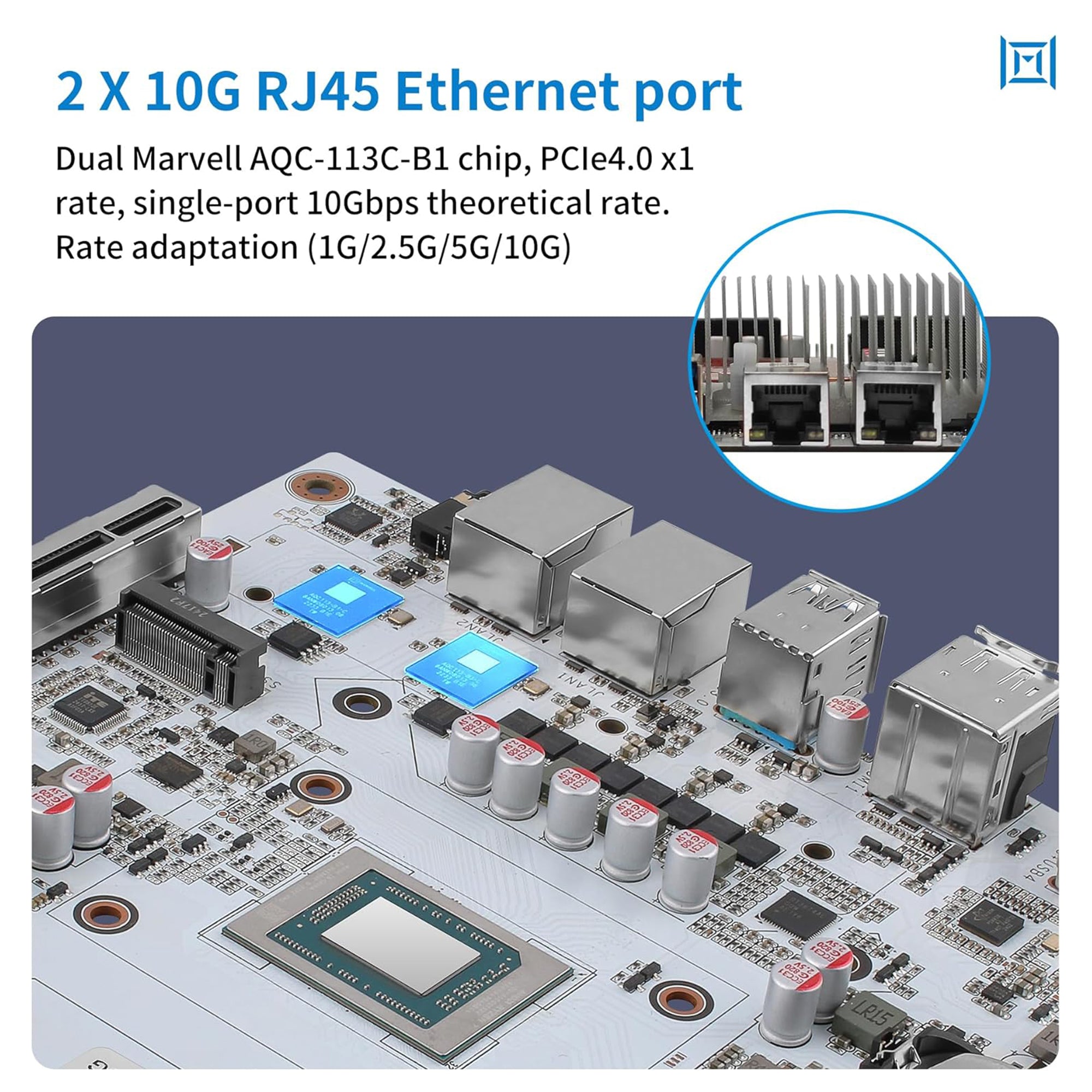

- Dual 10GbE RJ45 LAN: Features 2 x AQC113C-B1 10 Gbit RJ45 port (10GBase-T), adaptive 1G/2.5G/5G/10G, with full PCIe Gen 4 ×1 allocation allow high-throughput networking without contention. It is compatible with various open-source NAS systems (like TrueNAS or unraid), WinOS, Linux systems or PVE virtualization systems, suited for building VMs or NVMe-RAID, etc

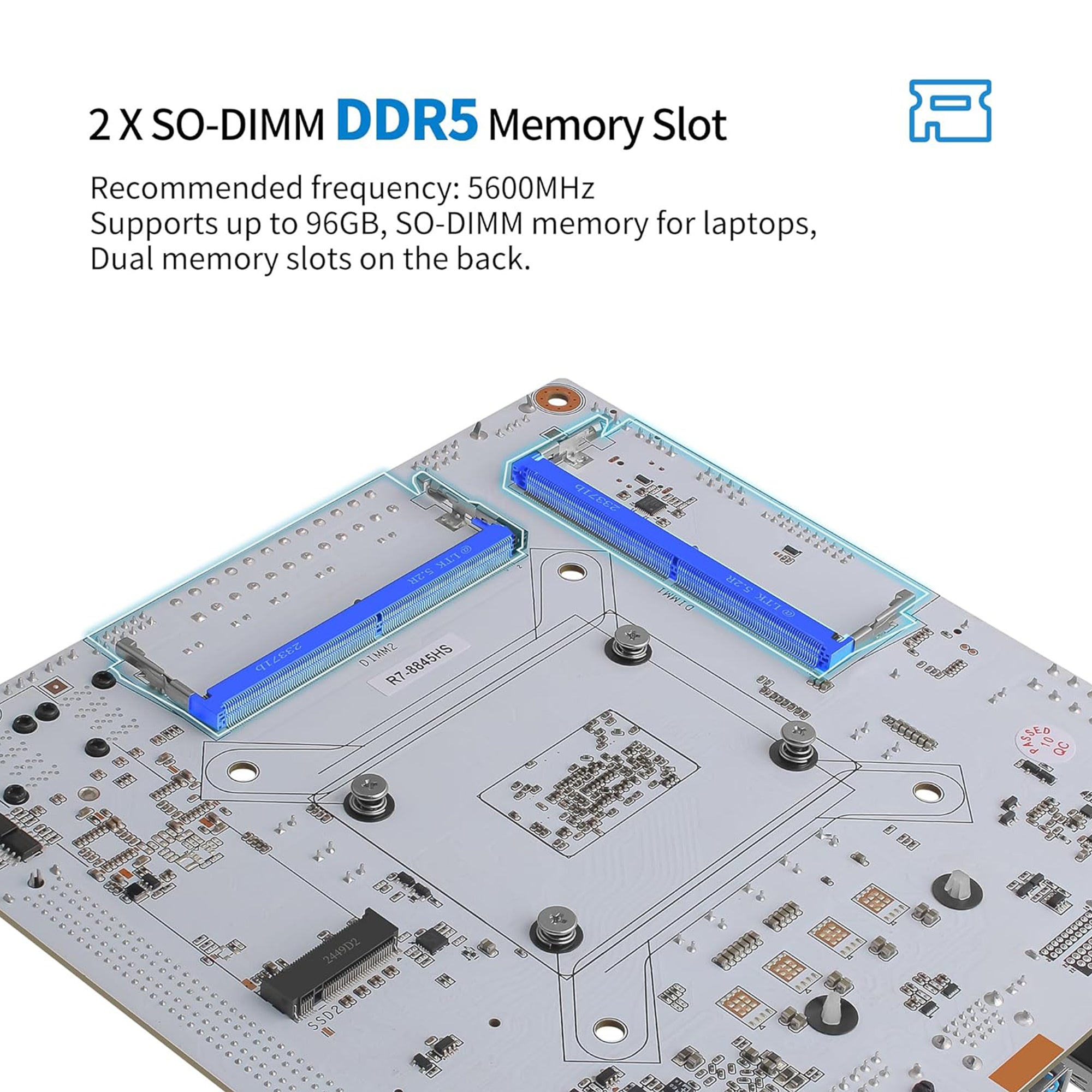

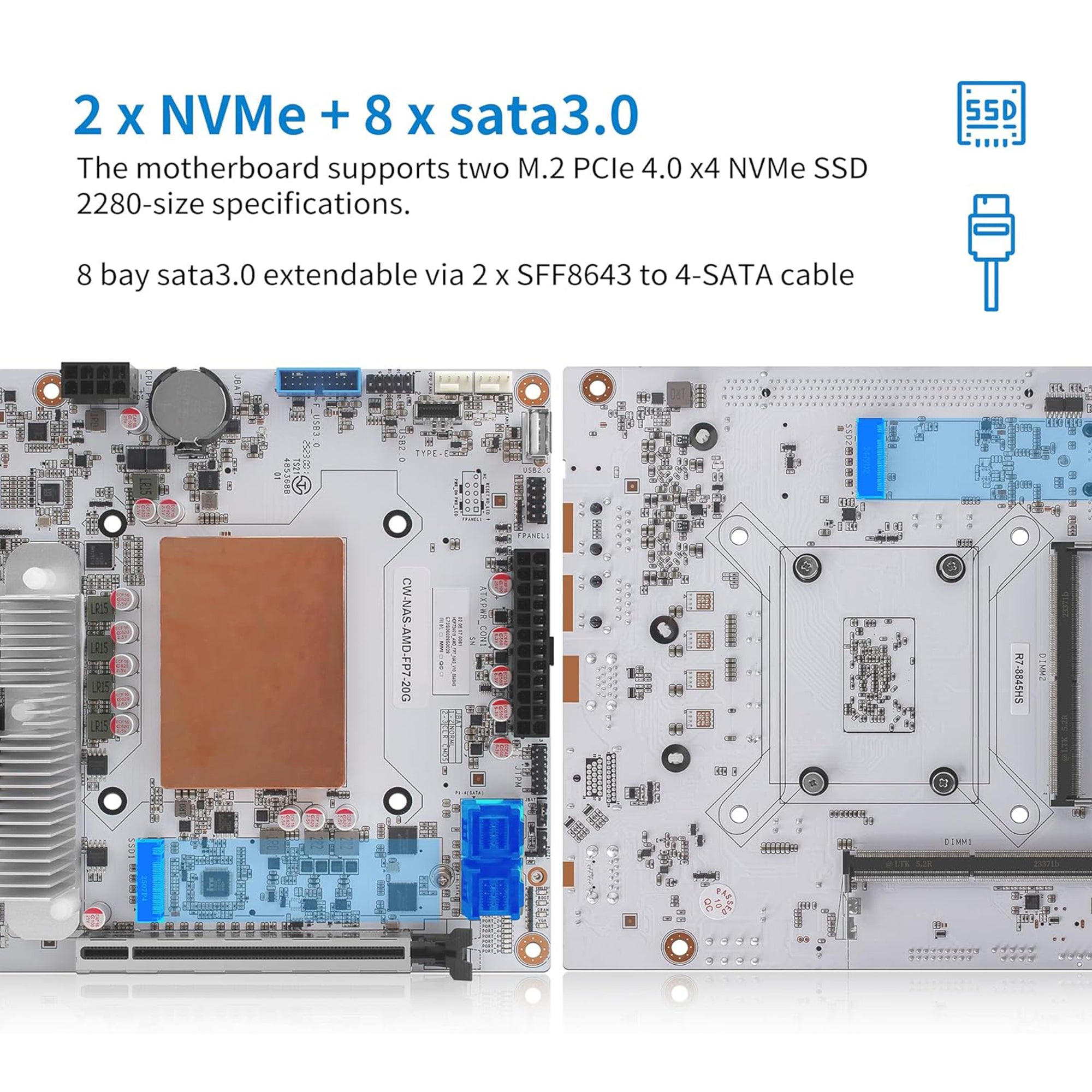

- 8-Bay SATA 3.0 + 2 × NVMe: Equipped with 2 × SFF-8643 ports, which can be converted into 8 × SATA 3.0 ports using two SFF-8643 to 4-SATA adapter cables (sold separately). 2 × M.2 NVMe slots (PCIe4.0 x4), supporting 2280-sized NVMe SSDs. Features 2 × DDR5 5600MHz SO-DIMM RAM slot (backward compatibility, non-ECC), supporting up to 2 x 48GB memory modules
- Various I/O Interfaces: Equipped with HD2.1 + DP2.1 ports, and 1 x USB4 Type-C, it supports triple screen display up to 4K@240Hz/8K@60Hz. The USB4 port supports data throughput of up to 40Gbps, allowing for greater expansion possibilities. 3 x USB3.2 Gen1 (5Gbps) for data transfer or USB peripherals. 1 x built-in USB 2.0 supports USB drive encryption and system boot for certain OS

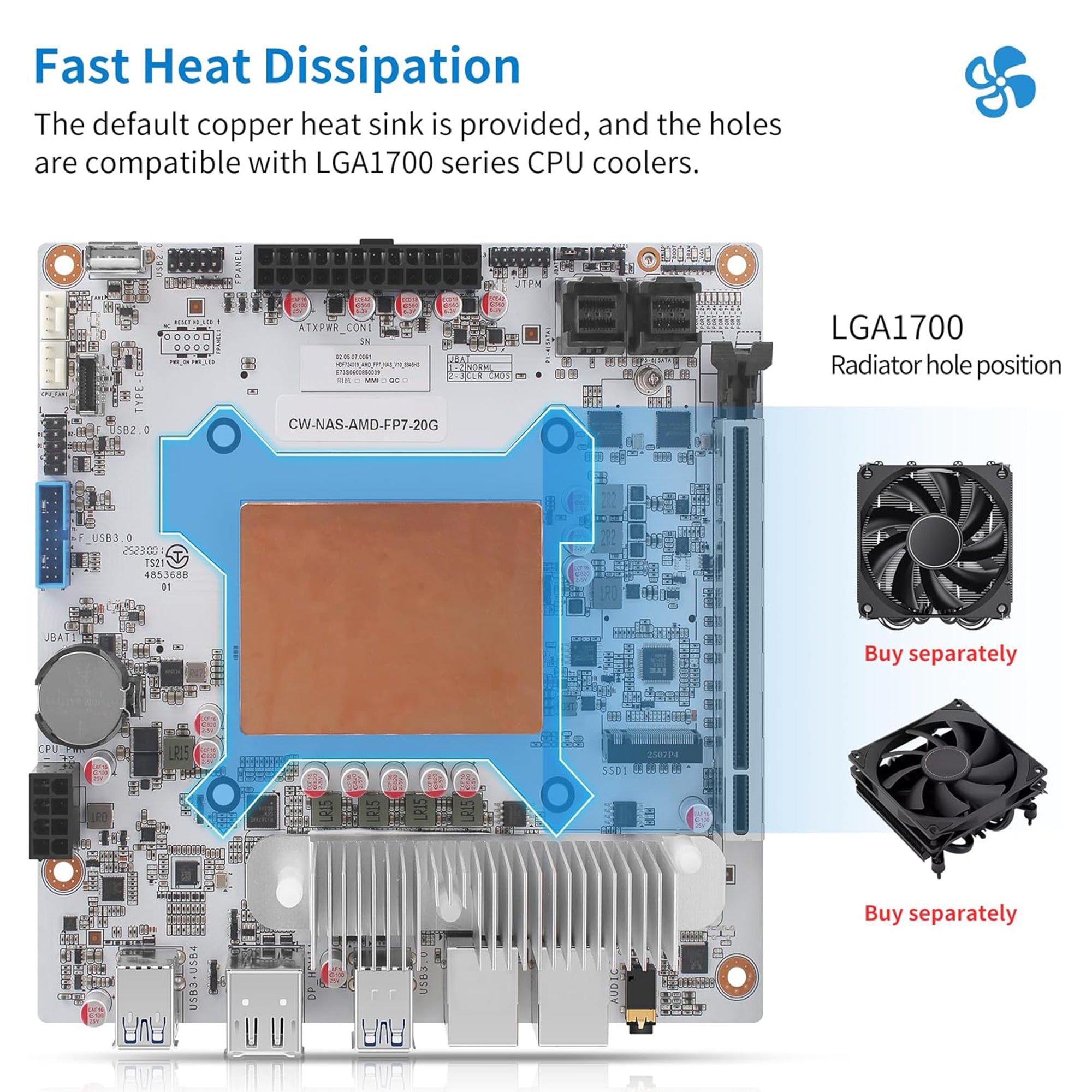

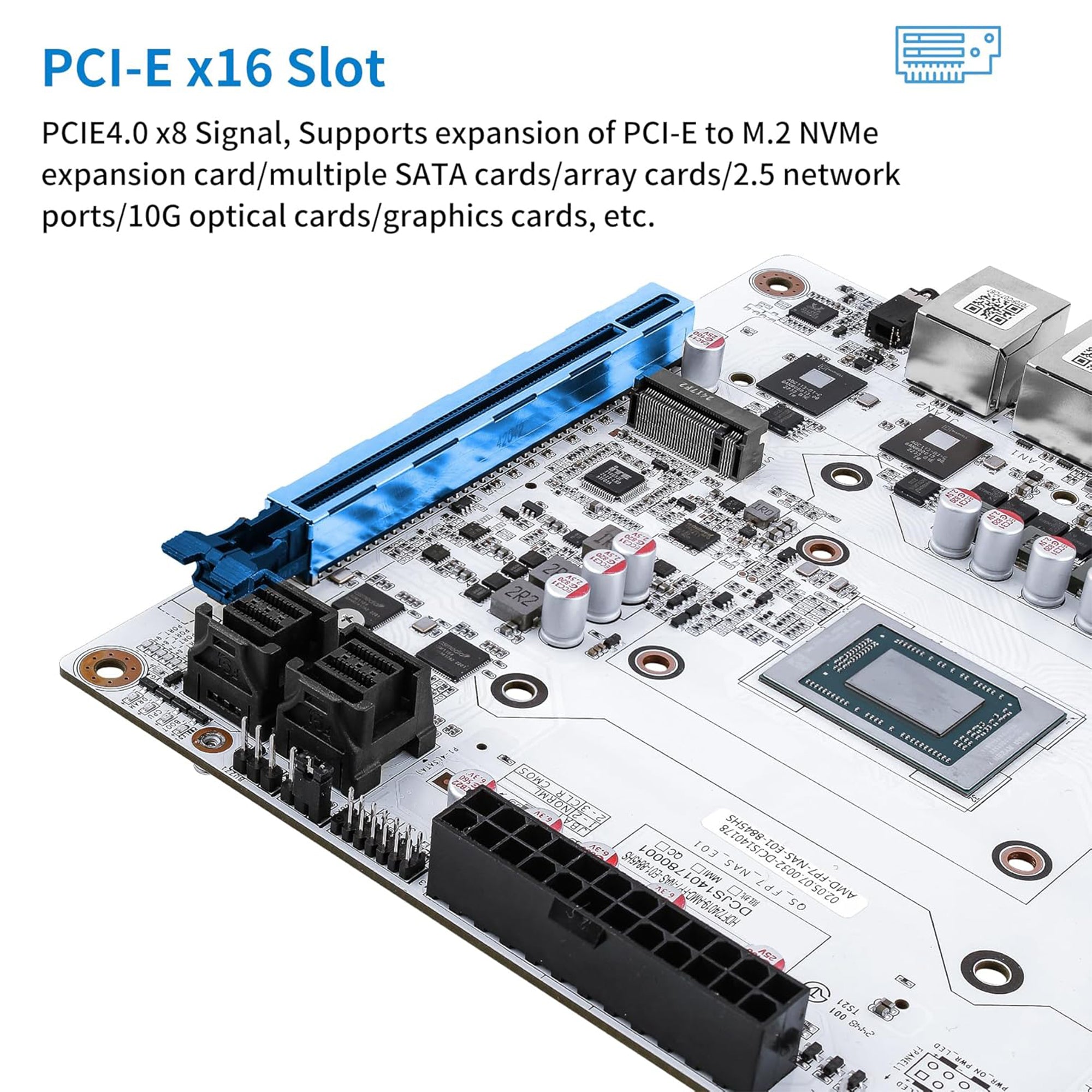

- Other Specifications: This Mini-ITX motherboard (17 × 17 cm) requires 24-pin + 8-pin (or 4-pin) power input, compatible with LGA1700 series coolers. It features 1 × PCIE x16 slot (PCIe 4.0 x8, can be split into x4/x4 via BIOS) for various expansion cards. Built-in USB 3.0 and Type-E headers for front USB 3.0 and USB-C connecting. I/O shield Included. PDF manual offered
